Victron Orion IP67 24/12V 5A DC to DC Converter Non Isolated

$45

CALCULATE SHIPPING:

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Orion IP67 24/12V 5A DC to DC Converter Non Isolated 60W, 5 Year Warranty. Completely encapsulated: waterproof, shockproof and ignition protected

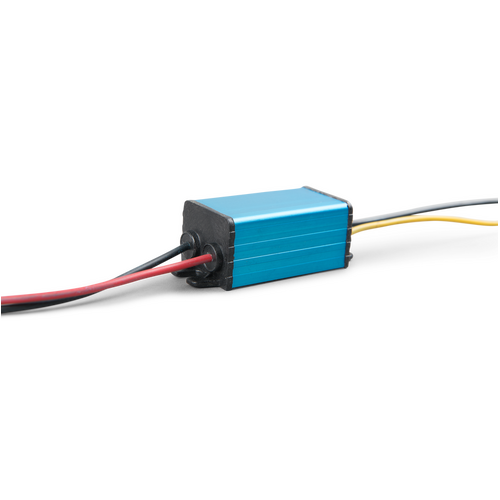

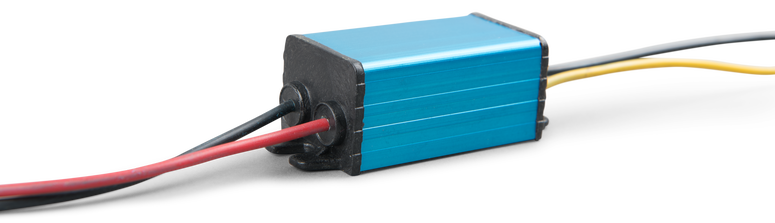

Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

Completely encapsulated: waterproof, shockproof and ignition protected:

Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

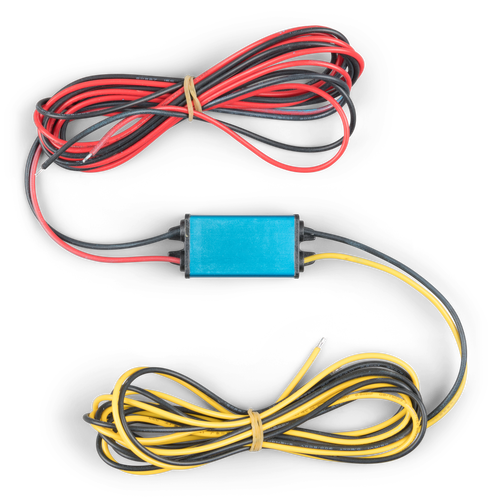

Extra-long input and output cables:

Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.

Wide input voltage range:

With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.

Protected against overheating:

It can be used in a hot environment such as a machine room.



Victron Product Card

Victron Product Manual

Enerdrive BTEC Product Drawing

Specifications

SKU ORI241205260

Brand Victron

GTIN 8719076048428

Warranty Period: 5 Years

Product Category Converters

Current (A) 5

Short Circuit Protection Yes

Net Weight (kg) 0.05

Rating (A) 5A

DC Output Voltage 12V +/- 3%

Dimensions 20 x 43 x 25

Protection category IP67

DC Input Voltage 15-40VDC

Overload protection Hiccup mode, recovers automatically after fault condition is removed

Efficiency 93%

Operating temperature range -20 to +70°C (full rated output up to 40°C)
