Victron BlueSolar PWM-LCD&USB 48V-20A Charge Controller

Product Description

Victron BlueSolar PWM-LCD&USB 48V-20A Charge Controller, 5 Year Warranty.

Liquid crystal display:

For status monitoring and set-up

Load output:

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output:

This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm:

Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs:

Maximum current (both outputs combined): 2A

Specifications:

• Battery Voltage: 48V
• Rated Charge Current: 20A
• Automatic Load Disconnect: Yes
• Maximum Solar Voltage: 100V
• Self-Consumption: < 10 mA
• Load Output: Manual control + low voltage disconnect +timer
• Protections: Battery reverse polarity (fuse) Output short circuit Over temperature
• Operating Temperature Range: -35 to +60°C (full load)
• Humidity (Non-Condensing): Max 95%
• Charge Voltage 'absoprtion': 57.6V
• Charge Voltage 'float': 54.8V
• Low Voltage Load Disconnect: 44.8V
• Low Voltage Reconnect: 50.4V
• Voltage: 5V
• Current: 2A (total from 2 outputs)
• Protection Class: IP20
• Terminal Size: 16mm² / AW
• Weight: 0.3kg
• Dimensions: 101mm x 184mm x 47mm

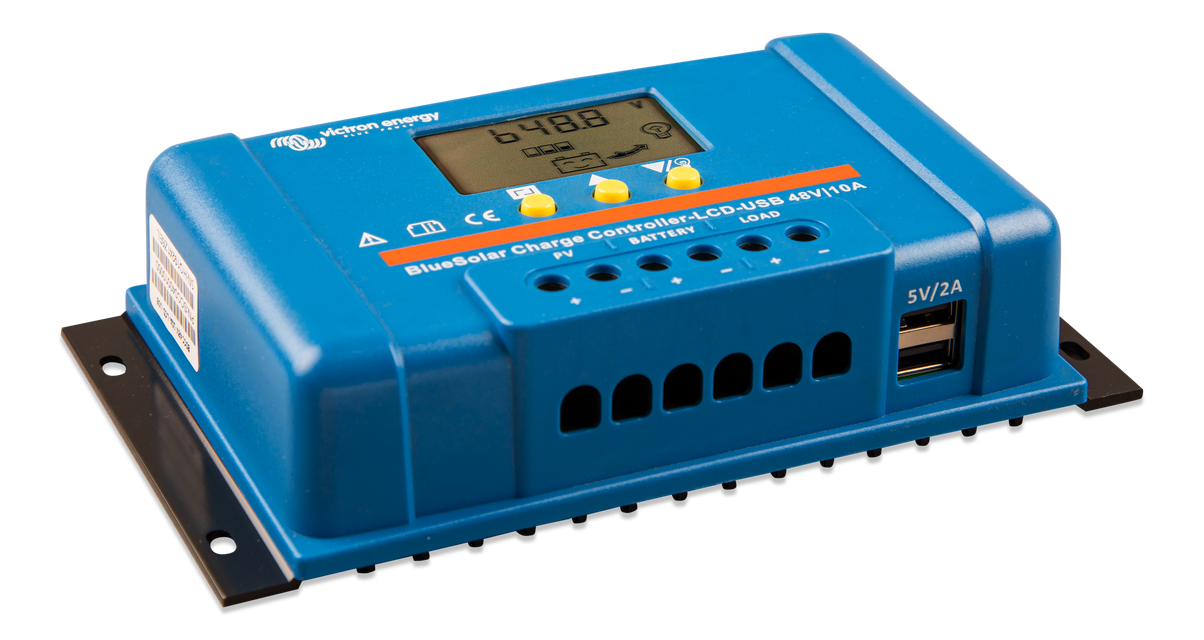

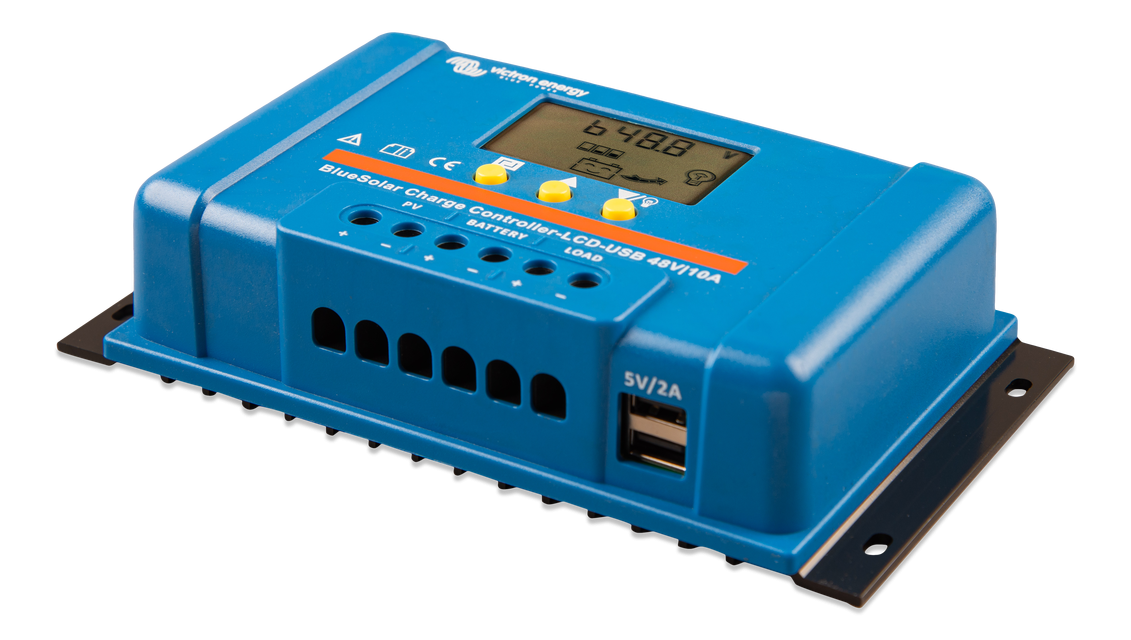

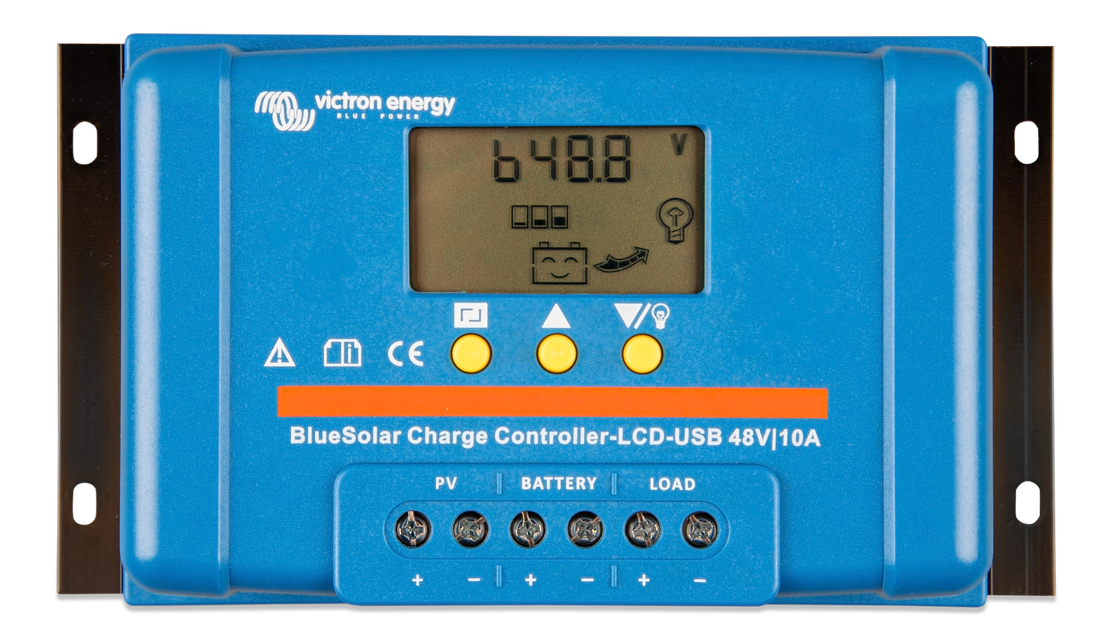

Please Note: The image shown is not the correct image for this model.
