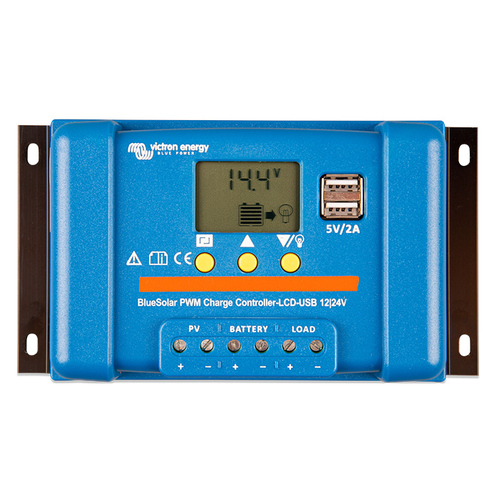

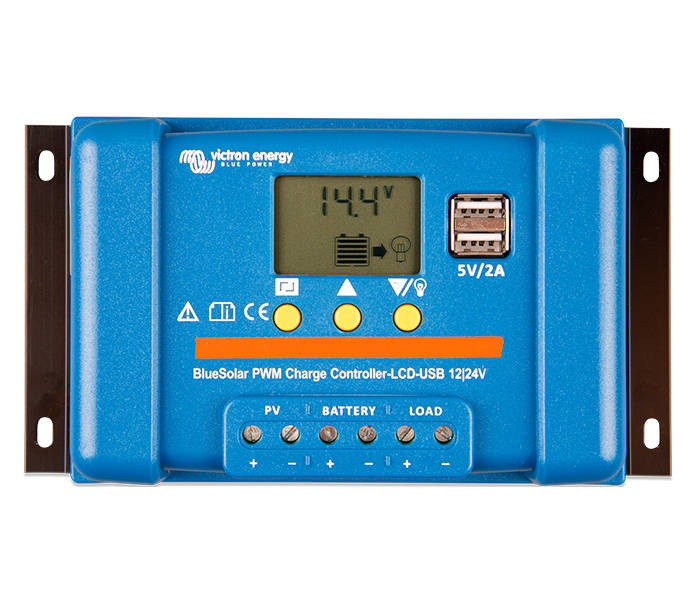

Victron BlueSolar PWM-LCD&USB 12/24V-5A Charge Controller





Learn More»
Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron BlueSolar PWM-LCD&USB 12/24V-5A Charge Controller, 5 Year Warranty.

Liquid crystal display:

For status monitoring and set-up

Load output:

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output:

This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm:

Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs:

Maximum current (both outputs combined): 2A


Please Note: The image shown is not the correct image for this model.

Victron PI12/2000 Product Card

Product Manual


SKU SCC010005050

Brand Victron

GTIN 8719076046172

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 5

Net Weight (kg) 0.15

Protection Battery reverse polarity (fuse), Output short circuit, and Over temperature

Voltage 12/24 V with automatic system voltage detection

Charge voltage 'absorption' 14.2V/28.4V

Humidity Max 95%

Operating temperature range -35 to +60°C (full load)

Dimensions 36 x 169 x 96 (D x W x H)
