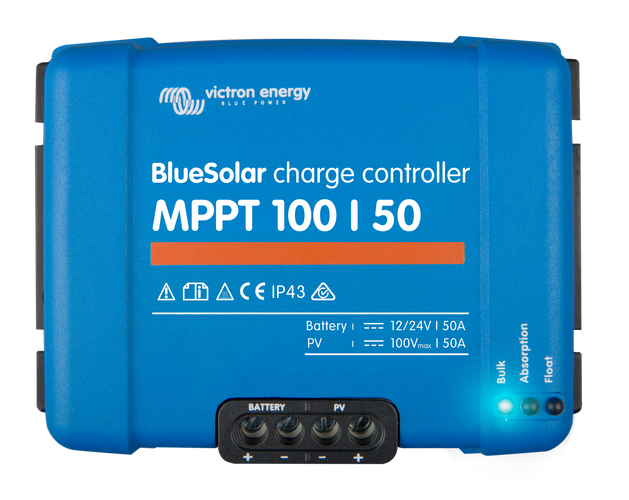

Victron BlueSolar MPPT Charge Controller 100/50

SKU: SCC020050200 Learn More»
Victron BlueSolar MPPT Charge Controller 100/50
Free Shipping


This item is sent via Express Courier. All freight is fully insured.








Click '+' to show more accessories
Learn More»
Dispatch 5 to 7 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron BlueSolar MPPT Charge Controller 100 VOC / 50A, 5 Years Warranty. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Ultra-fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control:

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Ultrafast Maximum Power Point Tracking (MPPT):

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions:

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency:

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40??C (104??F).

Flexible charge algorithm:

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection:

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor:

Compensates absorption and float charge voltage for temperature.

Real-time data display options:

  • ColorControl GX or other GX devices.
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

Victron PI12/2000 Product Card

Product Manual


SKU SCC020050200

Brand Victron

GTIN 8719076025566

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 50

Temperature Compensation -16 mV / °C resp. -32 mV / °C

Float Default setting: 13,8V / 27,6V (adjustable)

Humidity 95%, non-condensing

Voltage 12/24V Auto Select

Net Weight (kg) 1.3

Charge voltage 'absorption' Default setting: 14,4V / 28,8V (adjustable)

Operating temperature range -30 to +60°C (full rated output up to 40°C)

Amps 50

Nominal PV Power 12V: 700W | 24V: 1400W

Efficiency Max. 98%

Protection Battery reverse polarity (fuse, not user accessible): PV reverse polarity, Output short circuit, Over temperature

Dimensions 70 x 186 x 130 (D x W x H)


BlueSolar MPPT - VictronConnect: How to change settings | Victron Energy


Change MPPT settings using Bluetooth


BlueSolar MPPT - VictronConnect: Live data | Victron Energy


How to get a readout from an MPPT with a VE.Direct Bluetooth Smart dongle | Victron Energy
