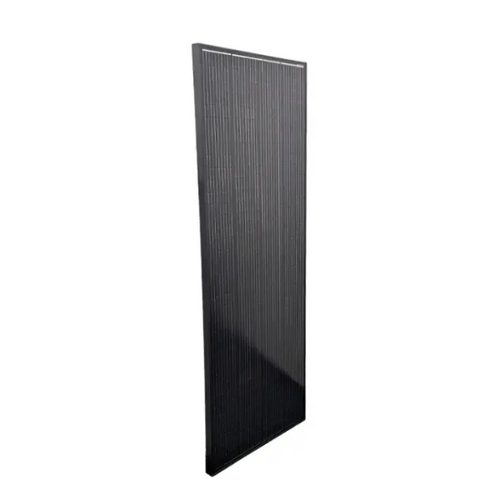

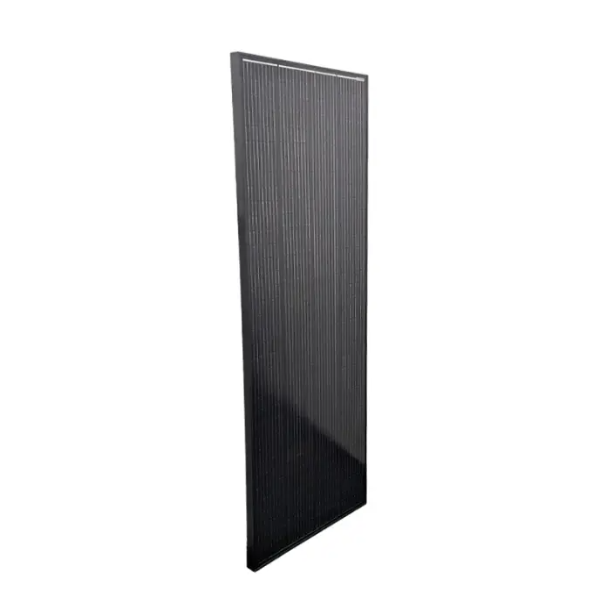

Sphere 210w V2 High Voltage Mono Crystalline Twin Cell Black Fixed Solar Panel

Product Description

Sphere 210w V2 High Voltage Mono Crystalline Twin Cell Black Fixed Solar Panel, 5 Year Warranty. Sphere High Voltage panels allow for the installation of additional panels in each string without exceeding the maximum current rating of the down cable to the system's charge controller, offering more flexibility in system design and a more efficient and cost-effective solution. This allows thinner gauge wire to be used over longer distances without sacrificing power or efficiency resulting in significant cost savings for installation.

Sphere High Voltage panels provide existing RV solar panel systems an easy upgrade path to multi-panel configurations without having to make costly upgrades to wiring. In all cases, Sphere High Voltage panels require an MPPT style solar charger to operate correctly when charging a 12V DC battery bank.

They retain all the features that make them the best solution for tackling the common issue of partial shading. With their unique twin cell design, each side of the panel functions independently, ensuring consistent power output even when there is partial shading.

Features:

• Sphere Twin Cell Solar Technology for improved performance in partial shade.
• Saves money on installation costs and provides more installation options
• Allows you to install multiple panels on existing builds without having to upgrade the wiring.
• Provides a more efficient and cost-effective solar power system for all users
• Ensures consistent power output even when there is partial shading

Specifications:

• Standard Test Conditions: 1000W/M2, 1.5AM, 25
• Peak Power Output (W): 210W
• Power Output Tolerance (%): 3%
• Maximum Power Voltage (V): 34.72
• Maximum Power Current (A): 6.05
• Short Circuit Current (A): 6.26
• Open Circuit Voltage (V): 40.32
• Maximum System Voltage: 1000V/DC
• Junction Box Type: 0.9m 4mm 2 solar cable fitted with MC4 IP65
• Number of Cells: 4 x 28 Twin Cell
• Module Size (mm): 670 x 1480 x 35mm
• Module Net Weight: 12kg
• Working Temperature: -40 ~ 85°C
• Power TK: -0.45%/°C
• Open Circuit Voltage T: -0.33%/°C
• Short Circuit Current T: 0.045%/°C
