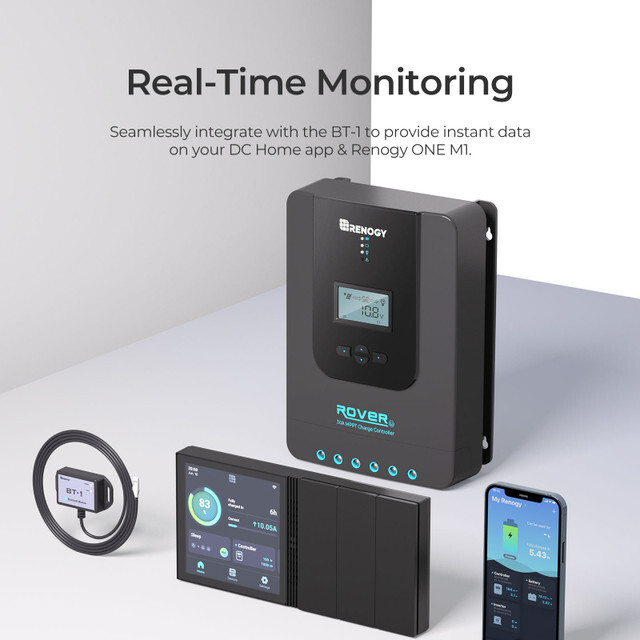

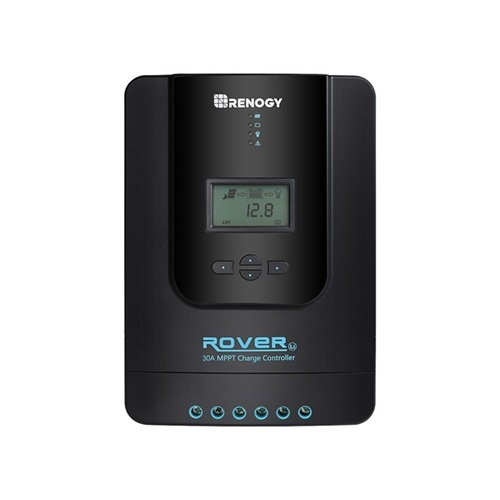

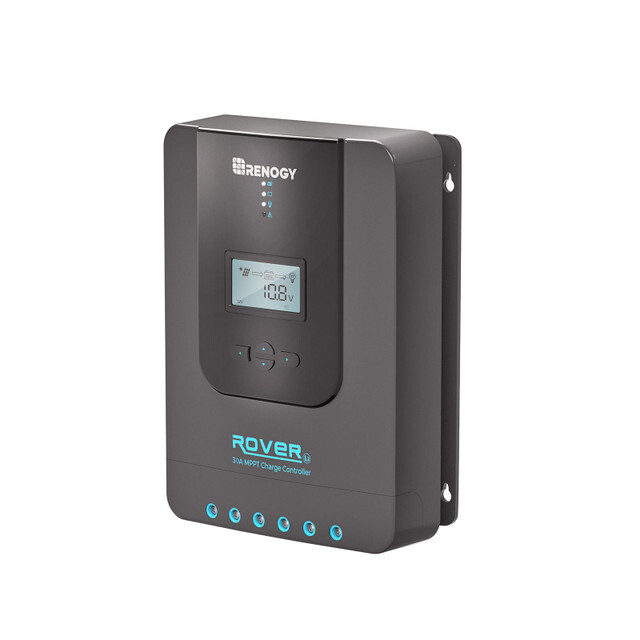

Renogy Rover Li 30A MPPT Solar Charge Controller with BT-1 Bluetooth Module

Product Description

Renogy Rover Li 30A MPPT Solar Charge Controller with BT-1 Bluetooth Module, 2 Year Warranty. Unleash Full Power in Any Environment with Rover Controllers

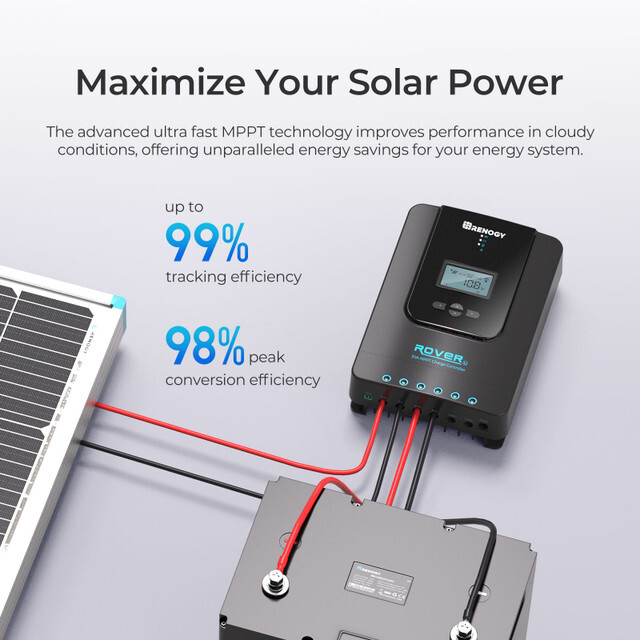

• MPPT: tracking efficiency up to 99%, peak conversion efficiency 98%
• Low-temperature charging protection.
• Multiple electronic protections ensure system safety.

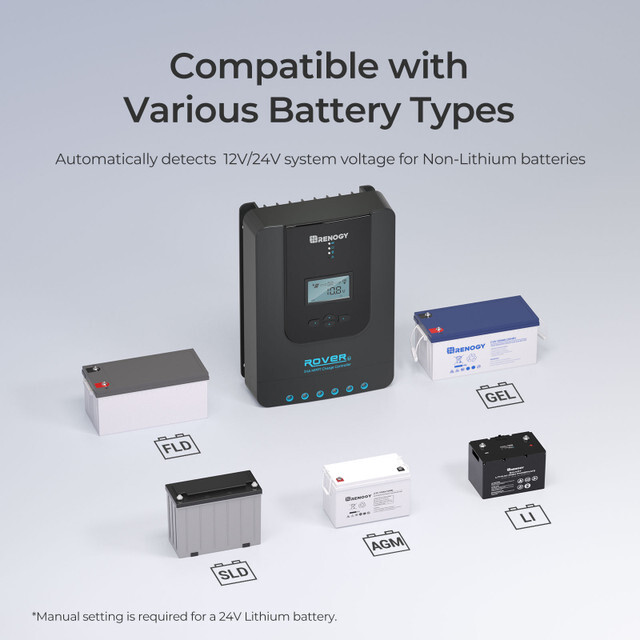

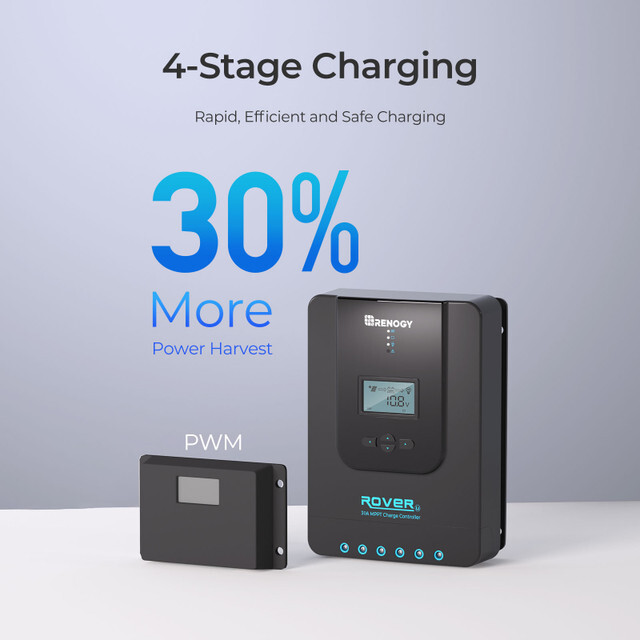

• Intelligent 4-stage charging & automatic 12V/24V voltage detect.

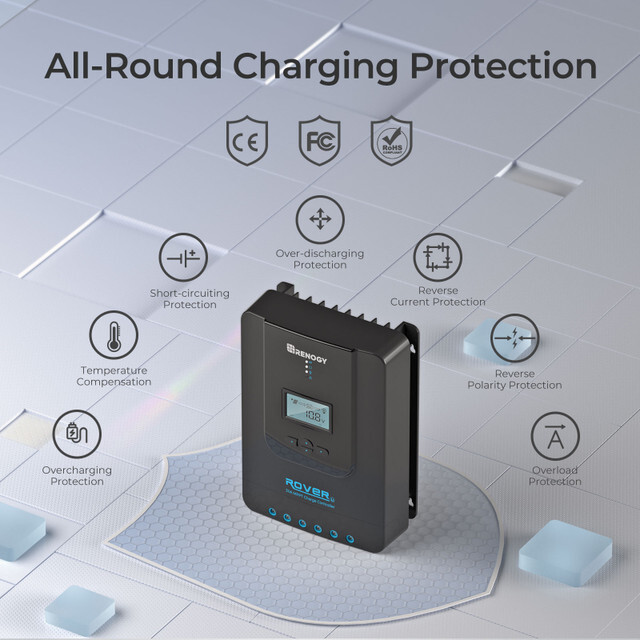

Comprehensive Internal and External Protection
The high-quality casing materials and the addition of a rubber strip make this charge controller more effective in preventing rust, corrosion, and contamination while safeguarding wiring for optimal functionality. Internally, the controller boasts multiple protection mechanisms, ensuring the safety and longevity of your system.

Rapid Heat Dissipation
Rover charge controller stands out with its rapid heat dissipation capabilities, ensuring efficient performance even in the most demanding environments. With the ability to quickly dissipate heat, this controller maintains peak performance, safeguarding your batteries and system components.

Powering Your Adventures Faster
Experience unparalleled charging efficiency with our MPPT charge controller. By harnessing every bit of sunlight, this controller ensures optimal charging for your batteries. In just 3.2 hours, it can fully charge a 12V 100Ah battery, making it the perfect companion for your off-grid adventures.

Charging with Precision
The included external temperature sensor helps Rover 30A Solar Charge Controller track the battery's temperature all year round, avoiding under-charging in cold climates down to -40°F, and overcharging in blazing weather up to 149°F.

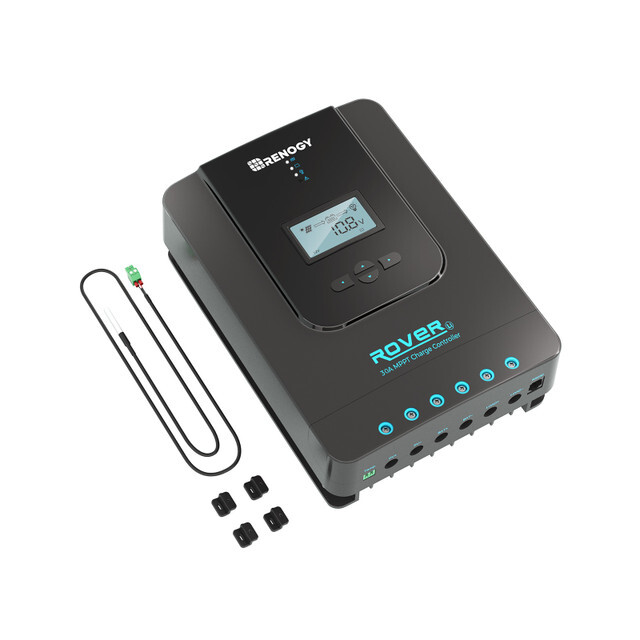

Package Includes:

• 1 x Rover Li 30 Amp MPPT Solar Charge Controller
• 1 x Remote Temperature Sensor
• 4 x Mounting Brackets
• Options 1：BT-2 Bluetooth Module
• Options 1：BT-2 Bluetooth Module & Renogy M1

Specifications for Renogy Rover Li 30A MPPT Solar Charge Controller:

• Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium types)
• Rated Charge Current: 30A
• Max. PV Input Voltage: 95 VDC
• Max. PV Input Power: 12V/400W, 24V/800W
• Power Consumption: ＜100mA/12V; ＜58mA/24V
• Max Battery Voltage: 32V
• Ground Type: Negative
• Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.
• Protection Level: IP32
• Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
• Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
• Operating / Storage Humidity: ≤ 90%, No Condensation
• Temperature Compensation: -3mV/°C/2V
• Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
• Weight: 4.4 lbs / 2.0 kg
• Max. Terminals Size: 8 AWG 10mm2

Specifications for Renogy BT-2 Bluetooth Module:

• Communication Range: ≤82ft (25m)
• Cable Length: 16.4 ft (5.00m )
• Dimensions: 238 x 172 x 77 mm
• Weight: 130g
• Operation Temperature: -20℃~85℃
• Communication Protocol: RS485
• Port Type: RJ45
• Input Voltage: 5V
• Protection Grade: IP54
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Serial Baud Rate: Fixed Baud Rate 9600bps
• FCC Class B Part 15 Compliant: YES
