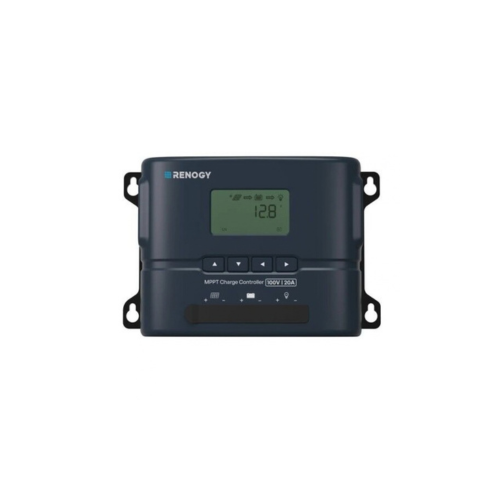

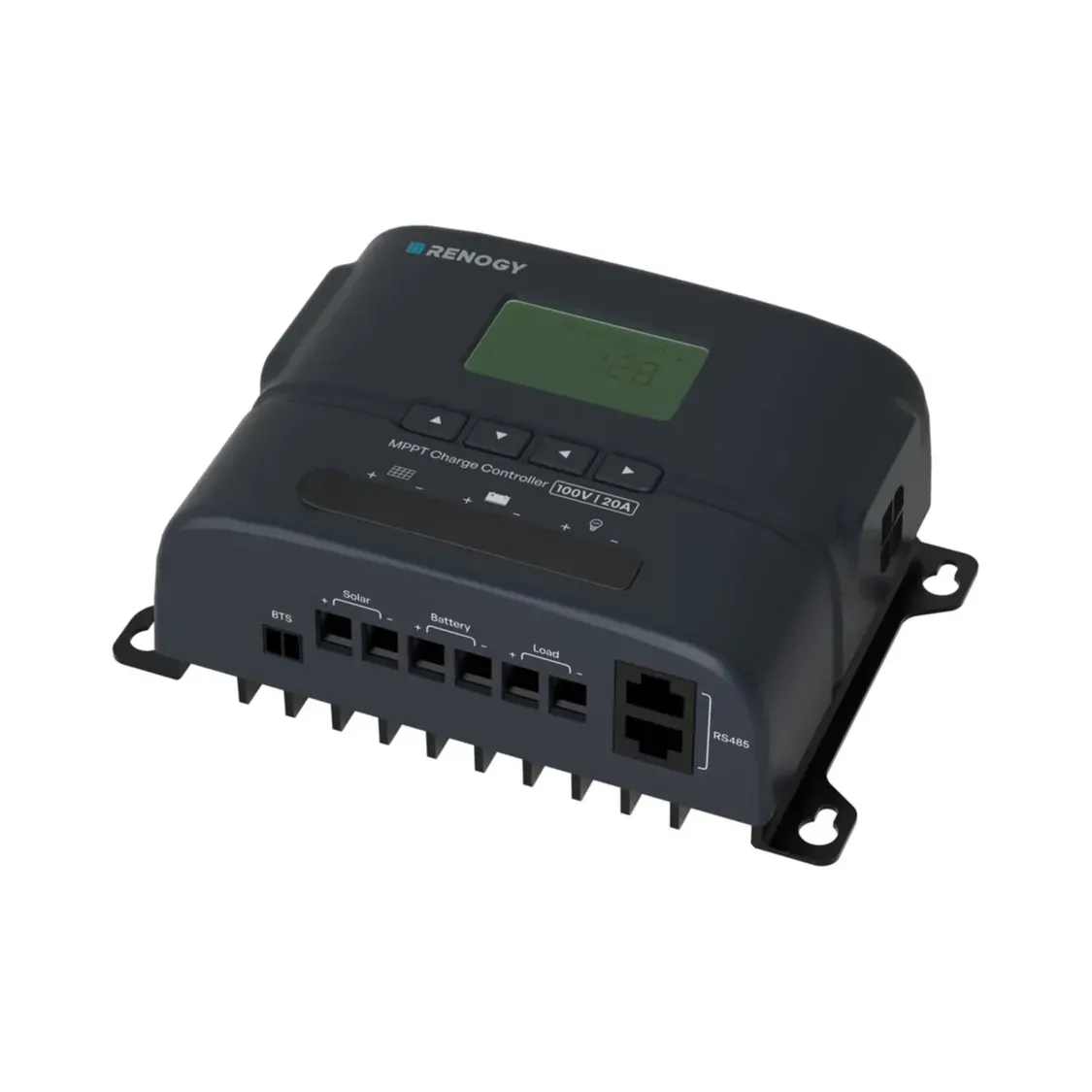

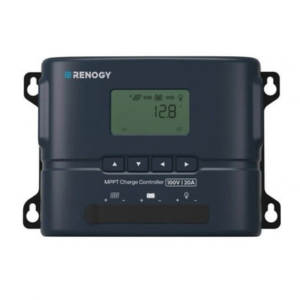

Renogy Rover 2 20A Compact MPPT Charge Controller with Bluetooth

Product Description

Renogy Rover 2 20A Compact MPPT Charge Controller with Bluetooth, 2 Year Warranty. Charge controller is an intelligent controller suitable for various off-grid solar applications. It protects the battery from being over-charged by the solar modules and over-discharged by the loads. The controller features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. The charge controller’s charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

Features:

• Up to 65% smaller than the previous generation, so it fits easily into tight spaces.
• Monitor charging status on the LCD screen or through the Renogy App via built-in Bluetooth, with no external dongle required.
• Our most advanced MPPT technology helps capture more solar power as sunlight changes.
• Full-rated output up to 45°C, so heat won't slow your charging
• Connect multiple units in parallel to add more charging capacity as your system grows.
• Supports lithium, AGM, gel, flooded, and user-defined battery profiles.

Specifications:

• Rated Charge Current: 20A
• Input Voltage Range: 15–100VDC
• Max Solar Input Voltage: 100VDC
• Max Solar Input Power: 12V/300W, 24V/600W
• Max MPPT Tracking Efficiency: 99%
• Max Conversion Efficiency: 97%
• Temperature Compensation: -3mV/°C/2V
• Self Consumption: ≤0.5W
• Communication: Built-In Bluetooth, RS485
• Terminal Size: 8 AWG
• Dimensions: 162 × 108 × 57mm
• Weight: 0.48kg
• Certification: RCM, FCC, CE, UKCA, ICID, RoHS, REACH, TSCA / CA65, TELEC, RF, R10
• Warranty: 2-Year

What's In the Box:

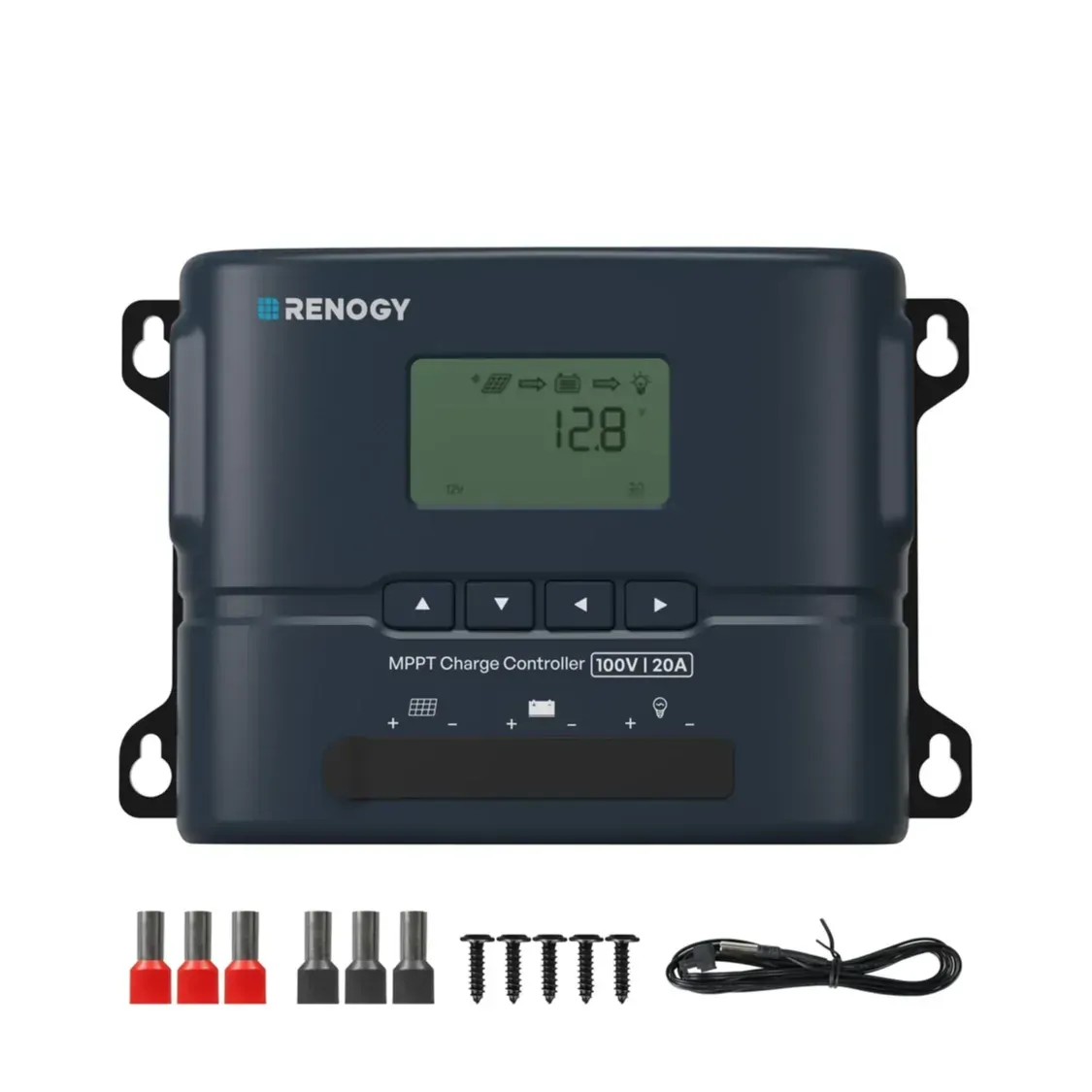

• 1 x Rover 2 12V/24V Compact MPPT Charge Controller with Bluetooth
• 5 x Mounting Screws
• 1 x Temperature Sensor
• 3 x Ferrule With Insulation
