Renogy Monitoring Screen for Rover Elite Series

Product Description

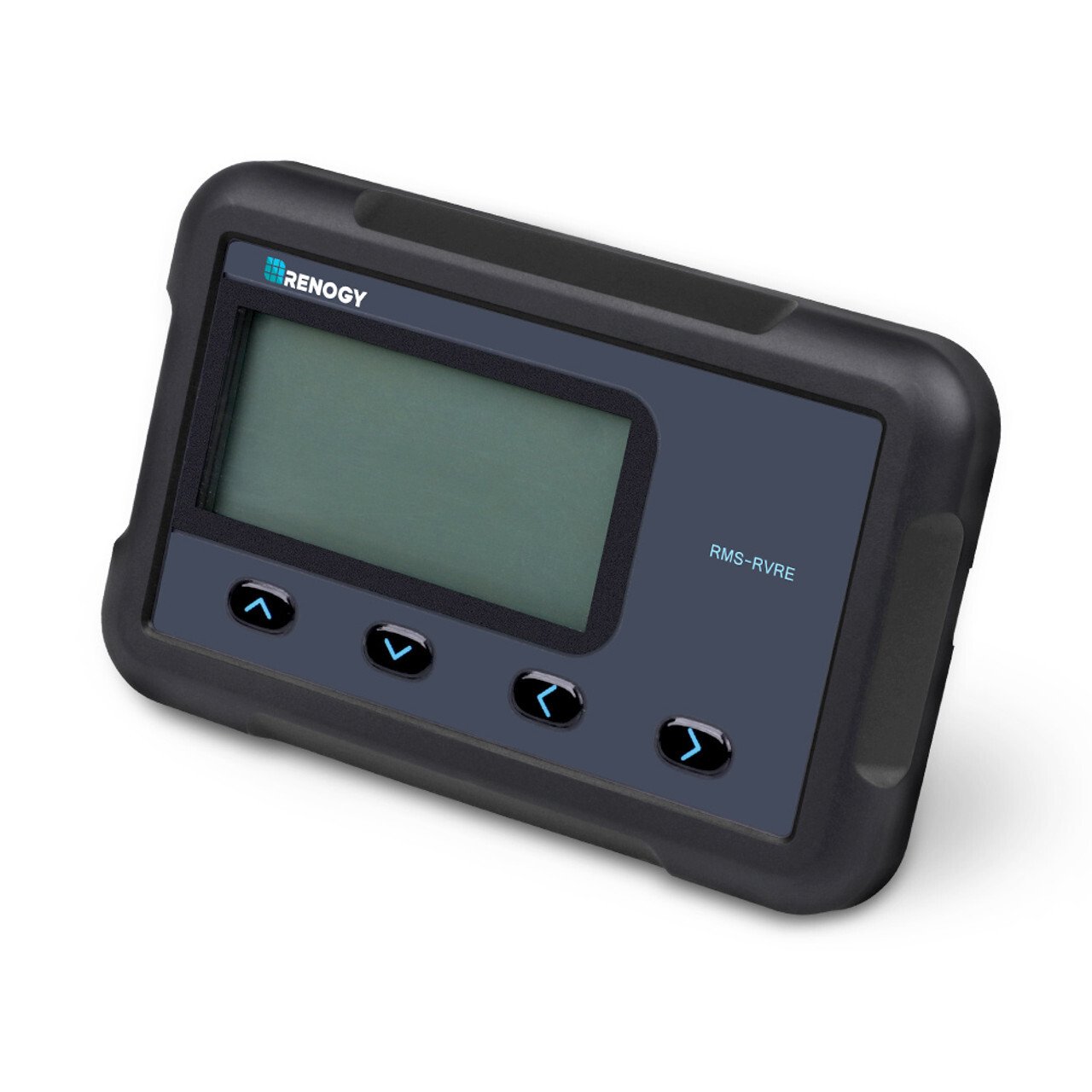

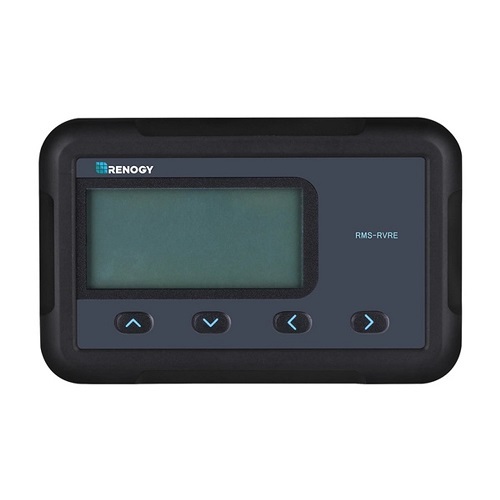

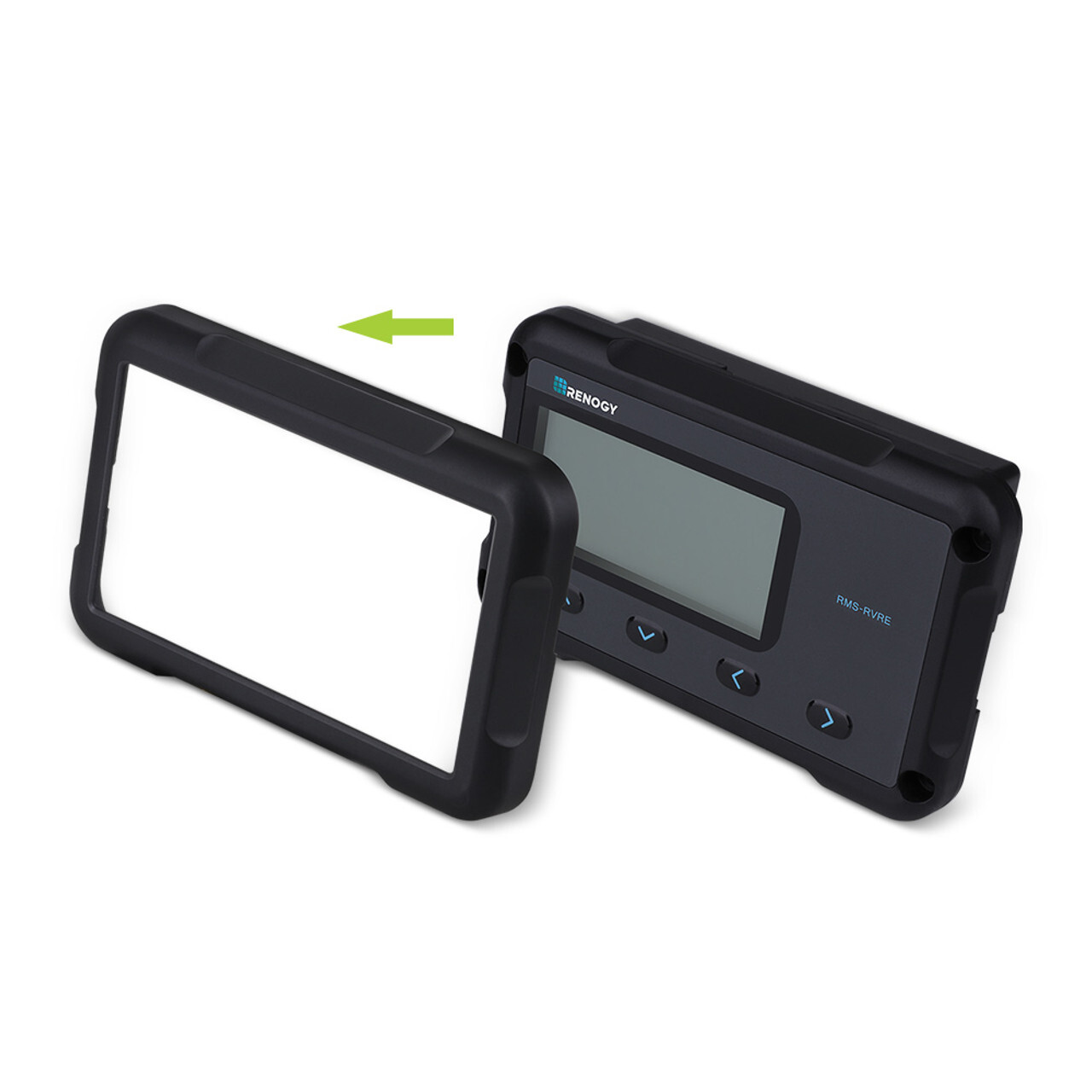

Renogy Monitoring Screen for Rover Elite Series, 1 Year Warranty. The RMS-RVRE is a high precision meter designed for Rover Elite charge controllers. Featuring a backlit display and flush-mountable, it is engineered for an aesthetically clean and professional look on RVs or camper walls. Utilize the 4-key input to easily navigate through your system information or modify quick parameters as well as identify any error codes. The RMS-RVRE is the perfect monitor companion to optimize any solar system!

Features:

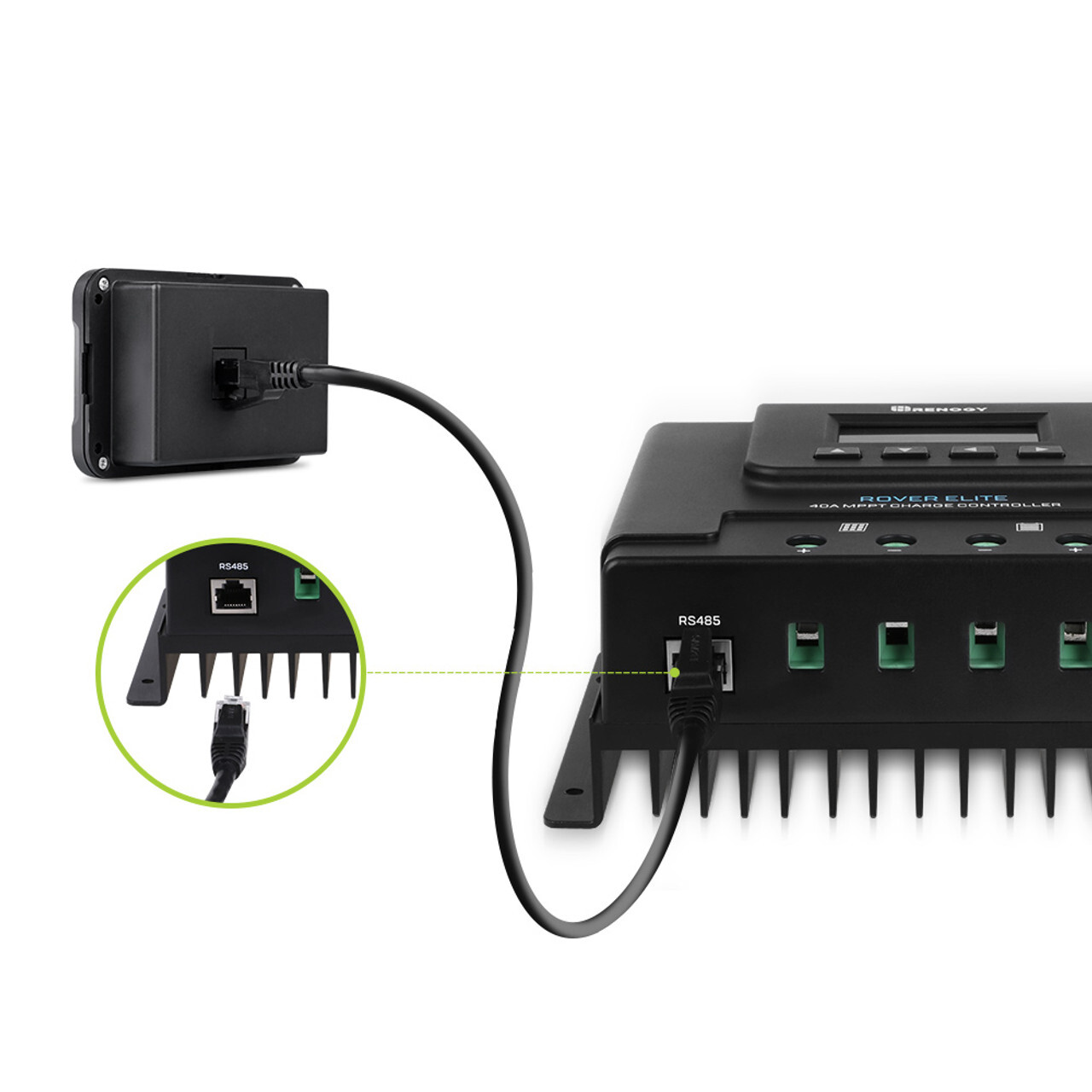

• Plug and Play: Simply connects the monitoring screen to the charge controller using an RJ45 communication cable for real-time monitoring.
• Accurate Readings: Obtains charge controller status directly from the Rover Elite for precise tracking and monitoring.

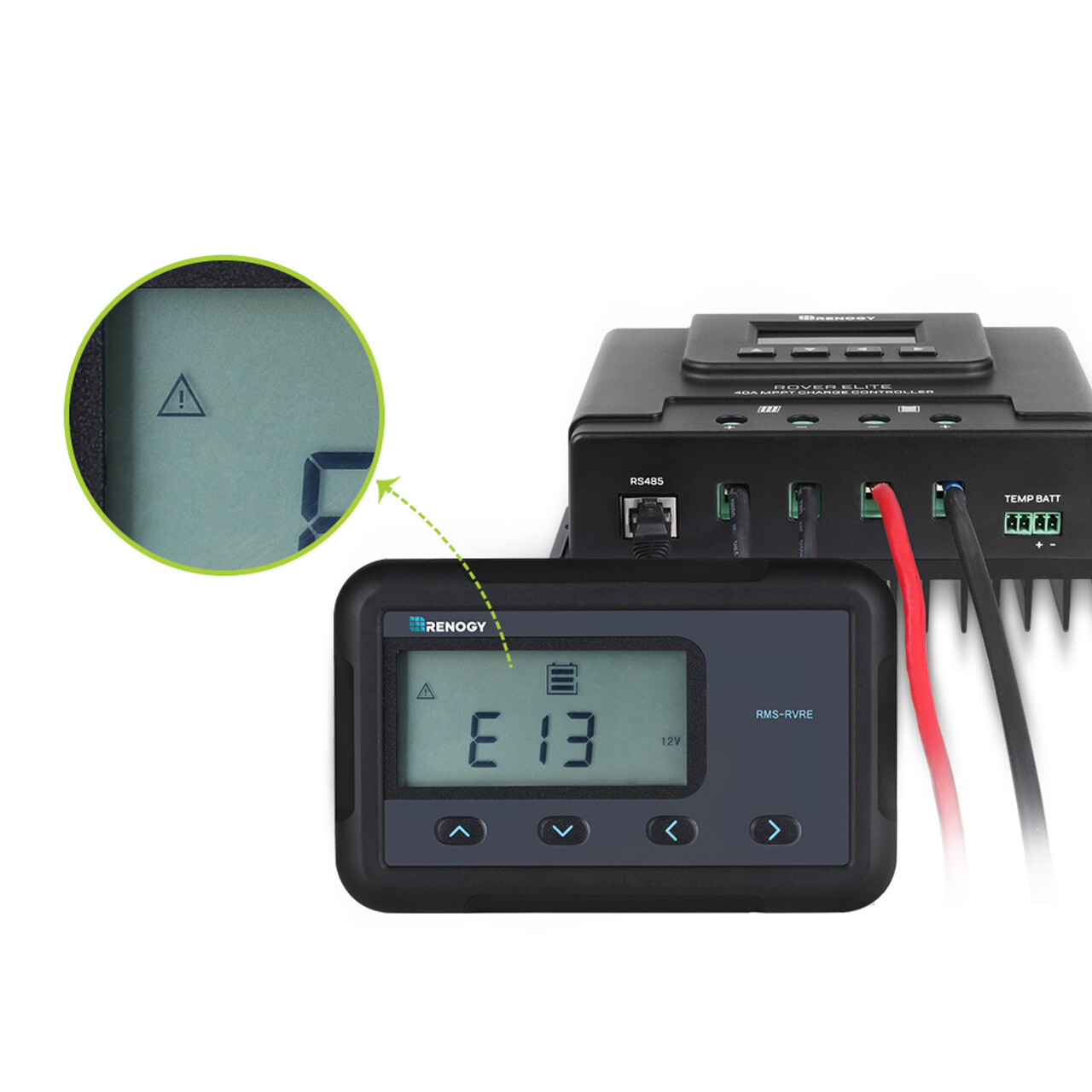

• Comprehensive Protection: Displays straightforward warning codes for the quick recognition of potential abnormal conditions and improper operation.

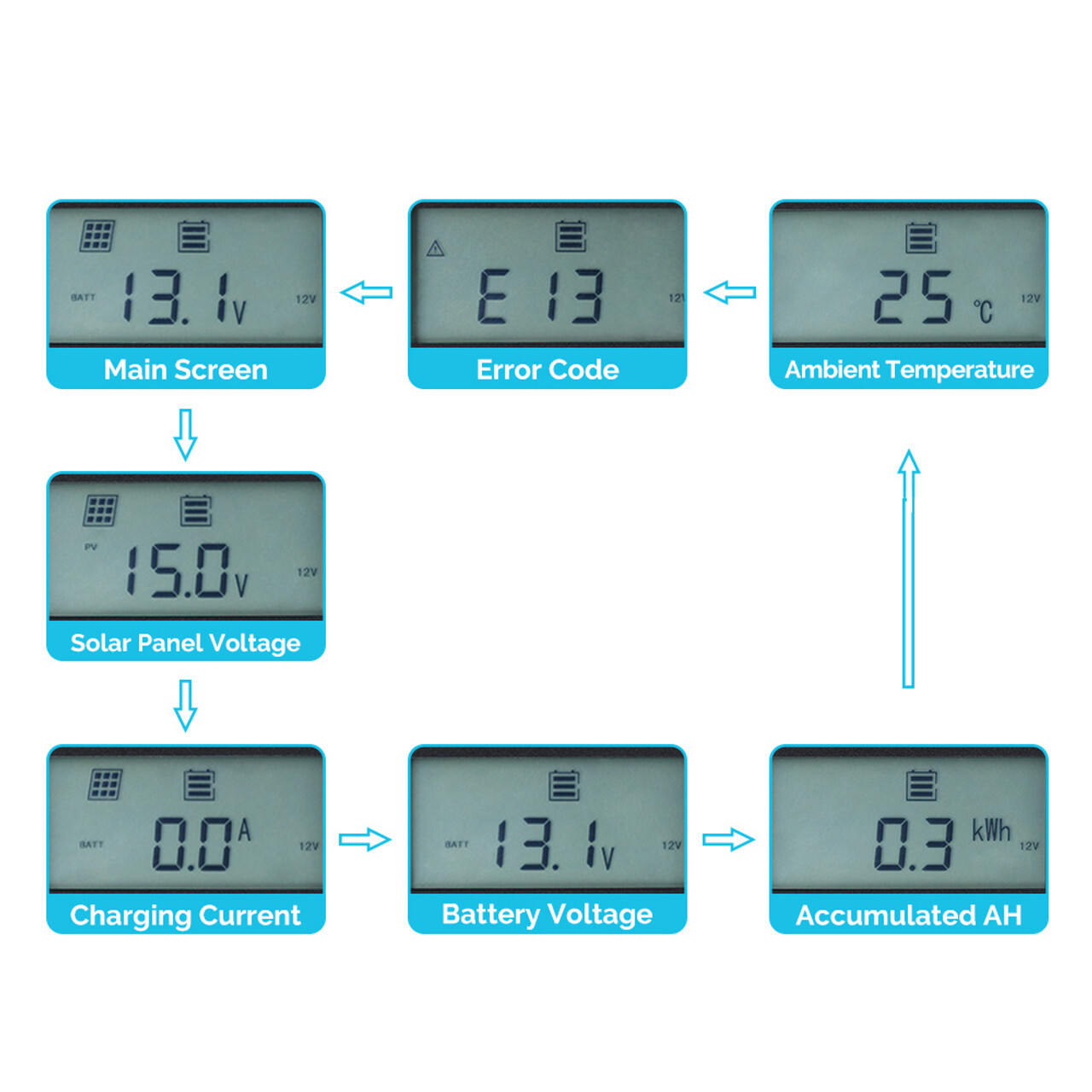

• Easy Operation: Shows detailed system information at the push of a button without the need of system configuration and calibration.

Specifications:

• Supply Voltage: 5VDC
• Communication Port: RJ45 (RS485 Protocol)
• Supply Current: 30mA
• Display: Backlit LCD
• Power Consumption: <1W
• User Interface: 4 Front Panel Menu Buttons
• Operating Temperature Range: -20°C~45°C
• Mounting System: Wall Mount
• Voltage Accuracy: ±0.1V

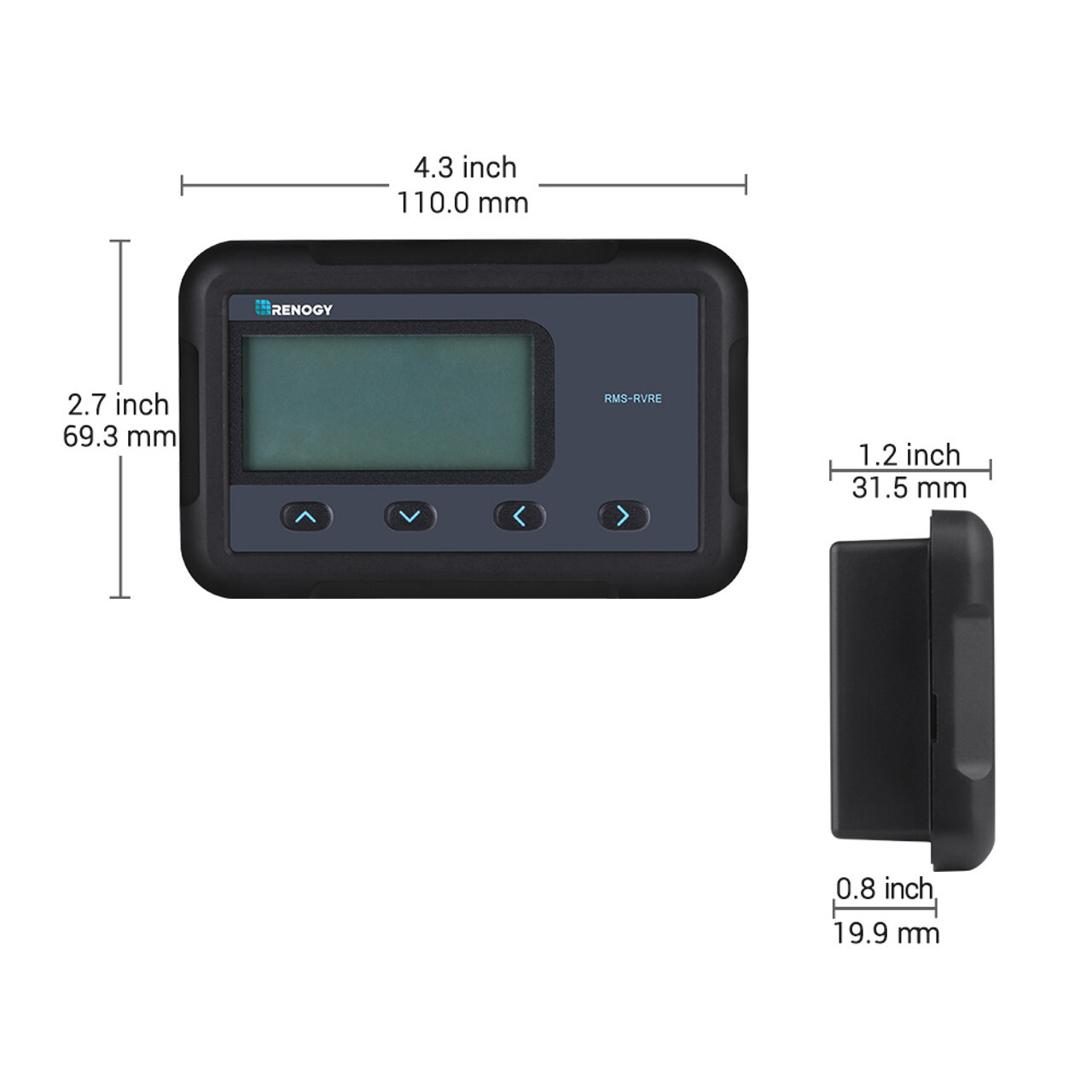

• Dimension: 70 x 110 x 31.8 mm
• Current Accuracy: ±0.1A
• Weight: 0.14 lbs / 62 g
• Wire Length: 16.4ft / 5m
• Mounting Screw: M2.9x13mm
