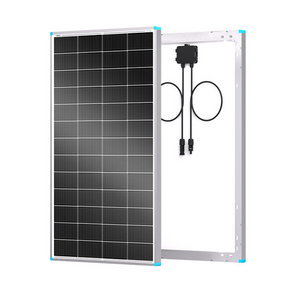

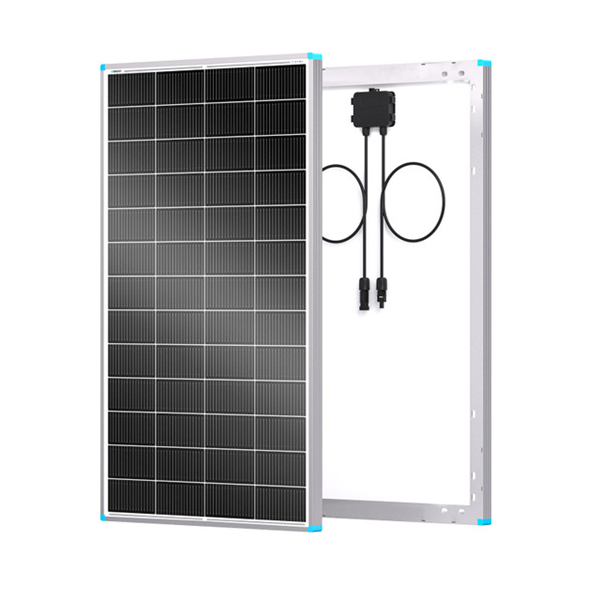

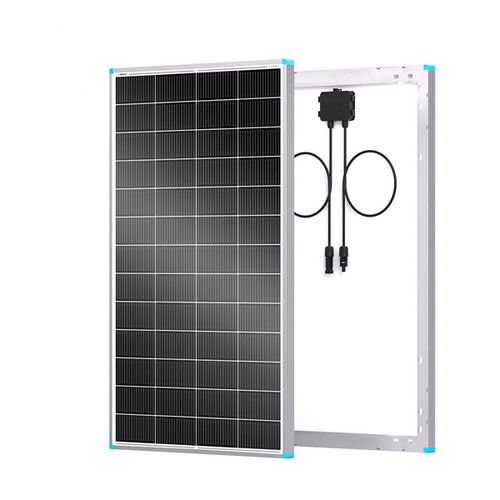

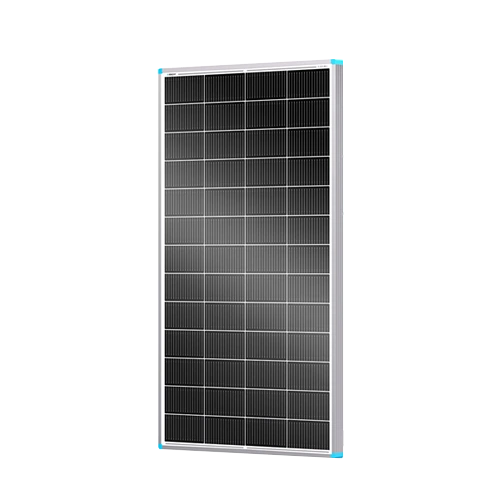

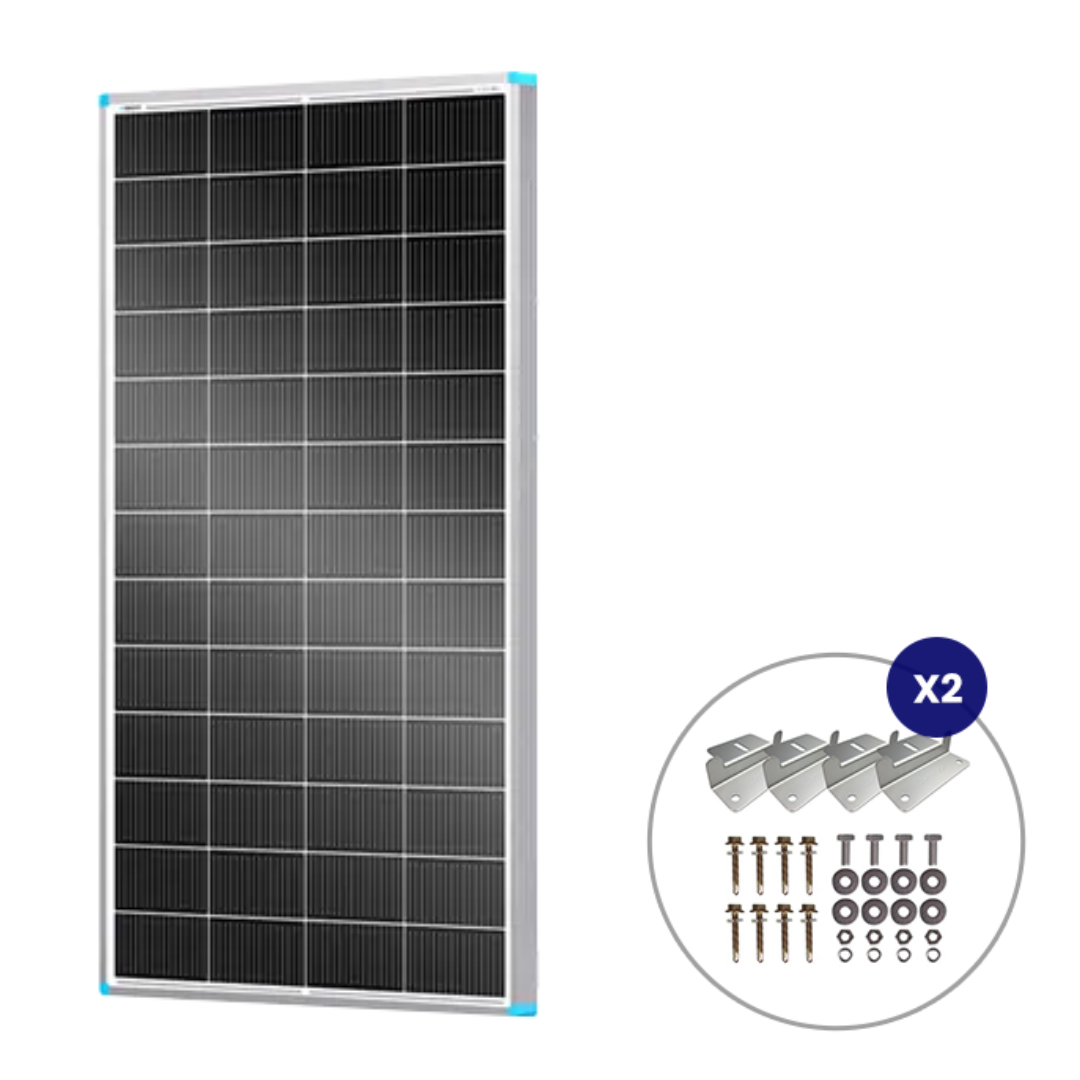

Renogy 200W 24V Monocrystalline Fixed Solar Panel

Specifications

SKU RSP200DC

Brand Renogy

Warranty Period: 10 Years

Product Category Solar Panels

Solar Panel Type N-Type Solar Panel

Solar Panel Cell Type Monocrystalline

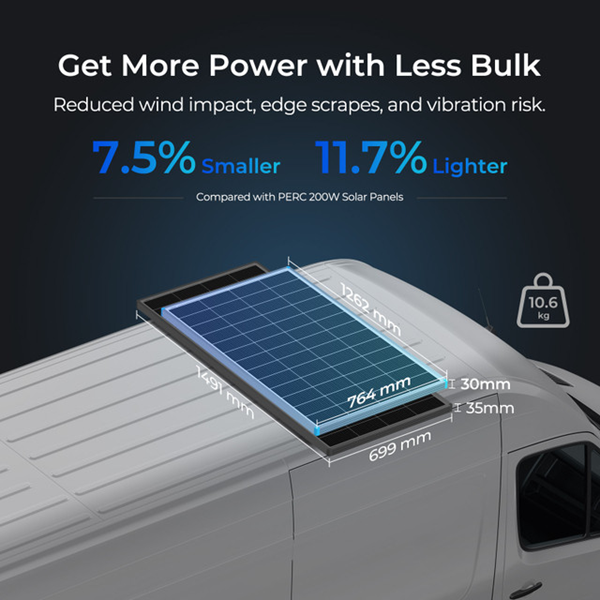

Dimensions 1262x764x30mm

Short Circuit Current Isc(A) 6.85

Weight (kg) 10.6

Open Circuit Voltage Voc(V) 37.44V

Operating temperature range -40 ℃ to 85 ℃

Max System Voltage (VDC) 600VDC

Cell Efficiency 20.7%

Product Q&A

• What do I need to complete my off-grid solar power system?

  A solar panel must be connected to a charge controller to regulate current, and a battery to store electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables to connect the charge controller to a deep-cycle battery.

• What does off-grid and on-grid mean?

  On-grid means the solar power system is connected to the electrical grid, allowing you to draw power when needed. Off-grid refers to systems that operate independently of the grid, storing generated power for later use. Off-grid systems are unaffected by grid blackouts.

• Why is my solar panel underproducing?

  Solar panel performance can be affected by various factors, including indirect sunlight, high temperatures, cloudy weather, and dirt or stains accumulating on the panel’s surface. Regular cleaning and optimal positioning can help maintain maximum efficiency.

• How should I connect solar panels in my electrical circuit (series vs parallel)?

  Solar panels can be connected in series or parallel to match your system’s power needs. In a series connection, voltages add up while current remains the same. In a parallel connection, currents add up while voltage remains the same. To optimize your system, a combination of both connections may be used.

• How many solar panels do I need?

  The number of panels needed depends on your power consumption. Power is measured in watts, and total energy demand is in watt-hours. Multiply power output by the hours of operation and apply a safety factor of 1.5-2. It’s best to size the battery bank first, then determine the number of panels required.

• What is the meaning of 12V in the product title? Why is this value different from the voltage of the solar panel?

  The "12V" in the product title refers to compatibility with a 12V system (such as a 12V battery), not the actual voltage of the solar panel (Voc or Vmp). These values serve different purposes: the 12V rating indicates the system it is suited for, while Voc and Vmp determine operational characteristics.

• How to choose a controller suitable for my Renogy 16BB N-Type 200 Watt 24V Solar Panel?

  To select a compatible controller, consider the panel’s open-circuit voltage (Voc) of 37.44V. For single or parallel connections, the controller’s maximum PV input voltage should be at least 40V. For series connections, multiply 40V by the number of panels connected in series to ensure optimal performance.
