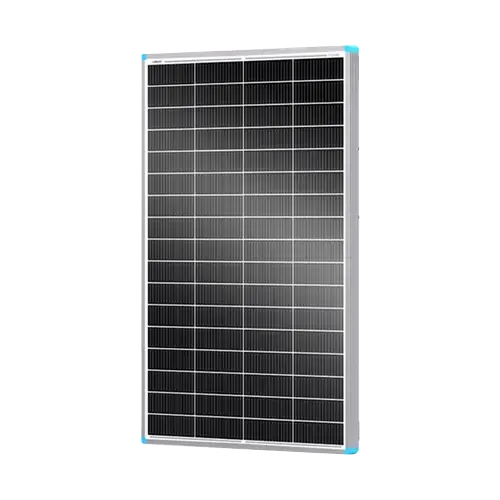

Renogy 175W 12V Monocrystalline Fixed Solar Panel

SKU: RSP175DC Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

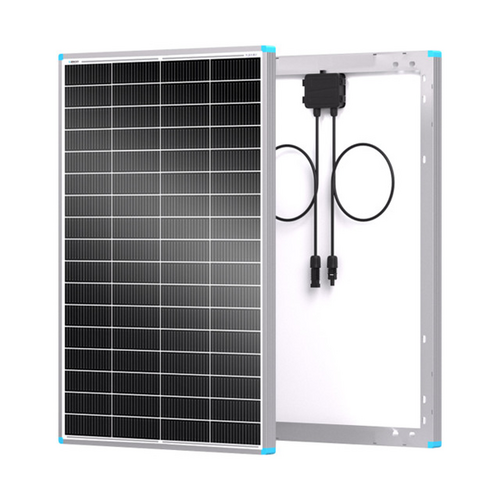

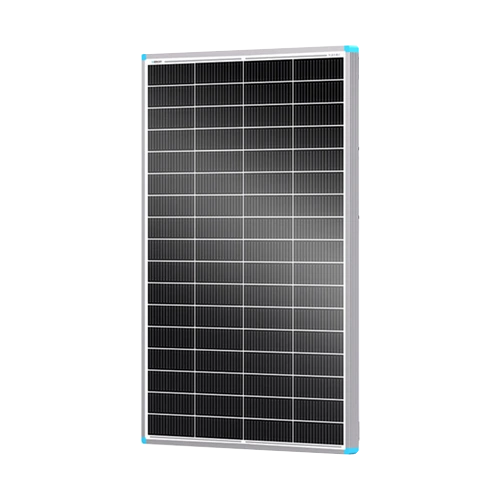

Renogy 175W 12V Monocrystalline Fixed Solar Panel, 10 Year Warranty. The Renogy 175 Watt 12 Volt Monocrystalline Solar Panel features a sleek and durable frame design.This solar panel uses high-efficiency monocrystalline silicon solar cells and frame corner supports for outdoor protection.

Features:

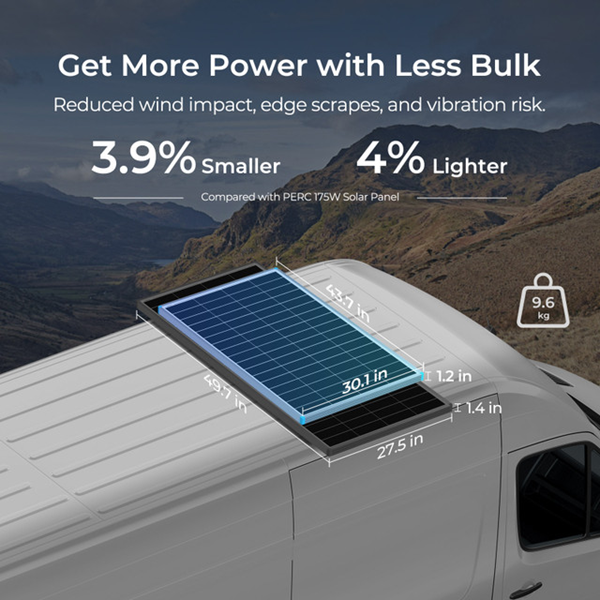

3.9% smaller and 4% lighter than previous 175W PERC panels, maximizing space for that perfect edge-to-edge fit.

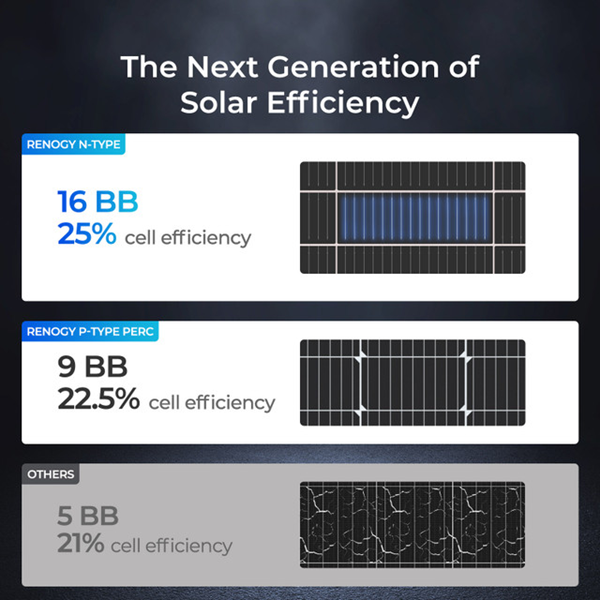

Delivers 25% cell efficiency and 875Wh per day output while fitting into tight spaces for powerful performance anywhere.

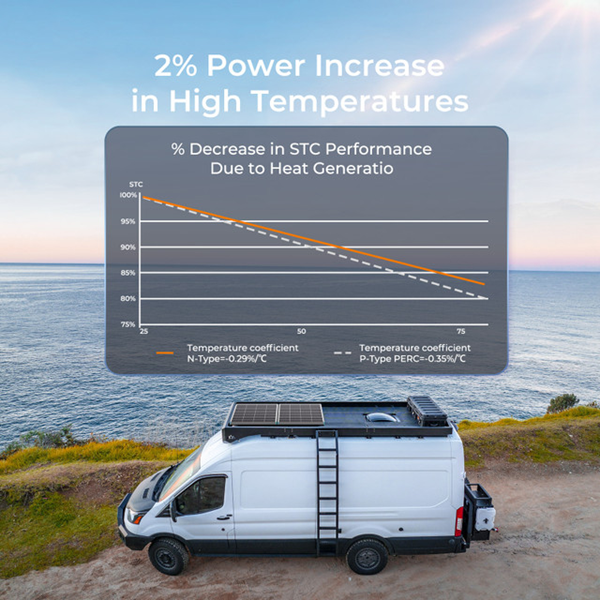

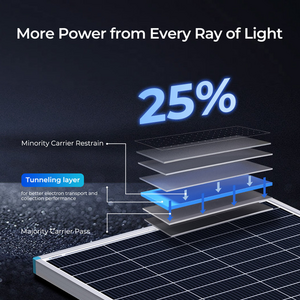

Advanced N-Type solar cells ensure consistent power output even inhigh-temperature environments.

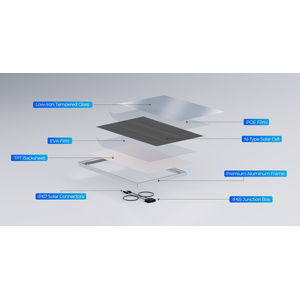

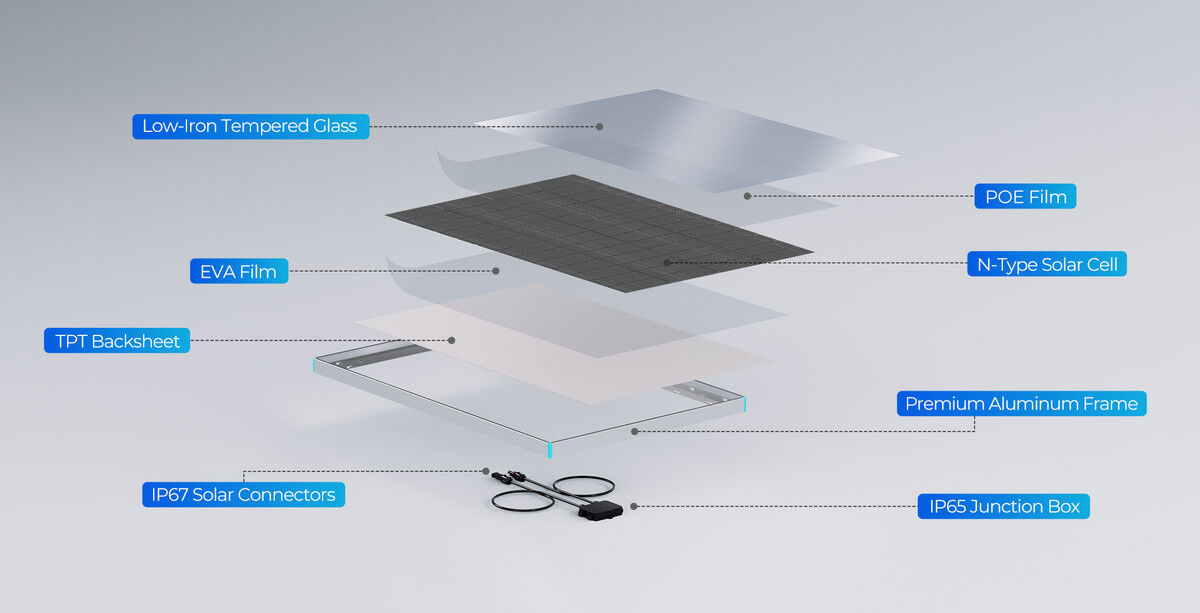

EVA film and N-Type cells create a solar panel that holds up through years of travel. Whether parked under the sun or pushing through storms, it stays strong and reliable.
Built to endure 2400Pa wind and 5400Pa snow loads with ease.
IP65 junction box and IP67 connectors ensure all-weather protection.
Crafted with a durable aluminum alloy frame, it withstands bumps, vibrations, and tough road conditions for long-lasting durability
High module conversion efficiency
Top ranked PTC rating

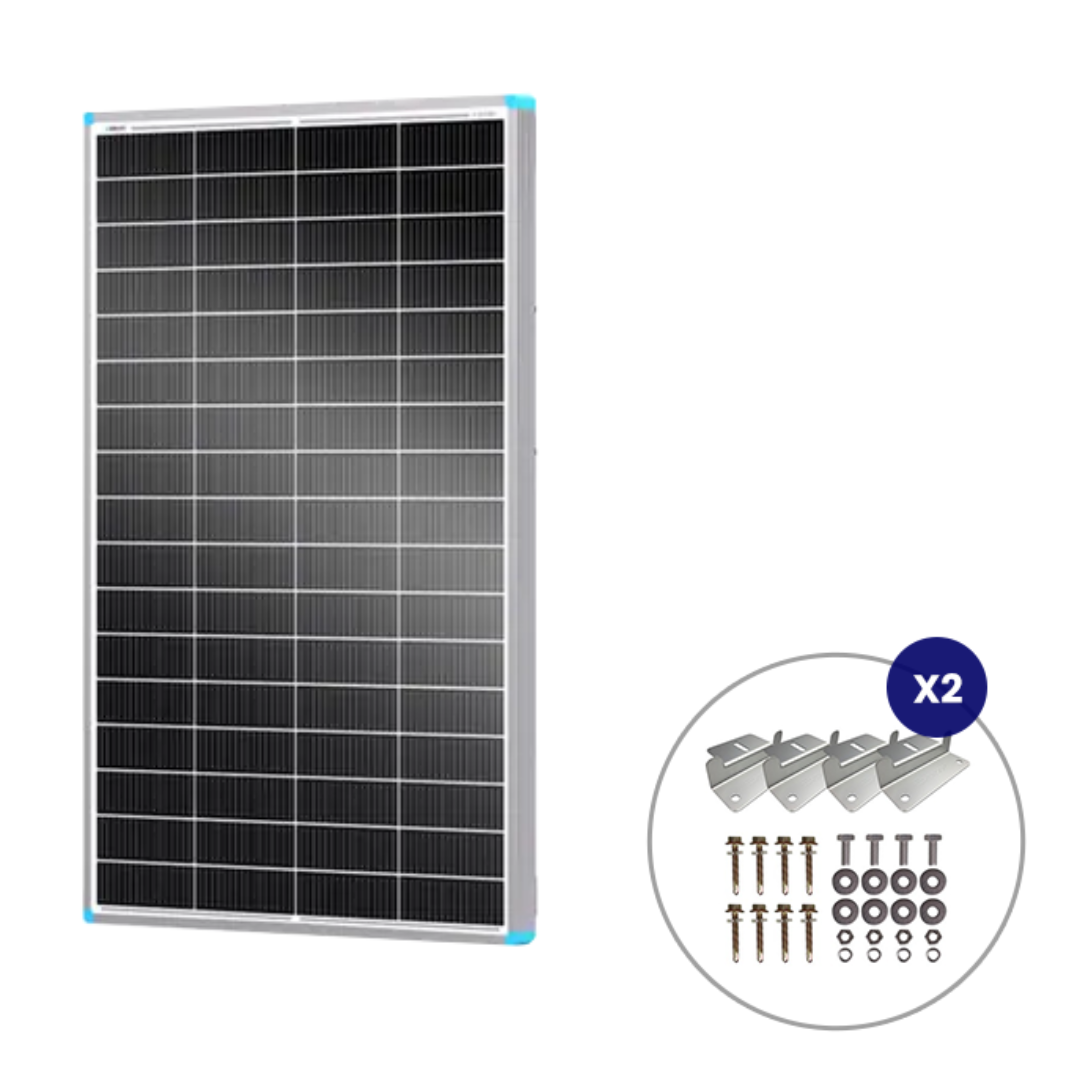

Quick and inexpensive mounting
100% EL testing on all Renogy modules
No hot spots guaranteed

Potential Uses

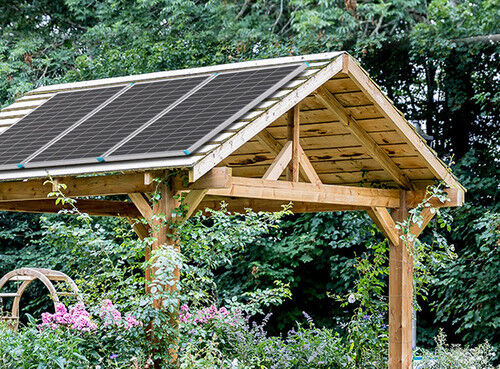

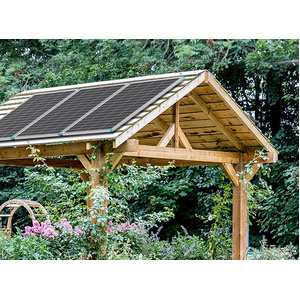

Renogy Solar Panels have applications in residential solar power arrays,water pumping systems, signaling systems, and plenty of other applications. The Renogy 175 Watt solar panel offers a feasible off-grid renewable energy solution for rooftop, RV,boat, and outdoor power systems.

Go to: Product Details

Go to: Reviews

Specifications

SKU RSP175DC

Brand Renogy

Warranty Period: 10 Years

Product Category Solar Panels

Solar Panel Type N-Type Solar Panel

Solar Panel Cell Type Monocrystalline

Watts (W) 175

Dimensions 1110x764x30mm

Short Circuit Current Isc(A) 8.88

Weight (kg) 9.6

Open Circuit Voltage Voc(V) 24.48V

Operating temperature range -40°C to +85°C

Max System Voltage (VDC) 600VDC

Cell Efficiency 20.6%

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

What do I need to complete my off-grid solar power system?

A solar panel must be connected to a charge controller to regulate current and a battery to store electrical power. You will need adapter kit cables to wire the solar panel(s) to the charge controller and tray cables to connect the charge controller to a deep-cycle battery.
What does off-grid and on-grid mean?

On-grid means the solar power system is connected to the electrical grid, allowing you to draw power when needed. Off-grid refers to systems that operate independently of the grid, storing generated power for later use. Off-grid systems are unaffected by grid blackouts.
Why is my solar panel underproducing?

Solar panel performance can be affected by various factors, including indirect sunlight, high temperatures, cloudy weather, and dirt or stains accumulating on the panel’s surface. Regular cleaning and optimal positioning can help maintain maximum efficiency.
How should I connect solar panels in my electrical circuit (series vs parallel)?

Solar panels can be connected in series or parallel to meet your system’s power needs. In a series connection, voltages add up while current remains the same. In a parallel connection, currents add up while voltage remains the same. To optimize your system, a combination of both connections may be used.
How many solar panels do I need?

The best way to determine the number of solar panels needed is to calculate your power load. Power is measured in watts, while capacity is in watt-hours (Wh). Multiply power output by the required hours of operation, then apply a safety factor of 1.5-2. It’s best to size your battery bank first and then decide how many panels are required to meet your energy demand.
What is the meaning of 12V in the product title? Why is this value different from the voltage of the solar panel?

The "12V" in the product title refers to the compatibility of the panel with a 12V system, such as a 12V battery. It does not indicate the actual voltage of the solar panel (Voc or Vmp). These values have different meanings: the system voltage defines its intended use, while the panel voltage determines its operational characteristics.
