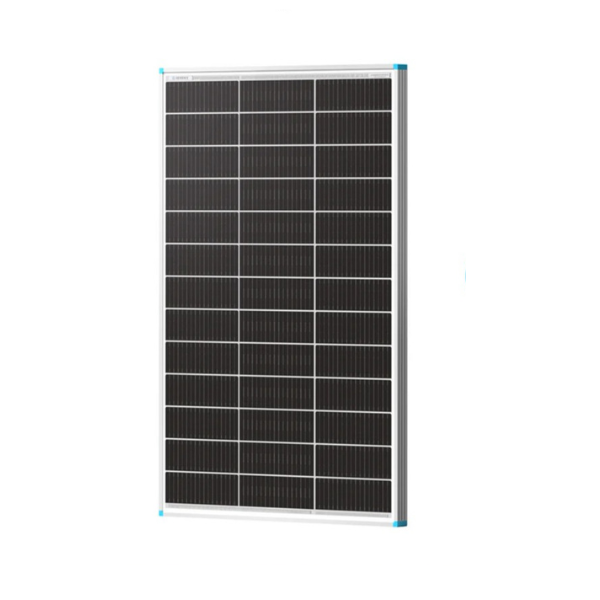

Renogy 100W Mono N-Type Rigid Bifacial Solar Panel
SKU: RSP100DCT Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description

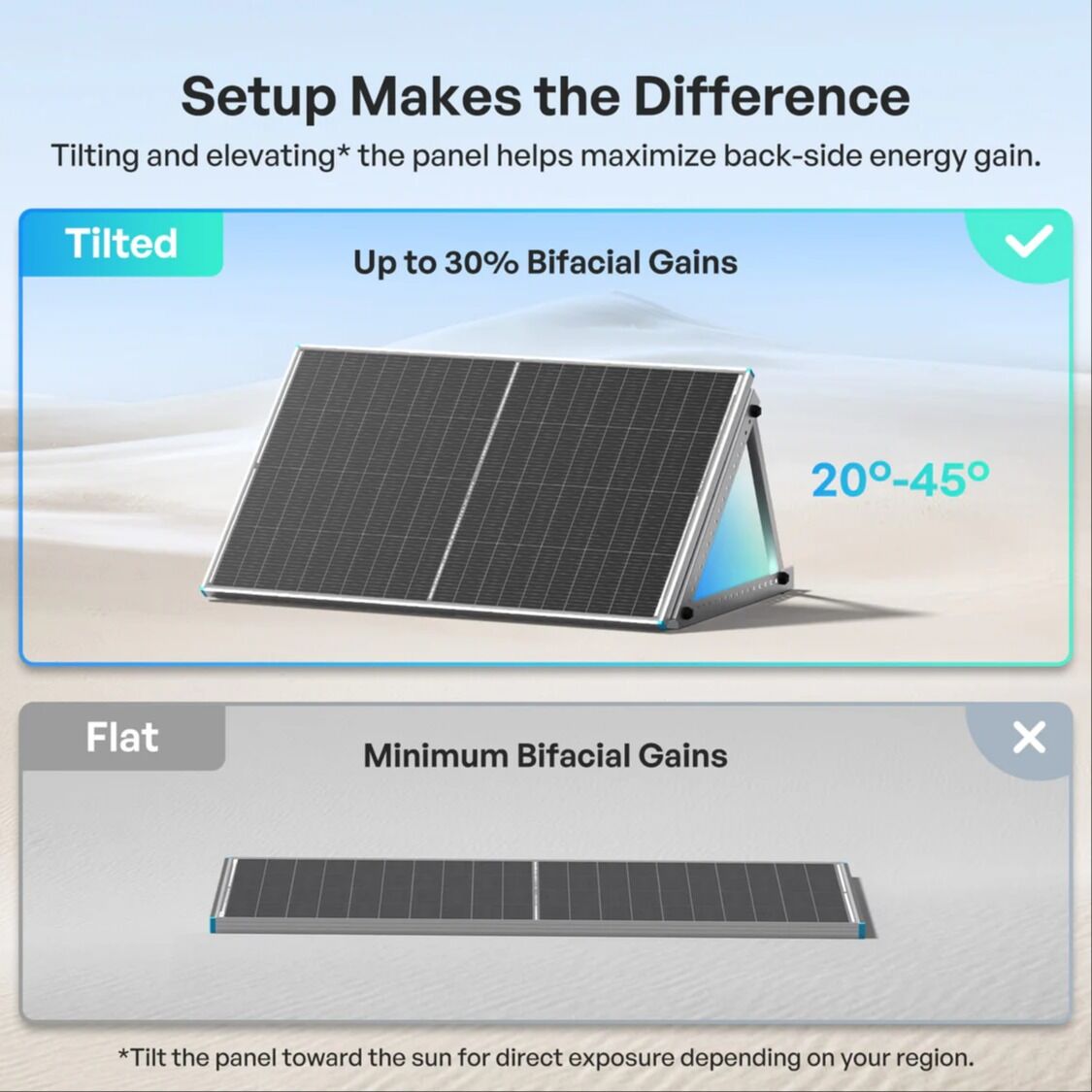

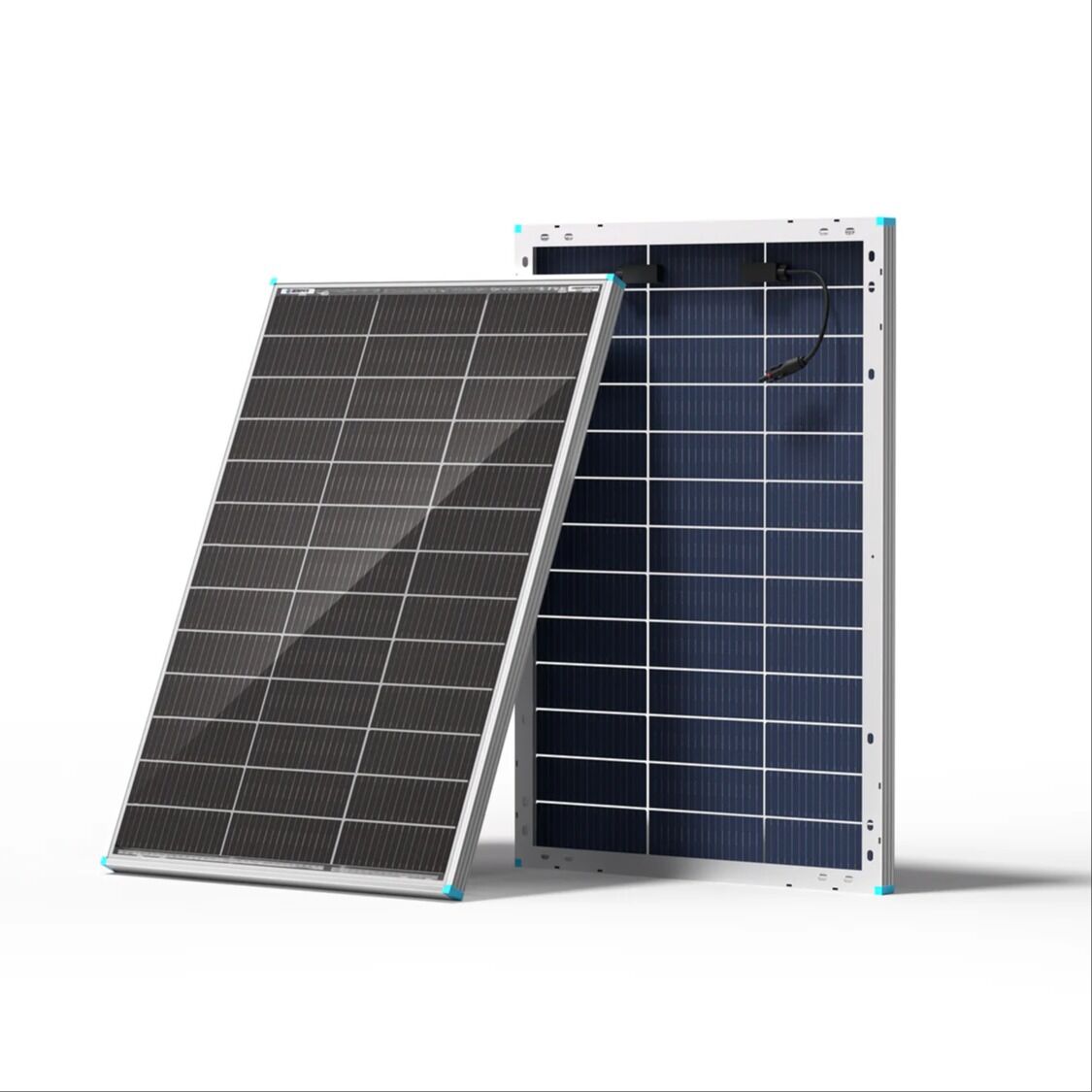

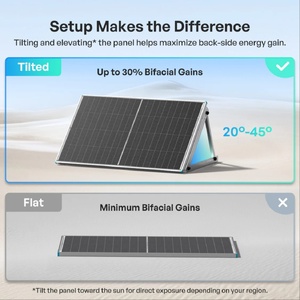

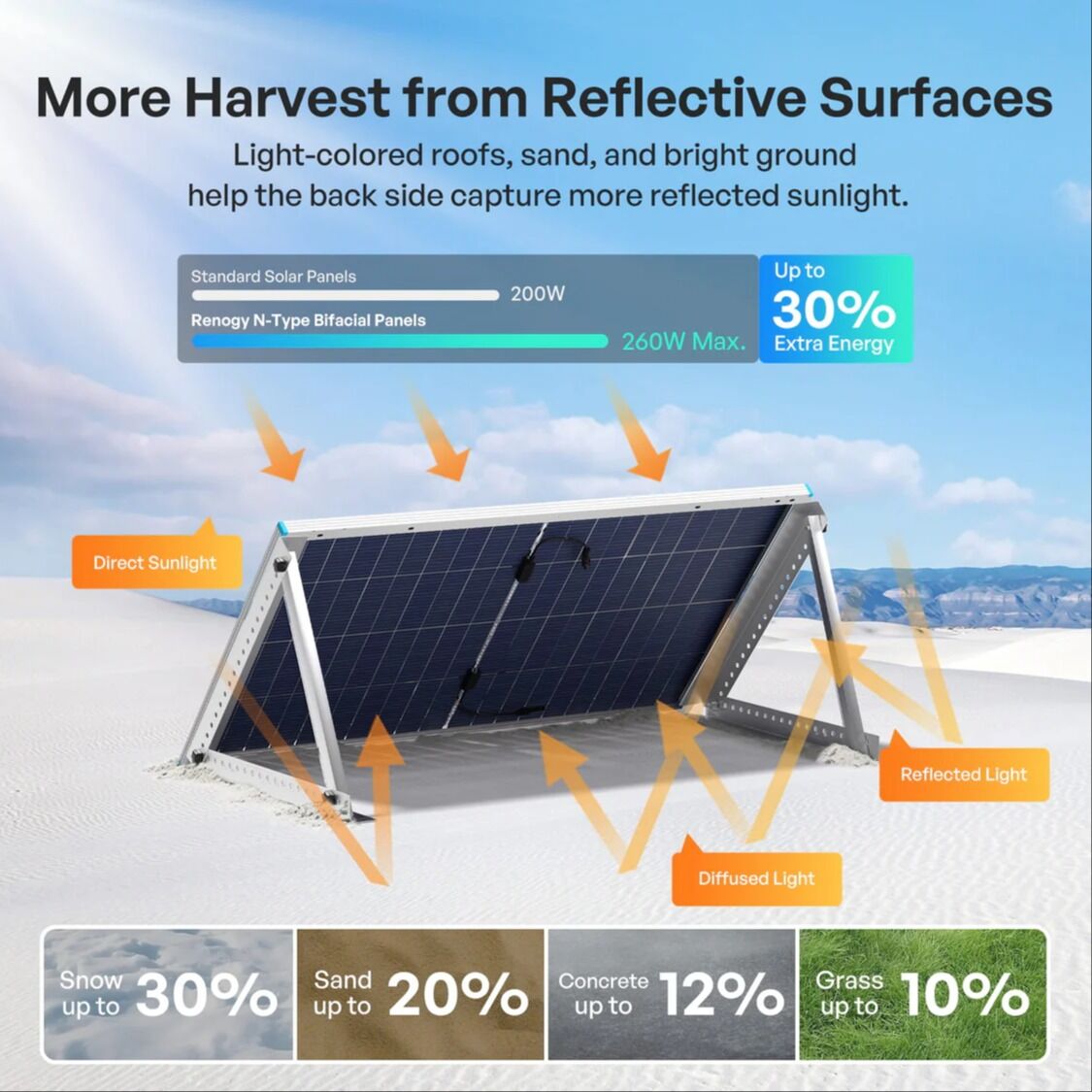

Renogy 100W Mono N-Type Rigid Bifacial Solar Panel, 10 Year Warranty. The Renogy 100W Mono N-Type Rigid Bifacial Solar Panel captures sunlight from both the front and rear to generate up to 30% more energy when installed over reflective surfaces. Featuring high-efficiency N-Type cells, 16BB technology, and an IP68-rated design, it delivers reliable power for RVs, vans, boats, and off-grid applications while maintaining stable performance in heat, low light, and partial shade.
Features:

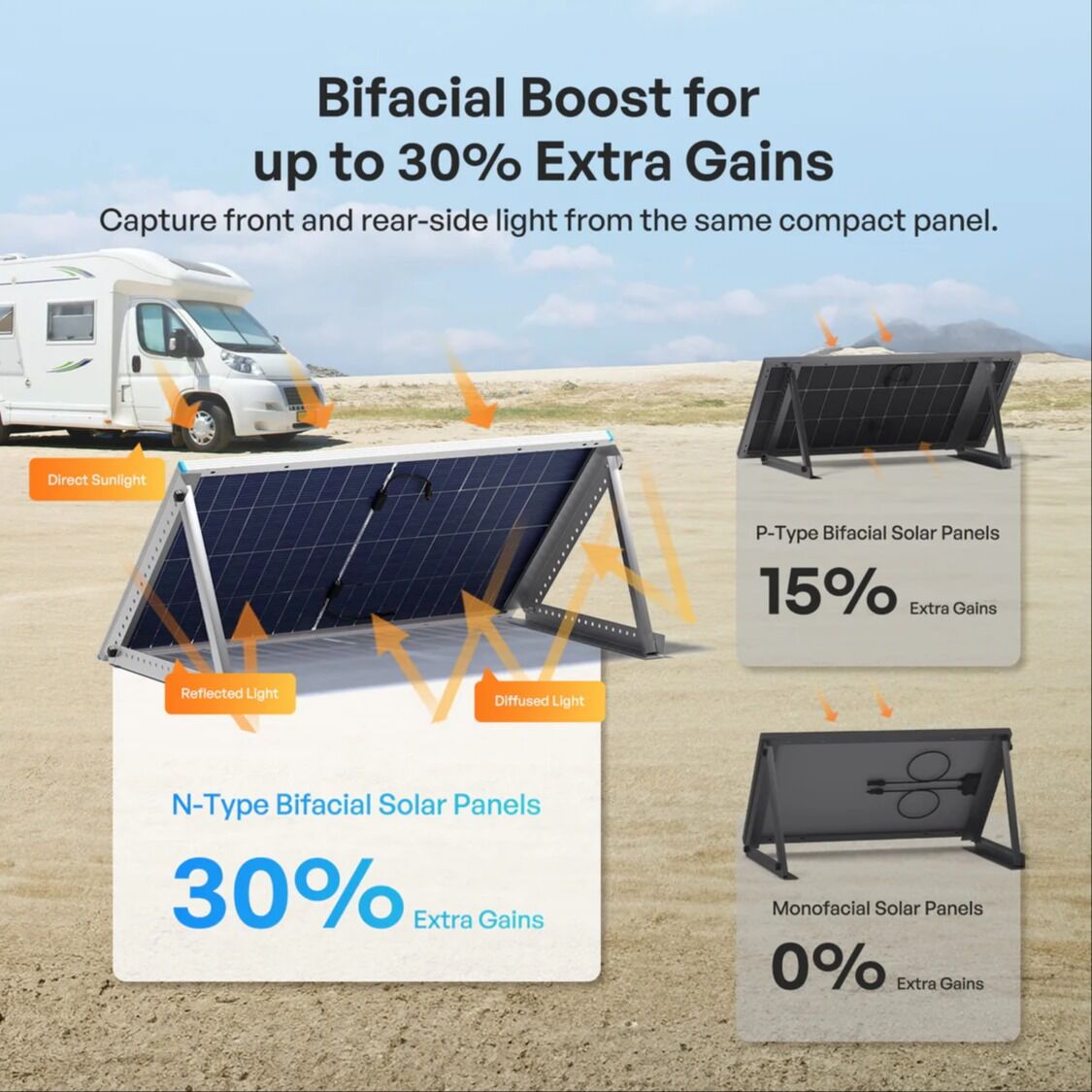

- Up to 30% more energy from bifacial technology.

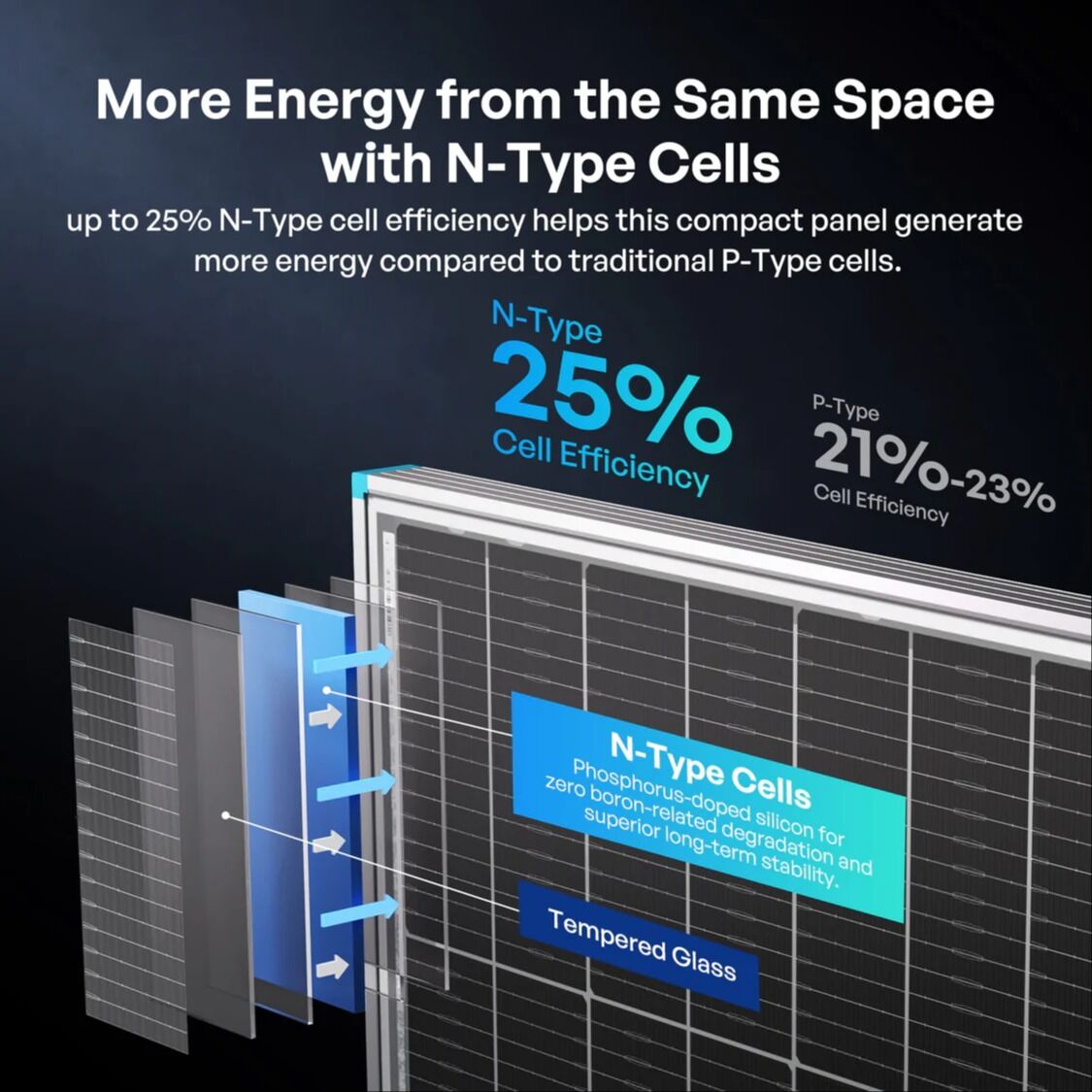

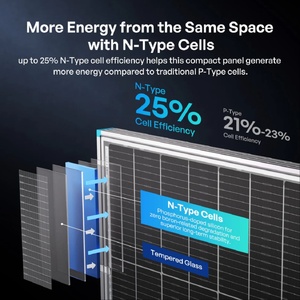

- High-efficiency N-Type cells with up to 25% conversion efficiency.

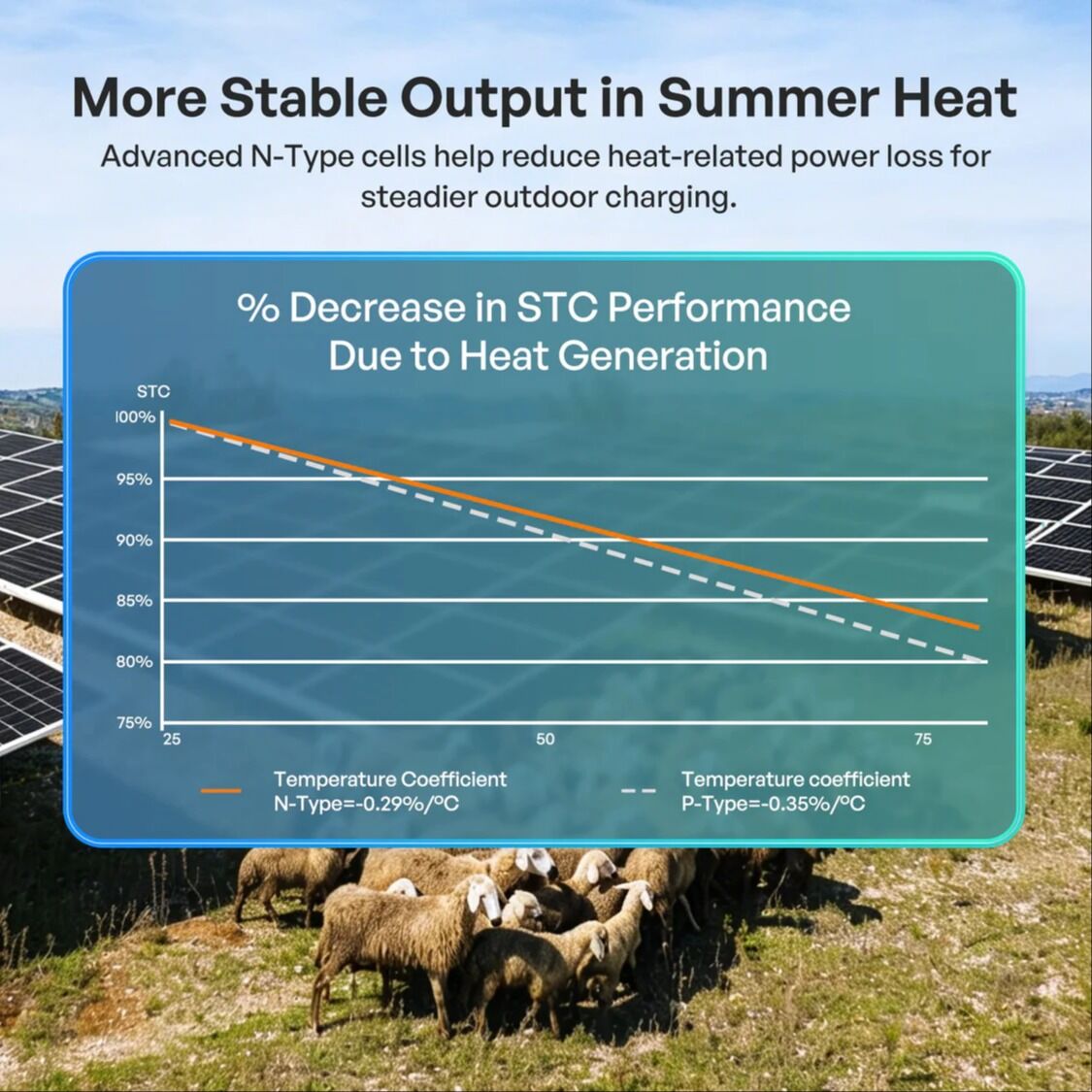

- Better performance in heat and low-light conditions.

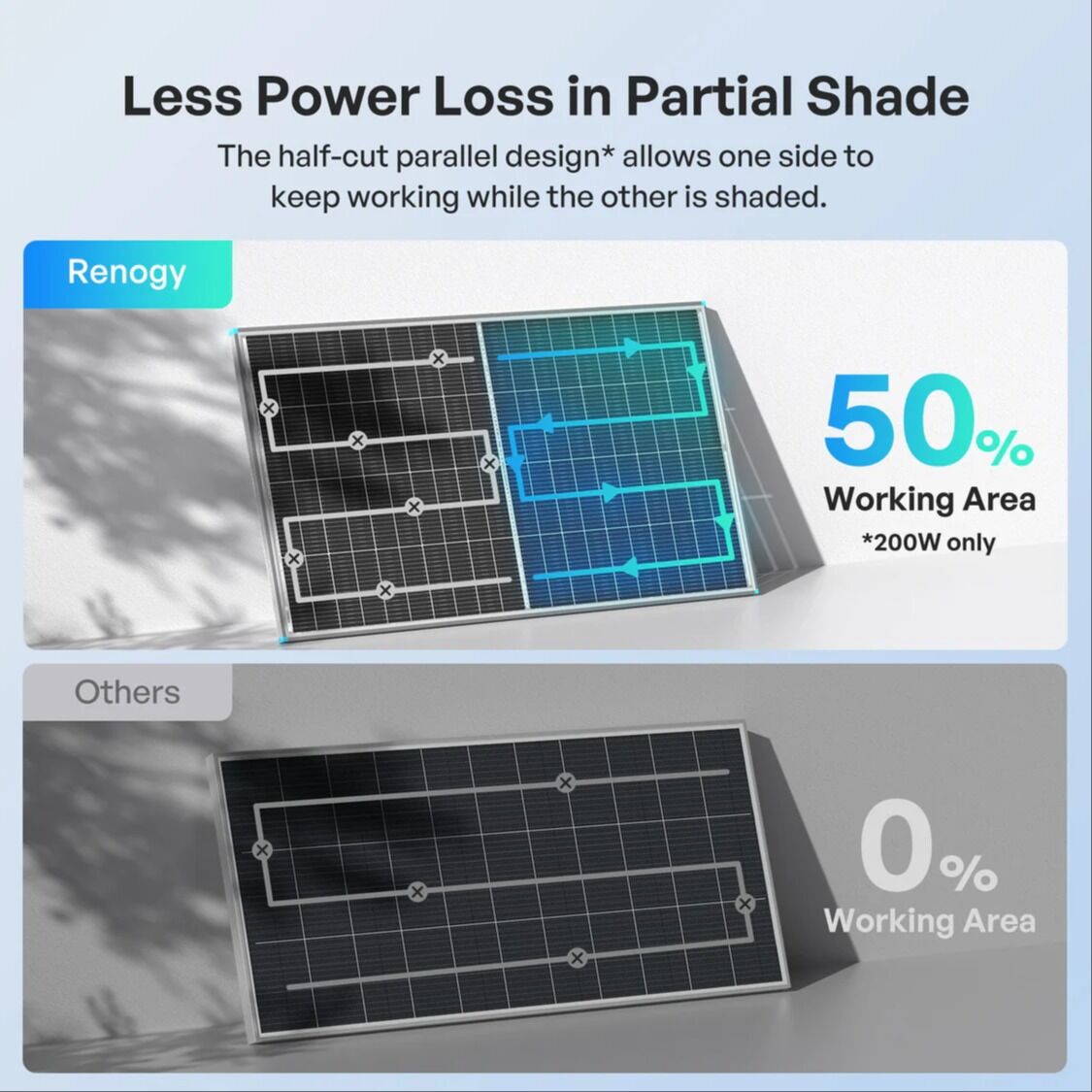

- Parallel cell design continues generating power during partial shading.

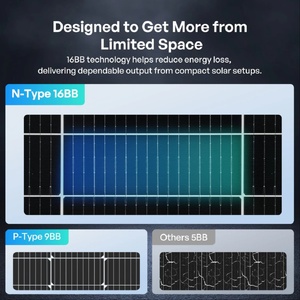

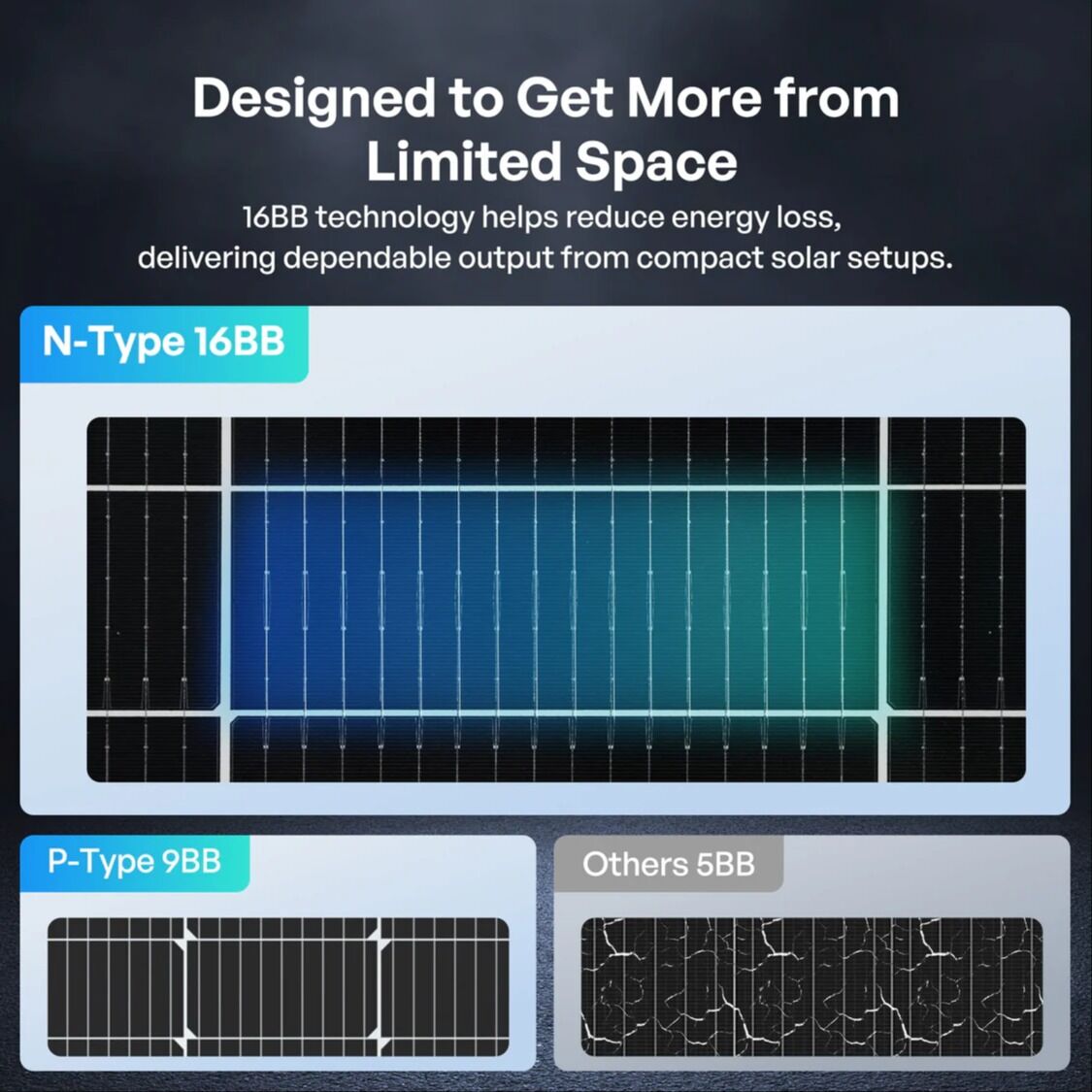

- 16BB technology improves efficiency and long-term reliability.
- Compact, pre-drilled design for easy installation.

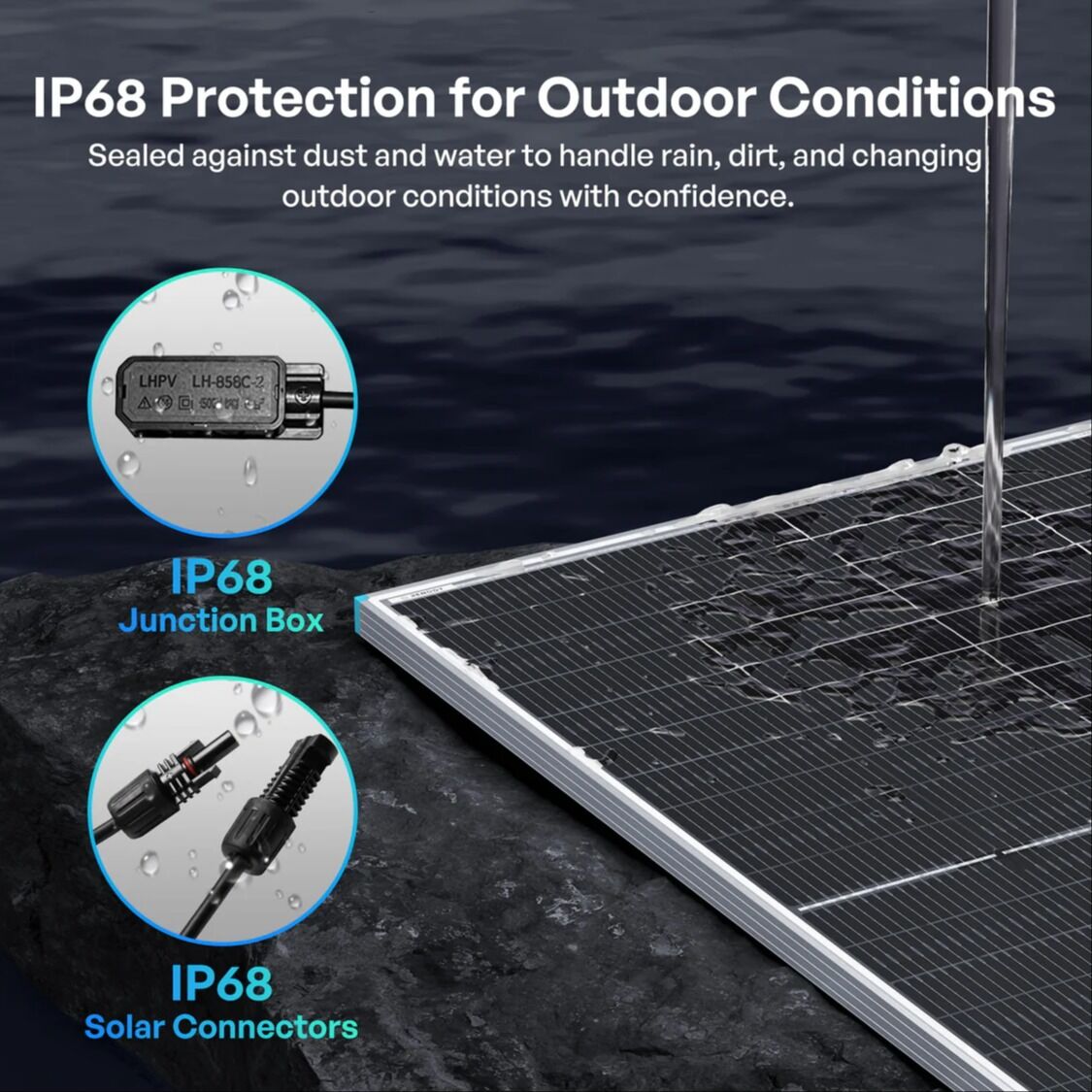

- IP68-rated protection with reinforced frame and strong glass.
- Reinforced packaging helps protect the panel during transport.
Specifications:
- Watts (W): 100W
- Solar Panel Cell Type: Mono N-Type
- Open Circuit Voltage Voc(V): 28.5V
- Short Circuit Current Isc(A): 4.45A

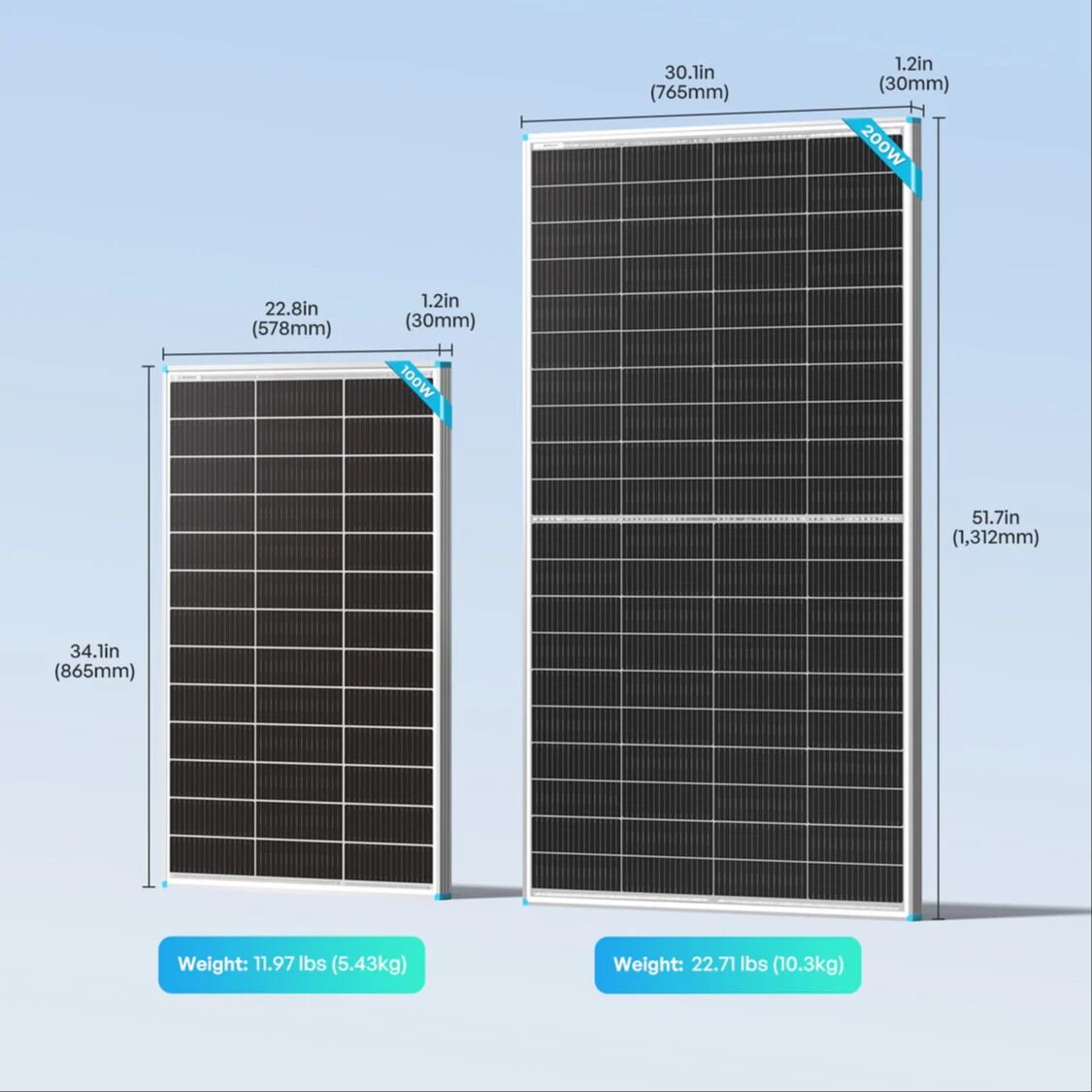

- Dimensions: 865 x 578 x 30 mm
- Weight (kg): 5.43 kg
- Max System Voltage (VDC): 600 VDC
- Optimum Operating Current (imp): 4.24 A
- Optimum Operating Voltage (vmp): 23.6 V
- Operating Temperature Range: -40ºC to 85ºC
- Certification: CE, RCM, TSCA, CA65
.png)
Specifications
SKU RSP100DCT
Brand Renogy
GTIN 840315262881
Warranty Period: 10 Years
Product Category Solar Panels
Solar Panel Cell Type Mono N-Type
Dimensions 865 x 578 x 30 mm
Short Circuit Current Isc(A) 4.45A
Weight (kg) 5.43 kg
Open Circuit Voltage Voc(V) 28.5V
Max System Voltage (VDC) 600 VDC
Optimum Operating Current (imp) 4.24 A
Optimum Operating Voltage (vmp) 23.6 V
Product Q&A
-
What do I need to complete my off-grid solar power system?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
-
What does off-grid and on-grid mean?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
-
Why is my solar panel underproducing?
Solar panel performance may be hindered for several reasons. Most commonly, environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build-up on the top glass will cause reduced power output.
-
How should I connect solar panels in my electrical circuit (series vs parallel)?
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will add up their operating voltage output, while the system current output remains the same as that of one panel. Connecting solar panels in parallel will add up the operating current output of the individual panels, while the system output voltage remains the same as that of one panel. To achieve the optimum power output and system rating for your power system, you can use both parallel and series connections.
-
How many solar panels do I need?
The best way to determine how many solar panels you need is to understand and define the power load required from the system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (power output in watts multiplied by the required number of hours of operation, then multiplied by a safety factor of 1.5–2). It is recommended to size your battery bank first based on the minimum required capacity, and then determine how many panels or how much power input is needed.
-
What are the Benefits of Using Bifacial Solar Panels?
The benefits of using bifacial solar panels include:
- Captures sunlight from both sides.
- More efficient and powerful than monofacial panels.
- Perform better in overcast weather.
- Install in any direction.
