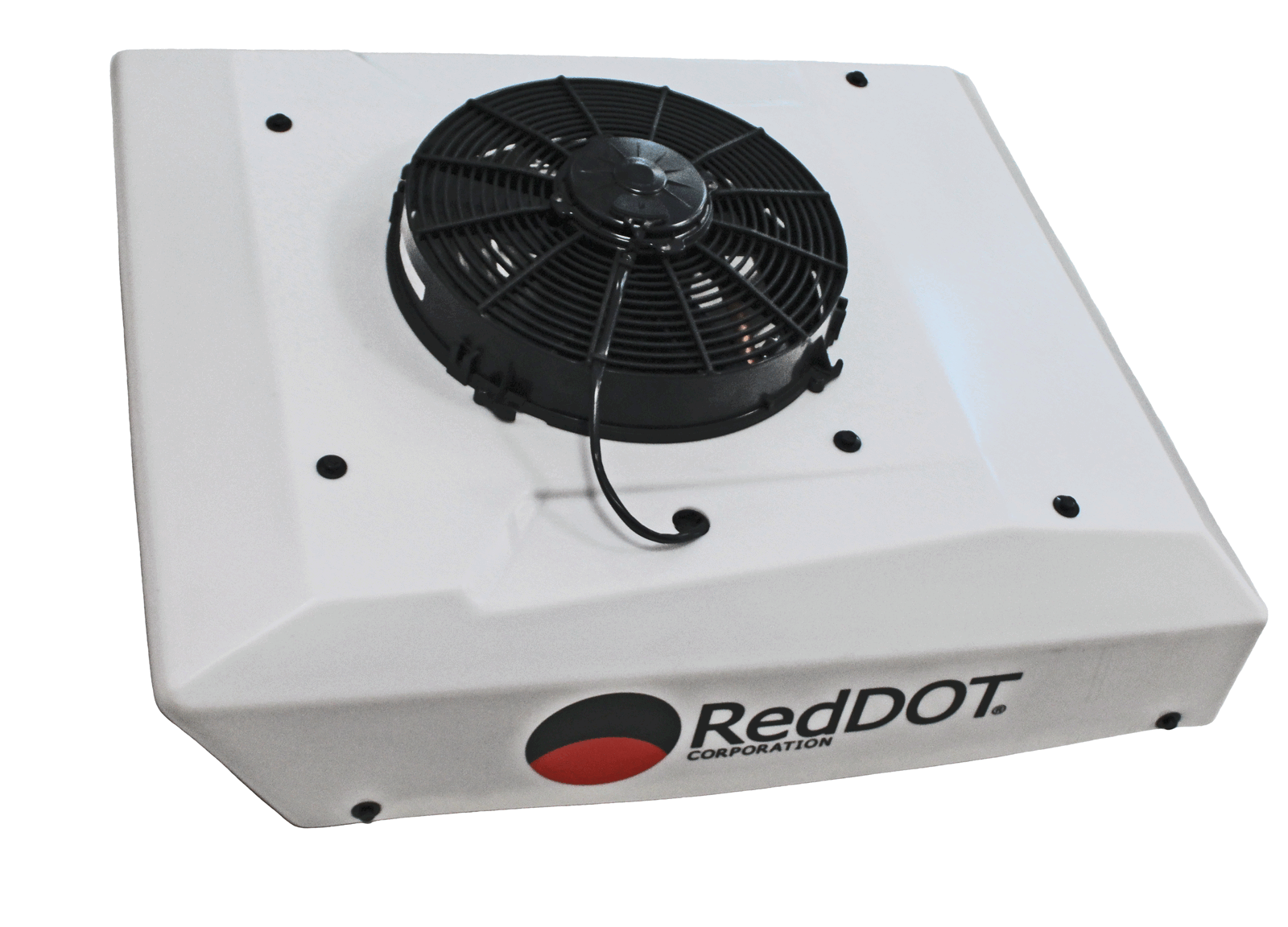

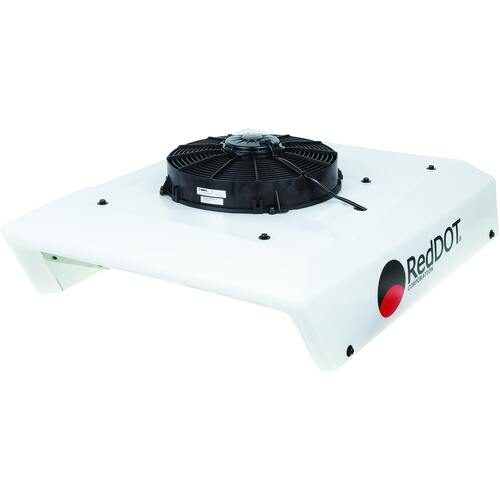

RedDot 12V Electric Rooftop Truck Air Conditioner Unit

SKU: E6100012P Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

RedDot 12V Electric Rooftop Truck Air Conditioner Unit, 1 Year Warranty. Suited for use in on-highway heavy duty, pneumatic tyred construction, agricultural and light duty mining vehicles. These electric rooftop units offer a fully self-contained solution alternative to off engine drive versions. With no need for an external compressor or hose runs the unit only requires power, earth and a drain tube to be run.

Specifications:

Air Flow: 299cfm
Cooling Capacity: 11900BTU
Fitting Type: MIOR - FOR
Inlet Fitting: #8 FOR
Depth / Thickness: 188mm
Outlet Fitting: #10 MIOR
TX Valve: RD568680P
Voltage: 12
Weight 45kg
Length: 790mm
Width: 642mm
Height: 642mm
Evap Mount Type: Rooftop Mount
Roof Top Type: Evaporator / Condenser
Current: 60 - 100A

Note:

Unit does not come precharged with refrigerant. Recommended refrigerant charge 1.3Kg/3 pounds

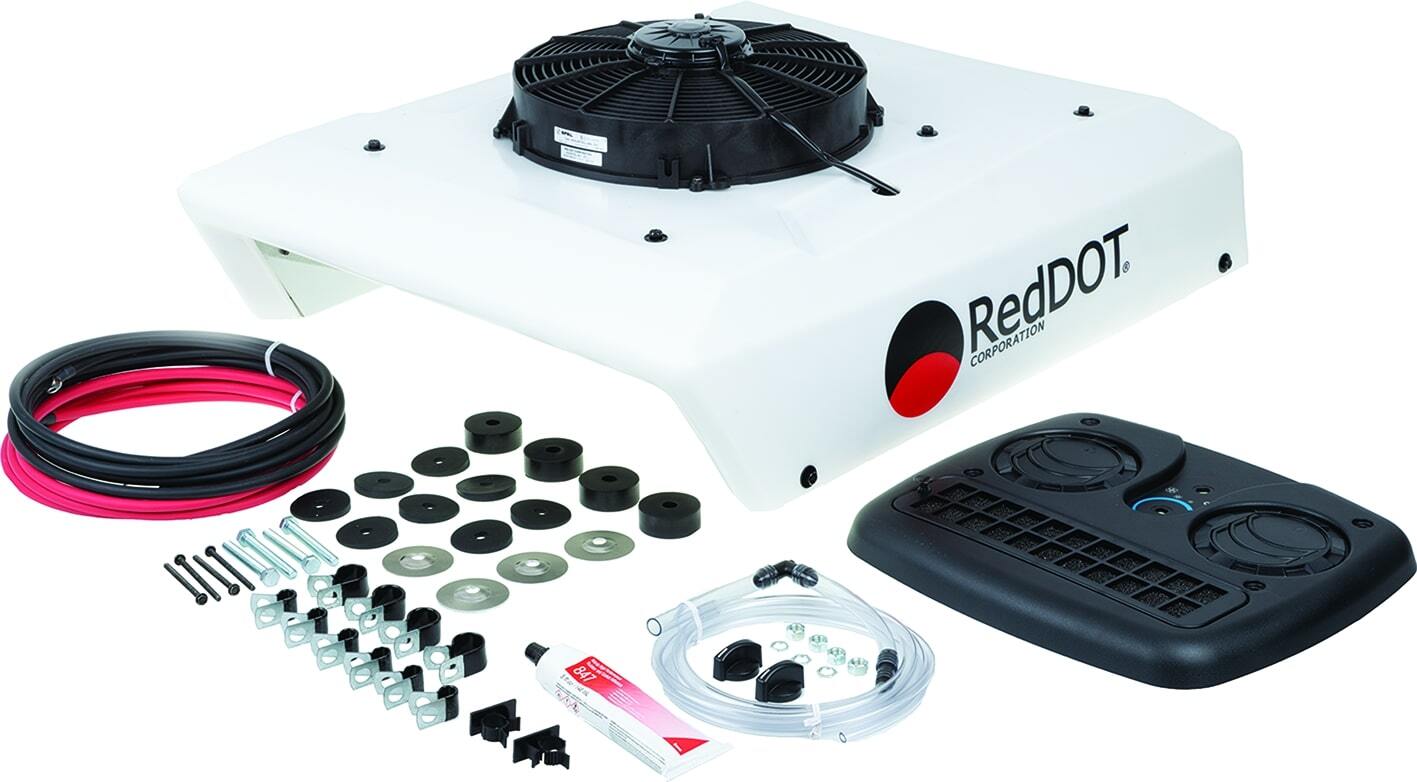

Fitting and Install instructions come with the unit, but it is advised a qualified installer (electrical contractor) undertakes the installation.

Go to: Product Details

Go to: Reviews

Specifications

SKU E6100012P

Brand RedDOT

GTIN 9315275951843

Warranty Period: 1 Year

Product Category Truck Air Conditioners

Cooling Capacity (ISO5151) (kW) 3.5

NOTE Unit does not come precharged with refrigerant. Recommended refrigerant charge 1.3Kg/3 pounds

Dimensions (WxHxL mm) 642mm x 642mm x 790mm

Installation Fitting and Install instructions come with the unit, but it is advised a qualified installer (electrical contractor) undertakes the installation.

Airflow (high fan) 299cfm

Net Weight (kg) 45
