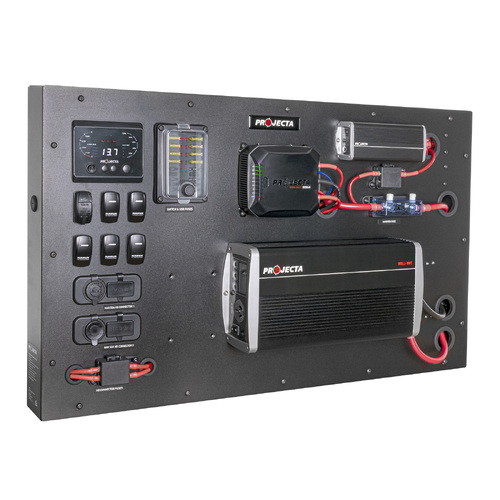

Projecta 12V 25A DC Power Management Board with 1000W Inverter

Product Description

Projecta 12V 25A DC Power Management Board with 1000W Inverter, 5 Year Warranty. Utilising the latest premium ‘Intelli’ power management equipment, this board features the multi-chemistry 25Amp DC to DC dual battery charger, 1000W pure sine wave inverter and more.

This sophisticated system is ideal for ute canopies and caravan applications. Pre-built, these all-in-one units enable quick and easy installation.

Features:

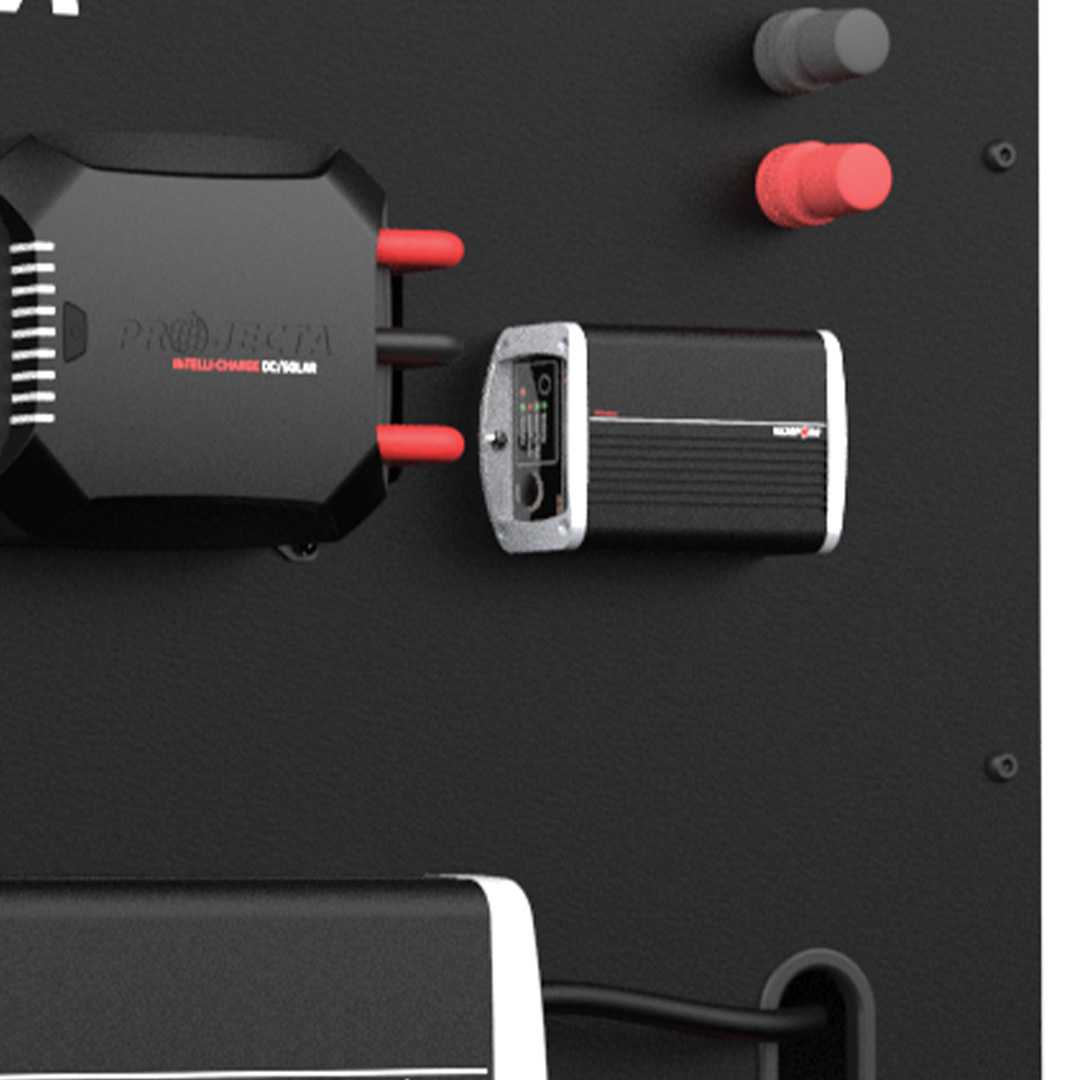

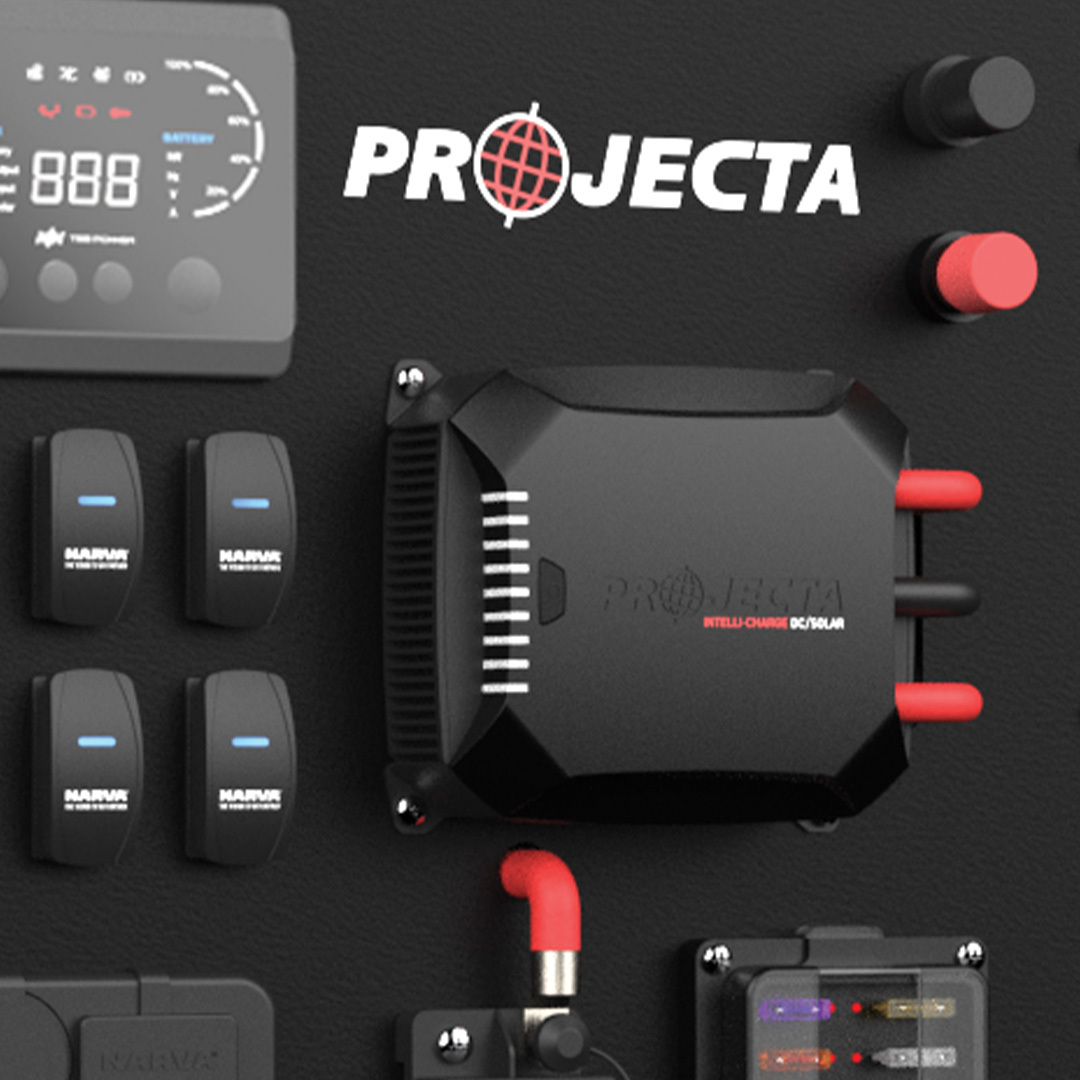

• DC-DC CHARGER (IDC25X): Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications

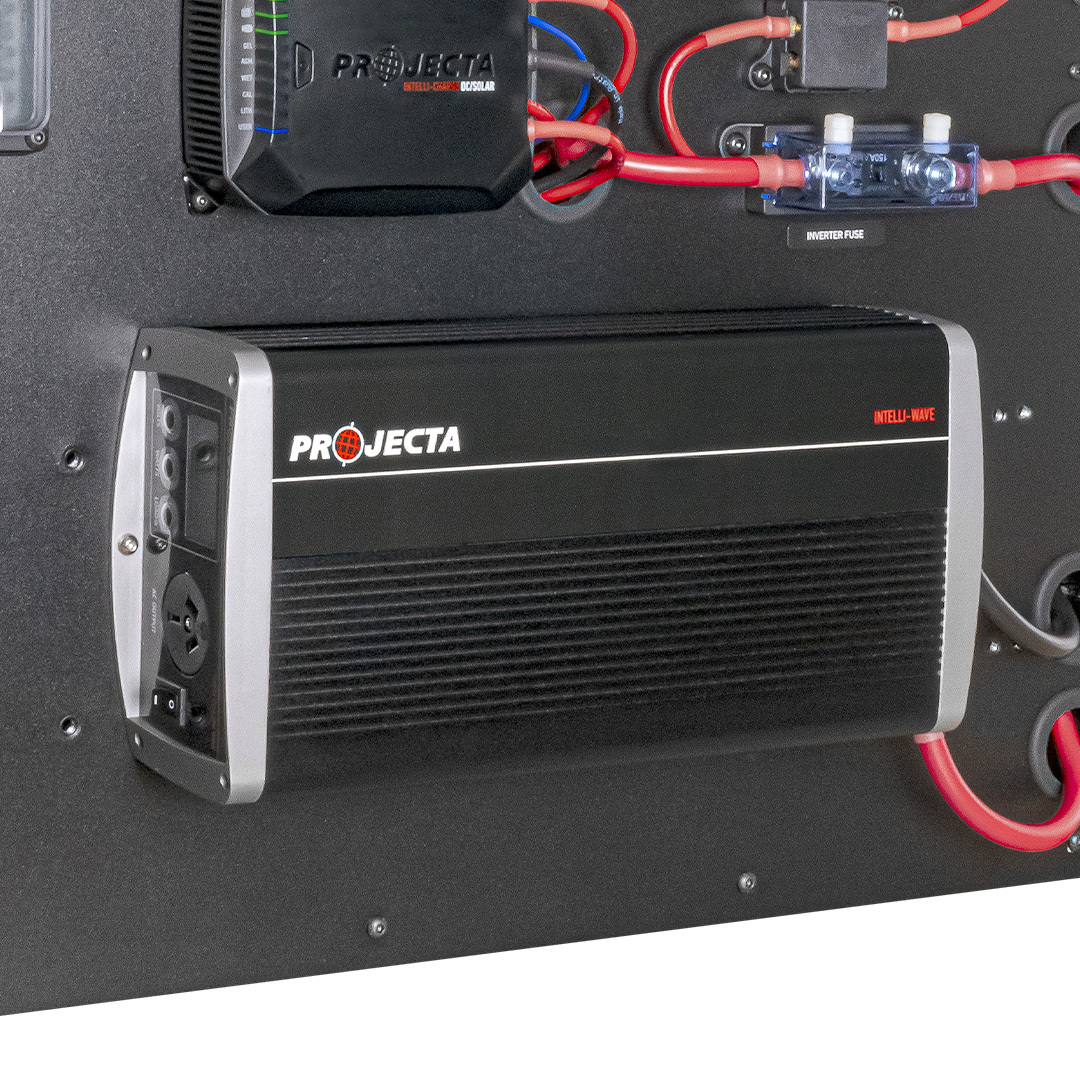

• 1000W PURE SINE WAVE INVERTER (IP1000): Converts 12V power to 240V to allow the use of devicessuch as laptops and fridges on the go

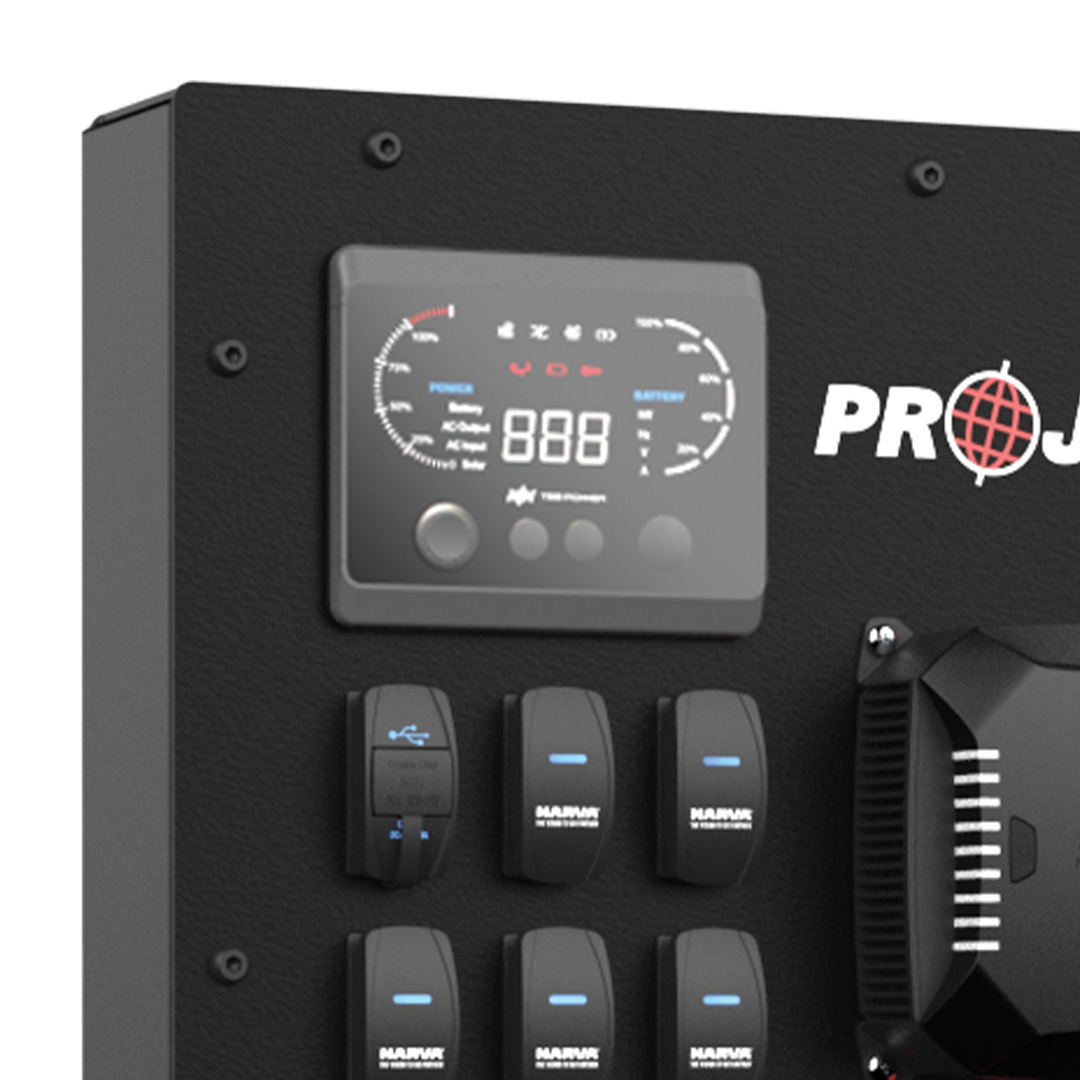

• BATTERY MONITOR (BM500-BT): An intelligent and compact battery meter ideal for monitoring SOC% and general status

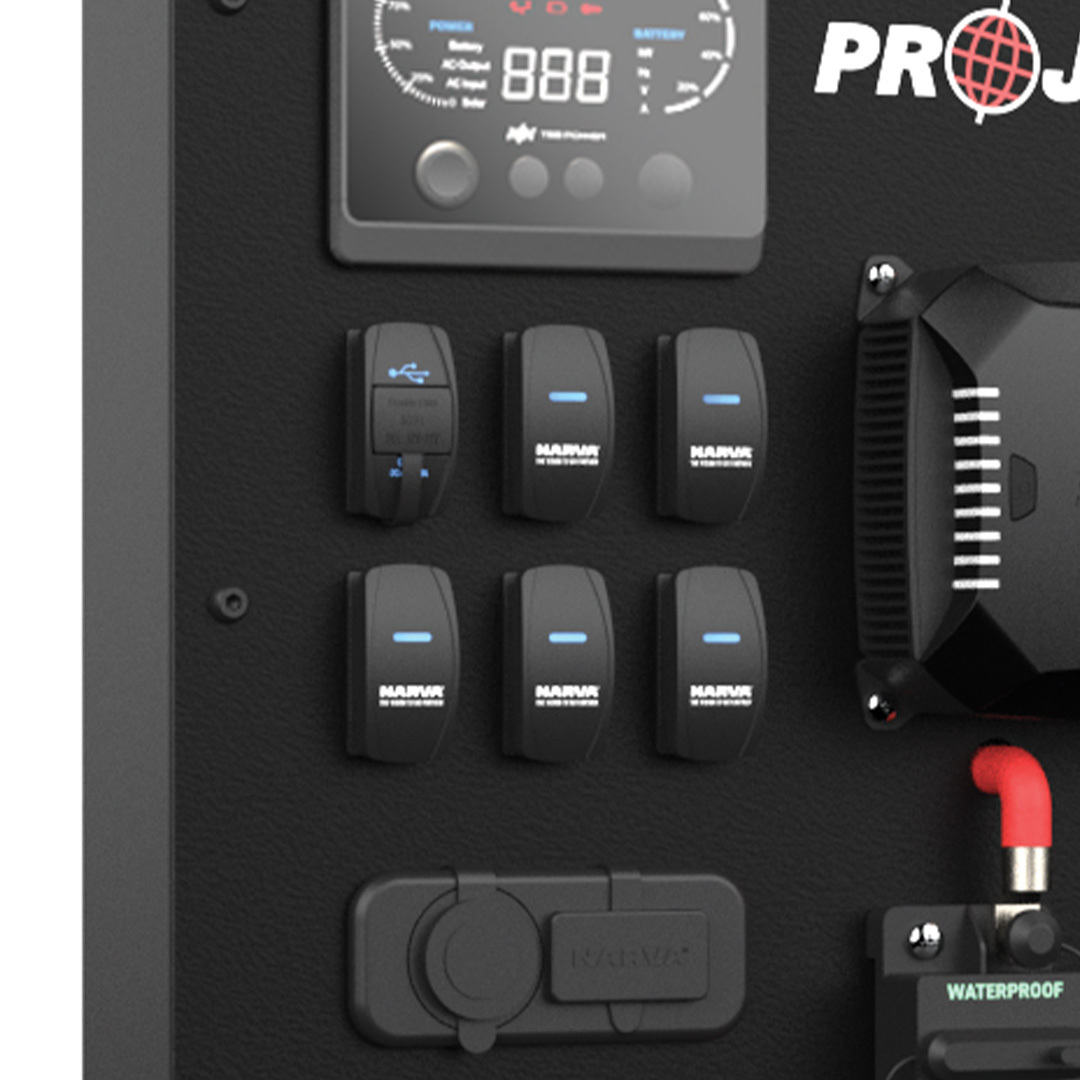

• SOCKETS & SWITCH PANEL: Power and charge 12V devices with 3.1A USB sockets, a merit socket and a cigarette lighter socket. 5 switches are included to control all your connections
• LOW VOLTAGE DISCONNECT: A robust and compact unit that protects expensive deep cycle batteries from damadamage caused
  by over-discharge

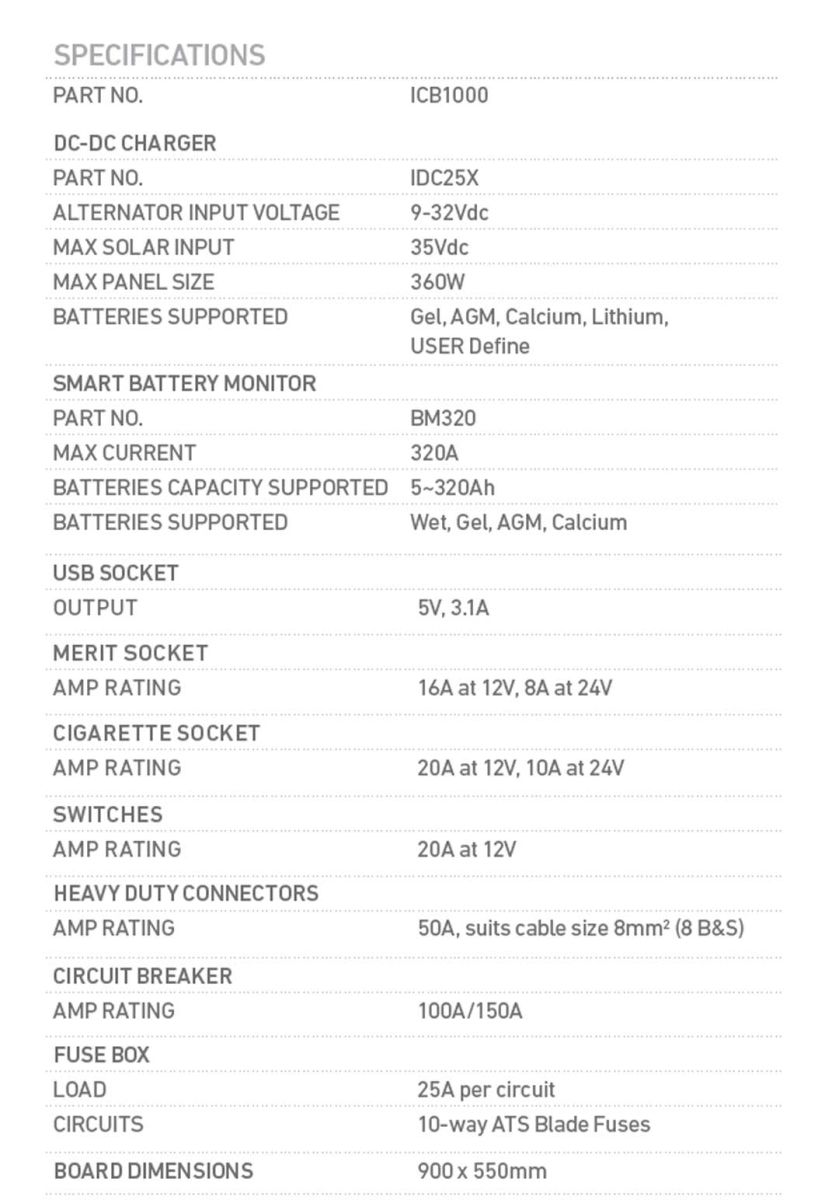

Specification:

DC-DC Charger:

• Input Voltage: 9-32Vdc
• Maximum Solar Input: 35Vdc
• Maximum Panel Size: 360W
• Batteries Supported: Gel, AGM, Calcium, Lithium

Smart Battery Monitor:

• Maximum Current: 320A
• Batteries Capacity Supporte: 5~320Ah
• Batteries Supported: Wet, Gel, AGM, Calcium

USB Pocket:

• Output: 5V,3.1A

Meri Socket:

• Amp Rating: 16A at 12V, 8A at 24V

Cigarette Socket:

• Amp Rating: 20A at 12V, 10A at 24V

Switches:

• Amp Rating: 20A at 12V

Heavy Duty Connector:

• Amp Rating: 50A, suits cable size 8mm² (8B&S)

Circuit Breaker:

• Amp Rating: 100A/150A

Fuse Box:

• Load: 25A per circuit
• Circuits: 10-way ATS Blade Fuses

Board Dimensions: 900mm x 550mm
