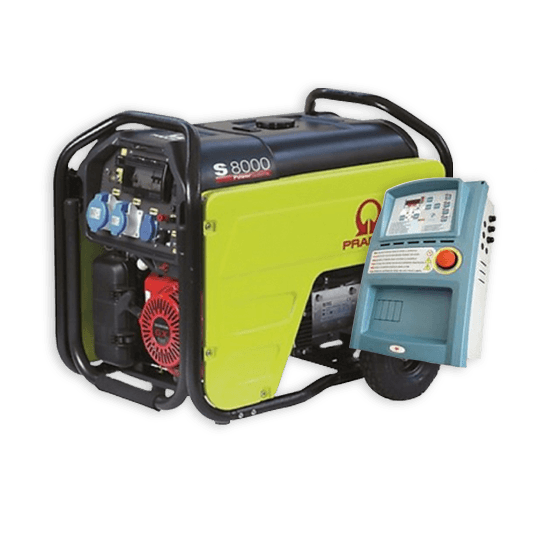

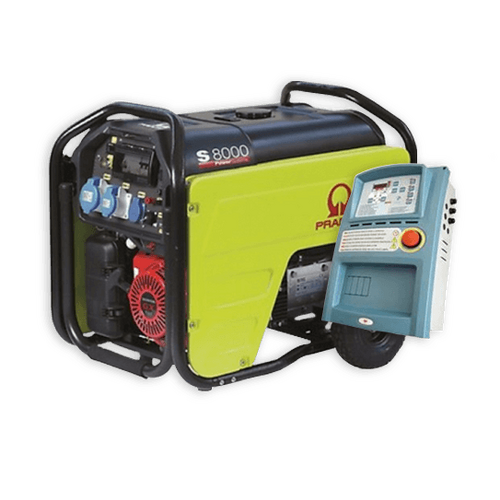

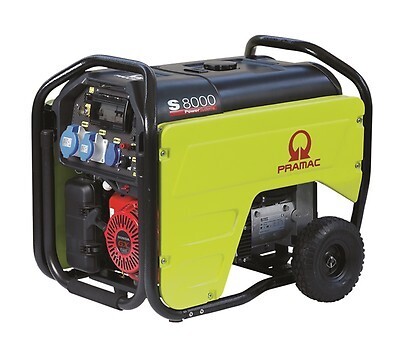

Pramac 7.2kVA Petrol Auto Start Generator + AMF, S8000 + PY000A0000S

SKU: PD612SH2Z08-PY000A0000S Learn More»
$5,249
$6,197

CALCULATE SHIPPING:

Learn More»
Dispatch 3-5 Days Express Shipping Price Match Guarantee Customer Reviews

"Excellant product advice ,quality generator, could"

Read more
Was pleased with purchase,when product was removed from box a sense of satisfaction was experienced. You immediately could see the value of the purchase and provided conformation of the correct decision in buying the generator. Generator is well made, is easy to start, robust construction tha
(Posted on 21 March 2020)

Product Description

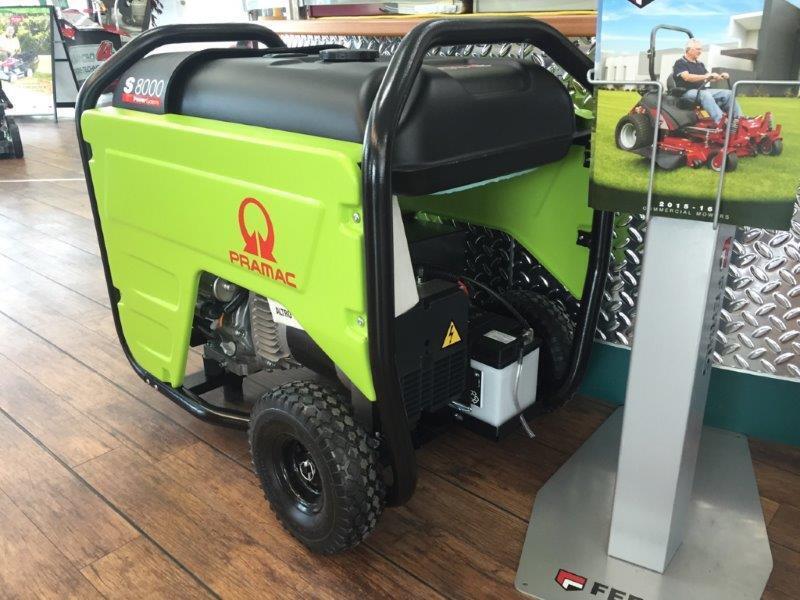

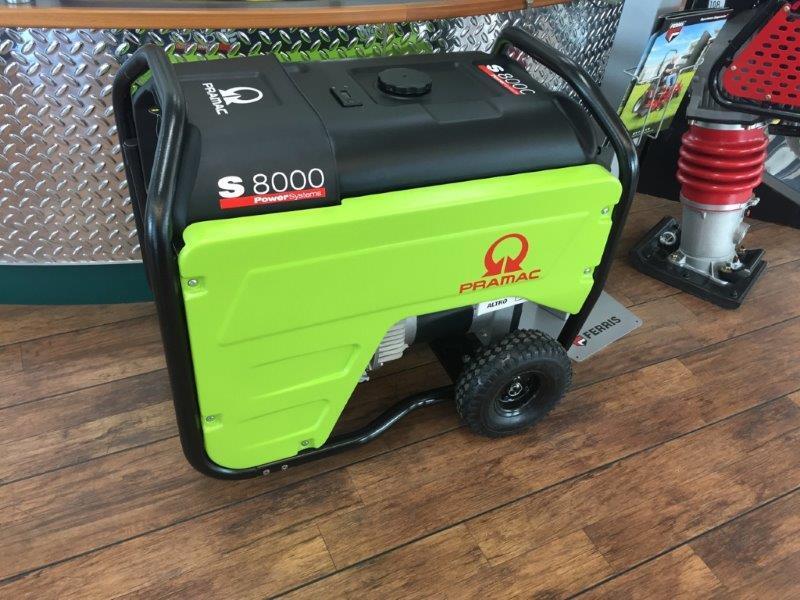

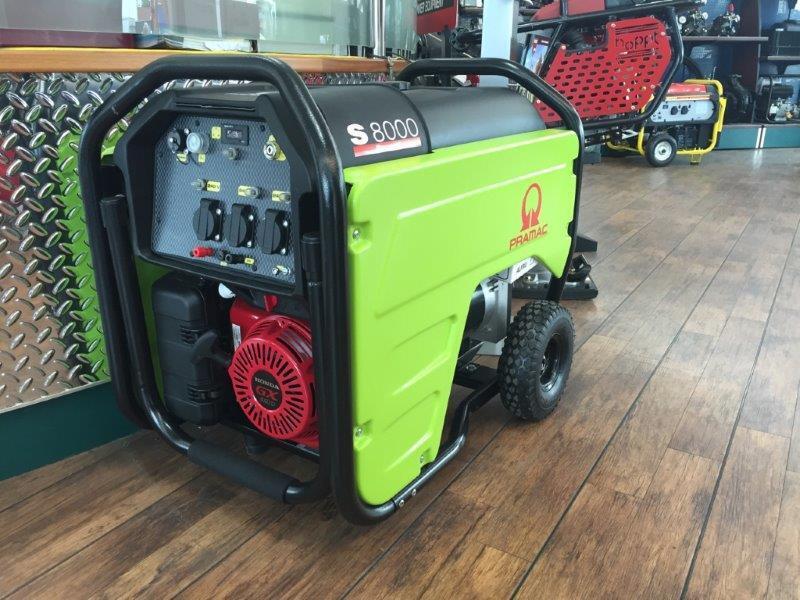

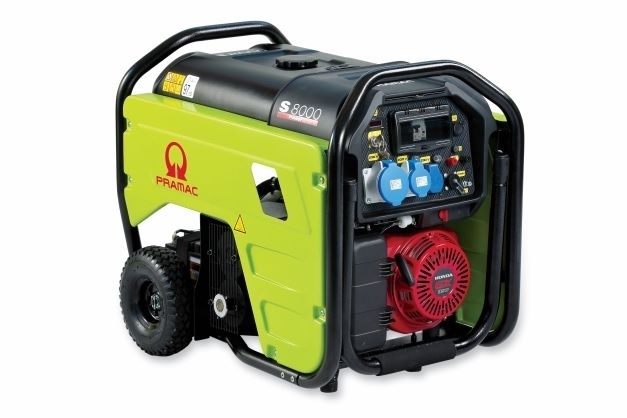

Pramac 7.2kVA Petrol Auto Start Generator + AMF, S8000 + PY000A0000S, 3 Year Warranty. The S8000 with a 3 Year Honda Australia Engine Warranty matches easy-use features and first-class components with the legendary Honda reliability to satisfy your home back-up power needs. This model is one of our most popular units for back up to mains power.

PRIMARY APPLICATION FOR THIS GENERATOR:

Backup to Mains Power:  For backup power to your home/building when there is a mains power blackout, this generator requires an Automatic Mains Failure (AMF) Panel - supplied with generator packageThis panel is also referred to as an 'Automatic Transfer Switch'. This AMF detects when there is a mains power failure, and signals to the generator to automatically start up to restore power to your home/building. Conversely, as soon as the AMF detects mains power returns, it stops the generator. A qualified electrician is required to undertake the install and connection.

Pramac AMF panel

ACCESSORY: AUTOMATIC MAINS FAILURE PANEL REQUIRED FOR MAINS POWER BACKUP

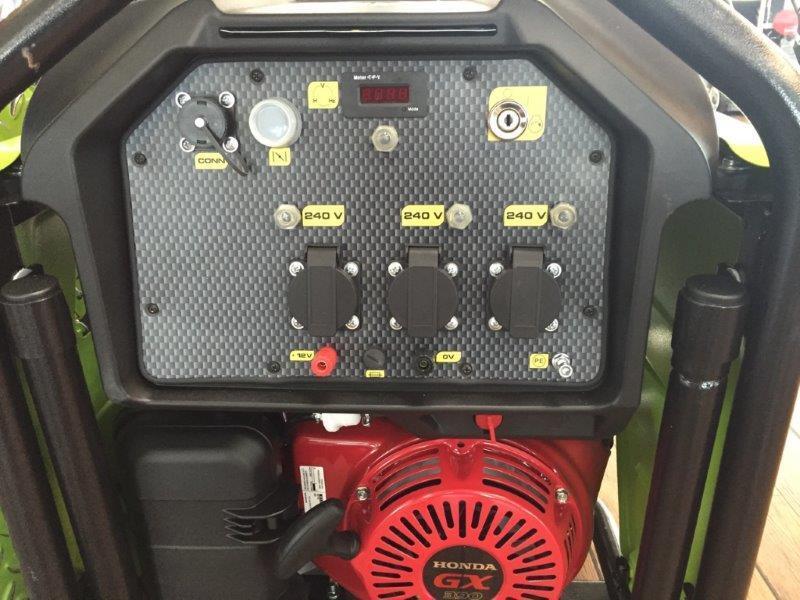

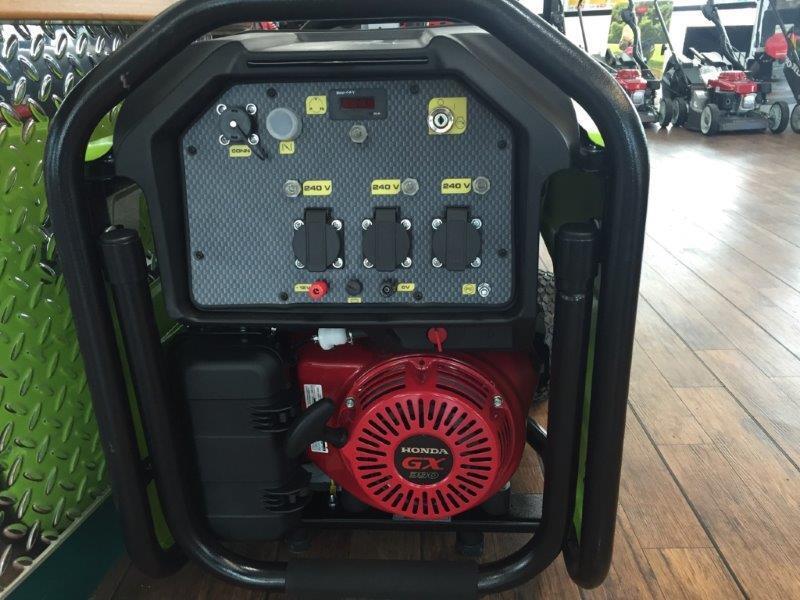

Overall, the generator is powered by a reliable Honda GX390 air-cooled engine with electric start to drive an AVR alternator for a max power of 7.2kVA and a continuous output of 5500 watts. The hardy design also features a long-run 26.5L fuel tank and control panel that allows you to integrate the accessories listed above as per your required backup use.

The 36 month warranty backed by a national service network means you can be confident you’ll always have power when the lights go out.



 Pramac S8000 Product Card

Pramac 2 Wire Auto Start Controller Accessory Info

Wiring Diagram

Specifications

SKU PD612SH2Z08-PY000A0000S

Brand Pramac

Warranty Period: 3 Years

Product Category Portable Generators

kVA 7.2

Max Output (kW) 6.4

Continuous Output (kW) 5.5

Max Output (Watts) 6400

Continuous Output (Watts) 5500

Fuel Petrol

Fuel Tank Capacity 26.5L

Starting Method Electric/Recoil start

Frequency 50Hz

Voltage 230V

Cont. Working Time 12.2h at 75% load

Engine Honda GX390

Weight (kg) 109

Engine Speed 3000rpm

Outlets 3 x 15A 1ph Australian Retail outlets

Engine Warranty 3 Year Honda Australia Engine Warranty

Displacement 389cc

Alternator Type AVR

Noise @ 7m 69db

Product Dimensions (LxWxH) 840 x 615 x 753mm


Videos

Pramac S8000 with Automatic Mains Failure Panel



Pramac S Series Tutorial



Product Q&A

Ask Us a Question
  • Hi guys, I just spoke to Simon about a different generator. Instead I’m interested in this one, but want to know if the MEN link internally is easily removable (in VIC we need to remove the MEN link as the house itself has the required MEN link in the sw

Customer Reviews

Write a product review

Excellant product advice ,quality generator, could Review by
Was pleased with purchase,when product was removed from box a sense of satisfaction was experienced. You immediately could see the value of the purchase and provided conformation of the correct decision in buying the generator. Generator is well made, is easy to start, robust construction that incorporates wheels and handle. Compact design with easy access to all areas requiring attention (fuel, oil and instrument panel). Always believe in buying the best you can afford and the pramac generator meets and exceeds this philosophy.
(Posted on 21 March 2020)
