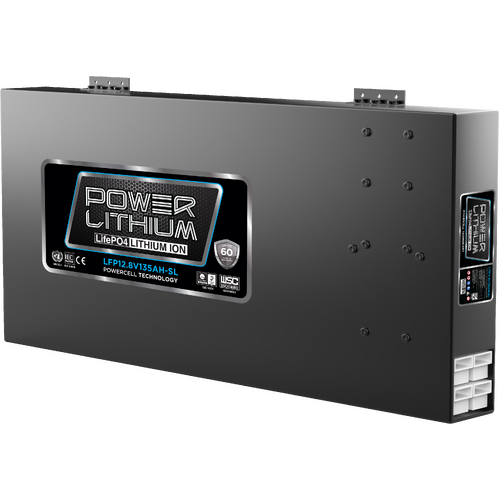

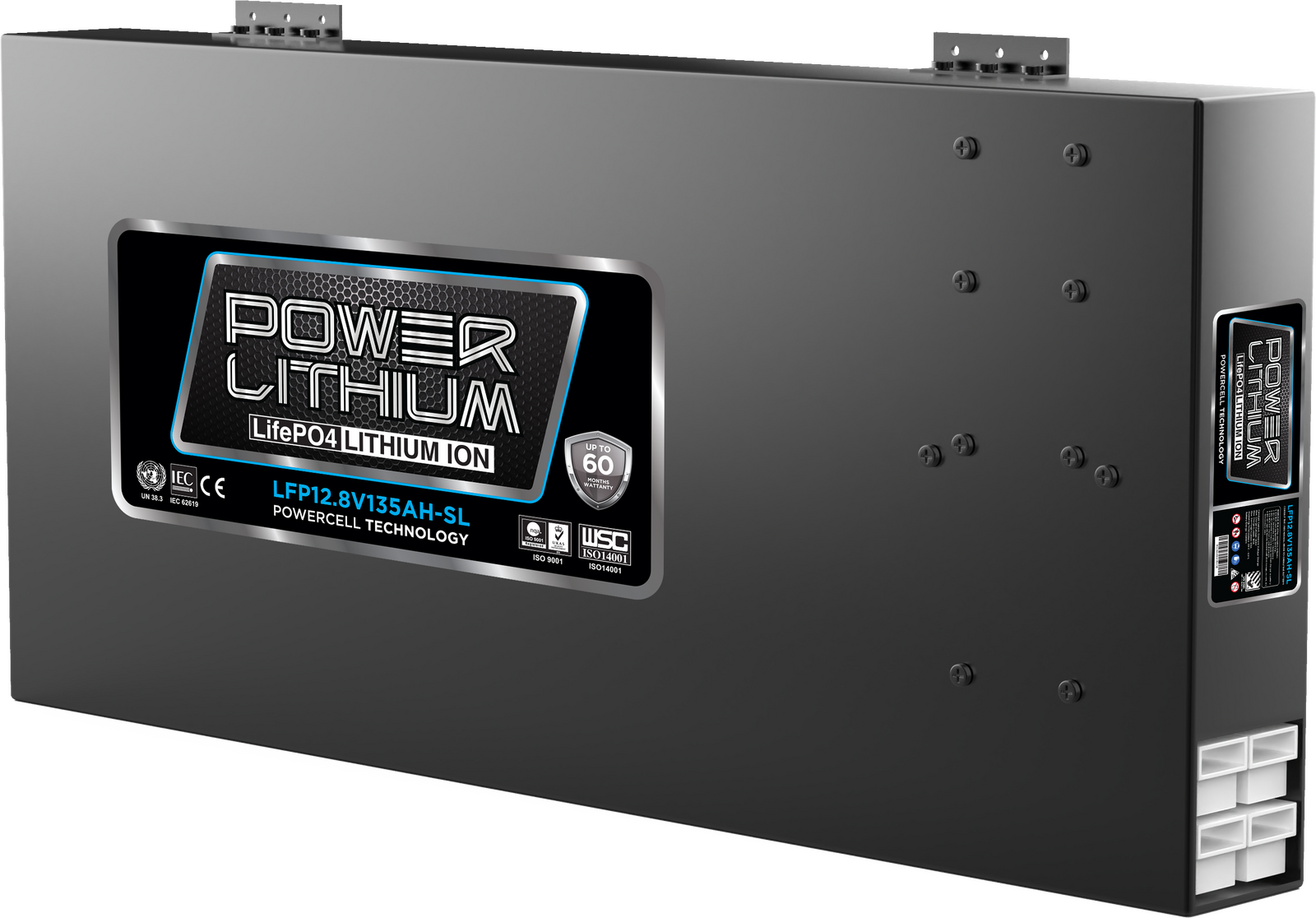

Power Lithium 135Ah Slim Line Battery, LFP12.8V135AH-SL

Product Description

Power Lithium 135Ah Slim Line Battery, LFP12.8V135AH-SL, 5 Years Warranty.

Features:

• Longer Cycle Life. LiFePO4 batteries would be is five times than SLA batteries on cycle life
• High Power & Light weight. LiFePO4 batteries performance twice power of SLA batteries, while half weight helpful for transport and installation
• Intelligent management control. Intelligent BMS system covered by LFP batteries to ensure that batteries work on safety and perfect condition
• Lower Self-discharge rate. Lower Self-discharge rate to guarantee LFP batteries be stored more longer than SLA batteries

Specifications:

• Chemistry: LiFePO4
• Nominal Voltage: 12.8V
• Nominal Capacity: 135Ah (C5,25°C)
• Energy: 1536Wh
• Internal Resistance: ≤12 mΩ
• Cycle Life: >2000 cycles @1C 100%DOD
• Months Self Discharge: <3%
• Efficiency of Charge: 100% @0.5C
• Efficiency of Discharge: 96-99% @1C
• Charge Voltage: 14.6±0.2V
• Charge Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
• Charger Current” 67.5A
• Max. Charge Current: 135A
• Charge Cut-off Voltage: 15.6V±0.2V
• Rated Discharge Curren:t 67.5A
• Max Discharge Current: 135A
• Max. Pulse Current: 405A(<3s)
• Discharge Cut-off Voltage: 10V
• Charge Temperature: 0 °C to 45 °C @60±25% Relative Humidity
• Discharge Temperature: -20 °C to 60 ° @60±25% Relative Humidity
• Storage Temperature 0 °C to 40 °C (32Fto 104F) @60±25% Relative Humidity
• Water Dust Resistance: IP65
• BMS: 4S/4P
• Plastic Case: SPCC
• Dimensions: 770mm x 285mm x 63 mm
• Weight :17.5kg
• Terminal: Anderson Connectors
