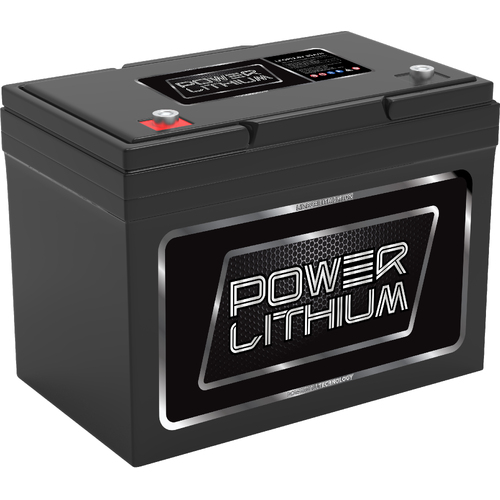

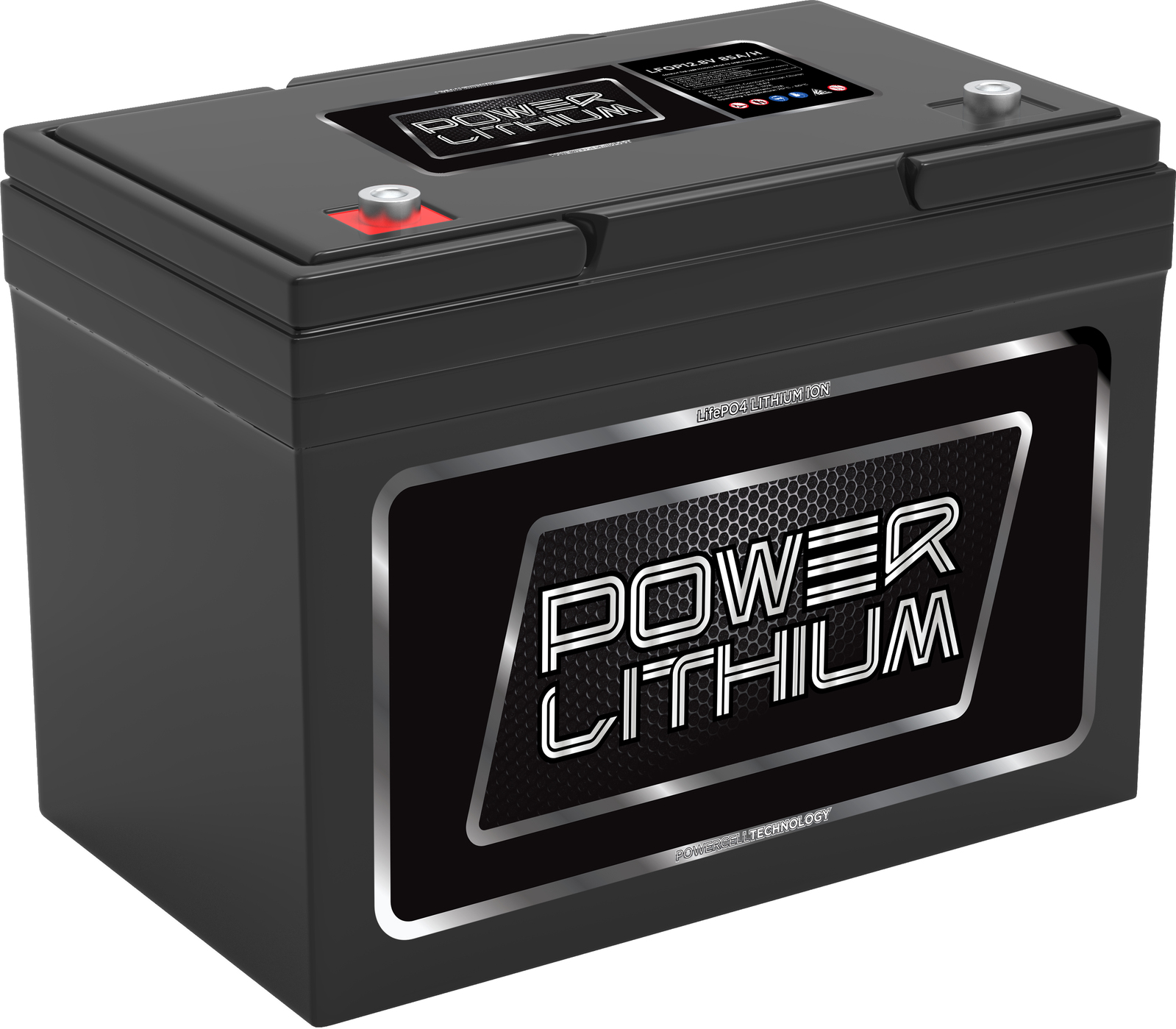

Power Lithium 12V 85Ah Battery
SKU: LFP12.8V85AH Learn More»
Product Description
Power Lithium 12V 85Ah Battery, 5 Years Warranty.
Features:
- Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battert, helping to minimize replacement cost and reduce total cost of ownership.
- Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead batteries.
- Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
- Wider Temperature Range: 20°C ~ 60°C
- Superior Safety: Lithium Iron Phospate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuits situation.
- Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.
- Electric vehicles, electric mobility
- Solar/Wind Energy storage system
- UPS, backup power
- Telecommunication
- Medical Equipment
- Lighting
Specifications:
Electrical Characteristics
- Nominal Voltage: 12.8V
- Nominal Capacity: 85Ah (C5,25℃)
- Energy: 1088Wh
- Internal Resistance: ≤20mΩ
- Cycle Life: >2000 cycles @1C 100%DOD
- Months Self Discharge: <3%
- Efficiency of Charge: 100% @0.5C
- Efficiency of Discharge: 96~99% @1C
Standard Charge
- Charge Voltage: 14.6±0.2V
- Charge Mode: 0.2C to 14.6V, charge current to 0.02C (CC/CV)
- Charger Current: 50A
- Max. Charge Current: 85A
- Charge Cut-off Voltage: 15.6±0.2V
Standard Discharge
- Continuous Current: 85A
- Max. Pulse Current: 250A(<3s)
- Discharge Cut-off Voltage: 8V
Environmental
- Charge Temperature: 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
- Discharge Temperature: -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
- Storage Temperature: 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
- Water/Dust Resistance: IP56
Mechanical
- Cell & Method: 26650 4S35P
- Plastic Case: ABS
- Dimensions (mm.): 259 x 168 x 208mm
- Weight (kg.):9.3kg
- Terminal: M8
- Protocol (optional): SMBus/RS485/RS232
- SOC (optional): LED
Specifications
SKU LFP12.8V85AH
Brand Power Lithium
Warranty Period: 5 Years
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 85
Nominal Voltage 12.8V
Nominal Capacity 85Ah
Maximum Charge Current 85A
Battery Discharge Temperature -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Charge Cut-off Voltage 15.6 ± 0.2V
Dimensions 259mm x 168mm x 208mm
Charging Voltage 14.6 ± 0.2V
Charger Efficiency 100% @0.5C
Storage Range (temp) 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Total Charge Current 50A
Net Weight (kg) 9.3
