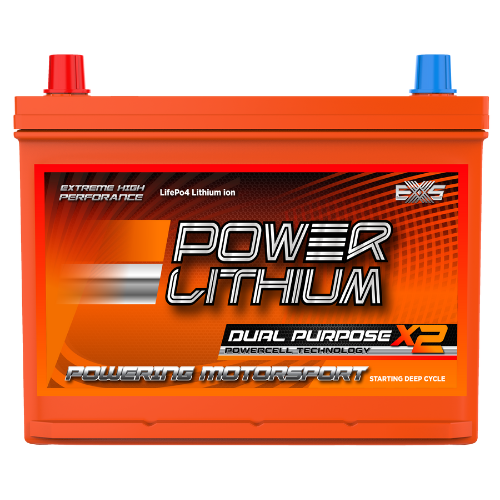

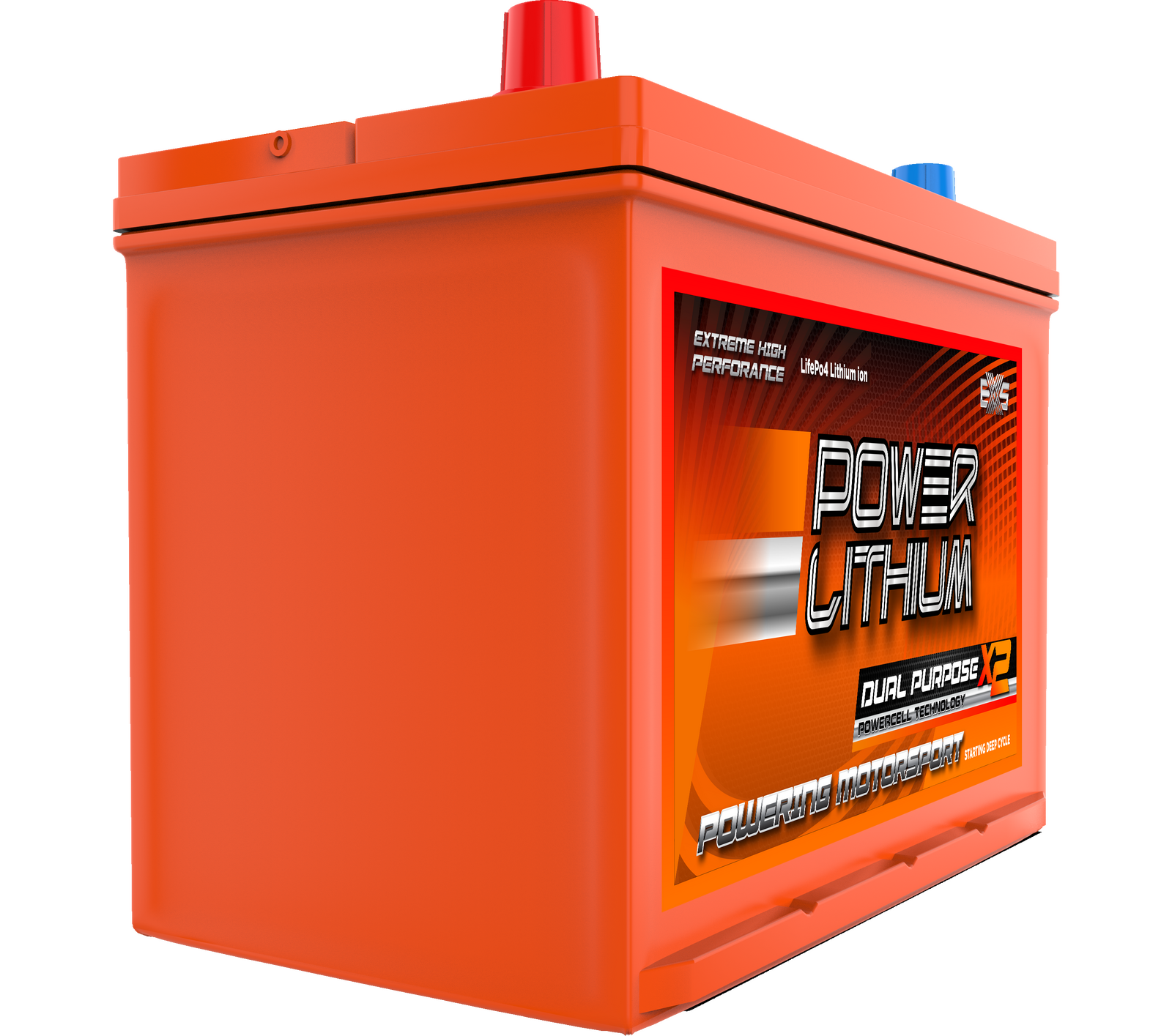

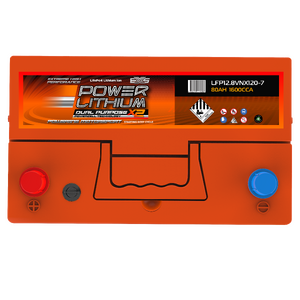

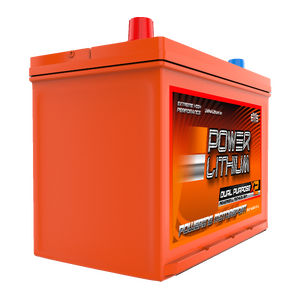

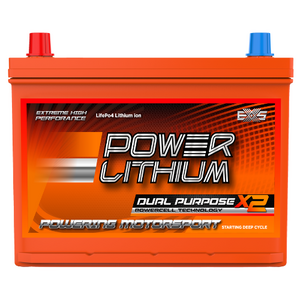

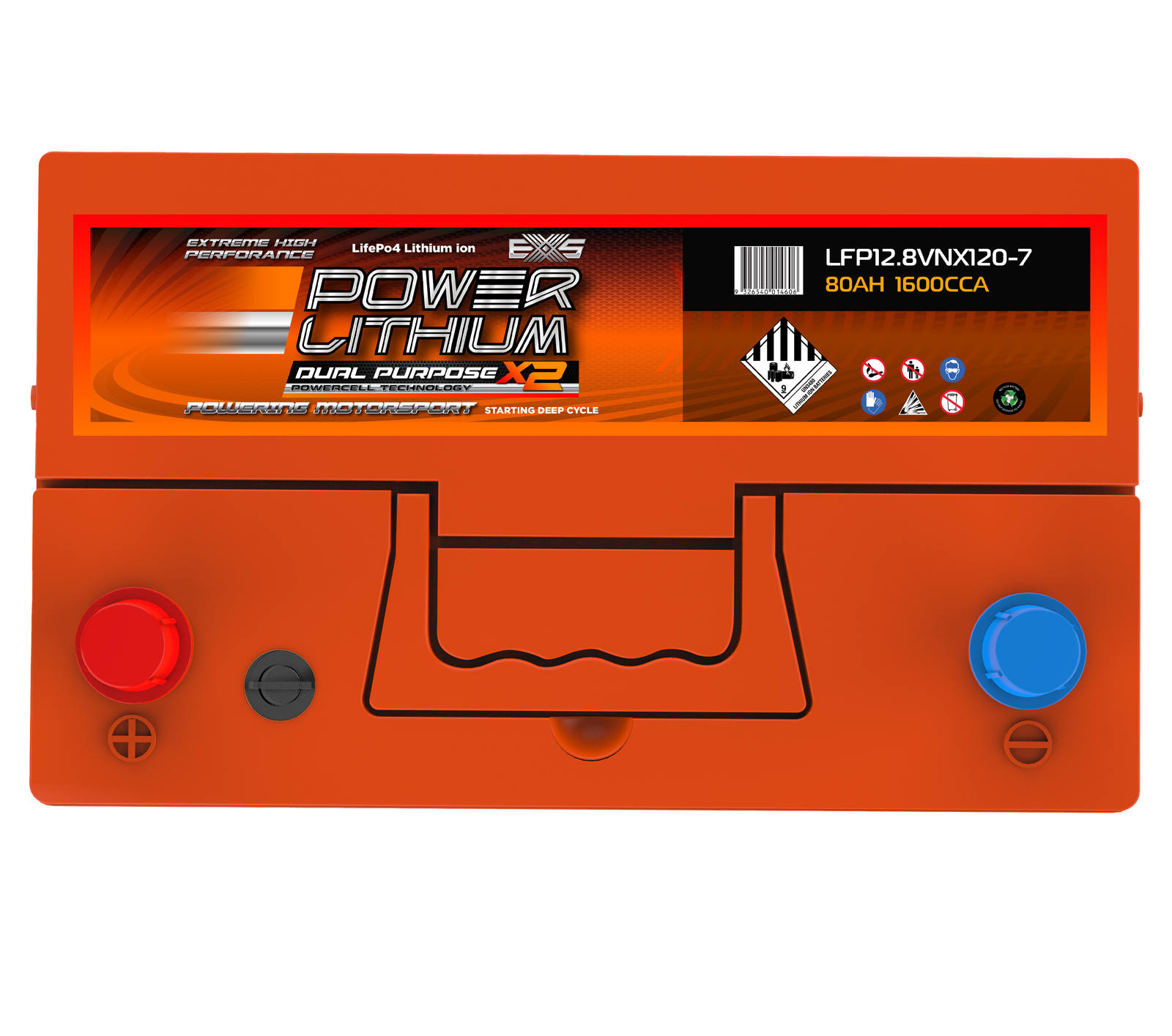

Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Right Hand Positive

Product Description

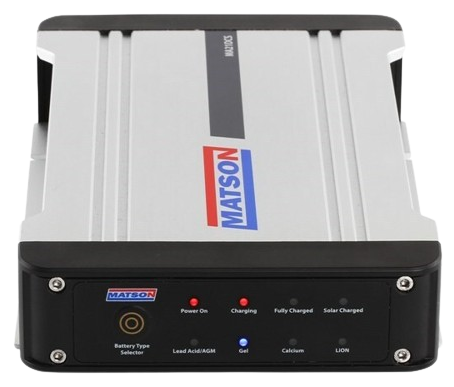

Currently FREE with the Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Optional Positive is a Matson 12V 20A In-Vehicle DC-DC Battery Charger with Solar Input (RRP $239)!

Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Optional Positive, 5 Year Warranty.

Location of Installation Option:

• Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Right Hand Positive,  LFP12.8VNX120-7
• Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Left Hand Positive,  LFP12.8VNX120-7L

Features:

• Longer Cycle Life: LiFePO4 batteries would be is five times than SLA batteries on cycle life
• High Power & Light weight: LiFePO4 batteries performance twice power of SLA batteries, while half weight helpful for transport and installation
• Intelligent management control: Intelligent BMS system covered by LFP batteries to ensure that batteries work on safety and perfect condition
• Lower Self-discharge rate: Lower Self-discharge rate to guarantee LFP batteries be stored more longer than SLA batteries

Specifications:

ElectricalCharacteristics:

• Chemistry: LiFePO4
• Nominal Voltage: 12.8V
• Nominal Capacity: 80Ah
• Energy: 1024Wh
• Cold Cranking Amps: 1600CCA
• Internal Resistance: ≤1.9 mΩ
• Cycle Life: ≥1500 cycles
• Self Discharge Rate: ≤30uA
• Efficiency of Charge: 100% @0.5C
• Efficiency of Discharge: 96-99% @1C

Standard Charge:

• Charge Voltage: 14.6±0.2V
• Charge Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
• Rated Charge Current: ≤40A
• Max. Charge Current: ≤80A
• BMS Charge Cut-off Voltage: 15.6V
• Over Charge Recovery Voltage: 15.2V

Standard Discharge:

• Continuous Discharge Current: ≤180A
• Instantaneous Discharge Current: 1600A(5S)
• BMS Discharge Cut-off Voltage: 8V
• Over Discharge Recovery Voltage: 9.2V
• Charge Temperature: 0 °C to 45 °C (32Fto 113F) @60±25% Relative Humidity
• Discharge Temperature: -20 °C to 60 °C (-4F to 140F) @60±25% Relative Humidity
• Storage Temperature: 0 °C to 40 °C (32Fto 104F) @60±25% Relative Humidity
• Water Dust Resistance: IP56

Mechanical:

• BMS Withstand voltage value: 30V
• Plastic Case: ABS
• Dimensions (in./mm.): 303*170*201*222mm ± 2mm
• Weight (lbs./kg.): 9.8kg(21.56Ibs)
• Terminal: Brass

LFP12.8VNX120-7 Information

LFP12.8VNX120-7L Information
