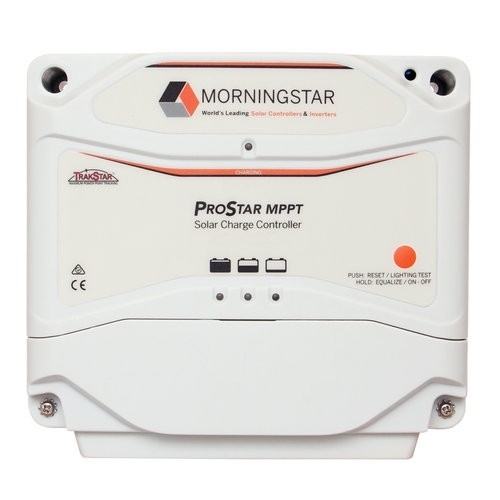

Morningstar ProStar MPPT-25 Amp Solar Controller
SKU: SR-PS-MPPT-2 Learn More»Product Description
Morningstar ProStar MPPT-25 Amp Solar Controller, 5 year warranty. The Prostar MPPT™ solar charge controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 1100 watts. This controller allows multiple modules in series for 12V and 24V battery systems. Detailed battery programming options allow for advanced battery support for the latest Lithium, Nickel Cadmium, and Lead Acid battery types.
- Load and automatic PV-based lighting control
- Charges all battery types including Lithium Ion
- Continuous charging and no damage from PV array oversizing
- Up to 256 days of data logging
- Built-in self diagnostics
- Highly durable polycarbonate case
- Low noise design
- MODBUS communications

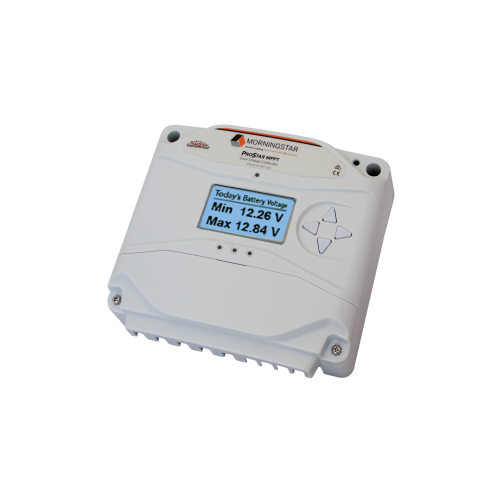

- Meter allows charging and temperature control adjustments without a computer
Specifications
SKU SR-PS-MPPT-2
Brand Morningstar
GTIN 9342616026625
Warranty Period: 5 Years
Product Category Solar Charge Controllers
Charge Current (A) 25
Amps 25
Humidity 100% Non-condensing
Weight (kg) 1.4
Dimensions (LxWxH mm) 200 x 170 x 70
Operating Range (temp) -40°C to + 60°C
Storage Range (temp) -40°C to + 80°C
Enclosure Class IP20, Type 1
Nominal Battery Voltage 12V or 24V
Accuracy of voltage measurement <= 0.1% +/- 50mV
Battery Voltage Range 10 - 35V
Max. Battery Current 25A
Load Current Rating 25A
