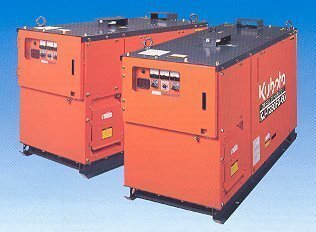

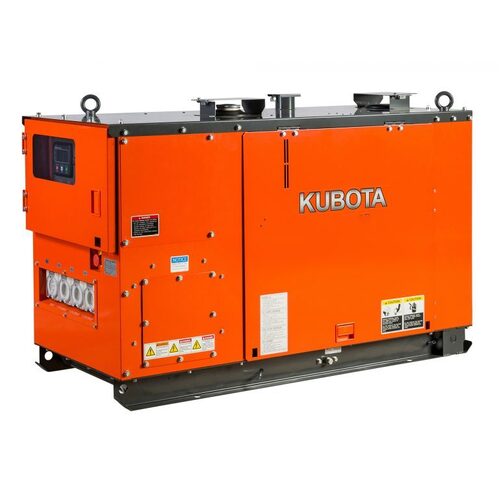

Kubota 12.5kva Single Phase Diesel Generator KJ-S130

SKU: KJ-S130-AU-B Learn MoreĀ»
POA
Express Shipping Price Match Guarantee Customer Reviews

Product Description

The Kubota KJ-S130VX, 12.5 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.

Cleaner Power: The 03 series engines used in the KJ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.

Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.

Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology.

Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy enclosure.

Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.

Kubota Product Brochure

Product Manual

Specifications

SKU KJ-S130-AU-B

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 13.8

Continuous Output 12.5 kVA / 12.5 kW

Phase Single

Fuel Diesel

Tank Litres 37

Standby Output 13.8 kVA / 13.8 kW

Voltage Regulation 3.5% (No Load to Full Load)

Engine Speed 1500 rpm

Engine Kubota V2203, 4 cylinder water cooled

Coupling Type Direct Drive

Bore / Stroke 87 x 92.4 mm

Fuel litres per hour (100% load) 5.3

Weight (wet) 505 kg

Dimensions (LxWxH mm) 1488 x 650 x 971

Oil Capacity 7.6 L

Frequency 50 Hz

Number Of Cylinders 4

Voltage (Single Phase) 240V

Insulation Class H

Starting System Electric

Displacement 2197 mL

Alternator Type Revolving field

Phase & Wire 1 Phase 4 Wire

Coolant 9.0 L

Max Current Amps 52.1 Amps

Battery 95D3IR | 12 x 64 AH/5Hr


Product Q&A

Ask Us a Question
  • Can KJS130 be hardwired for backup power

    Hi There,

    When paired with a suitable aut omatic transfer switch, the KJS130 can certainly be hardwired for back up power.
