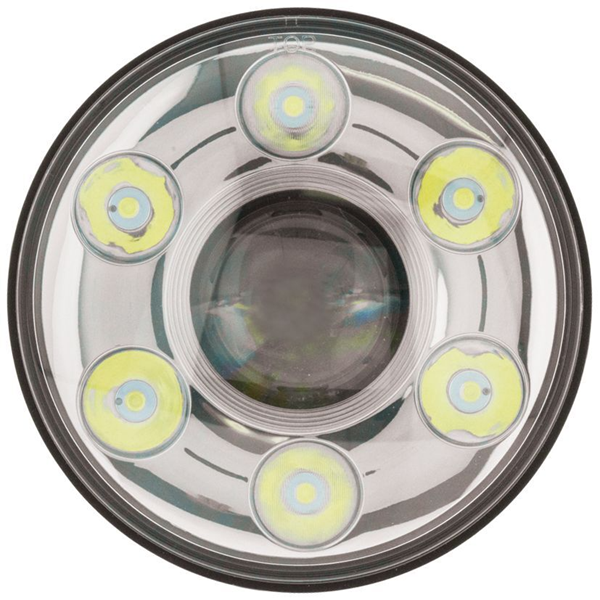

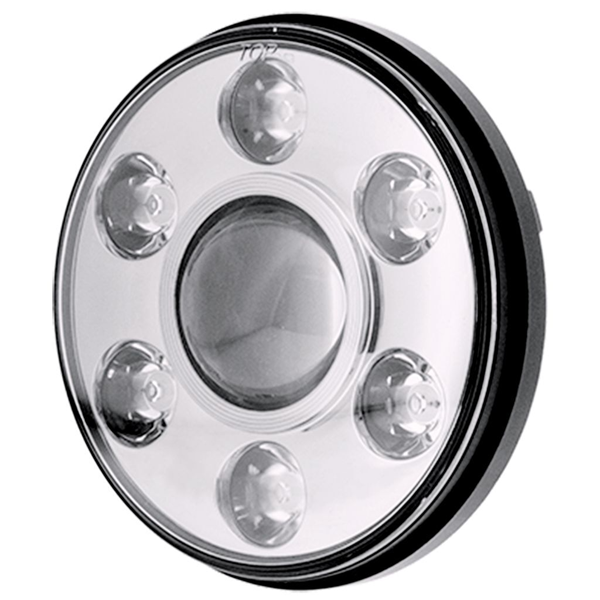

Ignite 7" LED Headlight High/Low Beam Chrome Fascia

Product Description

Ignite 7" LED Headlight High/Low Beam Chrome Fascia, 1 Year Warranty.

Features:

• Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt
• High/Low Beam and Park Light - Chrome Fascia

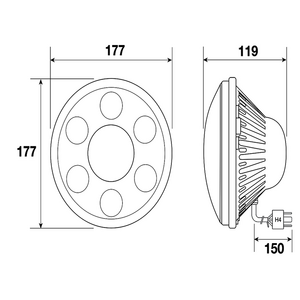

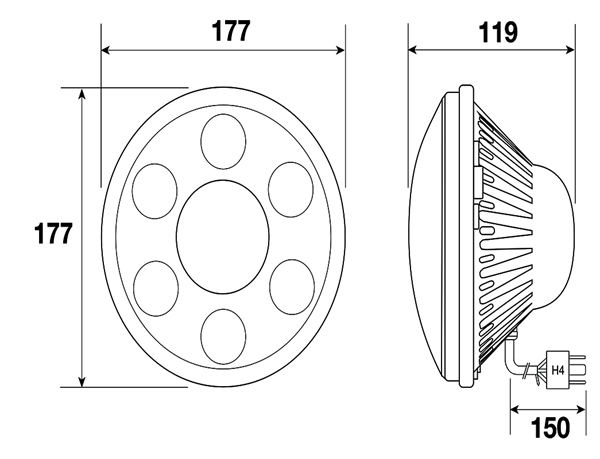

• 7" or 178mm Round
• 6 x 10 Watt High-Intensity CREE LEDs for Park Light and High Beam
• 1 x 5 Watt High-Intensity LUMI LED for Low Beam
• Current Draw: 4.1amp at 12 Volt, 1.8amp at 24 Volt High Beam
• 1.7amp at 12 Volt, 0.8amp at 24 Volt for Low Beam

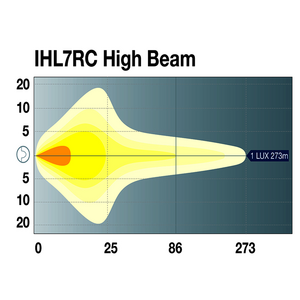

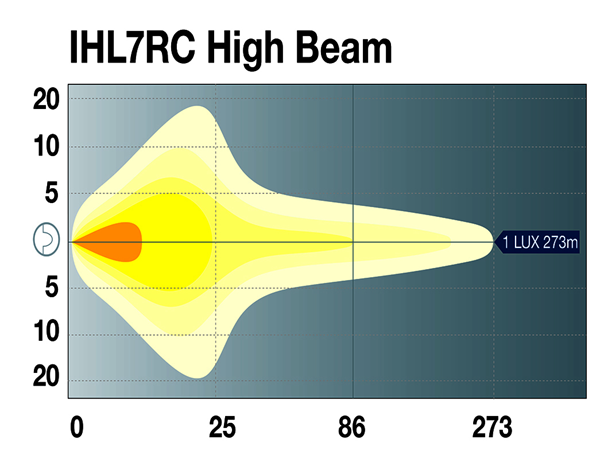

• High Beam 3,900 Raw or 3,315 Effective Lumens and 6,500K

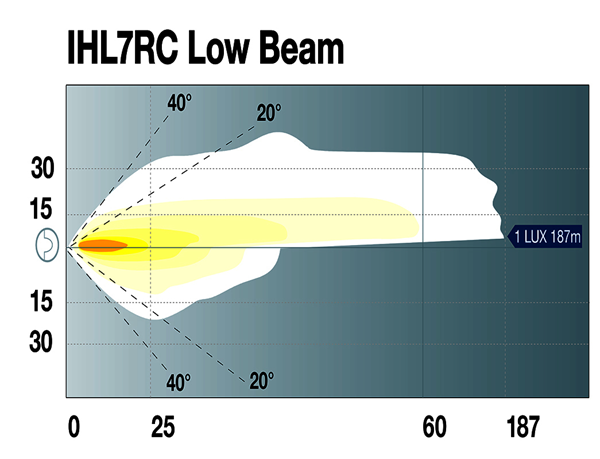

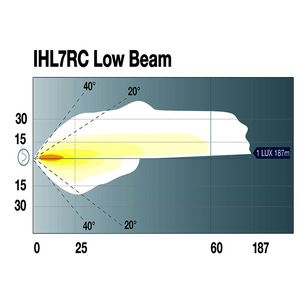

• Low Beam 1,800 Raw or 1,530 Effective Lumens and 6,500K
• Lexan Polycarbonate Lens and Reflectors
• Patented TIR Lens Optics System for High Beam and Park Lights
• Black anodised Polyester Powder Coated Die-Cast Aluminium (ADC12) Housing
• 6063 Extruded Aluminium Heat Sink

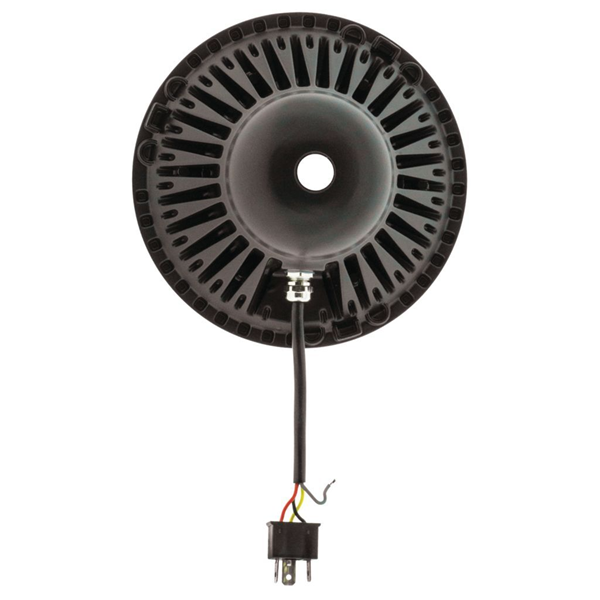

• 150mm Lead with H4 Connector and High Beam Adaptor Plug
• 50,000 Hours LED Lifespan
• Integrated Electronic Thermal Management (ETM)
• Reverse Polarity and Power Surge Protection
• UV Stabilized
• EMC Compliant
• Shock Resistant, Vibration Tested to 6G's
• Environment temperature -40~+60 °C
• ECE R112 / R7, DOT, CE Certified
• IP68 and IP69K Rating

Notes:

• Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams
• For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
• Adaptor lead supplied for Headlight to work purely as a High Beam unit only
