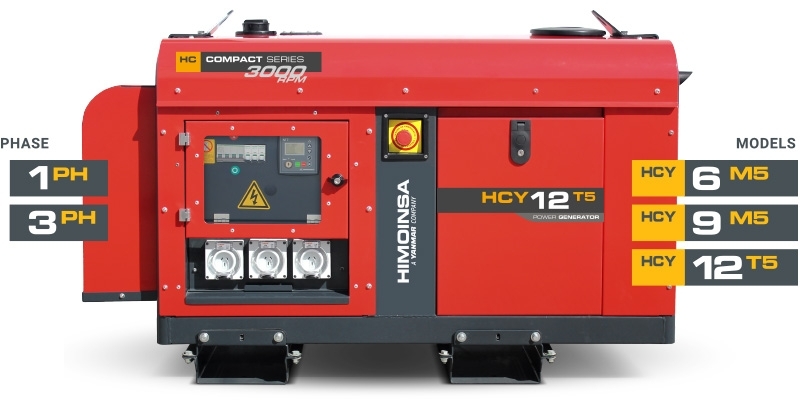

Himoinsa 12.5kVA Yanmar Compact Three Phase Diesel Generator

SKU: HCY-12T5 Learn More»



Sold Out

Contact Us For A Freight Quote
Express Shipping Price Match Guarantee Customer Reviews

Product Description

Himoinsa 12.5kVA Yanmar Compact Three Phase Diesel Generator, 1 Year Warranty. This is powered with Yanmar’s economical & reliable 3TNM68HHFCG diesel engine and backed by a full manufacturers warranty ensuring you peace of mind.

Himoinsa HCY-12 T5 Compact Series diesel generator comes packed with the following features and is the ideal solution to integrate with your solar, battery and inverter system as well as for use in agriculture, mining & construction applications.


  • Rated 11.3kVA prime, 12.5kVA standby, 50Hz, Three Phase, 415V, 0.8PF
  • Yanmar diesel with superior durability & fuel economy, 2 pole 3,000RPM.
  • Quality 2 Pole AC alternator, single bearing closed coupled with voltage regulator with +/-1%
  • Enclosure Sound Level: 69dB(A) @ 7m
  • 2 point lifting frame – Fork lift pockets,
  • Control panel viewing window & vertical air discharge with integral exhaust.
  • 38.9 litre bunded fuel tank 10.3 hour run time (at 100% load).
  • Engine Alternator mounted to base frame via anti vibration mounts.
  • Set mounted control panel containing key start / remote start controller and circuit breaker.
  • The Himoinsa M5 generator controller provides a LCD display with comprehensive engine & alternator parameters display with shutdown protection.
  • Heavy duty battery, battery leads, isolator and hold down brackets.
  • Battery charger for standby operation, requires an external 240v power supply.
  • 1 x 3PH 32amp IP66 Rated outlet.
  • 2 x 1PH 15amp IP66 rated outlet.
  • RCD/MCBO protection.



Brand Himoinsa

Warranty Period: 1 Year

Product Category Himoinsa Generators

Standby kVA 12.50

Phase Three

Prime Output 11.3kW

Engine Make YANMAR - 3TNM68 HHFCG

Fuel Type Diesel

Voltage 415V

kVA (Max Power) 9/11.3

Net Weight (kg) 430

Weight (kg) 430

32amp Outlet Three Phase 1 x 3PH 32amp IP66 Rated outlet.

Dimensions (L x W x H) 1529mm x 775mm x 928mm

Noise Level (dB @ 7m) 69dB(A) @ 7m

15Amp Outlet Single Phase 2 x 1PH 15amp IP66 rated outlet.

Alternator Type MeccAlte ECP3 3S/2
