Fischer Panda 8kVA Diesel Marine inverter Generator

Express Shipping Price Match Guarantee Customer Reviews

Product Description

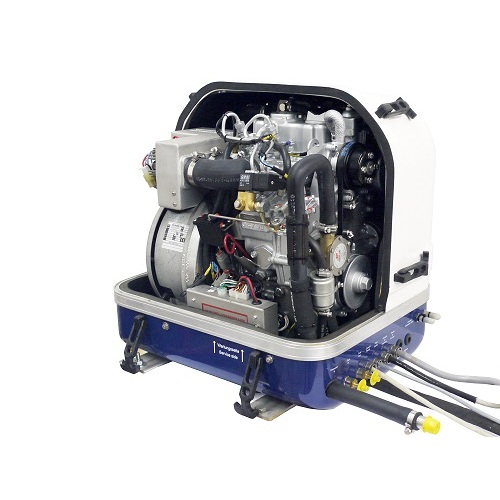

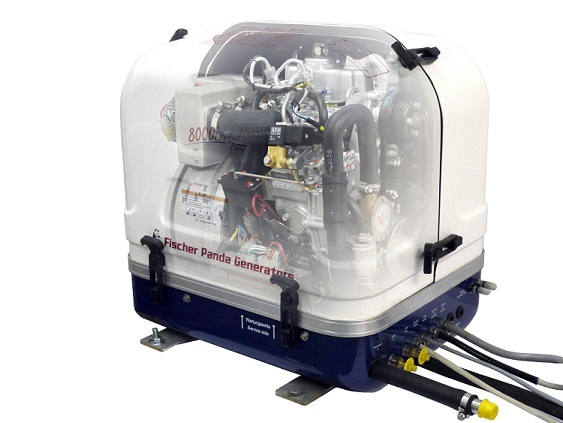

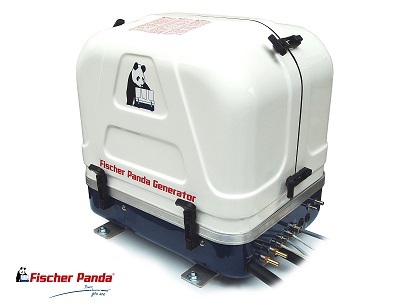

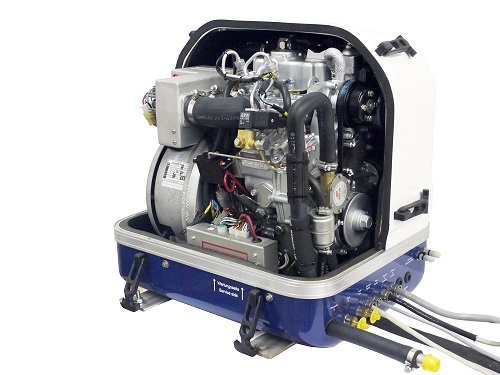

Fischer Panda 8kVA Diesel Marine Inverter Generator, 1 Year Warranty. The iSeries generators are the first of the next generation of compact, super silent and powerful generators from Fischer Panda®. Using modern diesel engines which meet the latest emission standards and variable speed technology, the operating speed is adjusted to match the load to ensure efficiency while supplying extremely stable voltage and frequency. Fischer Panda® iSeries generators are fitted with highly regarded sound insulation and water cooling. They have been especially designed to be lightweight and compact giving you up to 30% savings in weight and space.

Features:

  • Parallel connection of two iSeries generators of the same model
  • Load dependent variable speed technology 2200-2800RPM (1500-2700RPM for the 45i)
  • Compact installation due to small size and low weight
  • Highly efficient, maximum energy
  • Environmentally friendly with low fuel consumption
  • Easy installation reduces costs, all connectors pre-fitted to base
  • Dual circuit freshwater cooling via heat exchanger
  • Pure sine wave is ideal for sensitive electronics
  • Electronic controlled voltage and frequency regulation
  • Voltage stability 230Vac ± 3% (400Vac ± 3% for the 45i)
  • Frequency stability 50Hz ± 2%
  • High starting capacity for air conditioners / diving compressors
  • Panda iControl LCD display; dual remote panel options available
  • Electric starting, auto starting capable
  • Automatically stops under alarm state

N.B. Dimensions and weights are approximate values only. Please confirm current dimensions and weights when ordering.

Standard Inclusions:

  • SP33337324 Pierburg 12V remotely mounted fuel lift pump
  • 55-21.07.03.042P PMGi 8000 Inverter
  • SP33337608 Remote iControl and monitoring panel
  • 55-21.07.03.041P PMGi 10000 Inverter
  • 55-21.07.03.043P PMGi 4800 Inverter
  • 55-21.07.03.017P PMGi 15000 Inverter
  • 55-21.07.03.046P PMGi 25 Inverter
Fischer Panda Product Manual

Fischer Panda Product Brochure

Fischer Panda Product Drawings

Specifications

SKU 337042

Brand Fischer Panda

GTIN 9319786328231

Warranty Period: 1 Year

Product Category Fischer Panda Generators

Product Type Vehicle Generator, Inverter Diesel, Water Cooled.

Standby kVA 8

Rated Power Factor 0.8

kVA 8

Continuous Output 5.5kVA,

Phase Single Phase Power

Fuel Tank Capacity External Fuel Tank

Starting Method Electric

Noise Level (dB @ 7m) 54

Voltage Regulation iControl

Displacement 479cc 2 Cylinder

Voltage 230Volt AC output

Net Weight (kg) 110

Engine Model Z482

Starting System 12V

Engine Brand Kubota

Dimensions (LxWxH mm) 520 x 445 x 545

Fuel Type Diesel

Engine Speed 2400 - 2800

Frequency 50Hz

Nominal Output 8kVA, 6.4kW

Fuel litres per hour (100% load) On request
