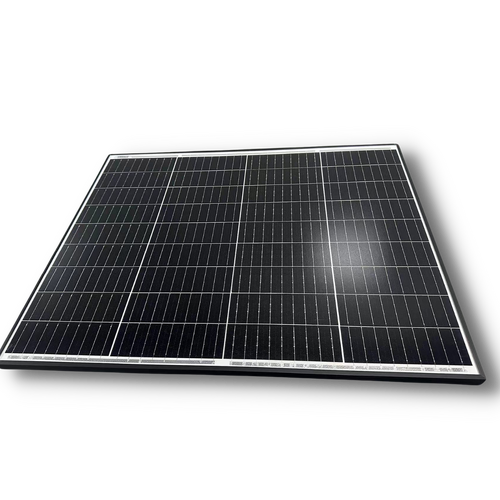

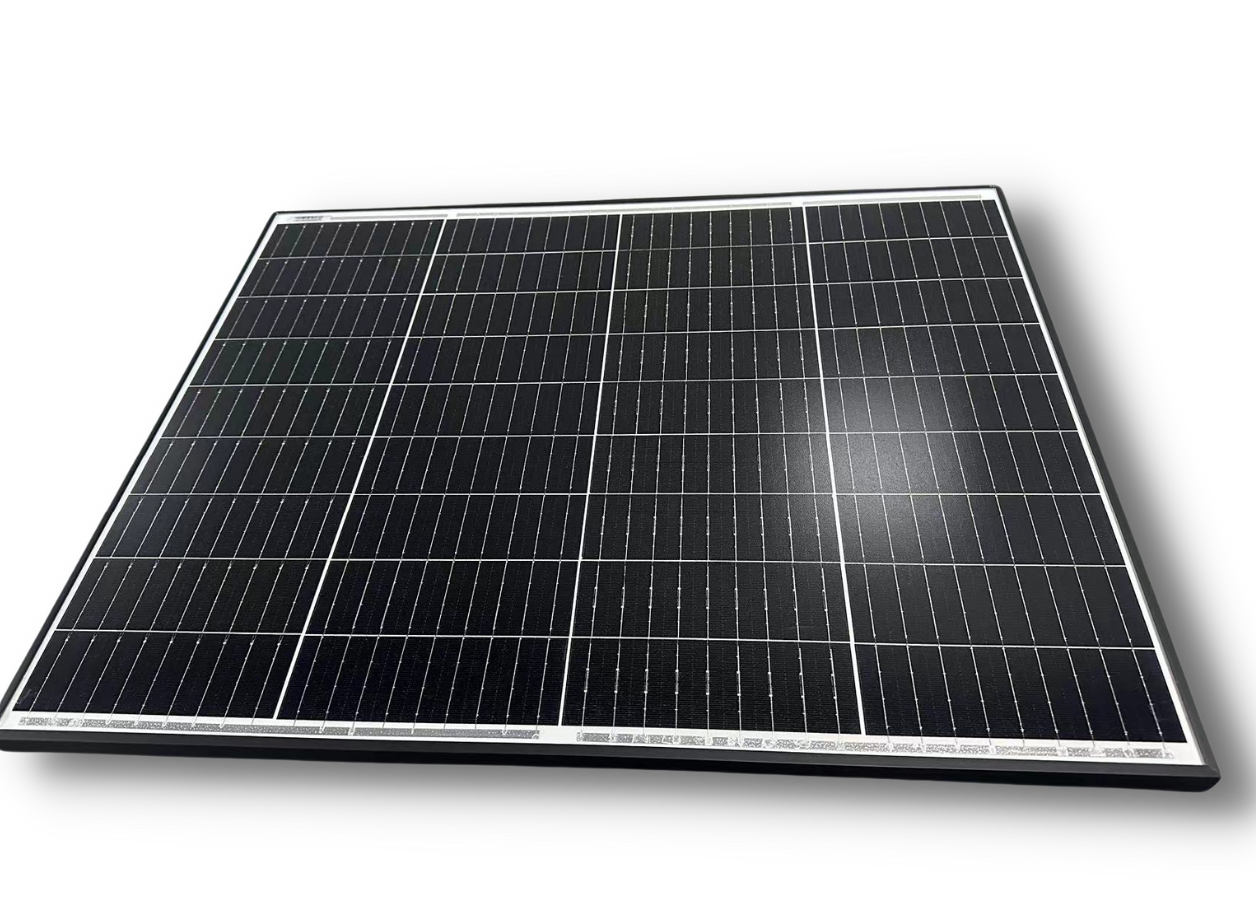

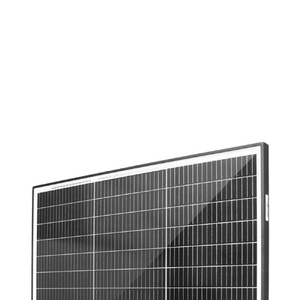

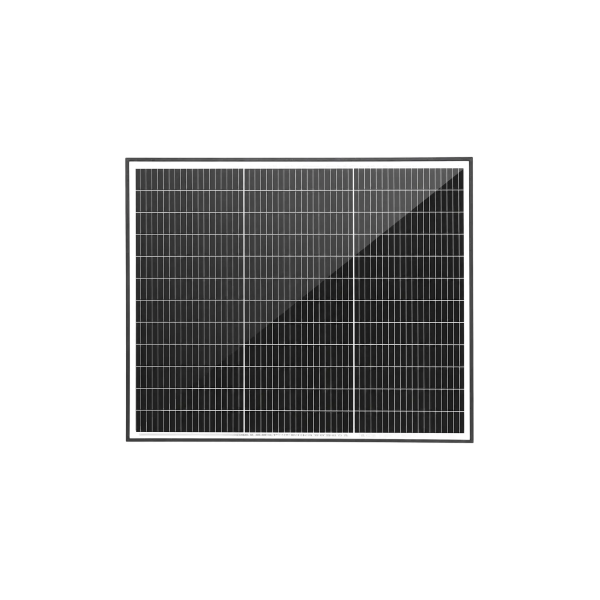

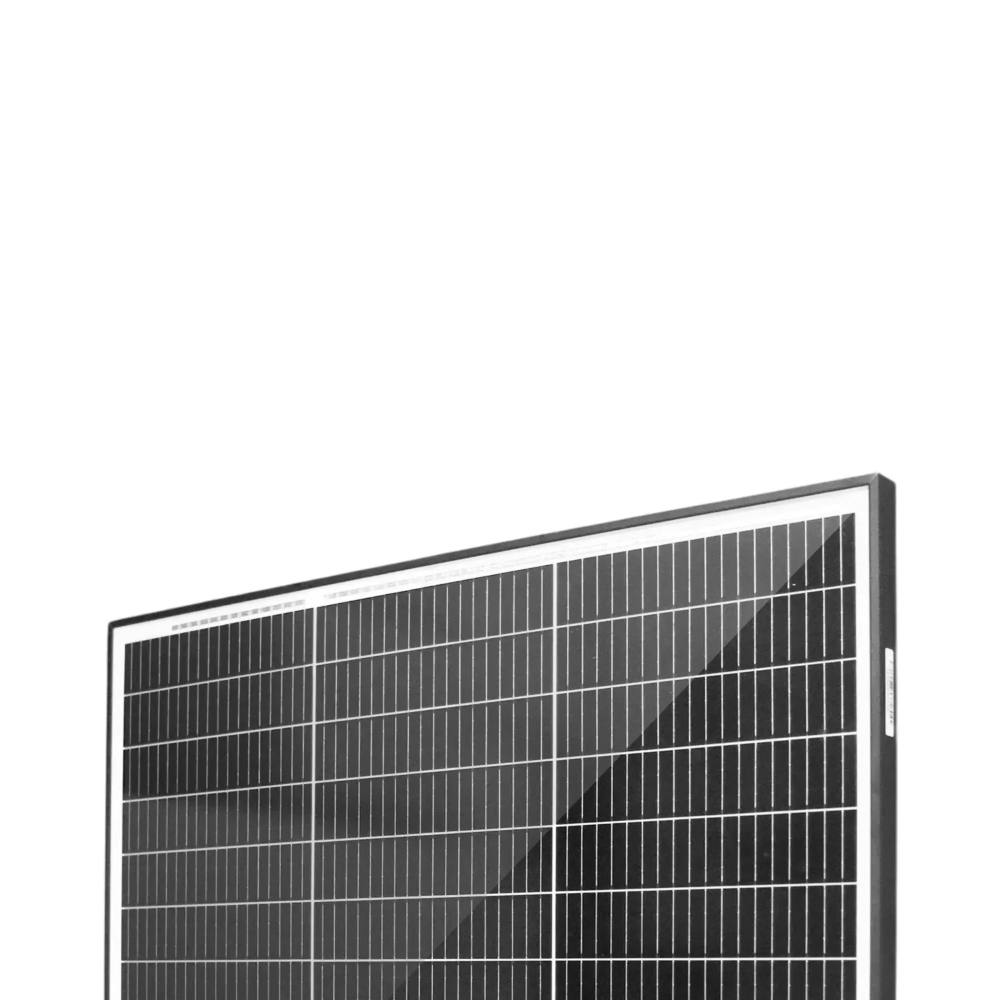

Exotronic 75W Fusion Fixed Solar Panel

Product Description

Exotronic 75W Fusion Fixed Solar Panel, 5 Year Warranty. The Exotronic 75W Fusion Series combines advanced N-Type TOPCon solar cell technology with a compact, lightweight design, making it an excellent choice for mobile and off-grid energy needs. With a fixed 25.2% cell efficiency, this panel outperforms many conventional monocrystalline solar panels and PERC modules—delivering reliable output even in limited space.

Engineered for use in 12V solar panel systems, it’s particularly well suited to caravan solar panels, camper trailers, boats, and other mobile setups. Whether you're planning a weekend getaway or installing a permanent caravan solar system, the Fusion Series ensures consistent performance across a range of conditions.

TOPCon (Tunnel Oxide Passivated Contact) represents the latest advancement in solar cell technology, delivering higher efficiency, reduced degradation, and improved low-light performance. It marks a clear upgrade over PERC solar panels, which themselves are more efficient than traditional monocrystalline cells. The Fusion Series’ N-Type TOPCon cells ensure consistent, durable energy output, ideal for varied weather and shading conditions typical of mobile and off-grid environments.

Why Choose N-Type TOPCon?

• 25.2% cell efficiency for maximum energy density in a compact footprint
• N-Type cells for lower degradation and longer lifespan
• Excellent low-light response — ideal for cloudy days and shaded environments
• Lightweight design — easier to install and handle, especially on vehicles and tight spaces

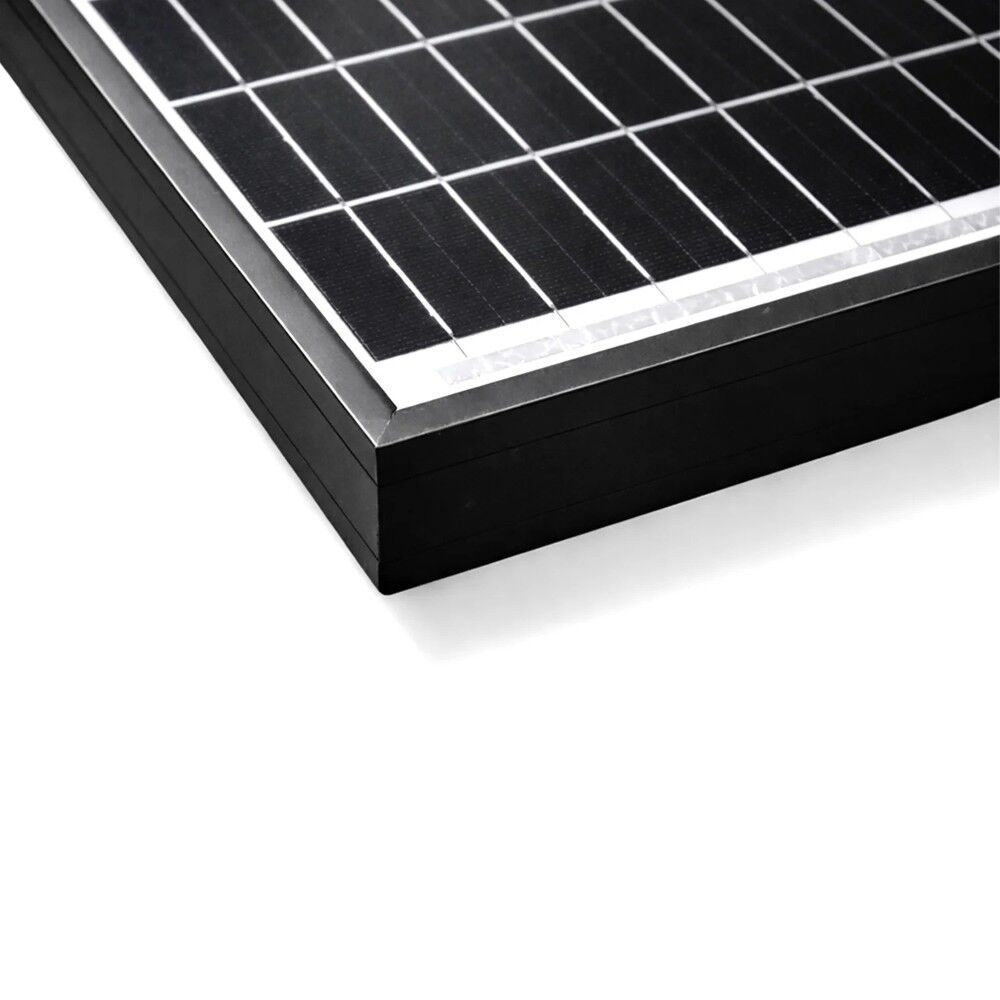

The Fusion Series features a robust yet lightweight construction, making it ideal for use in caravans, RVs, and marine vessels. Designed to withstand Australian conditions, its 25 mm anodised aluminium frame ensures structural integrity without excess weight. The high-transmissivity, low-iron tempered glass enhances light capture and impact resistance.

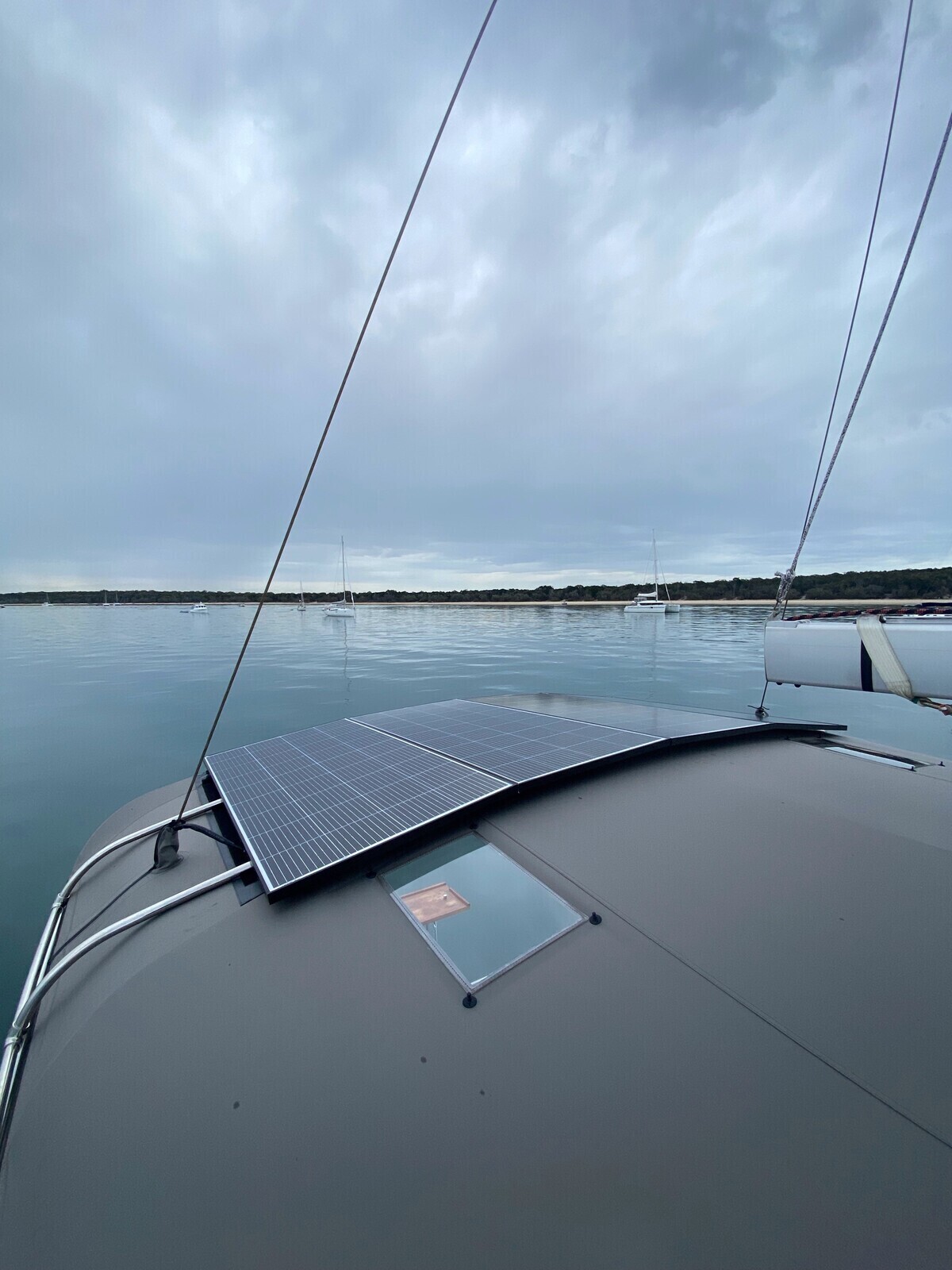

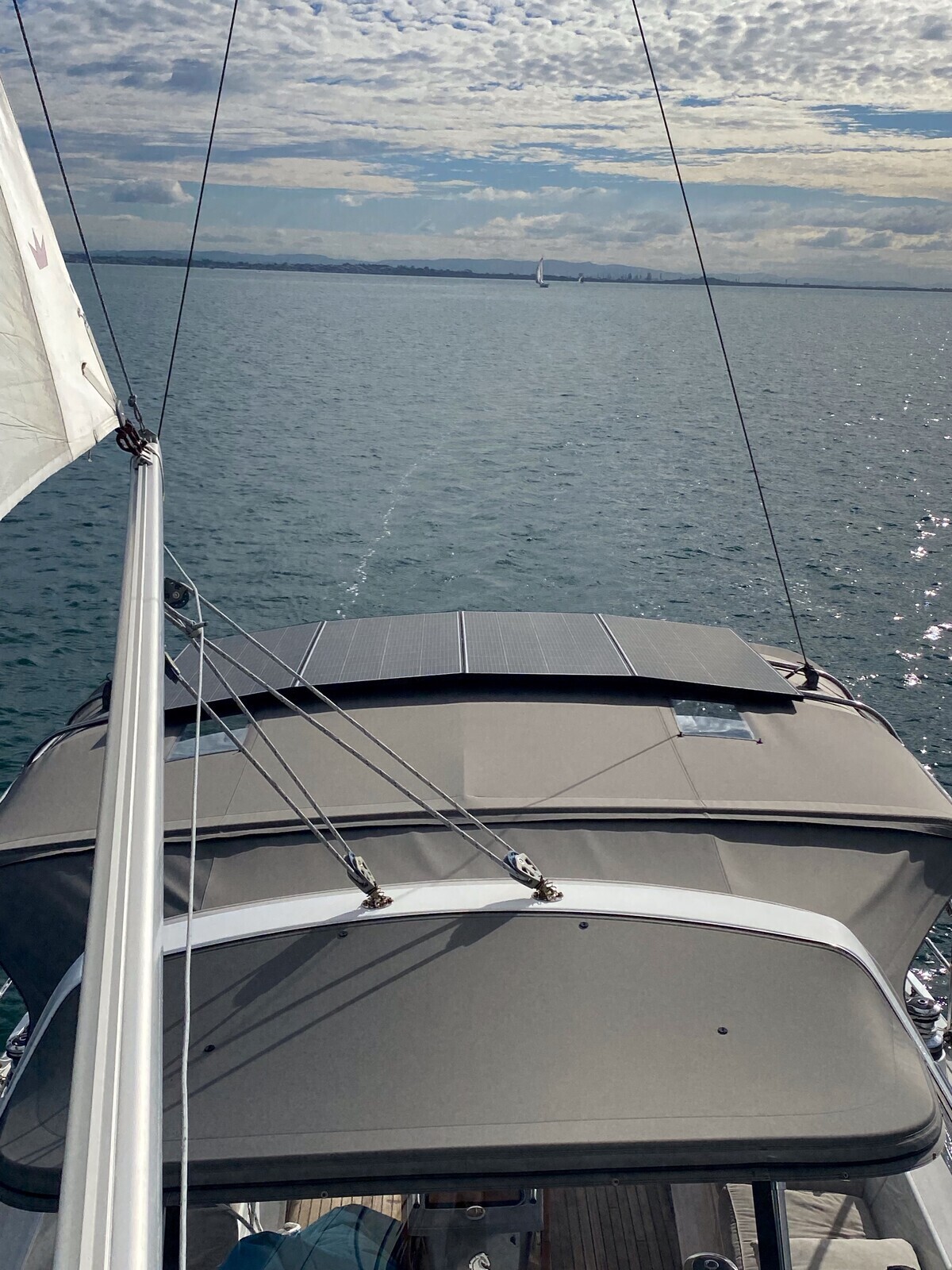

• Salt mist and ammonia resistant – ideal for marine solar panels and coastal environments
• Rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa

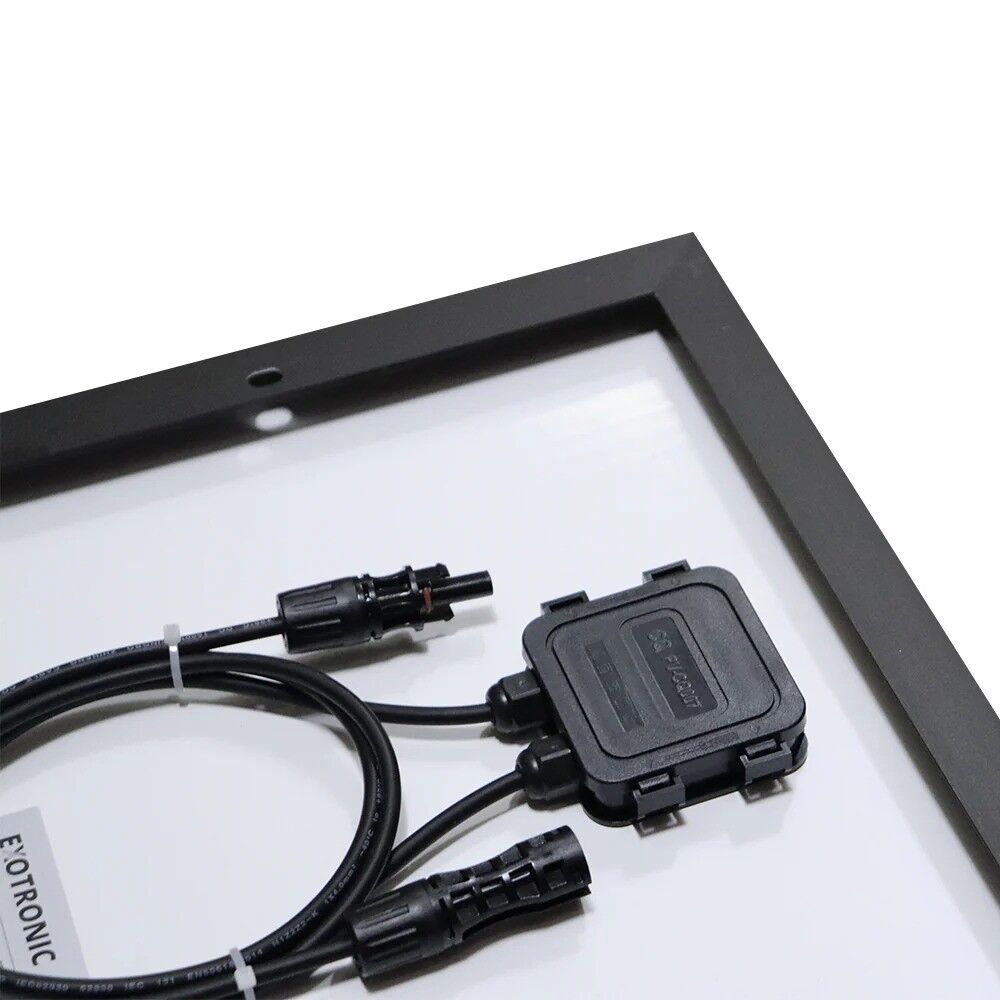

• Supplied with an 800 mm fly lead for quick, flexible installation

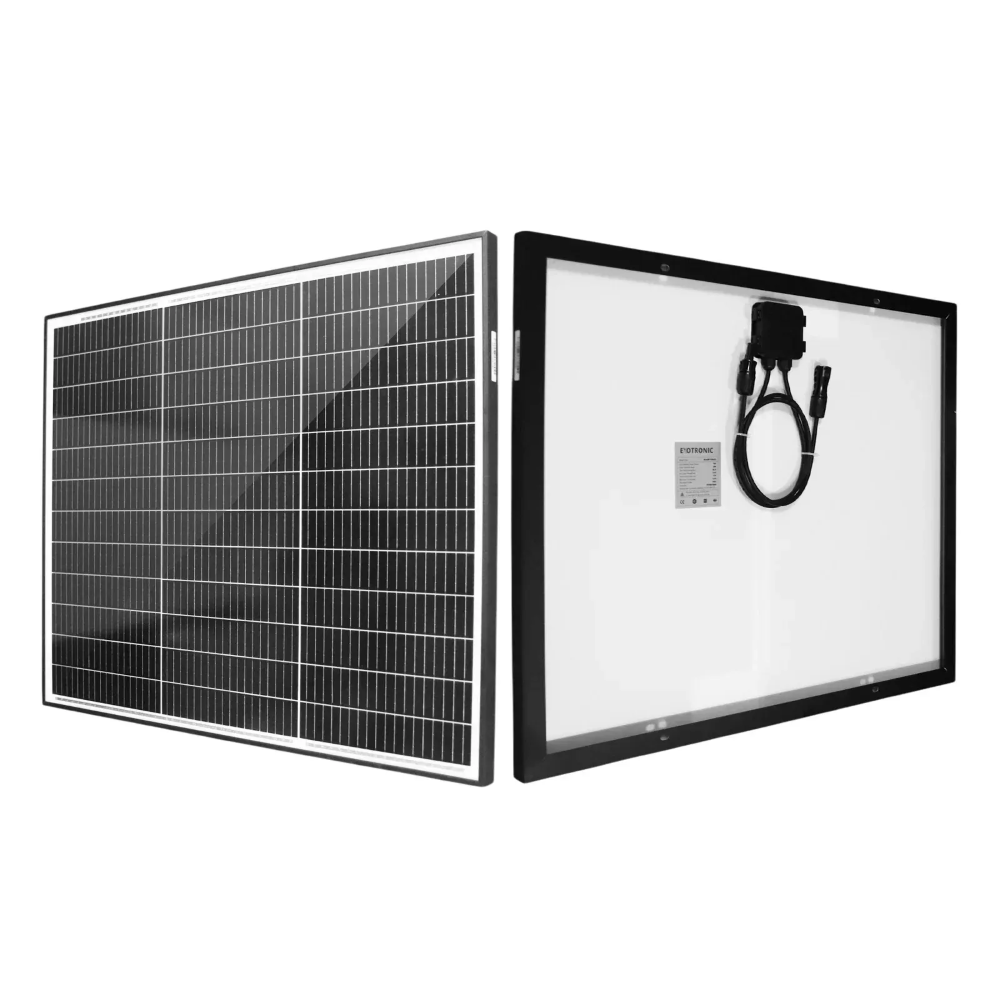

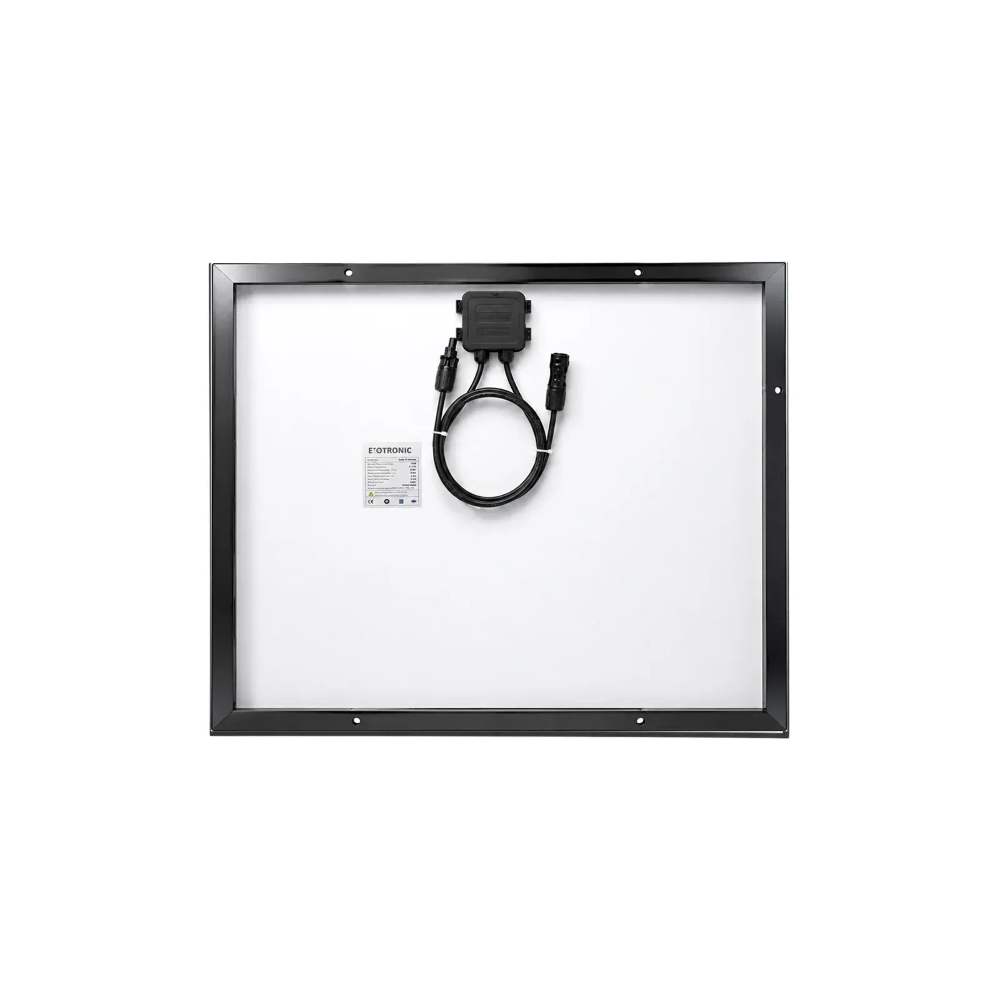

• Fully potted junction box prevents moisture ingress, ensuring reliable electrical connections and enhanced longevity even in harsh coastal and marine environments.

Versatile Applications - From Caravans to DIY Projects

Whether you’re upgrading an existing caravan solar panel setup, powering a remote shed, or exploring a DIY energy project, the Exotronic 75W Fusion Series offers a reliable and efficient solution. It’s especially well suited to:

• Charging 12V batteries in caravans, RVs, and boats
• Series wiring for 24V or 48V battery banks in off-grid setups
• Industrial off-grid projects where efficiency and weight are critical
• Remote off-grid installations like sheds, tiny homes, or remote workstations
• Supporting small-scale power systems for lighting, security cameras, and sensors
• Use in education, prototyping, or portable solar kits

Specifications:

• Power: 75W
• Vmp (V): 21.6
• Imp (A): 3.47
• Voc (V): 25.2
• Isc(A): 3.8
• Dimensions: 555mm x 670mm x 25mm
• Weight: 4.1kg

Temperature Ratings:

• NMOT : 41C +/-3C
• Temperature Coefficient of Pmax: -0.37%/C
• Temperature Coefficient of Voc: -0.29%/C
• Temperature Coefficient of Isc: 0.05%/C

Maximum Ratings:

• Operating Temperature: -40 - +85C
• Maximum System Voltage: 1000VDC
• Maximum Fuse Rated Current: 15A

Mechanical Characteristics:

• Front: 3.2mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy
• Junction Box: IP68
• Connectors: MC4 Compatible
