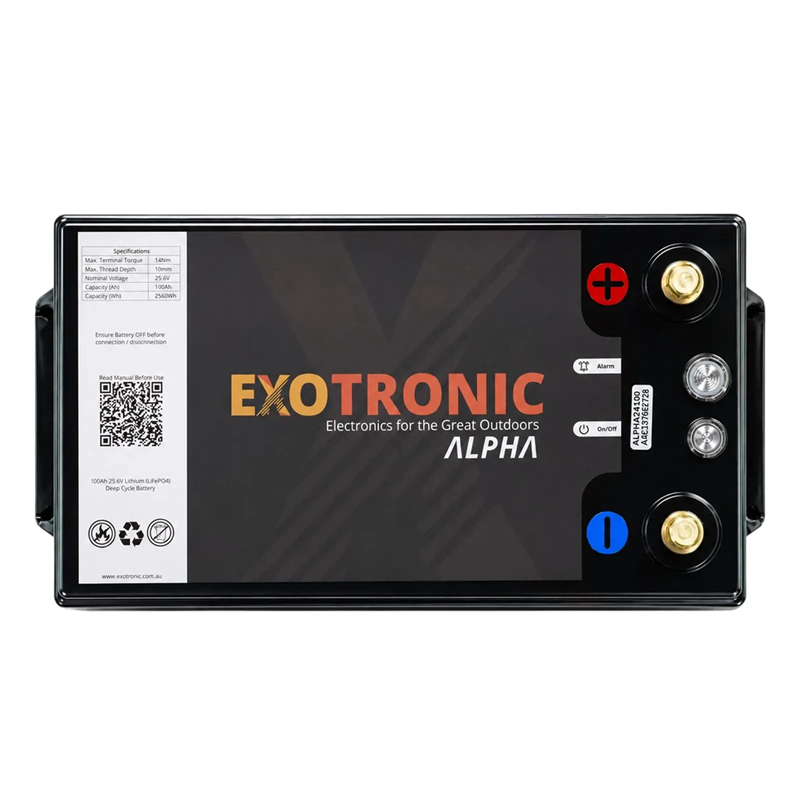

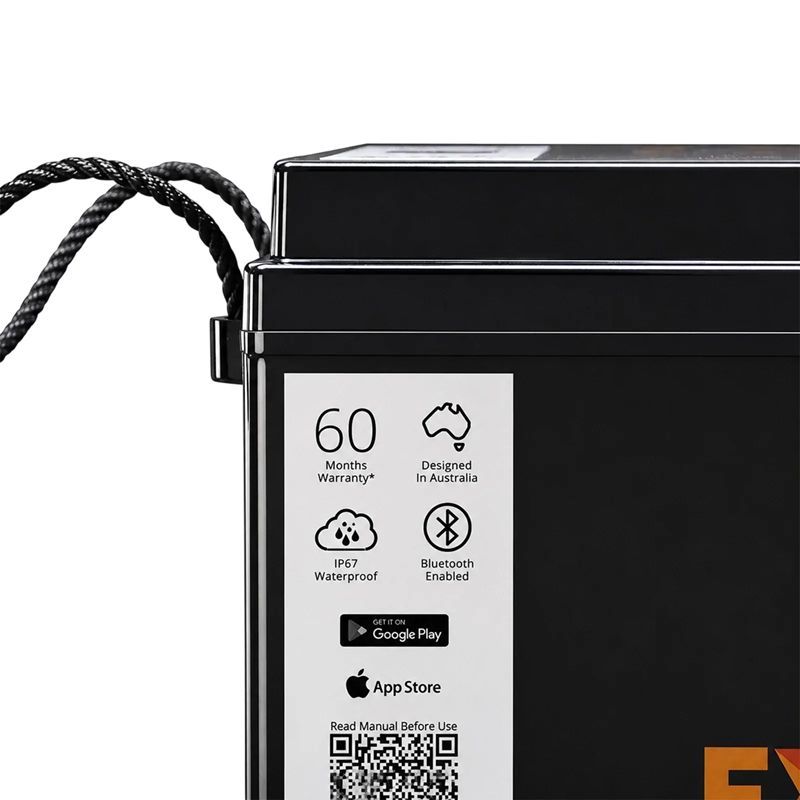

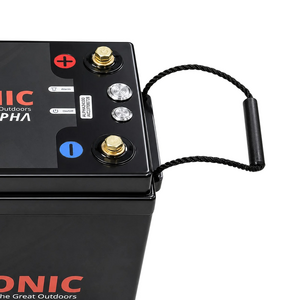

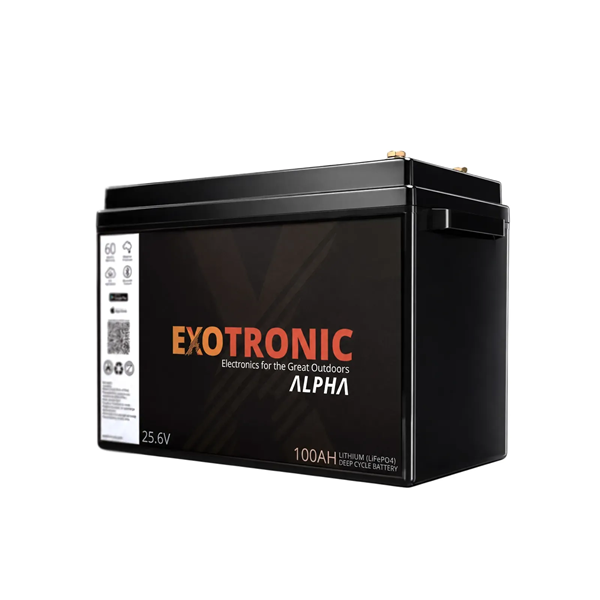

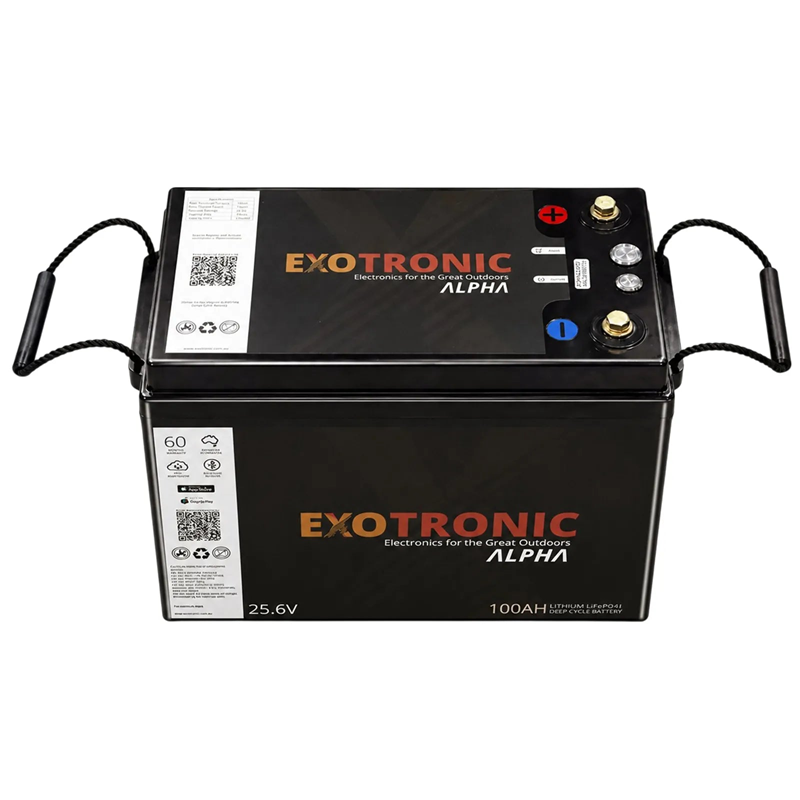

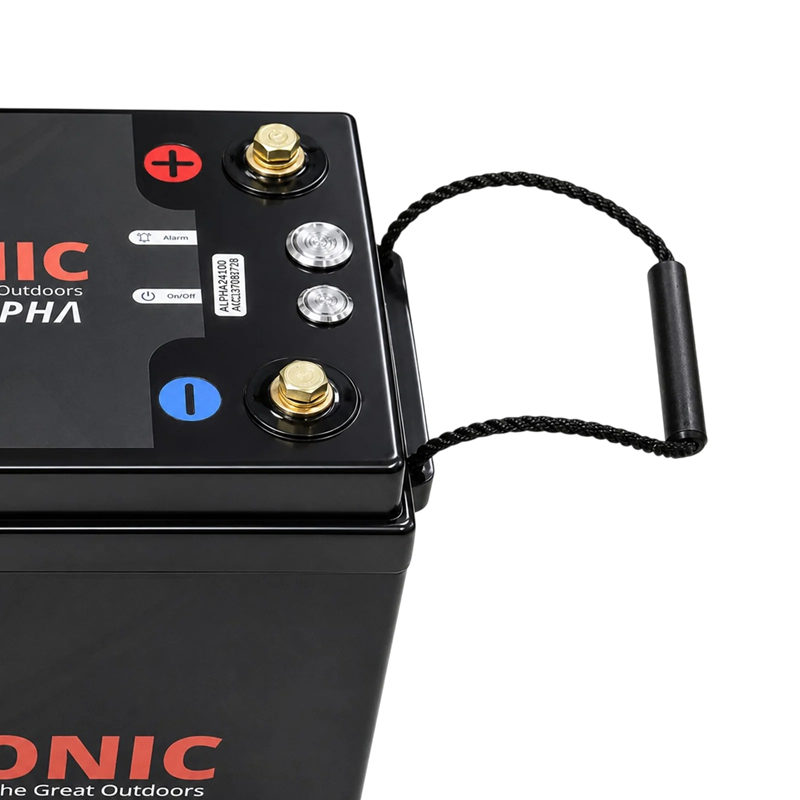

Exotronic 24V 100Ah Alpha IP67 Smart Bluetooth Lithium Battery

Product Description

Exotronic 24V 100Ah Alpha IP67 Smart Bluetooth Lithium Battery, 5 Year Warranty.

Ideal for Travel and Adventure

Exotronic Lithium Batteries are a perfect match for caravans, RVs, and 4x4 vehicles. Whether you're hitting the road or exploring off the beaten path, these batteries provide reliable power to keep your journey going.

Marine-Grade Durability

Boaters will appreciate the robust design. Our batteries have undergone rigorous vibration testing and are machine-sealed for optimal waterproofing, making them an excellent choice for marine environments where reliability is key.

Reliable Backup Power

Ideal for emergency power solutions, these batteries ensure that your critical systems stay operational when you need them most. They're perfect for home backup systems, ensuring peace of mind during power outages.

A Trustworthy Choice for Rugged Conditions

Their durability makes them particularly suited for off-road applications, where resilience against harsh conditions is essential.

Ultra-Compact Powerhouse Design

Despite its compact footprint, this battery packs a powerful punch, offering 100Ah of dependable energy storage and up to 100A continuous discharge, perfect for a powerful 2000W inverter. Perfect for space-conscious setups without compromising on performance.

IP67 Rated

An IP67 rating ensures this battery is completely dust-tight and water-resistant, capable of surviving full immersion in up to 1 meter of water for 30 minutes. This rugged level of protection makes it perfectly suited for demanding environments like caravans, RVs, marine vessels, and off-grid or industrial setups, where exposure to moisture, dust, and debris is common and reliability is critical.

Features:

• Sleek, Space-Saving Profile
• Real Time Bluetooth Monitoring
• IP67 Water Resistance and Dustproof
• On/Off/Reset Button
• Pre-trip Audible/Visual Alarm for 60 seconds at 10% State of Charge
• 100A JBD BMS
• 1.2A Active Cell Balancer
• A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc
• 0-100% Useable Capacity
• IEC 62619 Certified Cells

Specifications:

• Battery Capacity: 100Ah
• Battery Nominal Voltage: 25.6V
• Continuous Discharge Current (30 Min): 100A
• Peak Current (1s): 200A
• Trip Current (10s): 120A
• Maximum Inverter Size: 2000W
• Maximum Number of Parallel Batteries: 4 of the same model
• Maximum Number of Series Batteries: 4 of the same model
• Low Voltage Trip: 20V
• High Voltage Trip: 29.2V
• Balance Current: 1.2A
• Length: 345mm
• Width: 190mm
• Height: 245mm
• Weight: 19.8kg
• Mounting Orientation: Upright/Side
• Nominal Continuous Charge Current: 60A
• Maximum Continuous Charge Current: 100A
• Absorption Voltage: 28.0–28.4V
• Float Voltage: 27.0V
• Cycle Life (0.3C): >3000 100% cycles at 25°C to 80% capacity within 5 years
• Case Material: ABS
• Terminal: M8 Bolt – 10mm depth
• Terminal Torque: 14Nm Max (12Nm Recommended)
• Capacity Measurement: 29.2V to 20V at 0.3C at 25°C
• Operating Temperature – Charging: 5°C–45°C
• Operating Temperature – Discharging: -20°C–55°C
• Storage Temperature: -20°C–60°C
• Ideal Storage Conditions: 25°C, 40% SoC (approx. 13V)
• Battery Ventilation Required: 10mm Clearance on all sides
