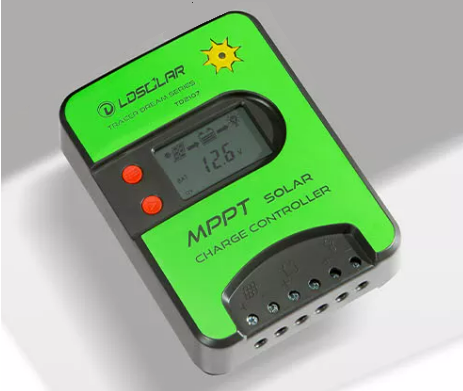

Exotronic 20A Bluetooth MPPT Solar Charge Controller
Save $30 (18%) off RRP of $169
Product Description
Exotronic 20A Bluetooth MPPT Solar Charge Controller, 2 Year Warranty. Tracer Dream 75V Bluetooth Series adopts MPPT technology. Using a 32 bit CPU, stability and speed can be guaranteed. Based on the synchronous rectifier technology, the transfer efficiency of circuit is increased up to 98.5% and the Pmax tracking accuracy up to 99.5%. So our MPPT can trace the accurate Pmax in the shortest time, even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.

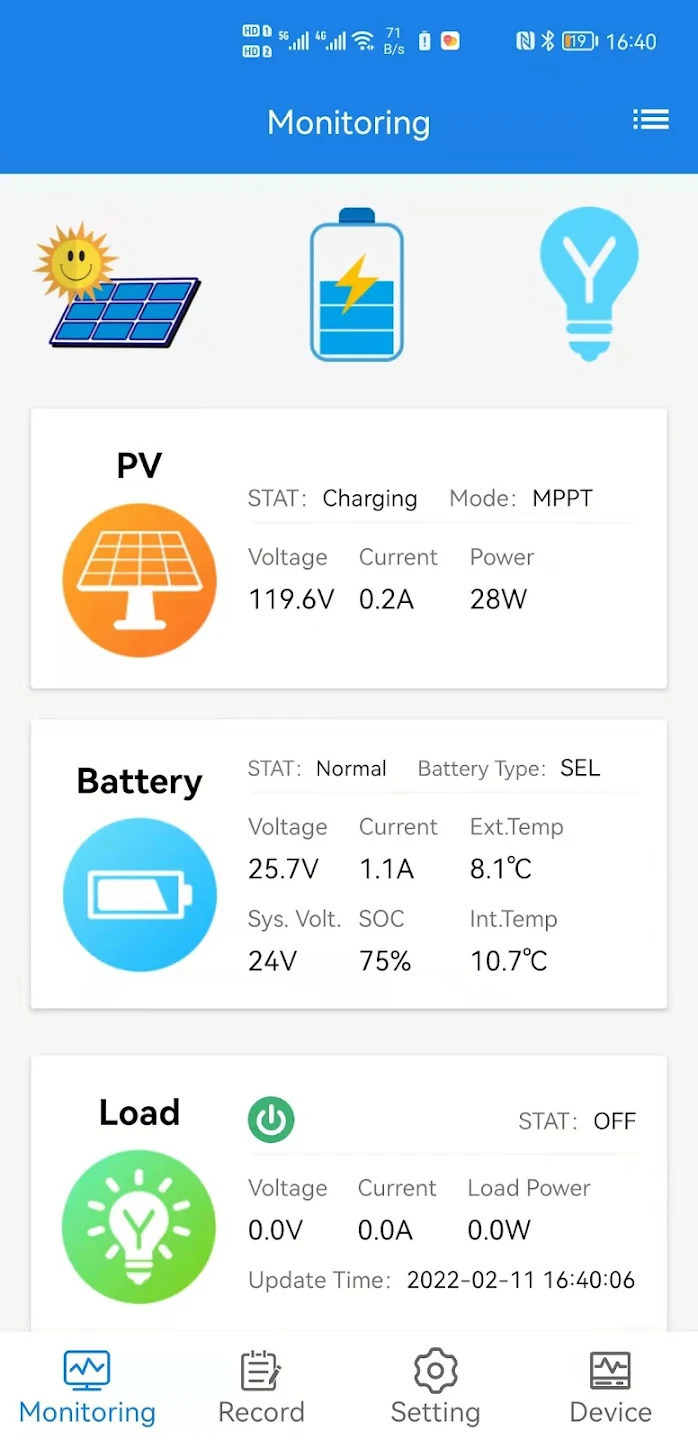

- Download the Bluetooth App on your Apple or Android – or search LD iConnect. – Default password 1234
- Advanced MPPT technology, fast and stable. Tracks the Maximum Power Point, the tracking accuracy is up to 99.5% efficient
- Adopting Synchronous Rectifier Technology, significantly improving the transfer efficiency of circuit, up to 98.5% efficient
- Accurately identifying and tracking the multi peak power point function PV array limited power input function, to ensure that the controller does not overload operation under any conditions
- Wide range of Maximum Power Point of PV array, Maximum PV input Voltage 75V.
- 12/24VDC system voltage automatic recognition
- Humanized LCD display, dynamic display operation data and working state
- Built-in operation log
- Multi load control mode: Normal Mode, Sensor Mode and Timer
- 3 stages charging mode with multiple chemistry modes: Sealed, Gel, Flooded, Lithium and many user adjustable settings (Default Lithium)
- Temperature Compensation Function
- Accumulation function of charging and discharging, actual time display power generation function
- Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Overvoltage, Overload, Short circuit and more
Specifications
SKU Exo-TD2207
Brand Exotronic
Warranty Period: 2 Years
Product Category Solar Charge Controllers
Charge Current (A) 20
Charge and load current 20A
Weight 0.82kg
Terminal scale 10mm2/8AWG
Size (L x W x H) 195 x 123 x 46 mm
Mounting hole size 5mm
Voltage Option 8V-32V
