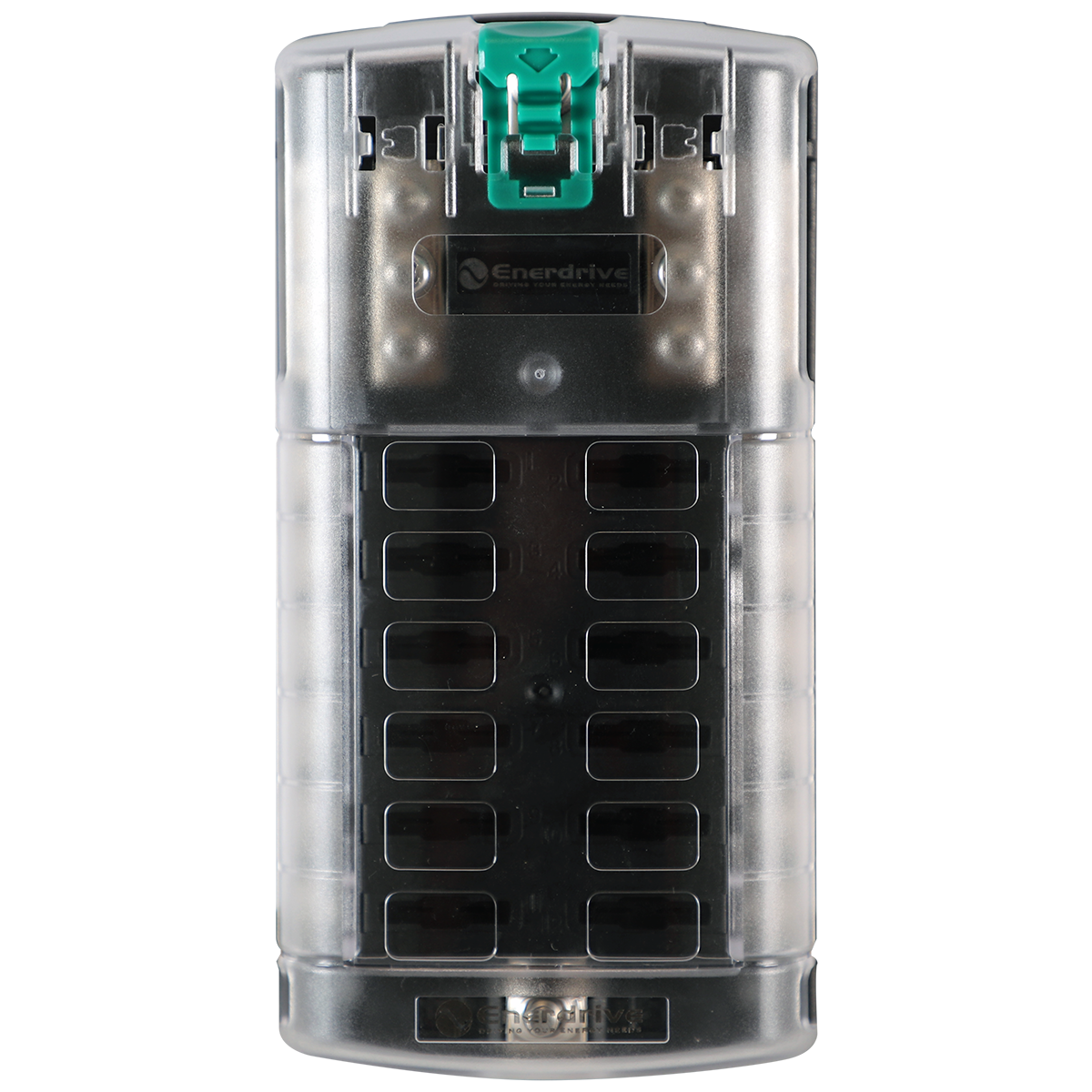

Enerdrive Fuse Block 12 Circuit with Negative Bus and Cover



Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Enerdrive Fuse Block 12 Circuit with Negative Bus and Cover, 5 Years Warranty.


  • Positive distribution bus with #10-32 stud
  • 32V 100Amp Max – 30Amp Max per circuit
  • Can be used for 24-hour circuits
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
  • Includes two label sets and screws.
  • Retail Packaging



Brand Enerdrive

Warranty Period: 5 Years

Product Category Accessories

Positive Bus #10-32 Stud

Maximum Amperage per block 100A

Mounting 8″ Screw [M4]

Dimensions 164mm x 84mm x 39mm

Negative Bus #10-32 Stud

Maximum Amperage per circuit 30A

Recommended Torque 24 in-lb (2.71 N.m)

Screw Terminal Type #8-32 with Flat/Spring Washers

Maximum Voltage 32V DC

Circuits 12

Weight 0.34kg
