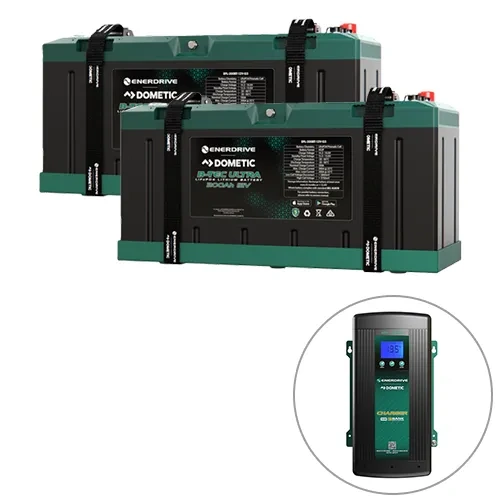

Enerdrive B-TEC Ultra 2 x 200Ah Lithium Bundle & 60A AC Charger Bundle
SKU: K-400-1 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive B-TEC Ultra 2 x 200Ah Lithium Battery & Charger Bundle, 5 Year Warranty. The Enerdrive 2 x 200Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.
The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.
Bundle Includes:
- 2 x EPL-200BT-12V-G3 - Enerdrive B-TEC Ultra 2 x 200Ah Lithium Battery
- EN31260 - Enerdrive 60A AC Battery Charger
Optional Charger:
- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
Here's how these components work together:
- The 40A DC2DC charger takes charge of replenishing the lithium battery during travel or when solar panels are accessible, ensuring an efficient battery charging process.
- The AC charger comes into play when you're linked to an AC power source, such as a campsite with electrical hookups or a marina with shore power. It provides a convenient method for recharging the battery when AC power becomes available.
The combination of both DC and AC charging options offers versatility in recharging your battery, catering to various scenarios. The DC charger is apt for charging on the move, while the AC charger proves valuable when you're stationary and connected to the grid.
This setup offers flexibility in recharging your battery, considering both your mobility and access to AC power sources. It's important to consult the manufacturer's recommendations and user manuals for each component to ensure proper installation and operation in your specific application.

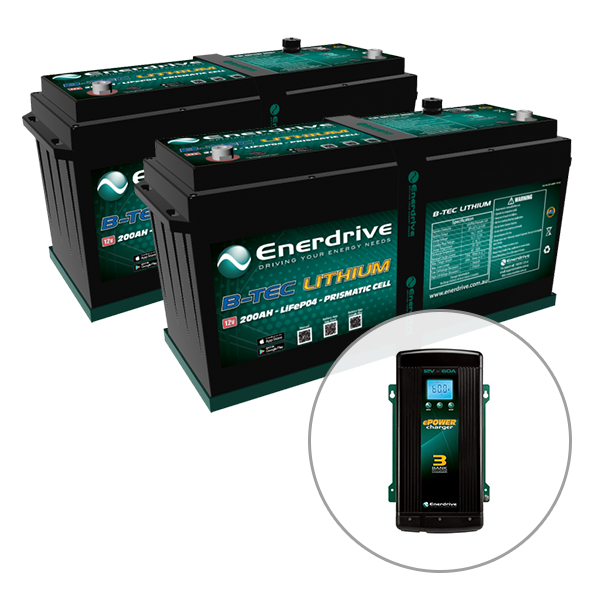

| Bundles | K-400-07 | K-400-12 |
| 2 x EPL-200BT-12V-G3 | * | * |
| EN31260 | * | * |
| EN3DC40+ | * |
Battery Information:
DC Charger Information:
AC Charger Information:
Specifications
SKU K-400-1
Brand Enerdrive
GTIN 9342616001288
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 400
Battery Length (mm) 485
Battery Width (mm) 172
Battery Height (mm) 232.5
Battery Weight (kg) 23
DC Charger Output Current Rating (Amps) 40
AC Charger Output Current Rating (Amps) 60
Cycle Life (DOD – 80% under controlled conditions) 6000 Cycles
Battery Charge Temperature -20°C to 60°C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.5-13.6V
Maximum Charge Current 200A @ 25°C
Battery Discharge Temperature -20 ̴ 60°C
Maximum Discharge Current 600A/3s
Discharge Cut-off Voltage 3.75V
Videos
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
The Best Caravan Battery?
What Will My Camping Battery Run?
Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel
Introducing The Enerdrive Battery Charger Range
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
EN3DC40+ Enerdrive Battery Charger Run Through
Product Features: The Enerdrive 200Ah Lithium Battery
Product Q&A
-
How many cells are in the Enerdrive 200Ah Btec Battery?
There are 32 (8x 4) Prismatic Cells in the 200Ah Btech Battery.
-
What size generator should I use for charging a battery?
The below generators are the minimum recommend sizes based on an AVR generator:
● 800VA 2KVA
● 1200VA 2.5KVA
● 1600VA 3KVA
● 3000VA 5KVA
● 5000VA 8KVA
If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
-
How can I remotely monitor and control my devices?
You need a GX device to get remote monitoring. We recommend the Cerbo GX and an RJ45 UTP cable to connect it to the inverter. You can hardwire an ethernet connection to the unit, or connect it to a Wifi signal.
