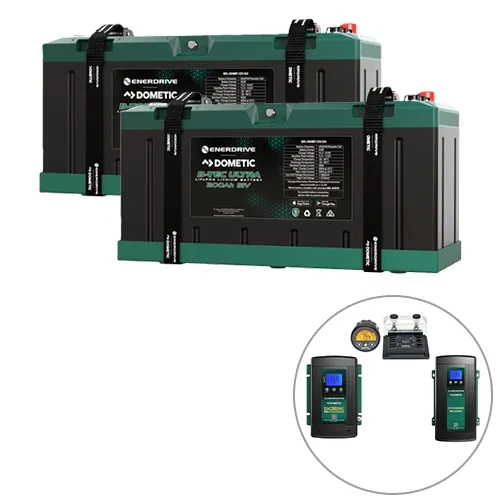

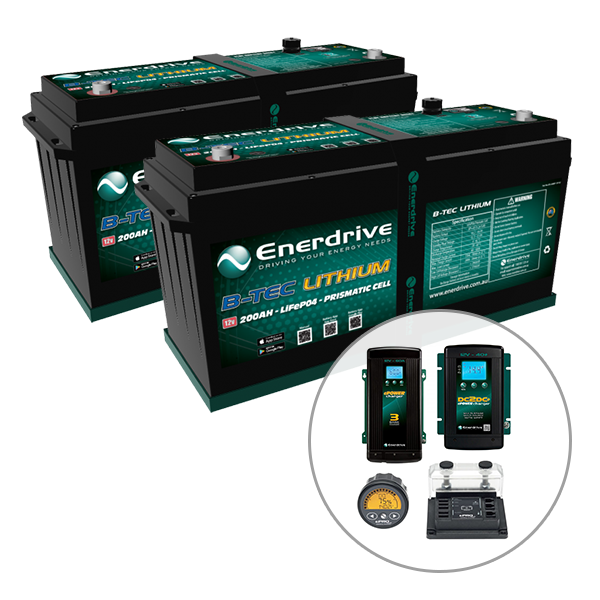

Enerdrive B-TEC Ultra 2 x 200Ah Lithium Battery, 40A DC2DC, 60A AC & ePro+ Monitor Bundle

Enerdrive EN-RCB70 Surface Mount Resettable Breaker -70amp. Enerdrive have just released a affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect.

Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.

Please Note: Check the Enerdrive Charger Manual for recommended Breaker & Cable sizing.

Enerdrive EN-RCB60 Surface Mount Resettable Breaker -60amp. Enerdrive's affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect.

Unit between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.

Please Note: Check the Enerdrive Charger Manual for recommended Breaker & Cable sizing.

Enerdrive EN-RCB80 Surface Mount Resettable Breaker -80amp Enerdrive have just released a affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect.

Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.

Please Note: Check the Enerdrive Charger Manual for recommended Breaker & Cable sizing.

Enerdrive Anderson 50A Connector to DC to DC Charger Cable Kit 16mm2. 5.5 Meters. Suitable for caravan/trailer DC2DC charger installations. The anderson connector is mounted at the tow hitch and the cable is run to the DC to DC Charger in the trailer/van. To be used in conjunction with ENC-KIT-BATT-AP50-16.

Including:

• 5500mm of 16mm2 TWIN Cable
• 1 x 50A Grey Andersen Plug Connected to one end of cable
• 2 x LUGS supplied loose (16-6mm eyelet)

Enerdrive 16mm Cable Kit (Inc 70A Fuse) Start Battery To 50A Anderson Connector Mounted at the Tow Hitch, 5 Metres. Suitable for vehicle circuit from Start Battery to Anderson plug connector mounted at the tow hitch. Connect to starter battery with 70A fuse close to start battery and run cable to anderson connector at tow hitch. To be used in conjunction with ENC-KIT-AP50-DCDC-16 for DC to DC Charger mounted in caravan/trailer.

Picking up a new caravan or camper trailer equipped with an Enerdrive DC-DC 40A Charger? This cable will need to be installed in your vehicle so that you are ready to connect your start battery to the electrical system in the van.

PRO TIP: You will require a ratchet crimping tool for this cable kit. PLEASE CLICK HERE to find our tool range.

Including:

• 5000mm of 16mm2 TWIN Cable
• 1 x 50A Grey Andersen Plug Connected to one end of cable
• 4 x LUGS supplied loose (16-8mm eyelet)
• 1 x LMI Fuse Holder and 70A Fuse supplied loose

Enerdrive 16mm Cable Kit (Inc 70A Fuse) Start Battery to DC to DC Charger (Vehicle Mounted), 5 Metres. Suitable for vehicle circuit from Start Battery to DC to DC Charger mounted in vehicle. Connect to start battery with a 70A fuse close to start battery. Run cable to DC to DC Charger mounted within vehicle.

PRO TIP: You will require a ratchet crimping tool for this cable kit. PLEASE CLICK HERE to find our tool range.

Including:

• 5000mm of 16mm2 TWIN Cable
• 2 x LUGS Crimped (16-6mm eyelet)
• 4 x LUGS supplied loose (16-8mm eyelet)
• 1 x LMI Fuse Holder and 70A Fuse supplied loose

Enerdrive ePRO Plus to Battery 50mm2 x 400mm Negative Cable Kit with 8mm Lugs, 5 Year Warranty. A customised cable kit manufactured and supplied by Enerdrive. The cable kit is designed to connect the battery Negative Terminal and the ePRO Shunt Negative Terminal.

Cable size corresponds to current draw.

A general guide for choosing the right cable:

• For a 2600W inverter, use the 95mm2 Negative Cable
• For a 2000W inverter, use the 70mm2 Negative Cable
• For No Inverter, use the 50mm2 Negative Cable

Pro Tip: It is best to keep the cable as short as possible.

Enerdrive ePRO Plus to Battery 50mm2 x 600mm Negative Cable Kit with 8mm Lugs, 5 Year Warranty. A customised cable kit manufactured and supplied by Enerdrive. The cable kit is designed to connect the battery Negative Terminal and the ePRO Shunt Negative Terminal.

Cable size corresponds to current draw.

A general guide for choosing the right cable:

• For a 2600W inverter, use the 95mm2 Negative Cable
• For a 2000W inverter, use the 70mm2 Negative Cable
• For No Inverter, use the 50mm2 Negative Cable

Pro Tip: It is best to keep the cable as short as possible.

Scope of supply:

• 1 x Negative cable 50mm2 x 600mm
• 2 x 8mm Lugs

Enerdrive ePRO Plus to Battery 70mm2 x 400mm Negative Cable Kit with 8mm Lugs, 5 Year Warranty. A customised cable kit manufactured and supplied by Enerdrive. The cable kit is designed to connect the battery Negative Terminal and the ePRO Shunt Negative Terminal.

Cable size corresponds to current draw.

A general guide for choosing the right cable:

• For a 2600W inverter, use the 95mm2 Negative Cable
• For a 2000W inverter, use the 70mm2 Negative Cable
• For No Inverter, use the 50mm2 Negative Cable

Pro Tip: It is best to keep the cable as short as possible.

Enerdrive ePRO Plus to Battery 70mm2 x 600mm Negative Cable Kit with 8mm Lugs, 5 Year Warranty. A customised cable kit manufactured and supplied by Enerdrive. The cable kit is designed to connect the battery Negative Terminal and the ePRO Shunt Negative Terminal.

Cable size corresponds to current draw.

A general guide for choosing the right cable:

• For a 2600W inverter, use the 95mm2 Negative Cable
• For a 2000W inverter, use the 70mm2 Negative Cable
• For No Inverter, use the 50mm2 Negative Cable

Pro Tip: It is best to keep the cable as short as possible.

Enerdrive ePRO Plus to Battery 95mm2 x 400mm Negative Cable Kit with 8mm Lugs, 5 Year Warranty. A customised cable kit manufactured and supplied by Enerdrive. The cable kit is designed to connect the battery Negative Terminal and the ePRO Shunt Negative Terminal.

Cable size corresponds to current draw.

A general guide for choosing the right cable:

• For a 2600W inverter, use the 95mm2 Negative Cable
• For a 2000W inverter, use the 70mm2 Negative Cable
• For No Inverter, use the 50mm2 Negative Cable

Pro Tip: It is best to keep the cable as short as possible.

Enerdrive ePRO Plus to Battery 95mm2 x 600mm Negative Cable Kit with 8mm Lugs, 5 Year Warranty. A customised cable kit manufactured and supplied by Enerdrive. The cable kit is designed to connect the battery Negative Terminal and the ePRO Shunt Negative Terminal.

Cable size corresponds to current draw.

A general guide for choosing the right cable:

• For a 2600W inverter, use the 95mm2 Negative Cable
• For a 2000W inverter, use the 70mm2 Negative Cable
• For No Inverter, use the 50mm2 Negative Cable

Pro Tip: It is best to keep the cable as short as possible.

Enerdrive 70mm2 x 200mm Battery Parallel Cable Kit, Positive & Negative, 5 Year Warranty.

Enerdrive 70mm2 x 200mm Battery Parallel Cable Kit, Positive & Negative, 5 Year Warranty. Enerdrive Parallel cable kit to connect 2 x batteries together.

• If you have an Inverter up to 2000W or a system with no Inverter, the 70mm parallel kit is appropriate to use.
• If you have an Inverter running loads greater then 2000W, the 95mm parallel kit is recommended.

Enerdrive 95mm2 x 200mm Battery Parallel Cable Kit, Positive & Negative, 5 Year Warranty.

Enerdrive Parallel cable kit to connect 2 x batteries together.

• If you have an Inverter up to 2000W or a system with no Inverter, the 70mm parallel kit is appropriate to use.
• If you have an Inverter running loads greater then 2000W, the 95mm parallel kit is recommended.

Enerdrive 2 x 190W Mono Crystalline Solar Panel, Twin Pack, 5 Year Warranty. Enerdrive is an Australian company that provide quality power solutions for caravan, camping and boating applications both domestic and commercial. This Solar Panel Twin pack of 2 x 190W solar panels comes in at a amazing price for a quality fixed solar panels with a grand total of 360W.

These solar panels come with a 5 year warranty. You will have peace of mind that you are buying a quality product with nation wide service agent support.

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).

A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Features:

• High Conversion Efficiency. Module efficiency up to 17.86% achieved through advanced cell technology and manufacturing capabilities
• Positive Tolerance. Positive tolerance of up to 0~+5W delivers higher output reliability
• High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant
• Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
• Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
• Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors

To choose a Solar Charge Controller for your Enerdrive Solar Panel, click here.
