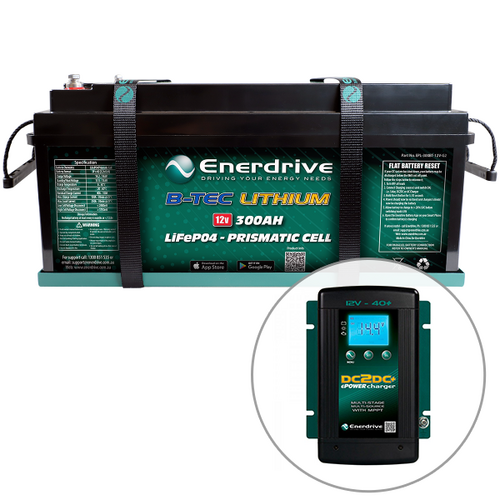

Enerdrive B-TEC 300Ah Lithium Battery & 40A DC2DC Charger Bundle

K-300-12

$3,569

Save $934 (21%) off RRP of $4,503

FREE SHIPPING

Accessories

$412

$49

$49

$62

$250

$235

$215

$109

Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

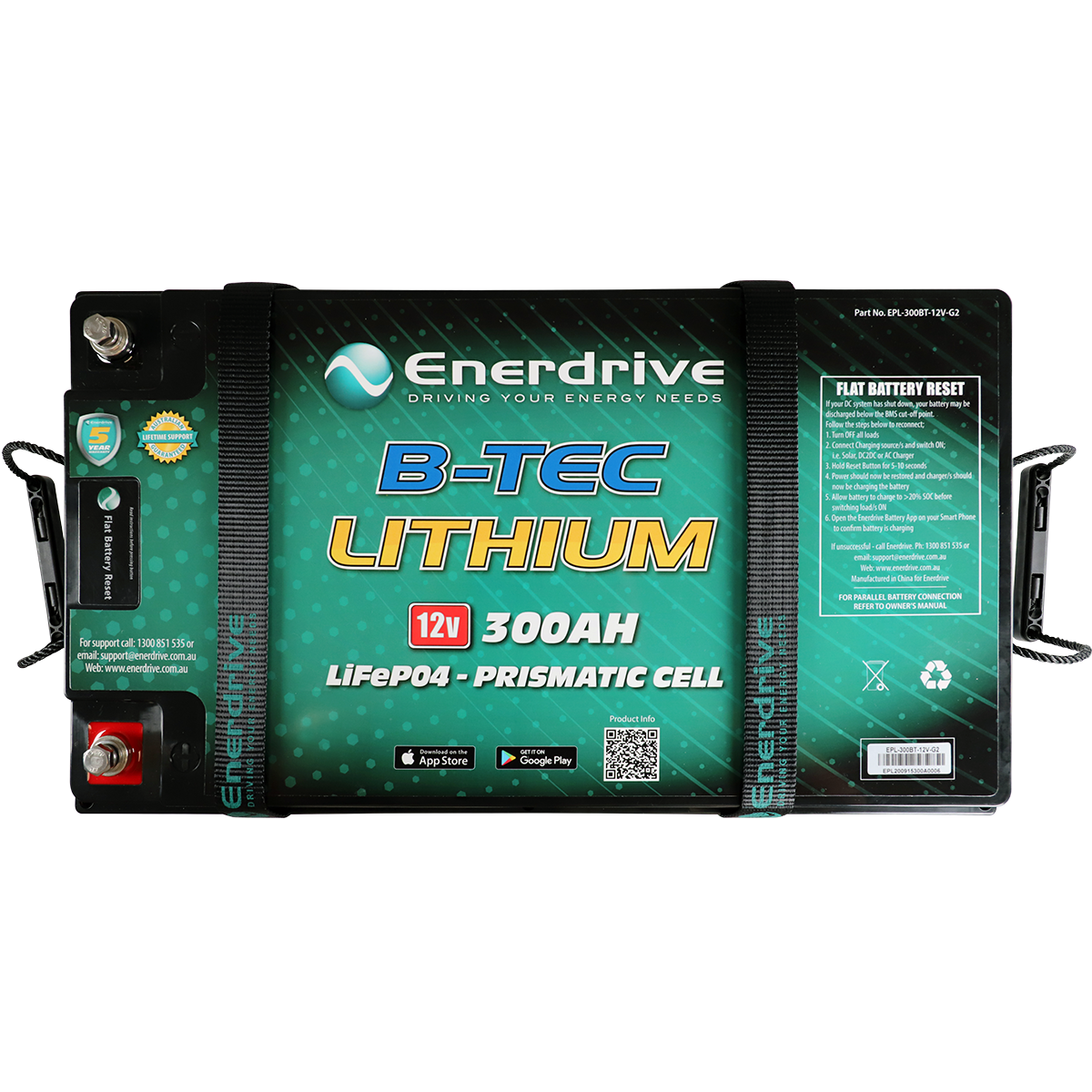

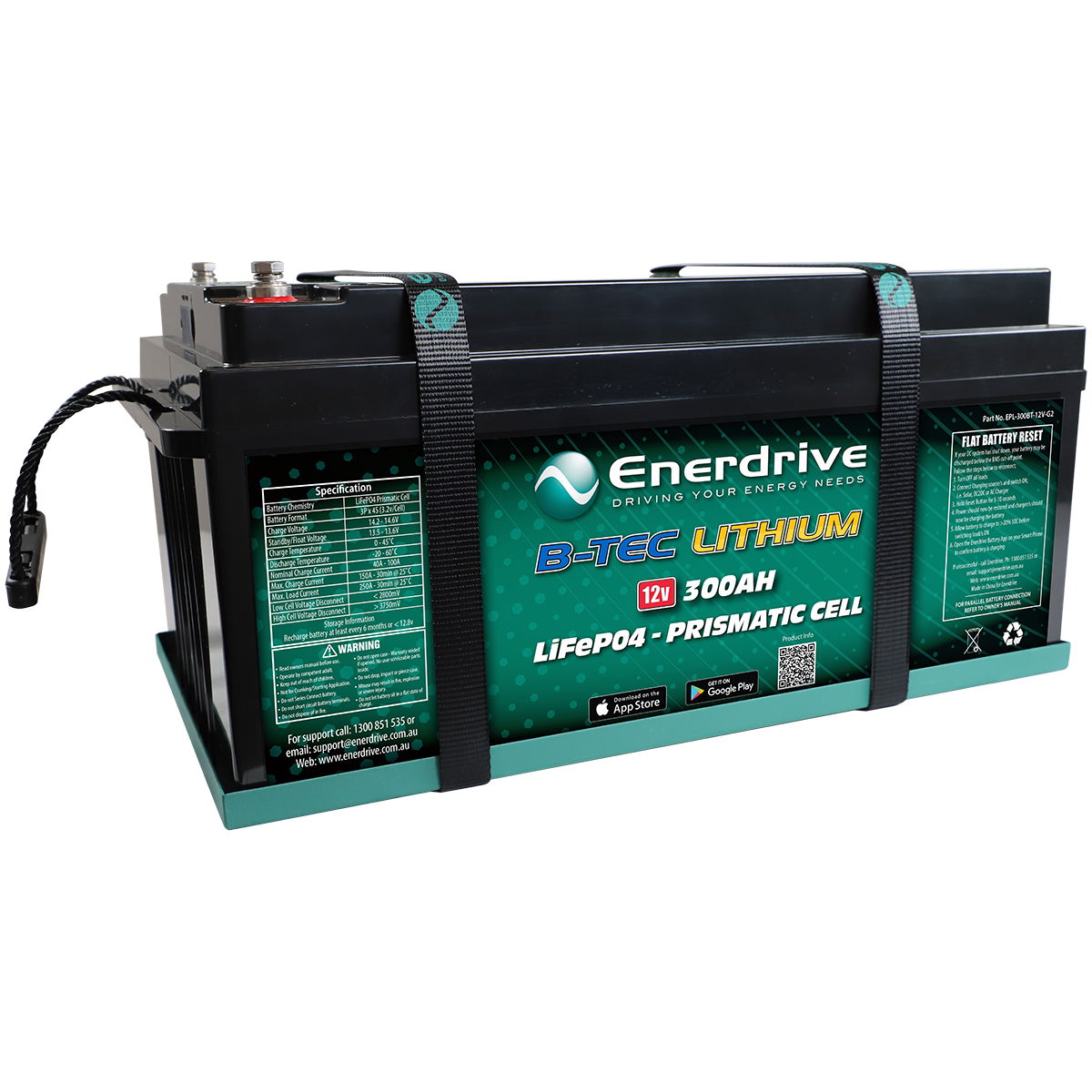

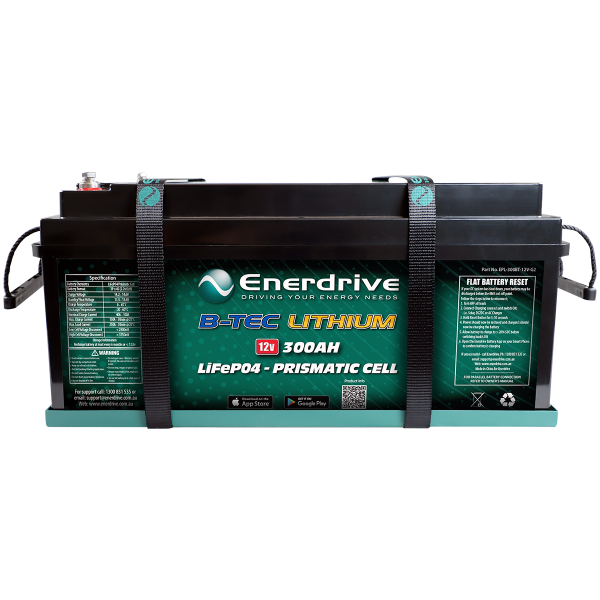

Enerdrive B-TEC 300Ah Lithium Battery & Charger Bundle, 5 Year Warranty. The Enerdrive 300Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.

The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.

Bundle Includes:

Optional Chargers:

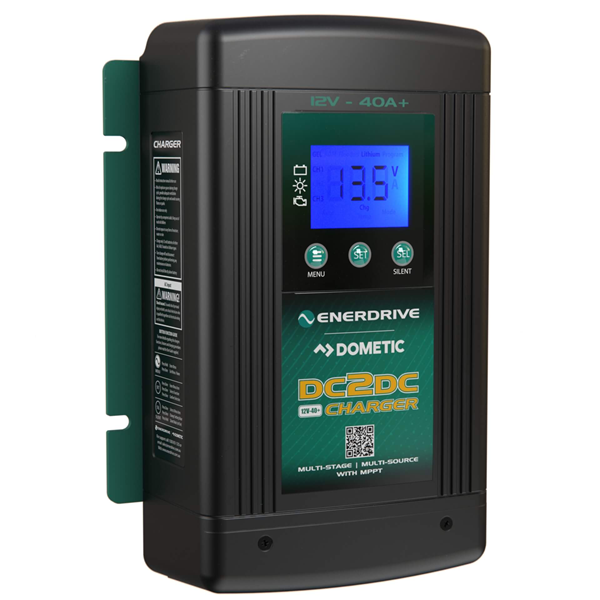

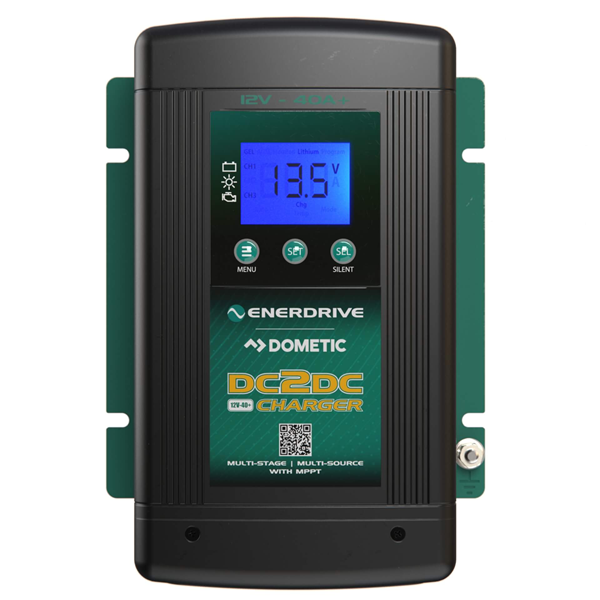

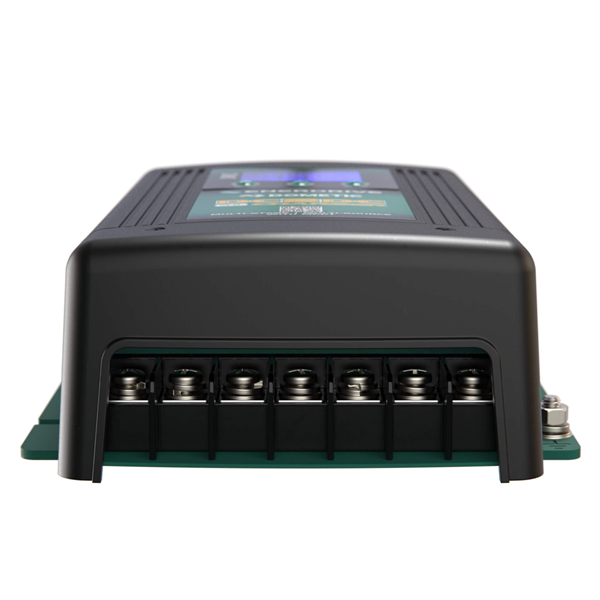

  • EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
  • EN31260 - Enerdrive 60A AC Battery Charger

Here's how these components work together:

  • The 40A DC2DC charger takes charge of replenishing the lithium battery during travel or when solar panels are accessible, ensuring an efficient battery charging process.
  • The AC charger comes into play when you're linked to an AC power source, such as a campsite with electrical hookups or a marina with shore power. It provides a convenient method for recharging the battery when AC power becomes available.

The combination of both DC and AC charging options offers versatility in recharging your battery, catering to various scenarios. The DC charger is apt for charging on the move, while the AC charger proves valuable when you're stationary and connected to the grid.

This setup offers flexibility in recharging your battery, considering both your mobility and access to AC power sources. It's important to consult the manufacturer's recommendations and user manuals for each component to ensure proper installation and operation in your specific application.

Bundles K-300-05 K-300-10

K-300-12

EPL-300BT-12V-G2 * * *
EN3DC40+   * *
EN31260 * *

Battery Information:

Product Manual

DC Charger Information:

Product Manual

AC Charger Information:

Product Manual

Specifications

SKU K-300-1

Brand Enerdrive

GTIN 9342616001271

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (ah) 300

Battery Length (mm) 521

Battery Width (mm) 280

Battery Height (mm) 238

Battery Weight (kg) 38.2

DC Charger Output Current Rating (Amps) 40

AC Charger Output Current Rating (Amps) 60

Nominal Voltage 12.8V

Nominal Capacity 300Ah

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0 ̴ 45°C

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V

Maximum Charge Current 190A @ 25°C for 30mins

Recommended Charge Current for Maximum Life 60~120A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 11.00 ̴ 14.60V

Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤11.20V

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Battery Manual Reset Button Yes

Discharge Over Current 280A for 25s – 400A for 3.5s

Protection Reset Time Approx 10s Auto Release

Over Current Release Method Disconnect Load

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
