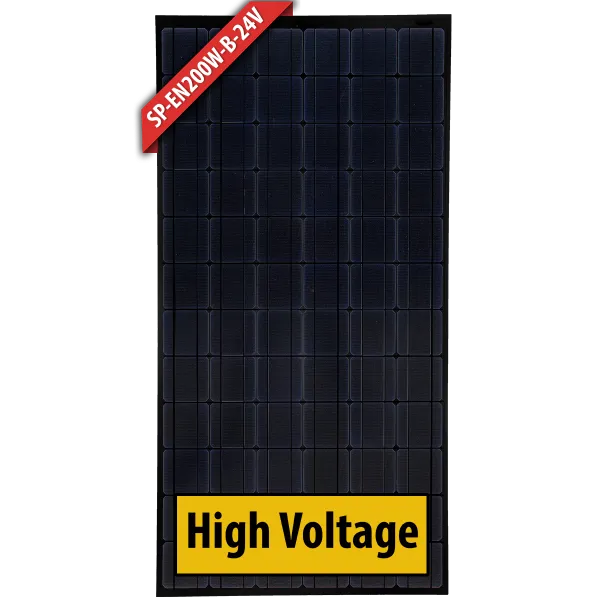

Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black

SKU: SP-EN200W-B-24V Learn More»
Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black
Free Shipping


This item is sent via Express Courier. All freight is fully insured.





Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit.

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Key Features:

  • High Conversion Efficiency. Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities.
  • Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability.
  • High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant.
  • Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
  • Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal).
  • Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors.

Enerdrive Product Brochure

*Note: The SP-EN200W are suitable for Charging 24V Battery System when using a PWM Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.



Brand Enerdrive

Warranty Period: 5 Years

Product Category Portable Solar Panels

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 200

Net Weight (kg) 15

Max Power Current Im(A) 5.37

Short Circuit Current Isc(A) 6.05

Voltage DC (V) 24V

Max System Voltage (VDC) 1000

Max Power Voltage Vm(V) 37.3

Test Conditions 1000W/m² , AM1.5 , 25°C

Open Circuit Voltage Voc(V) 43.7

Popular Product Applications Caravan solar panels, 12V solar panels, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels

Dimensions 1580 x 808 x 40mm


Powering Your Trip With Caravan or Camping Solar Panels
