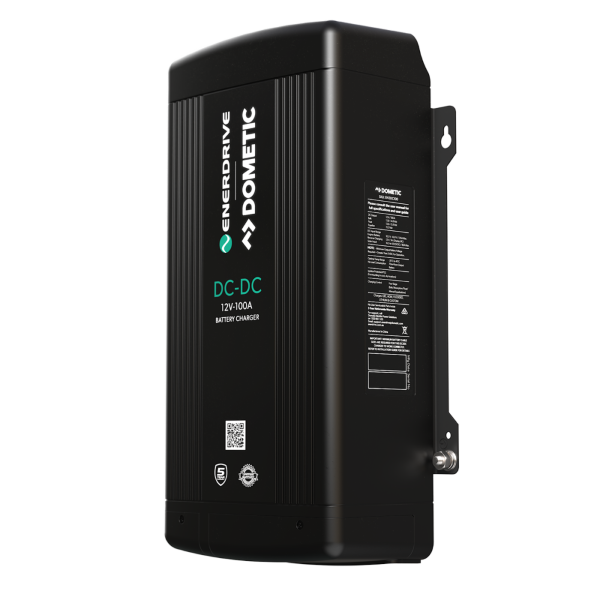

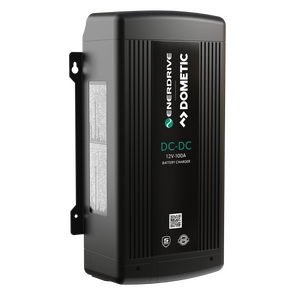

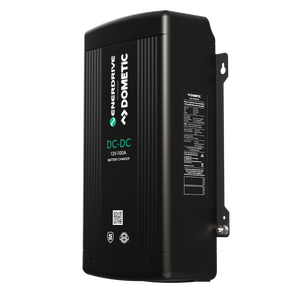

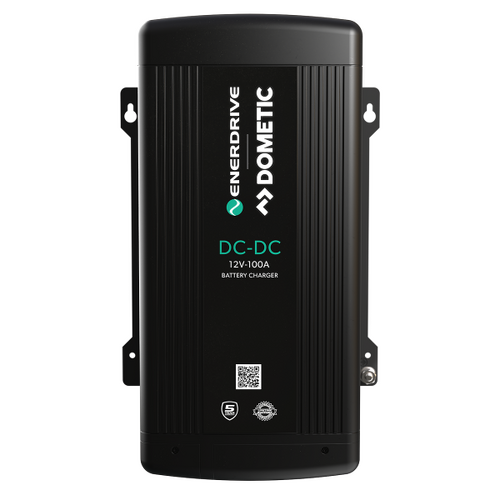

Enerdrive 12V 100A DC to DC Battery Charger

Product Description

Enerdrive 12V 100A DC to DC Battery Charger , 5 Year Warranty. Fast charge your batteries with the Enerdrive | Dometic 12V 100A DC-DC Charger. With dual DC inputs for alternator and MPPT solar charging, the unit can draw power from either your vehicle’s alternator or solar panels.

Engineered for high-output systems, this solution is the perfect match for vehicles, trucks, caravans, motorhomes, and marine vessels equipped with large alternators. Experience superior efficiency with a fully programmable remote LCD display and intelligent multi-stage charging.Consult your vehicle handbook or dealer to confirm capability.

Features:

12V 100A DC-DC Battery Charger

Fast charge your batteries with the Enerdrive | Dometic 12V 100A DC-DC Charger. With dual DC inputs for alternator and MPPT solar charging, the unit can draw power from either your vehicle’s alternator or solar panels.

Engineered for high-output systems, this solution is the perfect match for vehicles, trucks, caravans, motorhomes, and marine vessels equipped with large alternators. Experience superior efficiency with a fully programmable remote LCD display and intelligent multi-stage charging.

PLEASE NOTE:
Designed for large 4WDs, utes, trucks, and marine applications with high‑output alternators (12V – 180A+).
Please consult your vehicle or engine handbook, or your dealer to confirm compatibility.

• 12V 100A Output Current
  Delivers a powerful 12V output of up to 100A via alternator, and up to 80A from solar—ideal for fast‑charging large battery banks and supporting high‑demand 12V systems.
• Dual DC Inputs
  Charge your battery from alternator input or MPPT solar input, with up to 100A available for ultra‑fast charging.
• MPPT Solar Charging
  The integrated MPPT solar regulator delivers maximum output from your solar PV, ensuring fast and efficient battery charging.
• Multi‑Stage Charging
  Advanced charging algorithms and a multi‑stage charging process ensure your battery is ready faster and enjoys an extended lifespan.
• Intelligent Regulated Output
  The DC‑DC charger automatically monitors and regulates its output, adjusting to the battery’s specific requirements for optimal charging.
• User Adjustable
  The default 100A charging current can be stepped down in 10A increments to suit various vehicles and power requirements (100A–10A).
• Fan Cooled
  For optimum performance, the DC‑DC charger is fan‑cooled to maintain consistent output even in high ambient temperatures.
• Remote Display Included
  Comes with a fully programmable remote LCD display panel for easy remote monitoring and system control.
• 5‑Year Warranty
  Long‑term peace of mind with lifetime support from the local Australian team—expert help is always available for troubleshooting or installation guidance.

Specifications:

Output

• Output Current (MAX): 100A
• Output Voltage: 12Vdc Nominal

Charger DC Output – House Battery (CH1)

• Output Voltage Range (Bulk): 13.8 - 14.8Vdc
• Output Voltage Range (Float): 13.0 - 13.8Vdc
• Charger Output Current: 10 - 100A (Selectable)
• Output Voltage Range (Equalise – Flooded Battery Only): 15.5Vdc
• Equalise Charging Current: 10% of BULK current setting
• Charging Control: 4 Stages: Test / Bulk / Absorption / Float
• DC Output Bank: One
• Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program, and Flooded batteries (with equalisation for Flooded batteries)
• Current Draw from House Battery (CH1) with Unit ON: < 600mA
• Current Draw from House Battery (CH1) with Unit OFF (Standby): < 1mA
• Minimum Operation Voltage House Battery (CH1): 8.0Vdc
• Efficiency: > 90%

DC Input (PV Solar Input – CH2)

• DC Input Voltage Range Solar (CH2): 14.5 - 55Vdc / 80A Max.
• DC Input Power Range Solar (CH2):
  • 1200W Max for 12V Panels
  • 2000W Max for 24V Panels (Max voltage 55V)
• DC Input Nominal Operation:
  • 17.5Vdc for 12V PV Panels in parallel
  • 35.0Vdc for 12V PV Panels in series
• MPPT Tracking Efficiency: > 98%

DC Input (Start Battery / Alternator – CH3)

• Input Voltage Range: 10.5 - 16Vdc / 135A Max.
• Vehicle Input Startup Voltage (COM1 Connected – 12V Ignition Sense): 11.7 - 12.6Vdc
• Vehicle Input Startup Voltage (COM1 NOT Connected): > 12.7Vdc
• Engine Start Control ON: Start Battery / Alternator
• Engine Start Control OFF: PV Input
• Maximum Input Current: 100A

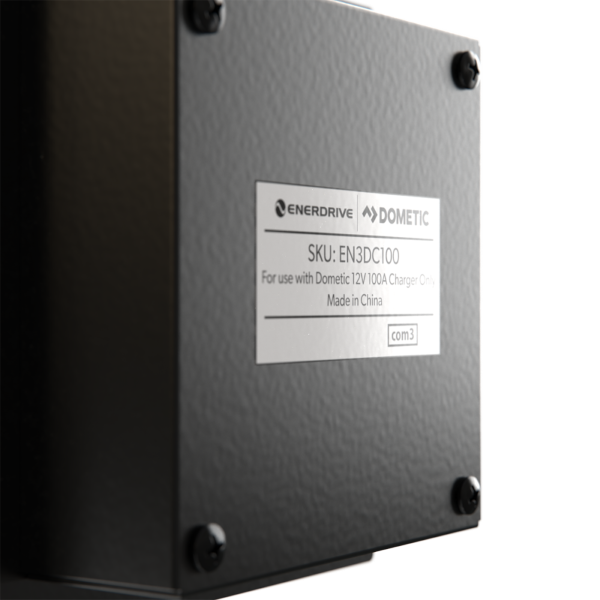

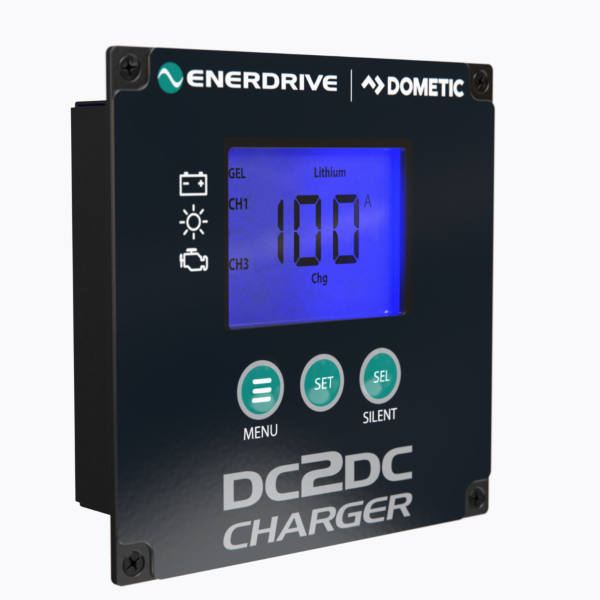

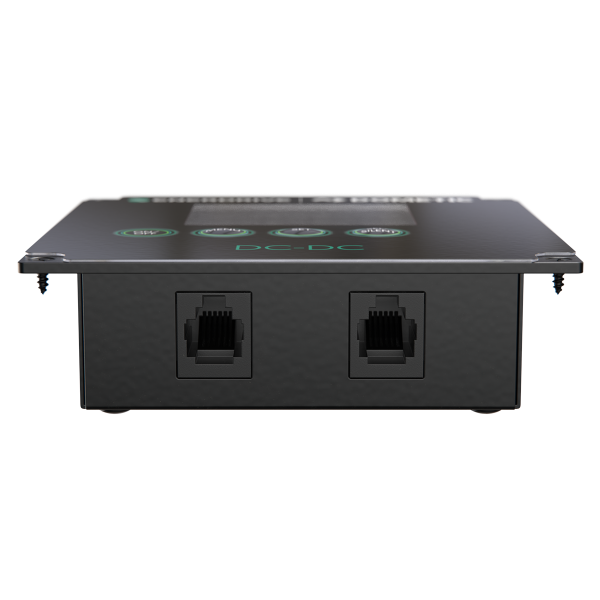

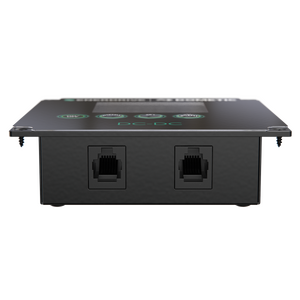

Remote Display Panel

• Digital Display: Backlit LED display
• Display: Voltage, Current, Status, Error
• Remote Display Dimensions: 100 x 100mm
• Weight: 0.4kg
• Communication: CANBUS

Protection and Features

• Charger Overall Dimensions: 356 x 205 x 97 mm
• Weight: 3.23kg
• Storage Range: -40° to 70°C
• Optimal Operating Range: -20° to 40°C
• Ingress Protection: IP32 (for mounting in cool, dry locations)
• DC Output Protection: Reverse Battery, Short Circuit, Over Charge, Over Temperature (refer to manual for details)
• Cooling: Forced Air Ventilation
• Battery Temperature Sensor Port: RJ12 (optional)
• Digital Display Port: —
