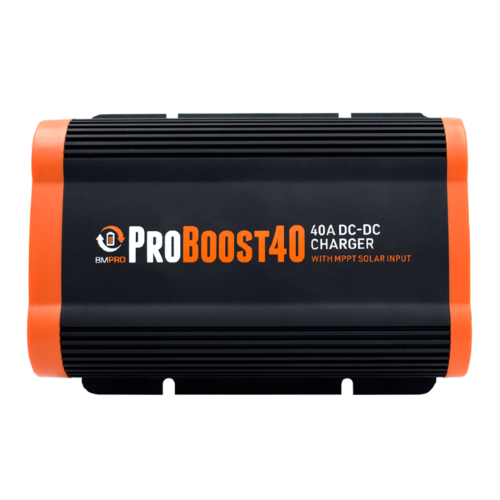

BMPRO ProBoost 12V 40A DC to DC Lithium Battery Charger with Solar Input

Product Description

BMPRO ProBoost 12V 40A DC to DC Lithium Battery Charger with Solar Input, 2 Year Warranty. BMPRO’s ProBoost40 is a DC-DC battery charger that allows you to charge a secondary battery using solar panels and/or a towing vehicle’s 12V electrical system.

The ProBoost40 utilises solar and auxiliary inputs to produce a maximum of 40A which ensures there is a consistent charge to your battery.

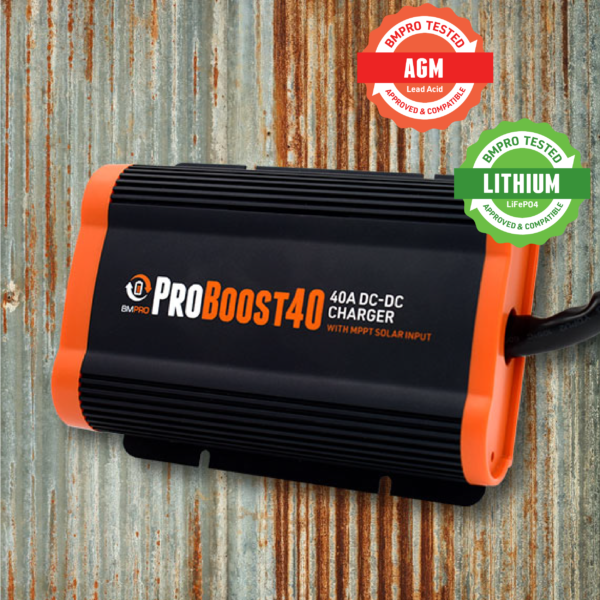

Compatible with both lead-acid and lithium LiFePO4 batteries, the high power density design of the ProBoost40 provides efficiency of up to 95%.

The ProBoost40 has an ultra-thin design, making it suitable for installation in small spaces, and is resilient to shaking, as well as wet, dusty or muddy environments.

A range of protective features built into the ProBoost40, such as overtemperature, overvoltage and undervoltage protection, will guard your charging capacity.

Features:

• In vehicle multi-stage DC-DC charger
• Dual input MPPT solar/aux (alternator)

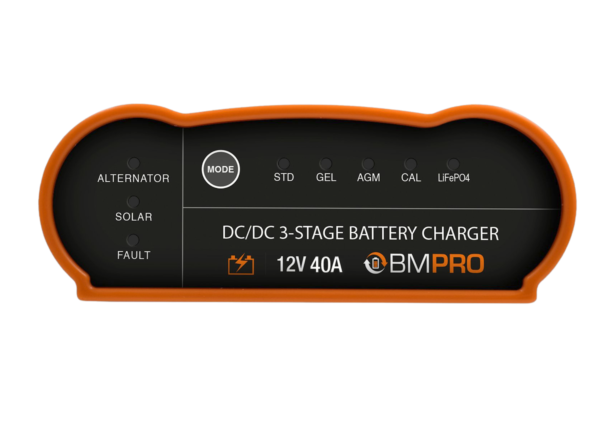

• Multi battery chemistry selector
• Suitable for modern smart alternators
• IP66 rating – resistant to dust, water and shock damage
• Maintains a 100% state of charge of auxiliary batteries

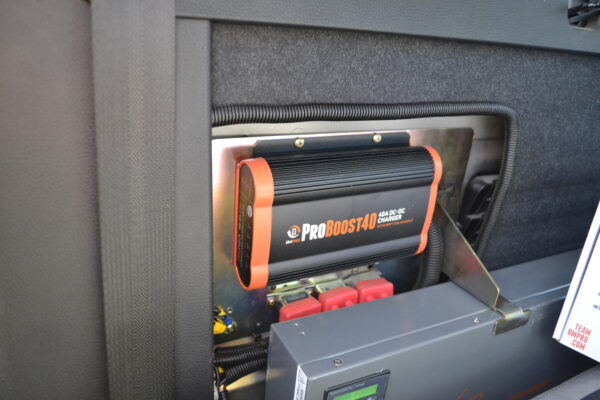

• Suitable for under-bonnet installation
• BMPRO signature durability and ease of use

Specifications

• Input Voltage 9-18V DC
• Solar Input Voltage 10-32 V
• Maximum Input Current 47A
• Input Fuse Rating 60A
• Continuous Output Current 40A
• Output Fuse Rating 60A
• Minimum Start Voltage (Lead-Acid) 4V
• Minimum Start Voltage (LiFePO4) 0V
• Standby Current <15mA
• Battery Chemistry STD, Gel, AGM, Calcium, LiFePO4
• Operating Temperature -20°C to 80°C
• IP Rating IP66
• Dimensions 183mm x 130mm x 43mm

• Charge Type 3-Stage
• Maximum Voltage (STD) 14.4V
• Maximum Voltage (Gel) 14.1V
• Maximum Voltage (AGM) 14.7V
• Maximum Voltage (Calcium) 15.3V
• Maximum Voltage (LiFePO4) 14.5V
• Float Voltage (STD) 13.4V
• Float Voltage (Gel) 13.5V
• Float Voltage (AGM) 13.4V
• Float Voltage (Calcium) 13.6V
• Float Voltage (LiFePO4) 13.6V
• Turn On Input (Standard Alternator) >13.1V
• Turn On Input (Smart Alternator) >12.0V
• Turn Off Input (Standard Alternator) <12.8V
• Turn Off Input (Smart Alternator) <11.8V

*The ProBoost is designed to work as a standalone product.

If you want to use this with a BMPRO Power Management System, such as the BatteryPlus35-II or the J35, you will need to connect it through a BC300 External Shunt.
