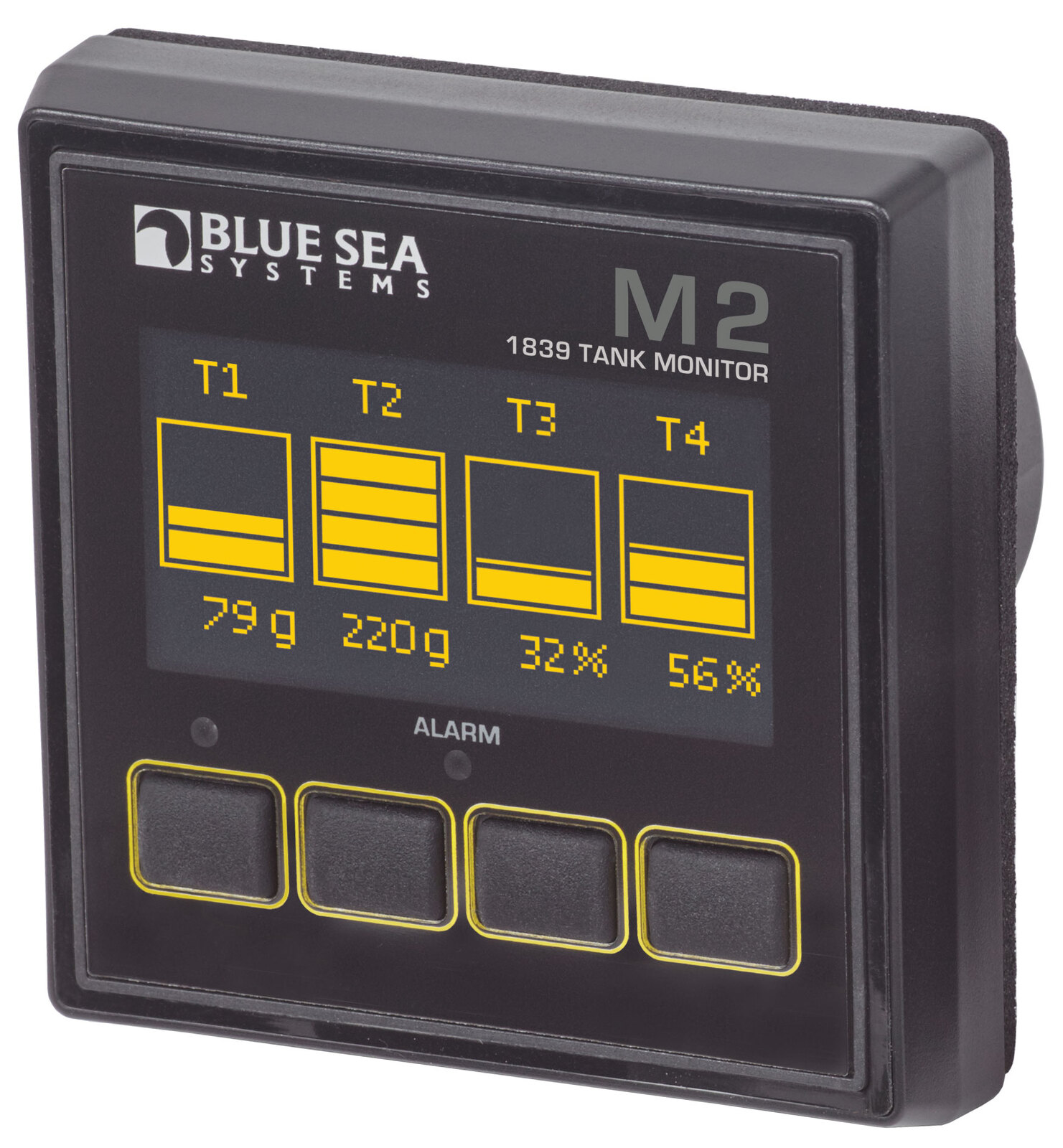

Blue Sea M2 OLED Tank Monitor

Product Description

Blue Sea M2 OLED Tank Monitor, 5 Year Warranty. The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

Features:

• Auto-dimming, bright Organic LED display is easy to read
• 80dB alarm on all models
• Isolated 500mA MOSFET relay
• Intuitive tank level monitoring
• Monitor up to 4 tanks
• Auto calibration for unique tank shapes
• Compatible with common sending units

Specifications:

• Meter: Tank
• Function: Monitors tank volume in up to 4 tanks
• Resolution: 1%
• Input Voltage: 7-70V DC
• Alarm/Relay Activation    High and Low Level
• Display Size: 55mm x 28mm
• Range: 0.3W-1.0W
• Tank Alarms: 80dB
• Tank Shapes: Custom shapes, auto calibration
• Weight: 1.81 kg

Drawing Dimension

Mounting Dimension
