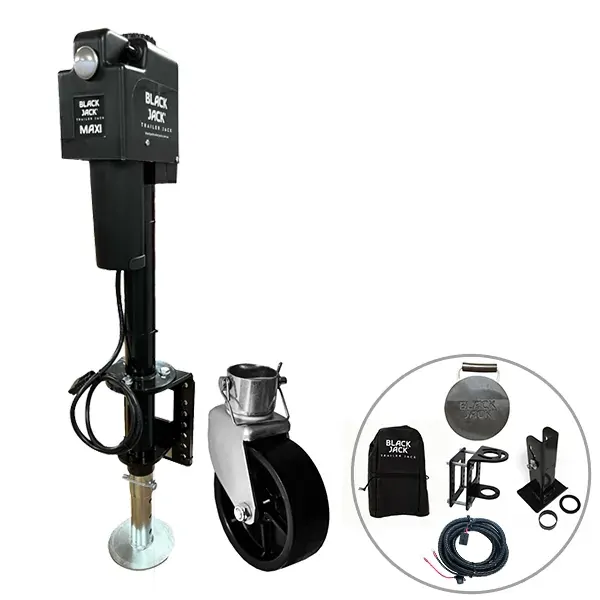

Black Jack MAXI Electric Trailer Jack Bundle with Harness kit & Jockey Wheel
SKU: BJTJ-Maxi-1001-JW Learn More»







Product Description

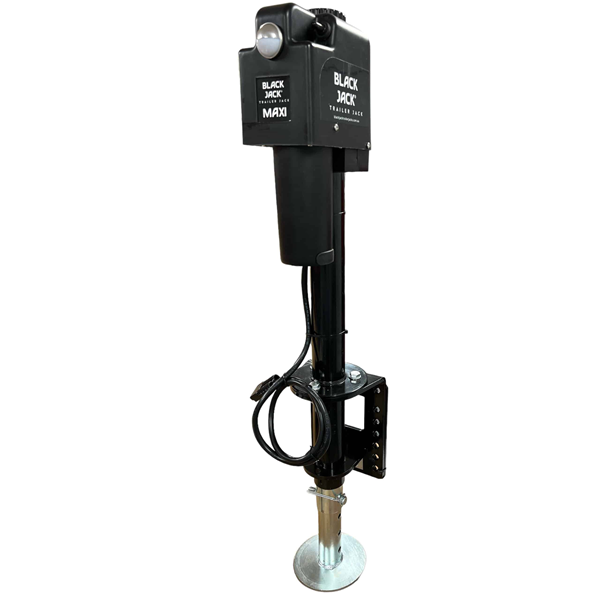

Black Jack MAXI Electric Trailer Jack Bundle with Harness kit & Jockey Wheel, 3 Year Warranty. The new generation of electric trailer jack technology. The Black Jack Maxi is a quantum leap in technology and represents the new generation of Black Jacks. Incorporating an Intelli-Brake motor that automatically cuts power to the jack at either fully retracted or fully extended. Remote control operation allows for easier hitching and unhitching and makes levelling your caravan a breeze. The new Black Jack Maxi boasts a ball bearing worm drive that is twice as efficient, faster and quieter, and generates a massive lift capacity of 2,000kg. All Black Jack Maxi’s come with a Pre-installed Anderson plug for easy “Plug and Play” connection.

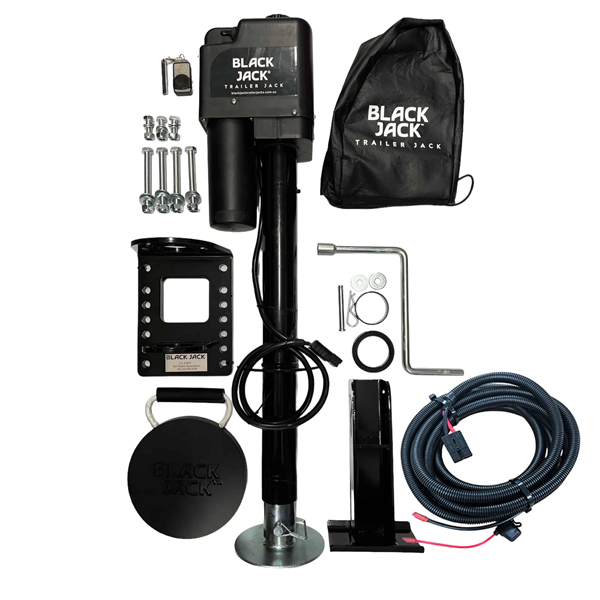

Kit Includes:
- The new Black Jack Maxi

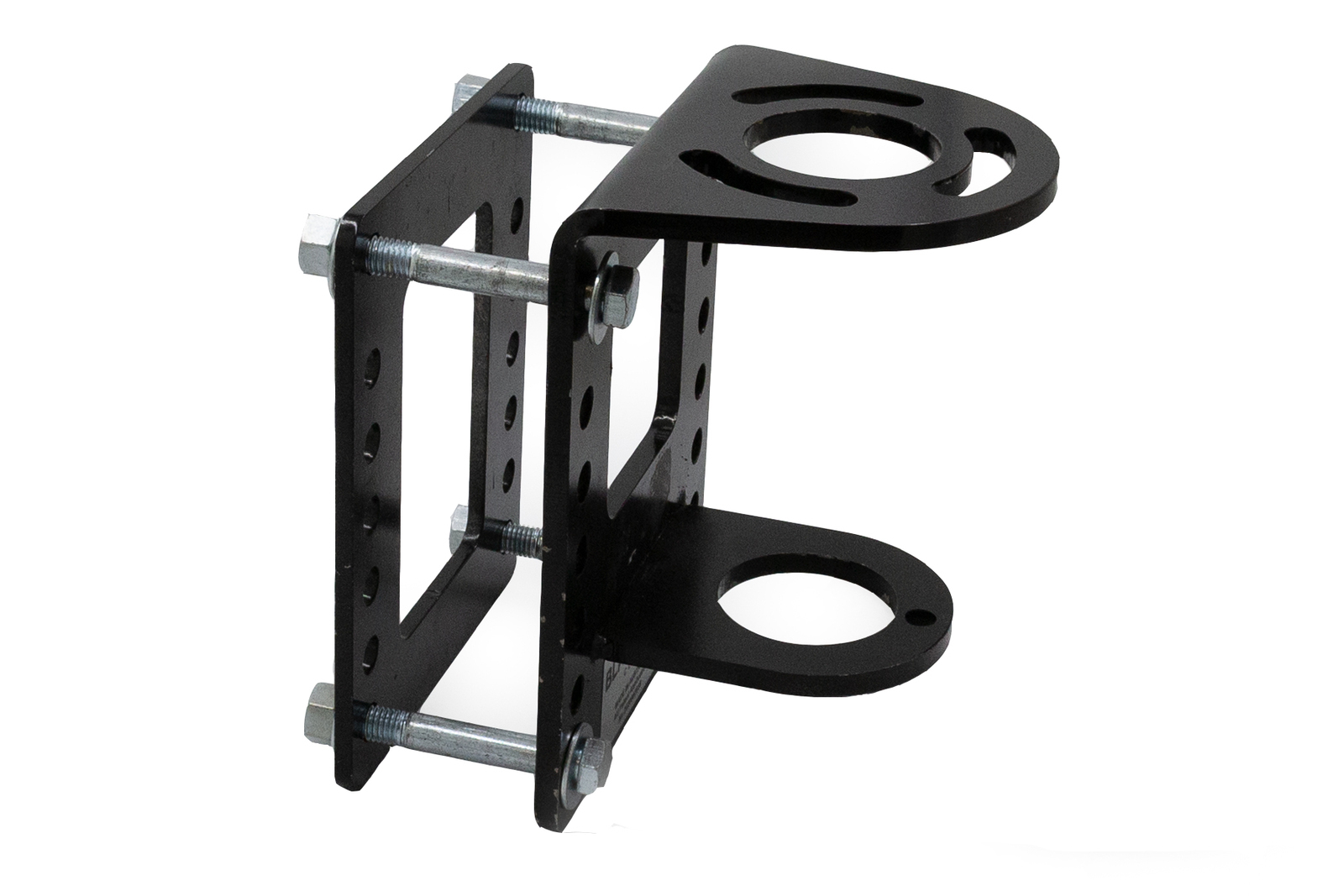

- Patented Black Jack Clamp with full bolt kit

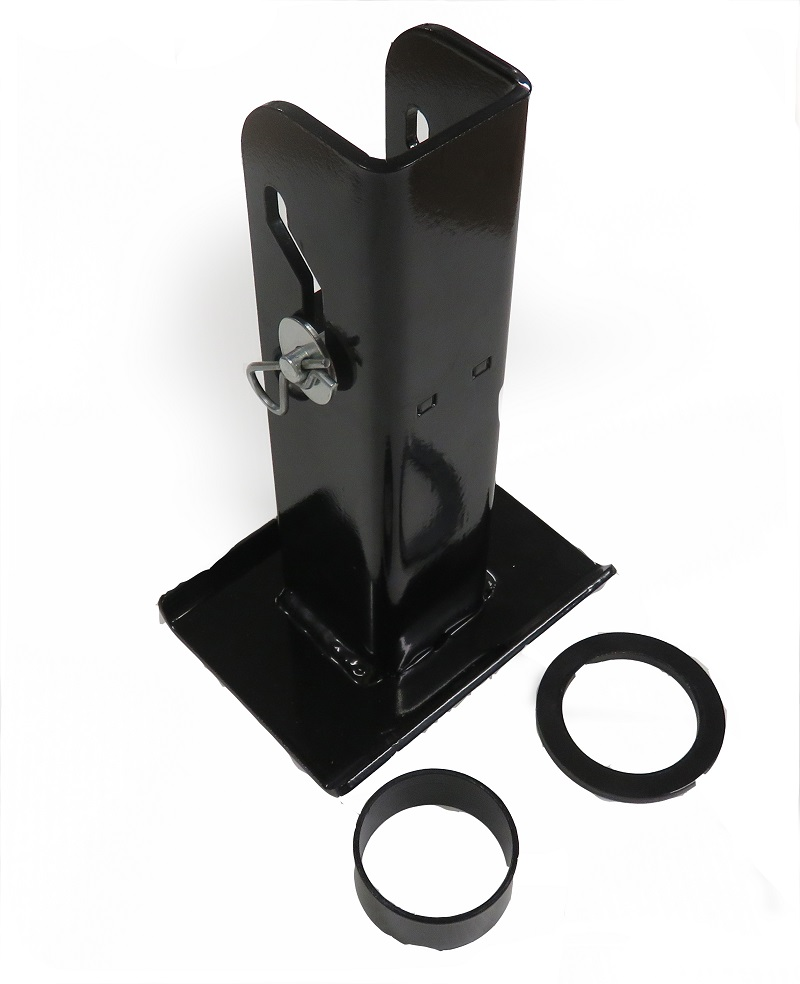

- Folding Foot and Adjustable Foot
- All Weather Cover
- Black Jack Soft Ground Foot Pad

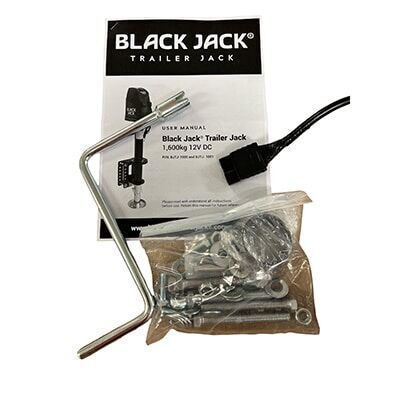

- Manual Handle
- An installation wiring harness is also included with BJTJ-Maxi-1001. This harness includes a pre-wired Andersen plug at one end, a 30amp inline fuse, and battery terminals at the other end. The 5 meters of positive and negative B&S # 8 wires are encased in a protective cover.
Features:
- 2,000 kg lifting capacity, more than enough muscle
- Auto power cut-off at full extension and full retraction
- Optional remote-control operation
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 450 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Tough powder coated finish
- Pre-wired to an Andersen plug – length of cable is 1.4m
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ-Maxi-1001)
- Free all-weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg

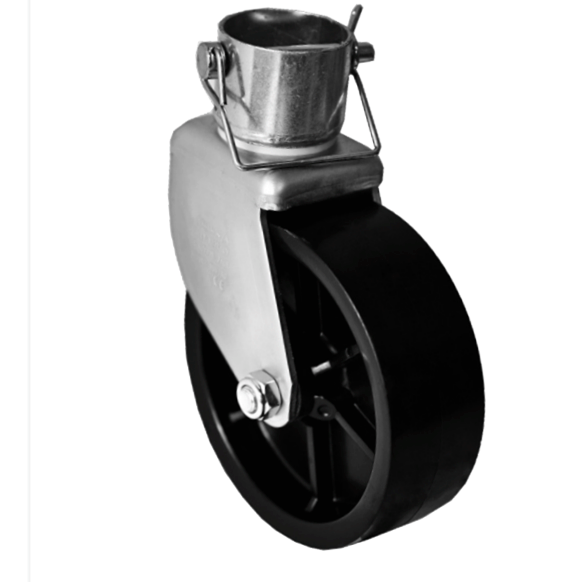

Also Included is the Black Jack™ Jockey Wheel:
The Black Jack Trailer Jack Jockey Wheel are designed to easily connect to the shaft in just a few easy steps. Simply remove existing Extension foot supplied by releasing the clip-pin. Position and align the Jockey Wheel in its place and insert the clip-pin in the holes provided. Makes swapping from one to the other a breeze and making manoeuvring your trailer or caravan a simple exercise.
Heavy duty but also light weight provides a great travel accessory in doubling up as a Jockey wheel and not just a Jack stand. It’s also designed to protect damaging hard surfaces such as driveways or pavements.
- Easy interchangeable design.
- Light weight and compact to take travelling on the road.
- Doubles as a Jockey Wheel, not just a Jack Stand.
- Have a non-stick surface, easy to clean.
- Are corrosion, oil and chemical resistant.
Specificatiions
- Wheel Diameter: 15cm
- Height: 22cm
- Maximum Load: 540kg
- Dimensions: H 781 x W 216 x D 140mm
- Net Weight (kg): 17
- Engine / Motor Type: Sealed brushless motor
- Lifting Capacity: 1600kg

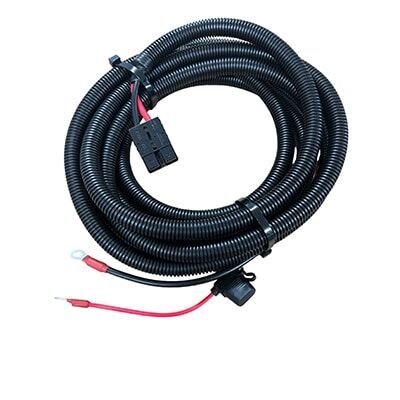

Black Jack DIY Harness Kit
The Black Jack Trailer Jack Harness Kit saves you time and money by not having to source components when installing your Black Jack Trailer Jack. The ‘DIY’ Harness kit provides the correct protection and process, making your installation a breeze.
Features:
- Pre installed Andersen Plug
- Pre installed 30amp Fuse
- Suitable for Caravans and Trailers.
- DIY saving you time and money on install.
- One size suits most applications
- 5 m of battery cable
- All wires secures in a protective casing
Specifications
SKU BJTJ-Maxi-1001-JW
Brand Black Jack
Warranty Period: 3 Years
Product Category Jockey Wheels and Jacks
Dimensions 1260mm Length, 115mm extra lift with standard foot, 140mm extra lift with folding foot
Weight (kg) 17
Maximum Load Capacity 2000kg
Lifting Capacity 2000 kg
