Black Jack MASTER Electric Trailer Jack
SKU: BJTJ-MASTER-1000 Learn More»
Product Description
Black Jack MASTER Electric Trailer Jack, 3 Year Warranty. Gone are the days of manually winding the jockey wheel to raise or lower the caravan or trailer. The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today.
The new generation of electric trailer jack technology. The Black Jack Master is a quantum leap in technology and represents the new generation of Black Jacks. Incorporating the all-new Safe Auto Stop that automatically cuts power to the jack at either fully retracted or fully extended. The new Black Jack Master generates a massive lift capacity of 1,600kg. Ball weight is usually 10% of overall weight. So, a Caravan with overall weight (ATM) of 4,000kg will have a ball weight of approximately 400kg. The Black Jack Master will lift up to 1,600 kg so it will do it with ease. All Black Jack Master comes with a Pre-installed Anderson plug for easy “Plug and Play” connection.
Features:
- Black Jack Safe Auto Stop- cuts power when fully retracted or extended
- 1600 kg lifting capacity, more than enough muscle
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Removable foot pad extension for travelling
- Tough powder coated finish
- Pre wired to an Andersen plug – length of cable is 1.4m
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free all weather cover to keep the rain out
- All Black Jacks carry an unconditional 3-year warranty and are compliant with Australian Gas Standards.

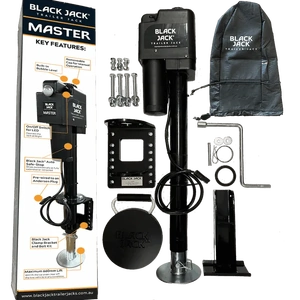

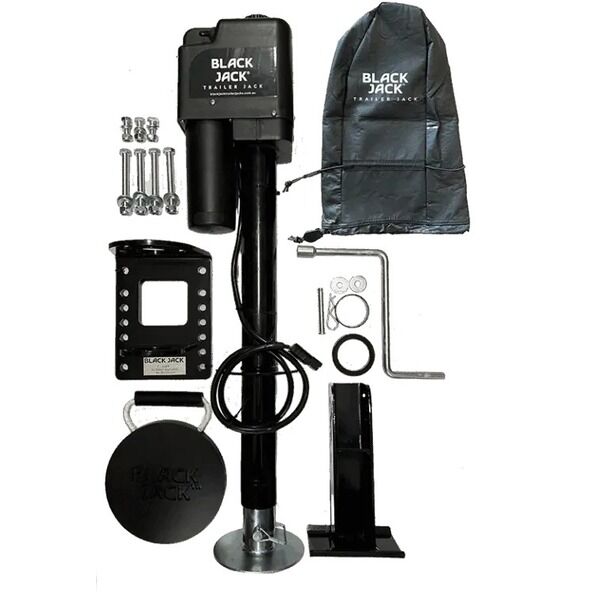

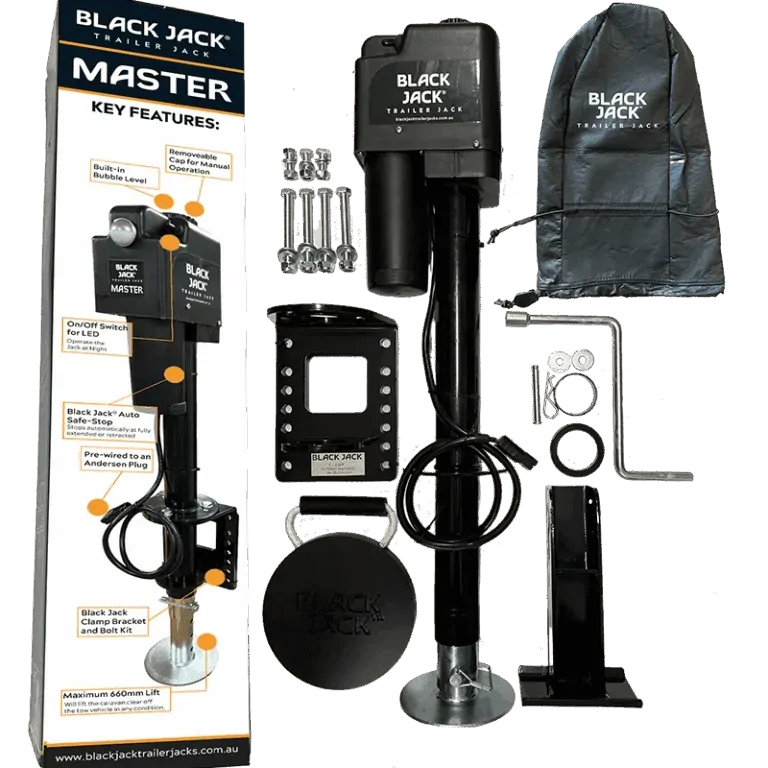

Includes:
- The new Black Jack Master

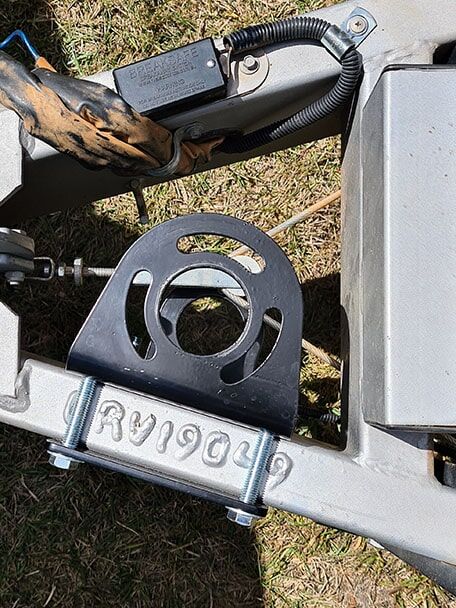

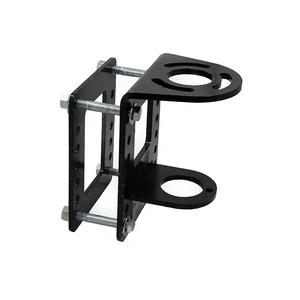

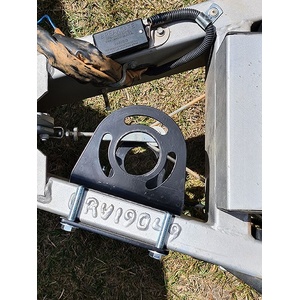

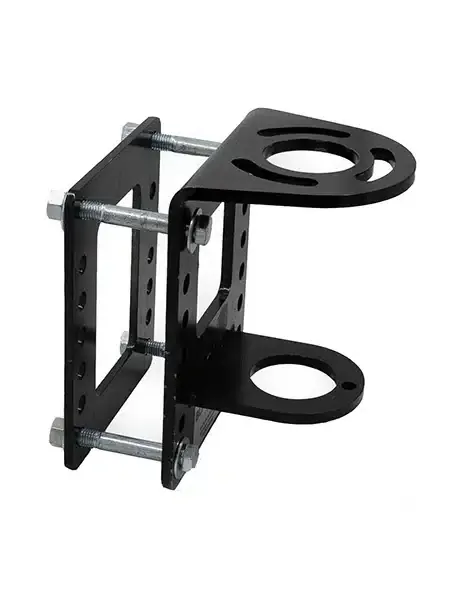

- Patented Black Jack Clamp (Australian Patent No 2021204066 & 2023285778) with full bolt kit
- Folding Foot and Adjustable Foot
- All Weather Cover

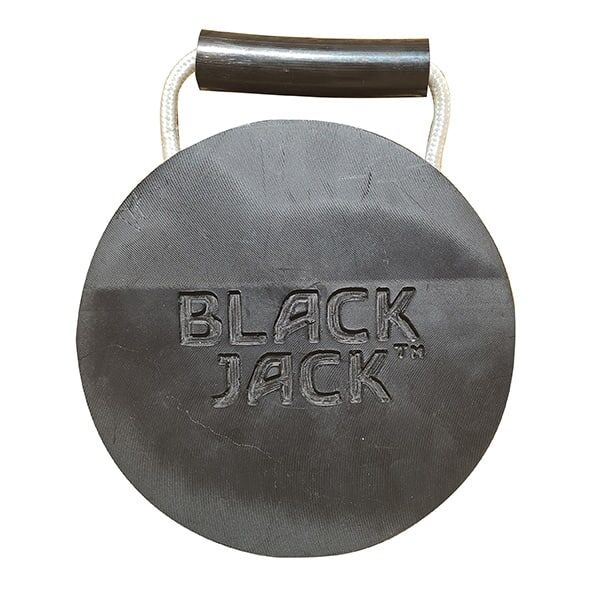

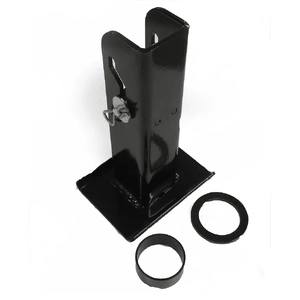

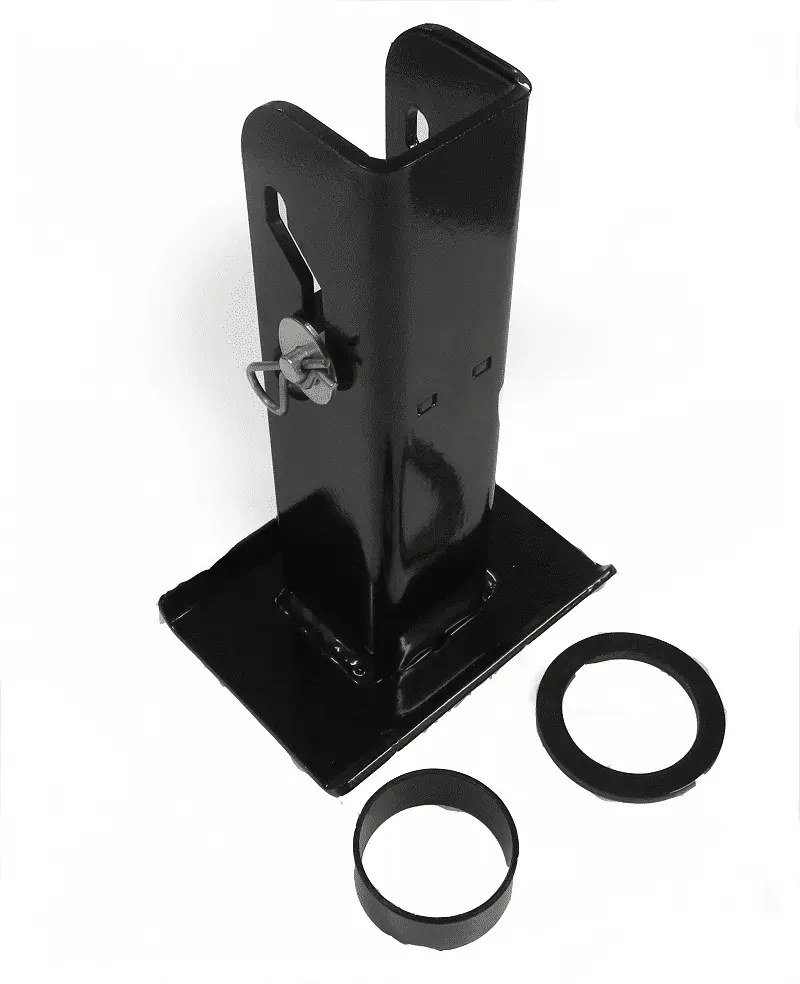

- Black Jack Soft Ground Foot Pad
- Manual Handle
Specifications
SKU BJTJ-MASTER-1000
Brand Black Jack
Warranty Period: 3 Years
Product Category Jockey Wheels and Jacks
Weight (kg) 17
Lifting Capacity 1600 kg
Product Q&A
-
Can the Black Jack be used with my current jockey wheel clamp?
Most standard jockey wheel clamps are designed for a 50mm diameter wheel. The Black Jack, however, has a thicker 60mm post, so it won’t be compatible with a typical jockey wheel clamp.
-
Is the Black Jack compliant with gas regulations?
Yes, the Black Jack has been independently tested and meets the Australian gas standard AS/NZS 5601.2:2020 + A1:2021.
-
What powers the Black Jack?
Each Black Jack is supplied pre-wired with a 50A Anderson plug and must be connected to a constant 12V power source. If your tow vehicle or caravan doesn’t already have an appropriate Anderson connection, you may need to install a wiring harness.
-
What is the Black Jack’s power draw while in use?
The Black Jack draws around 6A when running without load, and up to approximately 28A when lifting its maximum rated load of 1600kg.
-
What is the maximum lift height of the Black Jack?
The Black Jack provides a maximum lift of 650mm.
