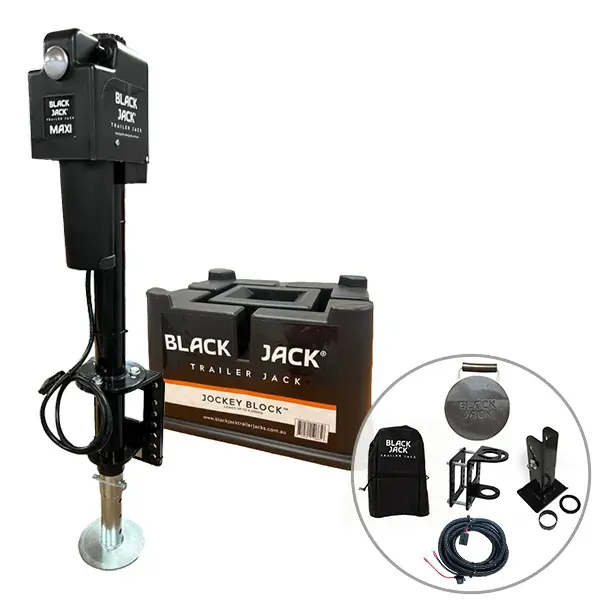

Black Jack MAXI Electric Trailer Jack Bundle with Harness kit & Jockey Block
SKU: BJTJ-Maxi-1001-JB Learn More»









Product Description

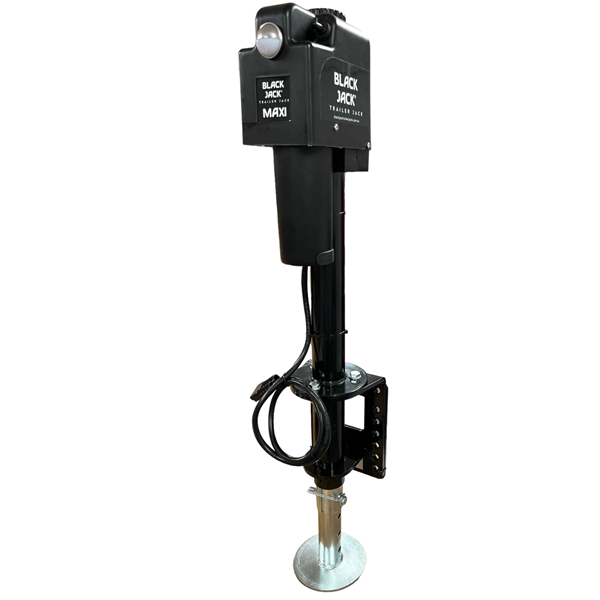

Black Jack MAXI Electric Trailer Jack Bundle with Harness kit & Jockey Block, 3 Year Warranty. The Black Jack Maxi is a quantum leap in technology and represents the new generation of Black Jacks. Incorporating an Intelli-Brake motor that automatically cuts power to the jack at either fully retracted or fully extended. Remote control operation allows for easier hitching and unhitching and makes levelling your caravan a breeze. The new Black Jack Maxi boasts a ball bearing worm drive that is twice as efficient, faster and quieter, and generates a massive lift capacity of 2,000kg. All Black Jack Maxi’s come with a Pre-installed Anderson plug for easy “Plug and Play” connection.

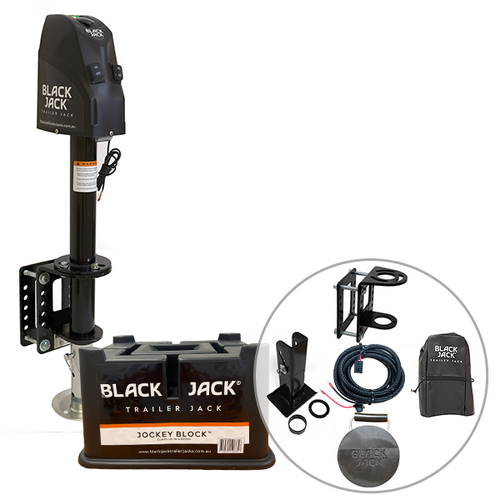

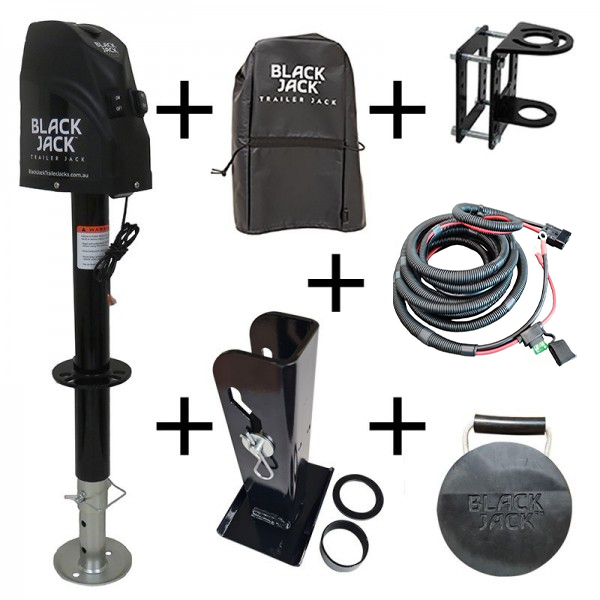

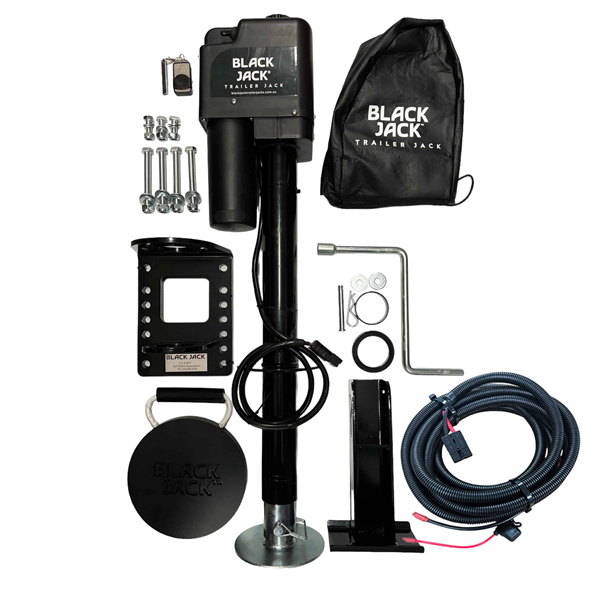

Kit Includes:
- The new Black Jack Maxi
- Patented Black Jack Clamp with full bolt kit
- Folding Foot and Adjustable Foot
- All Weather Cover

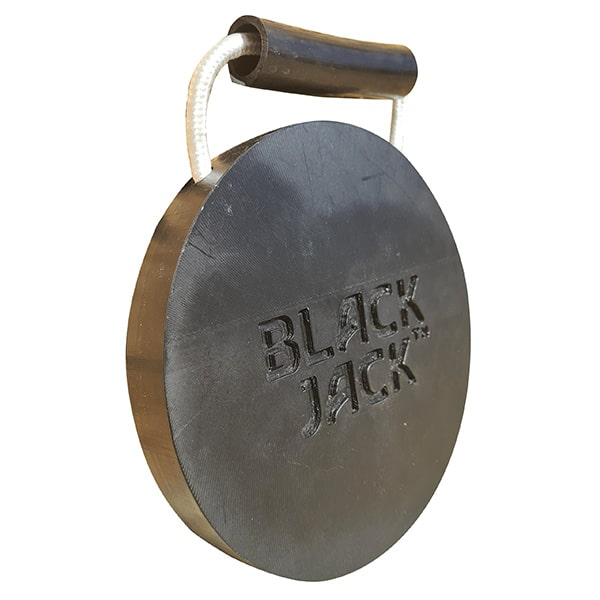

- Black Jack Soft Ground Foot Pad

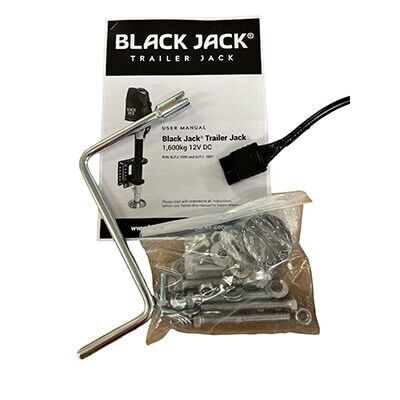

- Manual Handle

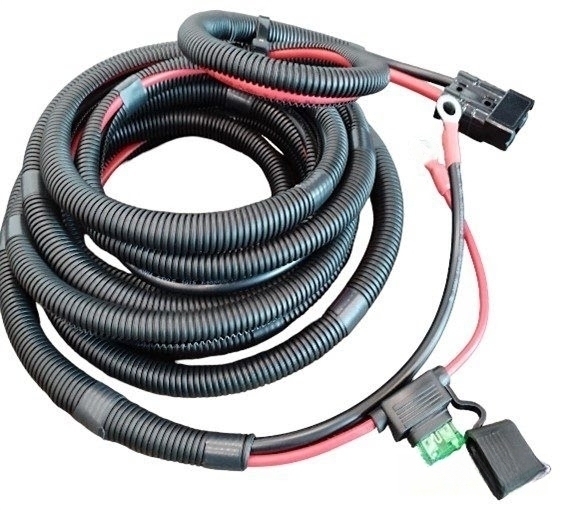

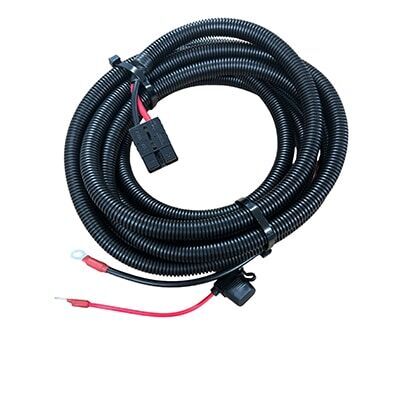

- An installation wiring harness is also included with BJTJ-Maxi-1001. This harness includes a pre-wired Andersen plug at one end, a 30amp inline fuse, and battery terminals at the other end. The 5 meters of positive and negative B&S # 8 wires are encased in a protective cover.
Features:
- 2,000 kg lifting capacity, more than enough muscle
- Auto power cut-off at full extension and full retraction
- Optional remote-control operation
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 450 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Tough powder coated finish
- Pre-wired to an Andersen plug – length of cable is 1.4m
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ-Maxi-1001)
- Free all-weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg

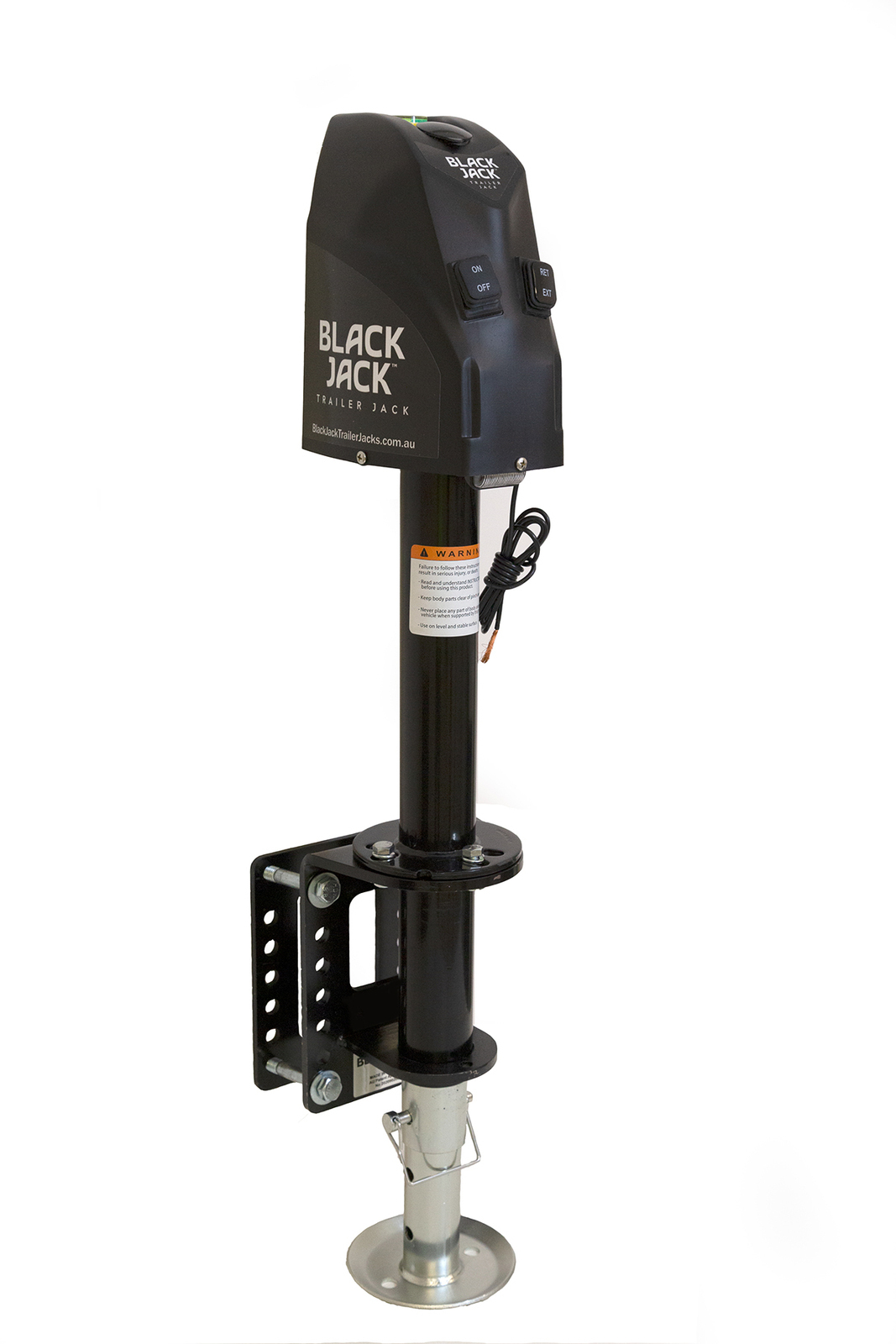

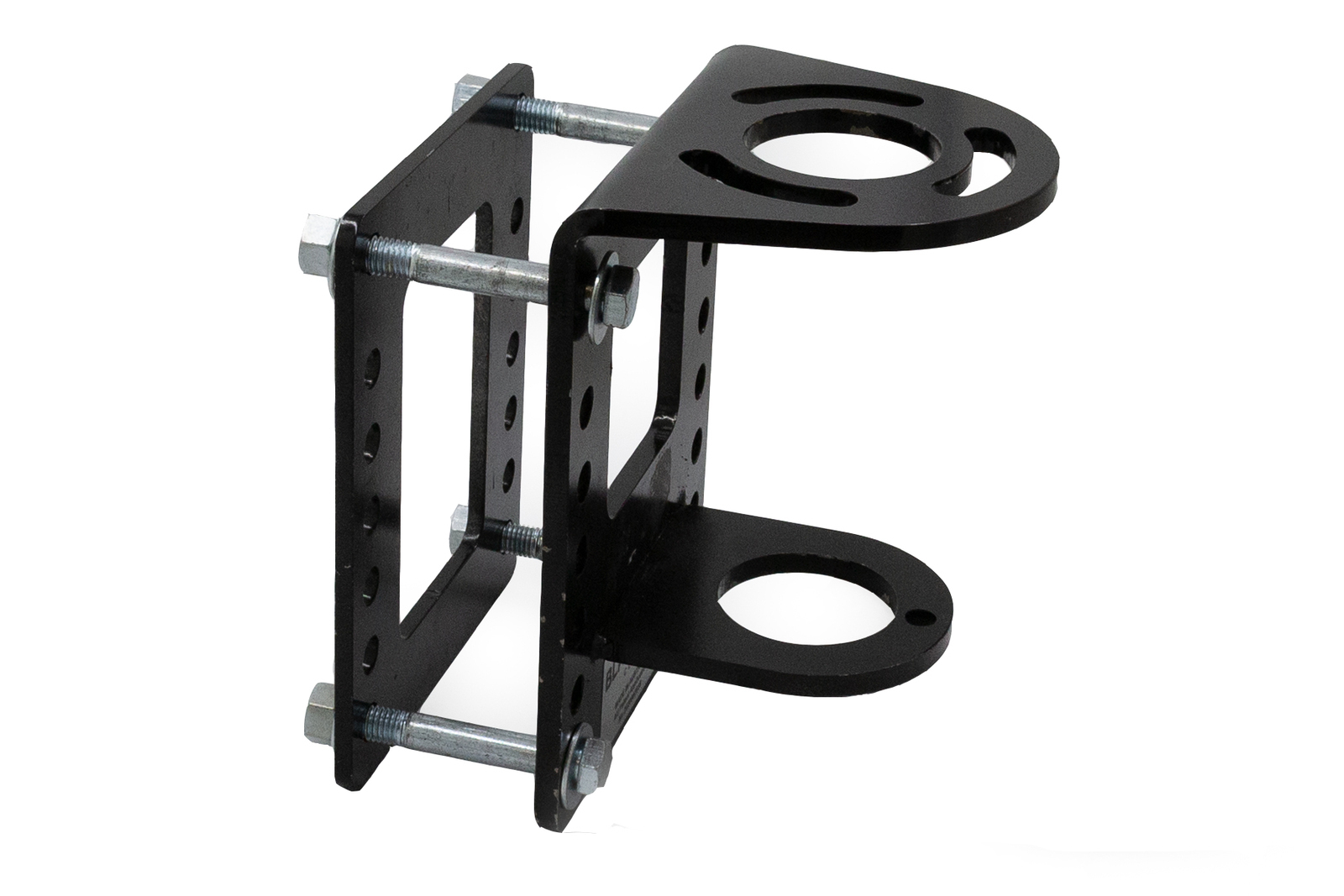

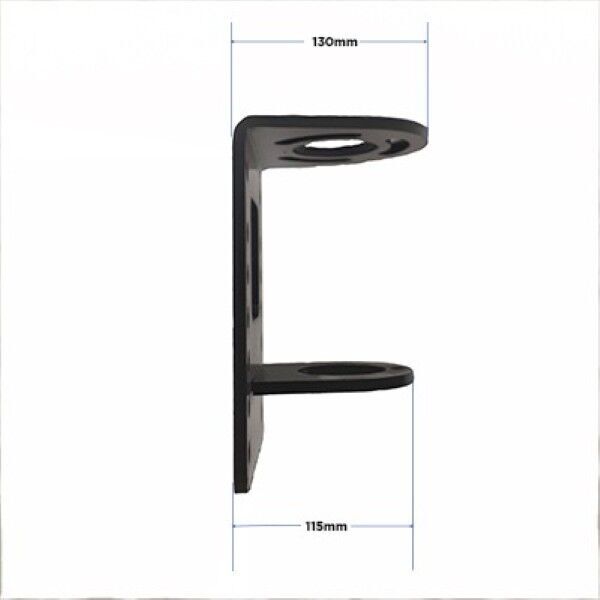

Also Included is the Black Jack™ CLAMP Featuring:
- 6 different chassis bolt hole positions so it fits any Caravan or trailer A-Frame in Australia (6 inch, 5 inch, 4 inch or 3 inch)
- Multiple top hole positions so the Black Jack can be installed facing the front, the side or the rear of the Caravan or trailer. Your choice!
- Panel recess so you can install over the top of existing wire fittings maximizing the options of where to install on the A-Frame.
- Safety chain insert hole so you can hang safety chains on the Black Jack Clamp.
- Upper support and a lower support brackets designed to eliminate any lateral movement that may be caused by uneven surfaces.
- Easy bolt installation. No additional modifications, welding or tools are required.
- Tough powder coated finish
- Australian Patent Pending (No. 2020902039)
- Registered Australian Design
- Made in Australia supporting Australian jobs
Black Jack DIY Harness Kit
The Black Jack Trailer Jack Harness Kit saves you time and money by not having to source components when installing your Black Jack Trailer Jack. The ‘DIY’ Harness kit provides the correct protection and process, making your installation a breeze.
- Suitable for Caravans and Trailers.
- DIY saving you time and money on install.
- One size suits most applications.
- Easy to install components.
- Hardwired for your safety.
Specifications
SKU BJTJ-Maxi-1001-JB
Brand Black Jack
Warranty Period: 3 Years
Product Category Jockey Wheels and Jacks

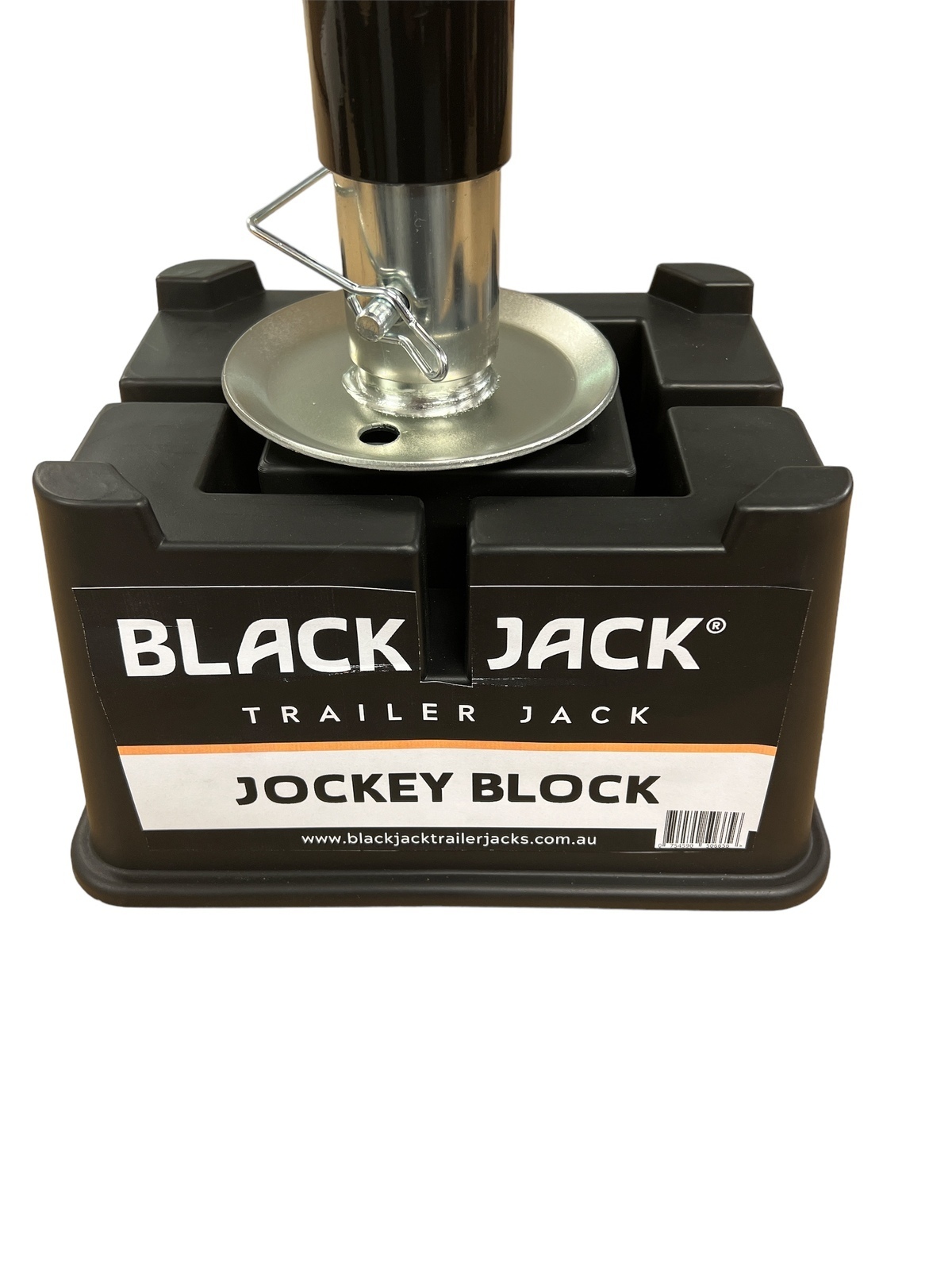

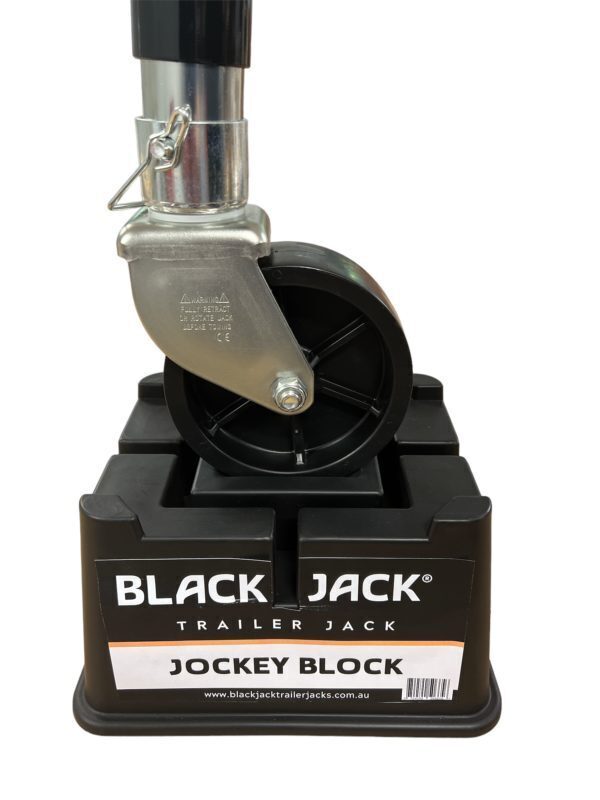

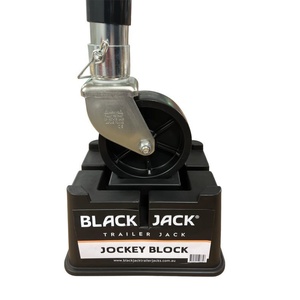

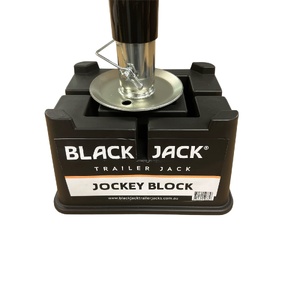

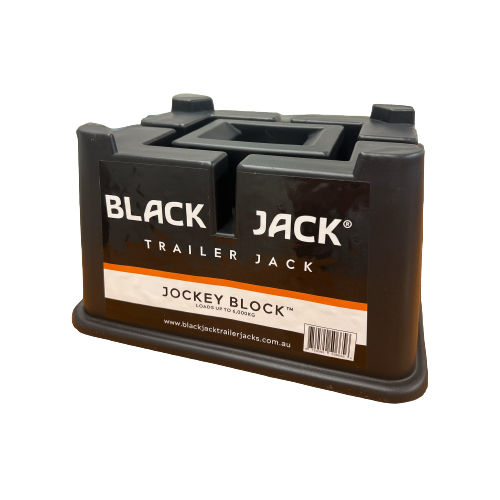

Dimensions 1260mm Length, 115mm extra lift with standard foot, 140mm extra lift with folding foot (Trailer Jack) | 28cm long by 22cm wide (Jockey Block)
Videos
Operating Your Titan RV Electric Caravan Jack
Why You Need A Black Jack Electric Caravan Jack
Product Q&A
Customer Reviews
Lionel Review by Lionel OrmsbyGreat piece of gear. Helps my poor back immensely. Nicely finished too, easy to install.(Posted on 27 October 2024)
