Victron Orion XS 12/12-50A DC-DC Charger Bundle, with SmartSolar MPPT 100/50 & Smart Battery Sense 10m
SKU: BDL012 Learn More»
Product Description
Victron Orion XS 12/12-50A DC-DC Charger Bundle, with SmartSolar MPPT 100/50 & Smart Battery Sense 10m, 5 Year Warranty.
Pack Includes:
- Victron SmartSolar MPPT 100/50 Charge Controller- SCC110050210
- Victron Orion XS 12/12-50A DC-DC battery charger- ORI121217050
- Victron Smart Battery Sense Long Range (up to 10m)- SBS050150200

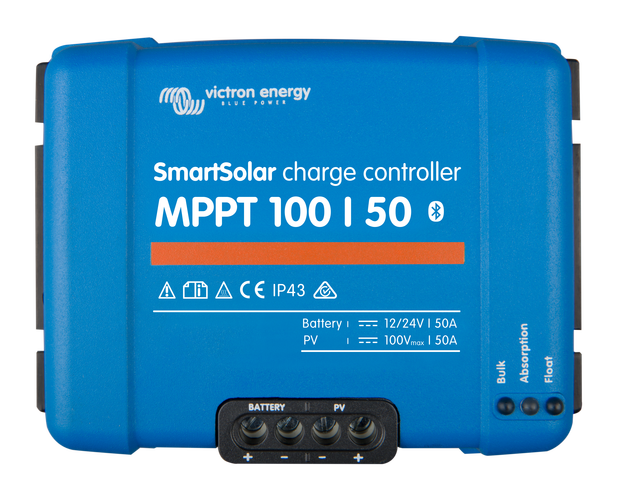

Victron SmartSolar MPPT 100/50 Charge Controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

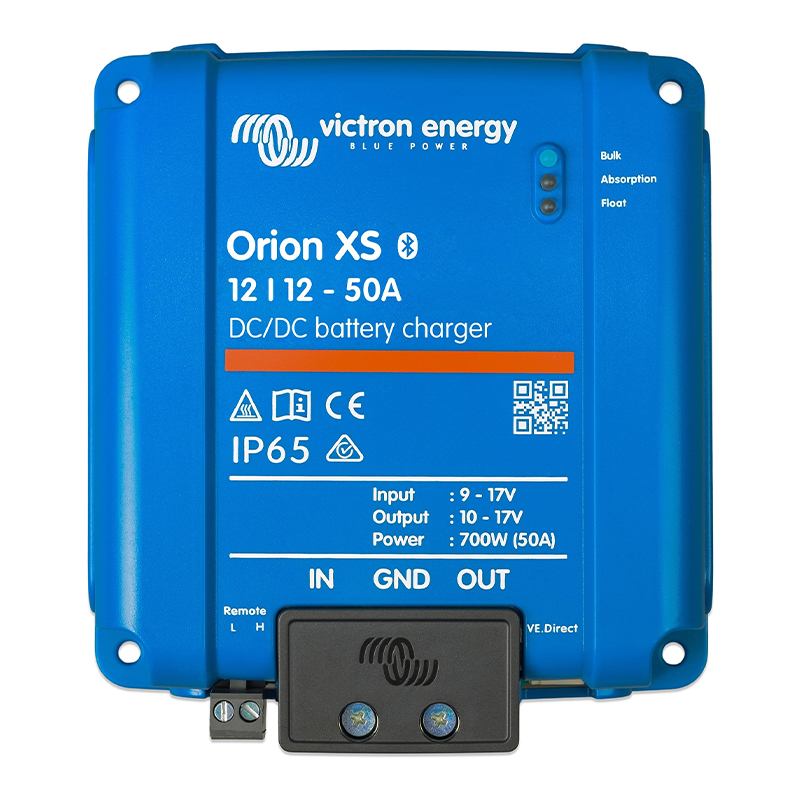

Victron Orion XS 12/12-50A DC-DC battery charger
The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.
This device not only ensures top-tier performance but also guarantees the safety of your system.
Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminium circuit board technology means less heat, without the need for fans.
As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.
.png)

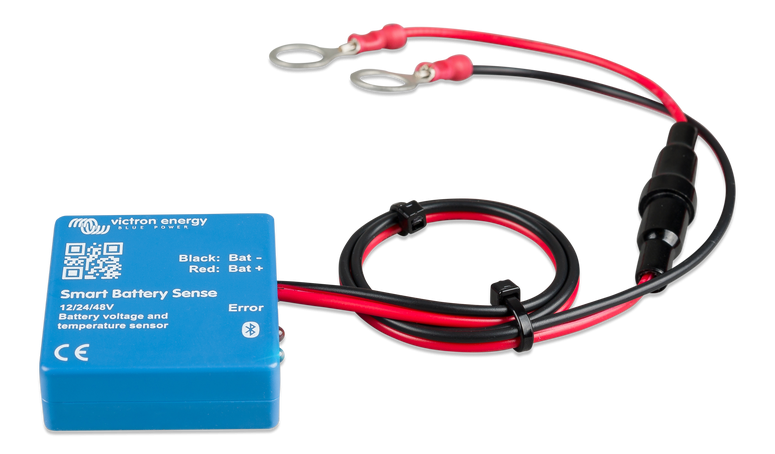

Victron Smart Battery Sense Long Range (up to 10m)
Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron MPPT Solar Chargers.With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life.
Tidy, simple - smart
Installation is simple, quick, and tidy. Just connect the unit's two eyelets to your battery terminals and attach the Smart Battery Sense unit directly onto the battery-body using its self-adhesive strip.
Specifications
SKU BDL012
Brand Victron
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 50
Voltage 12/24V Auto Select (Charge Controller)
Dimensions 137.3 x 123.1 x 40mm (DC Charger), 70 x 186 x 130 (Controller)
Humidity Max. 95% non-condensing (Charge Controller)
Operating temperature range -30 to +60°C (full rated output up to 40°C) (Charge Controller) | -20 to +60°C (DC/DC Charger)
Input Voltage 9-17V (DC/DC Charger)
Output System Voltage 12V (DC/DC Charger)
Efficiency 98% (Max) (Charge Controller)
Charge voltage 'absorption' Defult setting: 14.4V / 28.8V (Adjustable) (Charge Controller)
Net Weight (kg) 1.3
Charger Voltage 12V
Videos
Change MPPT settings using Bluetooth
Updating a Victron SmartSolar MPPT Charge Controller
How to Size a Solar Charge Controller for a DIY Camper Van Solar System
How does a Victron Energy MPPT Solar Charge Controller work?
How does a Victron Energy MPPT Solar Charge Controller work?
Introduction to the Orion XS; a lightweight non-isolated DC/DC charger
