Vitrifrigo DW70RF Stainless Steel Drawer Fridge 75L
SKU: A-034784 Learn More»
Product Description

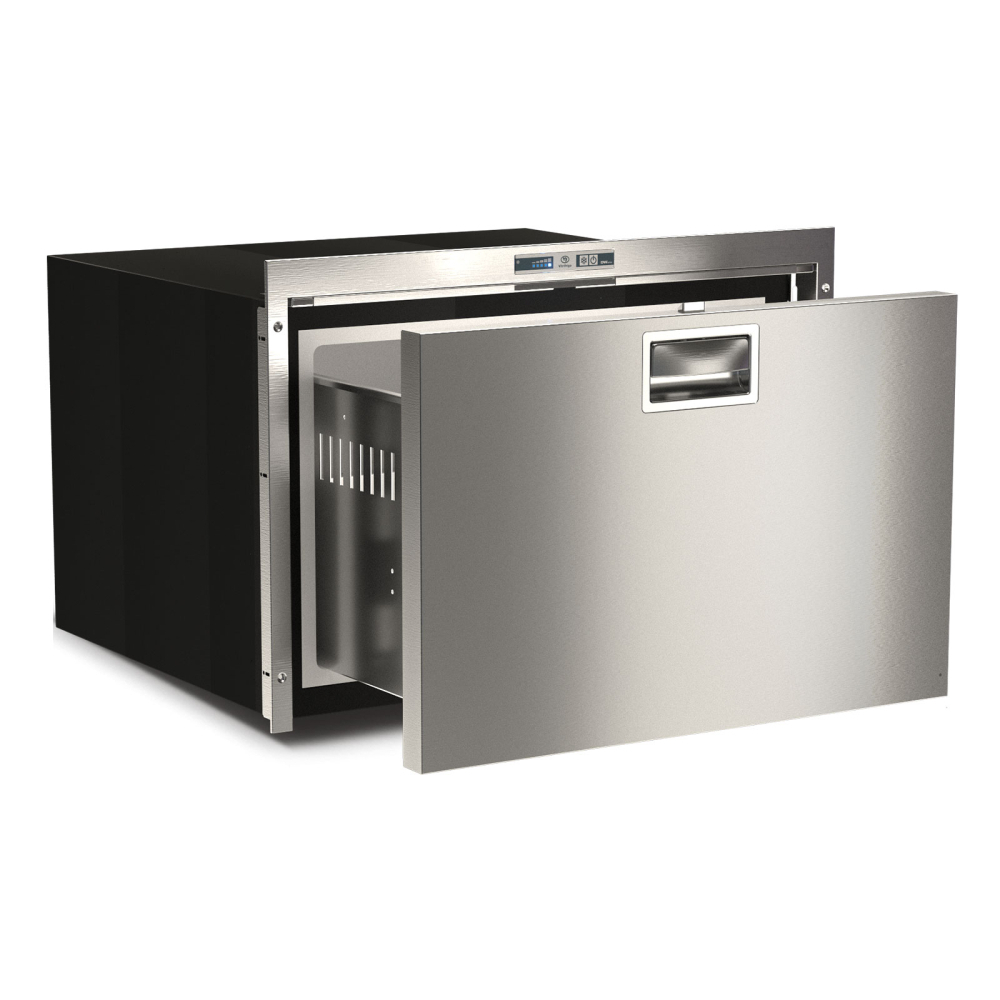

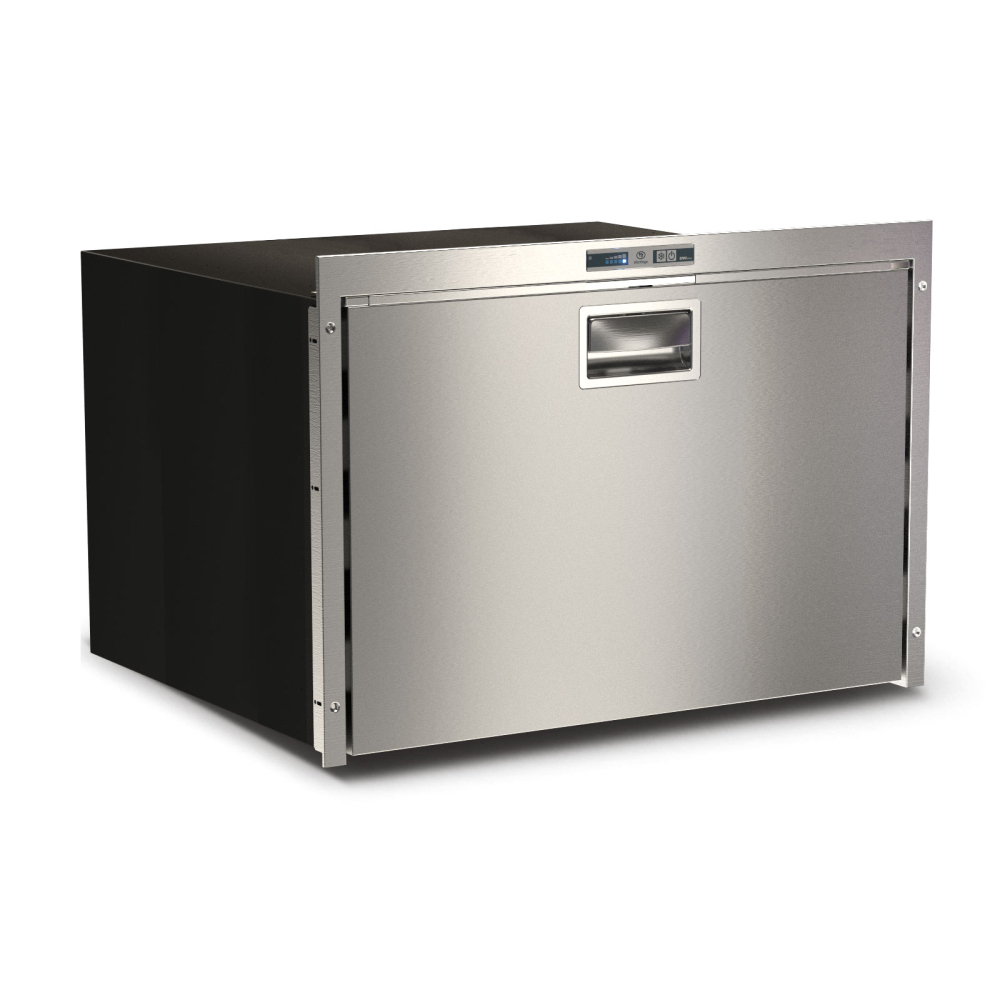

The Vitrifrigo DW70RF Stainless Steel Drawer Refrigerator 75L single drawer , with a cool satin stainless steel finish and an external condensing unit. With it's sleek yet robust design and convineint ease of access this fridge will complement the unique character of your boat or yacht.
This model has an external compressor that can be used with a 1.6m line to be stored in a cupboard or other space (that is well-ventilated). This allows the fridge to fit in a more compact area and optimise your internal space.
This fridge runs on 12/24 volt
Key Features:
- Sliding drawer for ease of access
- Stainless Steel finish
- Internal LED light
Vitrifrigo Fridges are made in Italy and are backed by the Camec national service agent and spare parts network.
Specifications
SKU A-034784
Brand Vitrifrigo
Warranty Period: 2 Years
Product Category RV Drawer Fridges
Fridge Voltage 12 / 24 V
Product Type Compressor driven Built In Drawer Fridge with Cool Stainless Steel finish that operates on 12/24v DC or AC power
Total Capacity (Litres) 75

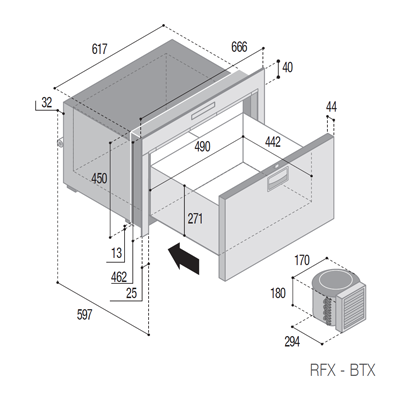

Fridge Depth (mm) 590
Fridge Width (mm) 666
Fridge Height (mm) 460
Avg Power Consumption 40 watts
System External cooling unit which allow the compressor to be located in a cupboard or other spot to optimise use of space
Power consumption (DC 12V) 12V=3.5Amps, 24V= 1.75Amps
Net Weight (kg) 26
Installation Refer to the Product Manual / Installation Guide for installation instructions from the manufacturer
Product Q&A
-
if compressor mounted under rv van do you still need ventilatio for fridge unit
Yes. That is the correct interpretation of the Max Head capacity of a pump. Note in your theoretical example though, the water pressure and flow rate would be around zero at the discharge point (because the max head of the pump is 20 metres and the sum requirement of your example is also 20 metres). In practice, if you're pumping requirement totaled 20 metres, you would want to get a pump with a max head capacity of greater than 20 metres, to have sufficient water flow and account for small head loss from friction.
Customer Reviews
Great compressor drawer fridge Review by Stefan SchickingerReally like the external compressor. Gives you multiple options for install. Compressor is really silent and the drawer fridge look very good in stainless steel.(Posted on 6 July 2022)
Very impressed Review by Shirley TaylorVery impressed by design & construction. With the separate compressor there is more installation options.(Posted on 21 April 2018)
