Victron SmartShunt 500A/50mV IP65



Learn More»
Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

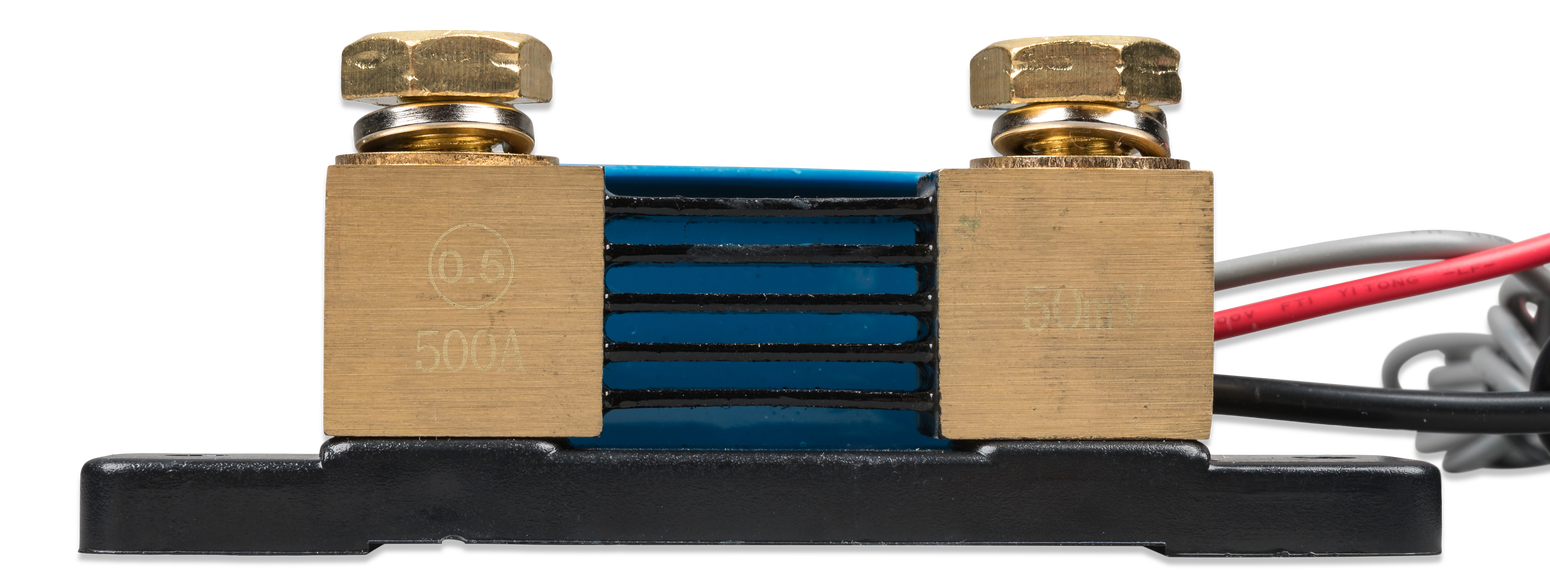

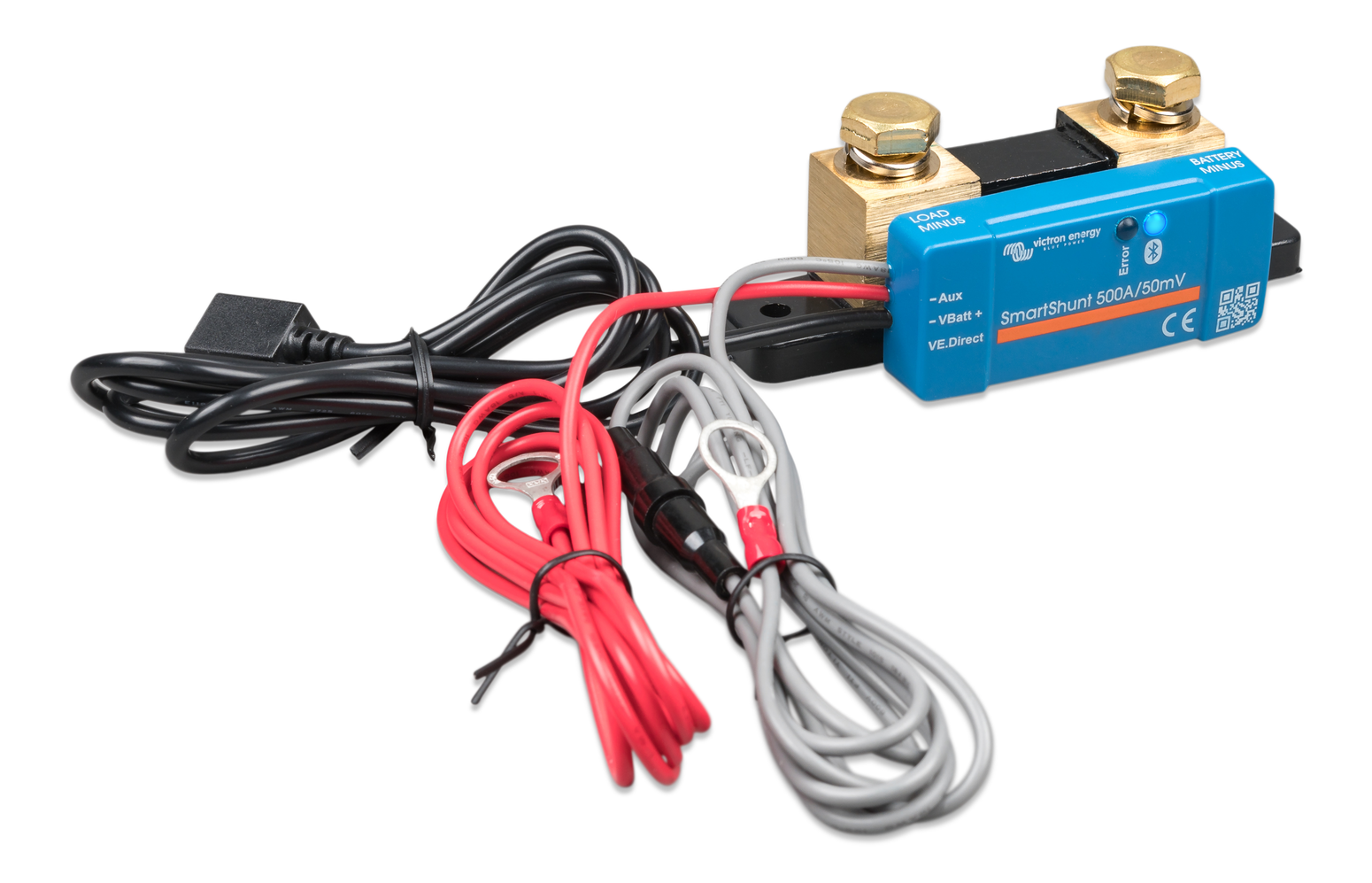

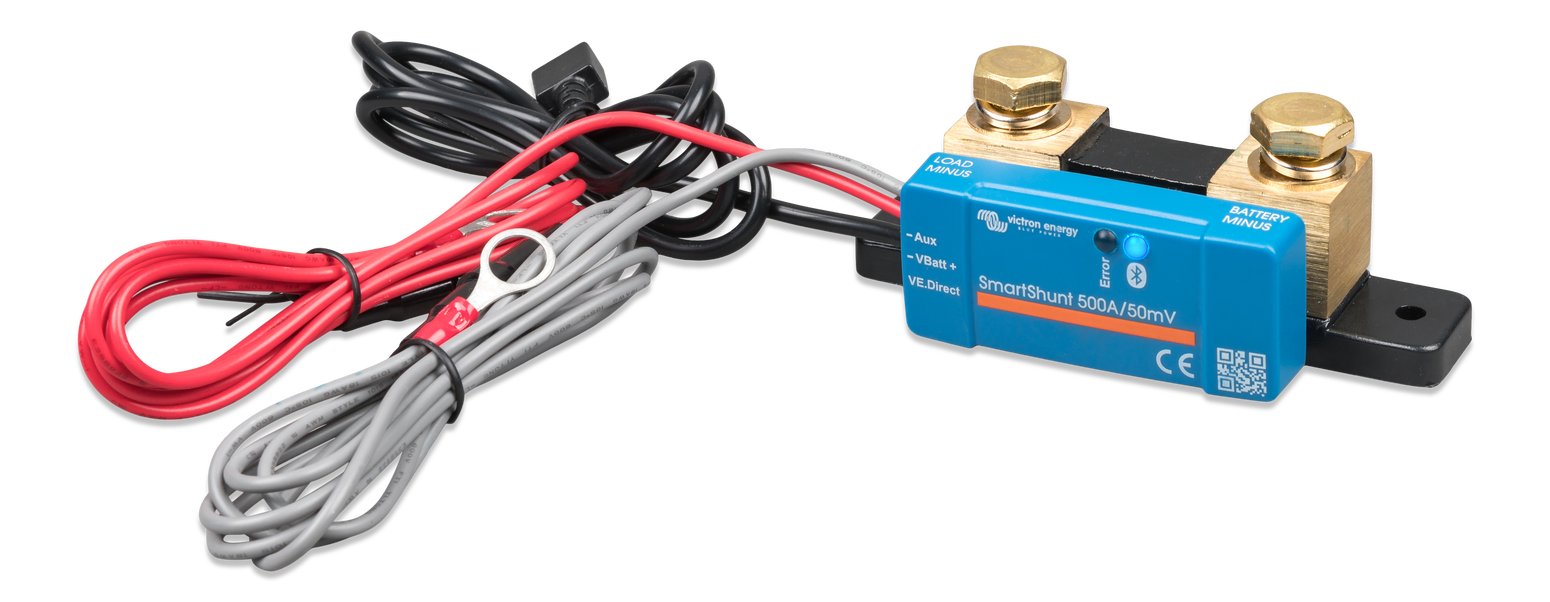

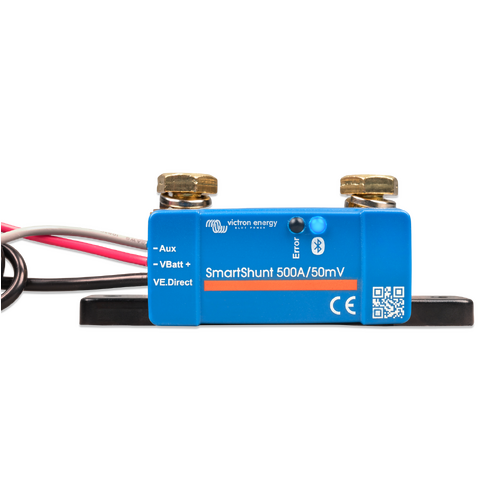

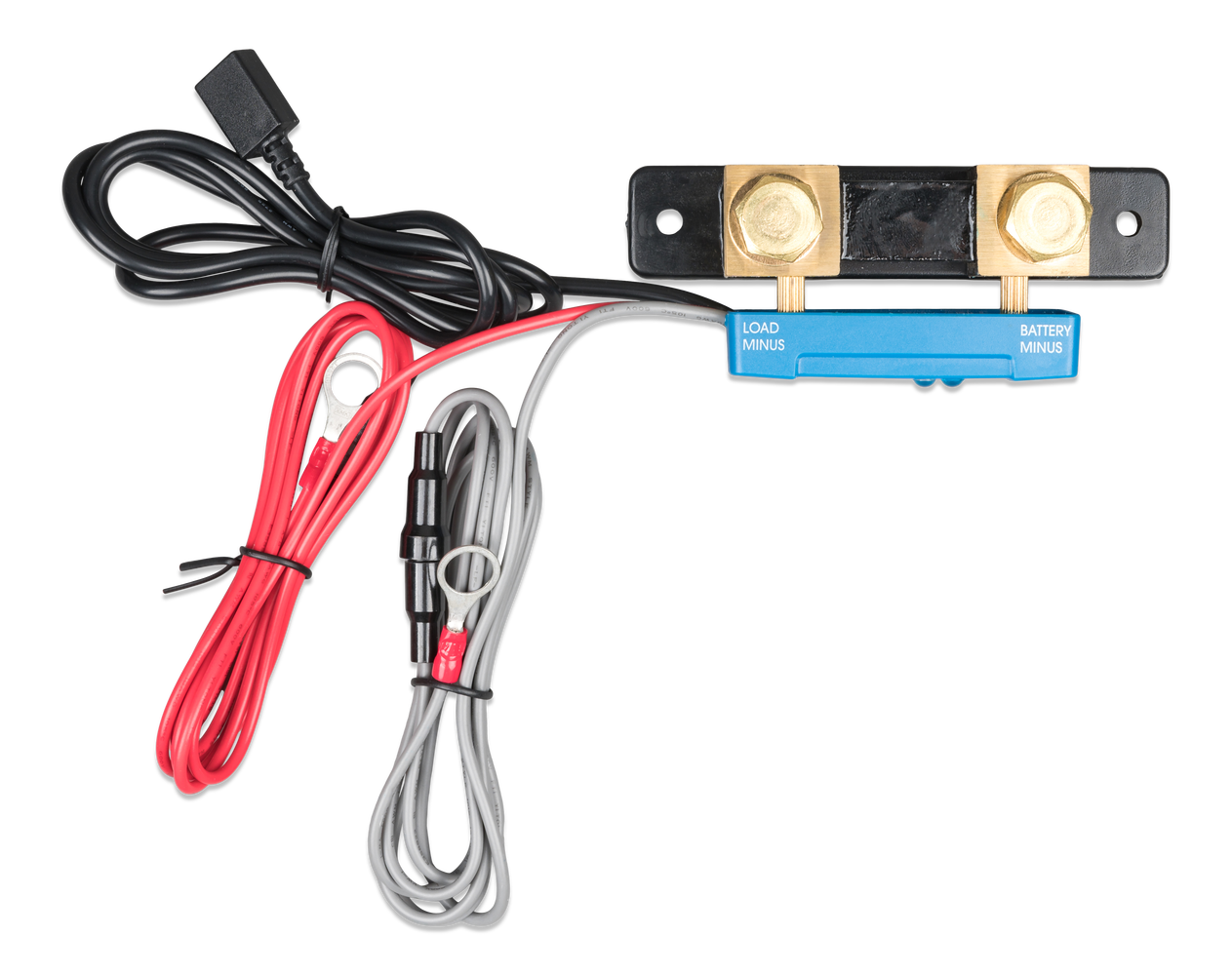

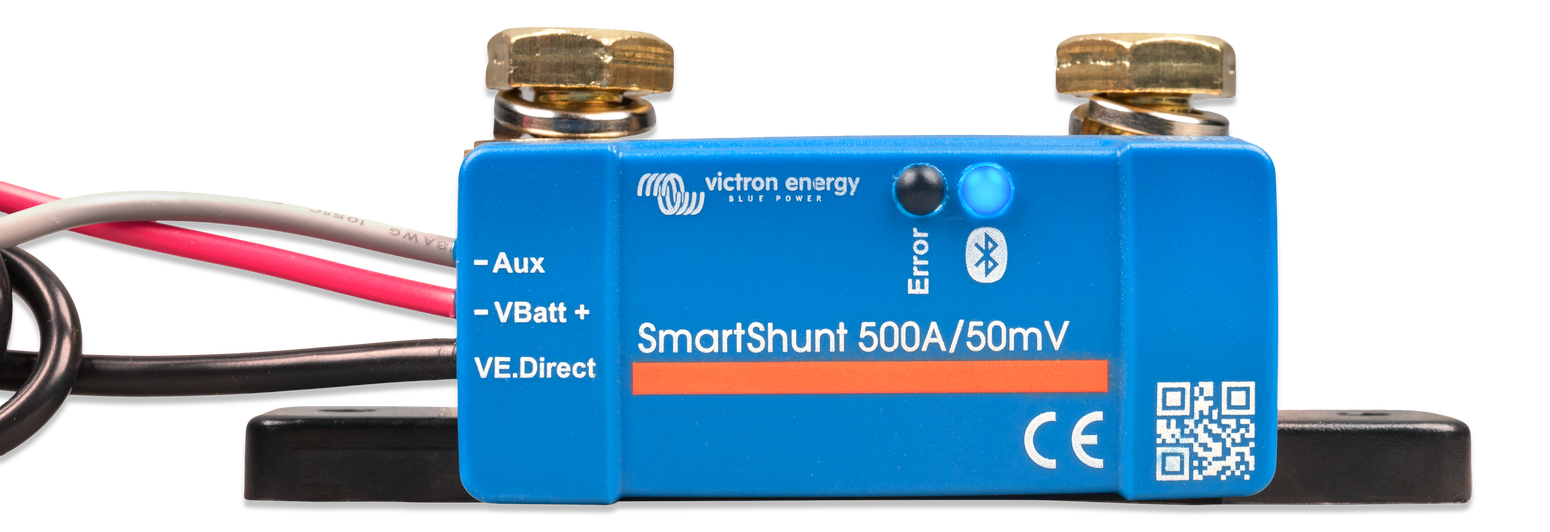

Victron SmartShunt 500A/50mV IP65, 5 Years Warranty. The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.





SKU SHU065150050

Brand Victron

GTIN 8719076057895

Warranty Period: 5 Years

Product Category Electrical Accessories

Temperature measurement range -20 +50 °C

Time to go ± 1 min

Protection category IP65

Voltage ± 0.01V

Dimensions (H x W x D) 46 x 120 x 54 mm

Supply Voltage Range 6.5 - 70VDC

Operating temperature range -40 +50 °C

State of Charge (0-100%) ± 0.1 %

Current ± 0.01 A

Current draw < 1mA

Dimensions (h x w x d): 46 x 120 x 54 mm


Victron Smart Shunt explanation
