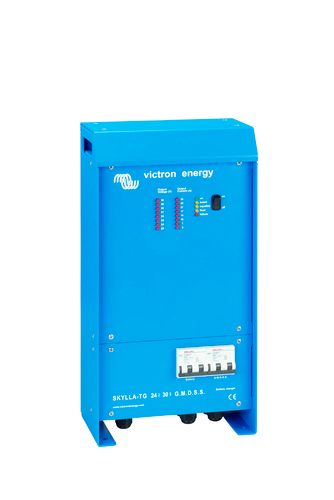

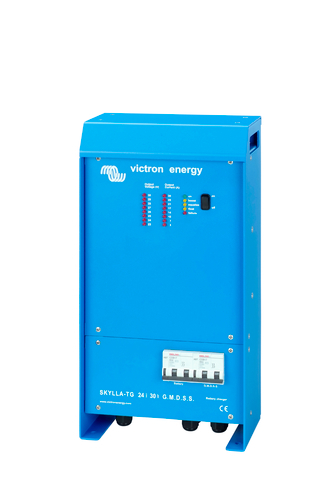

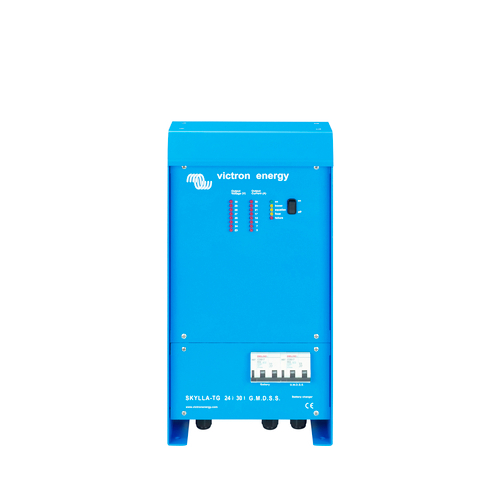

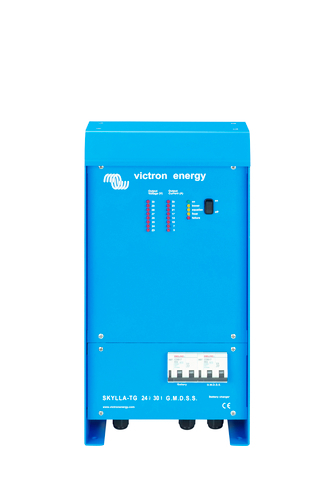

Victron Skylla-TG 24/30 GMDSS 120-240V excl. panel

$1,674

Save $283 (14%) off RRP of $1,957

FREE SHIPPING

Learn More»
Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Skylla-TG 24/30 GMDSS 120-240V excl. panel, 5 Year Warranty. The Victron Skylla-TG 24/30 and 24/50 GMDSS Chargers have been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.

GMDSS:
The Global Maritime Distress & Safety System (GMDSS) was developed by the International Maritime Organisation (IMO) to improve maritime distress and safety communications.

Power supply:
The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla Charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS.

Installation made easy: the Skylla GMDSS:
The Victron Skylla GMDSS Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP-cable connects the
charger to the panel.

No adjustments needed:
The whole system is ‘click and go’: the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing settings if required.

Battery time to go:
The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored so the panel can even indicate the ’time to go’ in case of a power supply blackout.

Perfect charger for any type of battery:
Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system.

Victron BPU12/25 Product Card

Victron BPU12/25 Manual

Specifications

SKU SDTG2400302

Brand Victron

GTIN 8719076025726

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 30

Model SDTG2400302

Net Weight (kg) 6

Charge Voltage Float - Wet (25 degrees)** 26.5V

Output System Voltage 24V

Dimensions 485 x 250 x 147 mm (L x W x H)

Can be used as power supply Yes

Protection category IP 21

Input Voltage 90 - 265V AC

Battery-connection M8 bolts

Charge voltage 'absorption' 28.5V

Charge current 30 (limited to 22 A at 110 V AC)

Operating temperature range -40 to +50°C (-40 - 122°F)

Humidity Max 95%

Charger Voltage 24V
