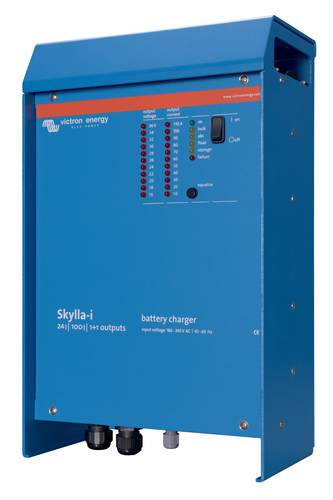

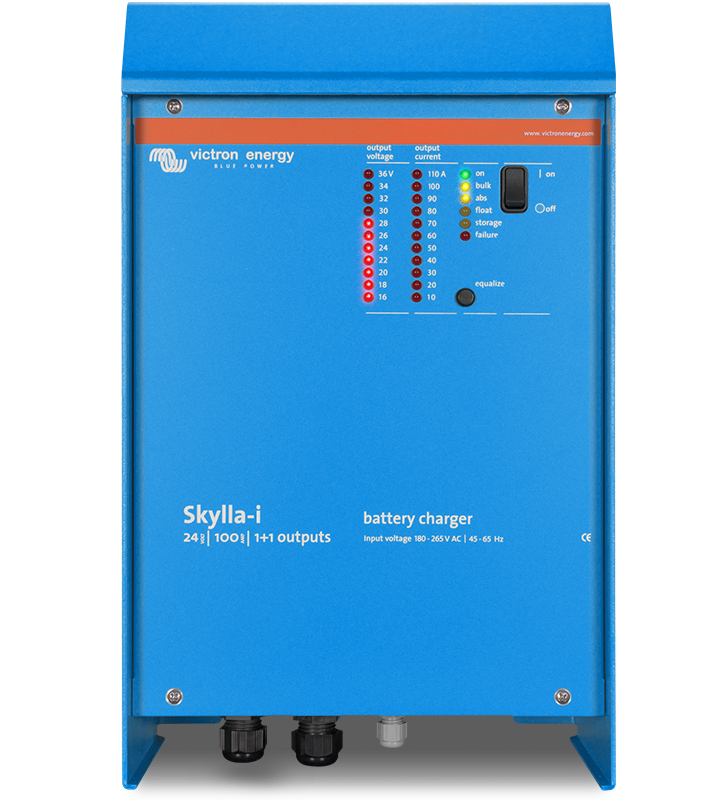

Victron Skylla-i 24/100 (3) 230V Battery Charger
SKU: SKI024100002 Learn More»
Product Description
Victron Skylla-i 24/100 (3) 230V Battery Charger, 5 Year Warranty. A modern and powerful battery charger that withstands the rigors of an adverse environment: heat, humidity and salt air.
Features:
- The right amount of charge for a lead-acid battery: variable absorption time
- BatterySafe mode: preventing damage due to excessive gassing
- Storage mode: less maintenance and aging when the battery is not in use
- Smaller and lighter compared to similar models
- NMEA2000 Canbus connection
- PowerControl: set a maximum shore power
- Remote Control
- Li-ion (LiFePo4) ready
Specifications:
- Features include: Temperature sensor, use as a power supply, forced cooling, Remote on-off port (can be connected to a Li-Ion BMS), Synchronised parallel operation with VE.Can
- Input voltage / input voltage range: 230 V AC / 185-265 V AC
- Maximum AC input current @ 180 VAC: 20 A
- Frequency: 45-65 Hz / Power factor: 0.98
- Charge voltage 'absorption'/'float'/'storage': 28.8 V DC / 27.6 V DC / 26.4 V DC
- Battery capacity: 500-1000 Ah
- Protection: IP21 / Battery reverse polarity (fuse), Output short circuit, Over temperature
- Charge current / starter batt.: 100 A / 4 A
- Charge algorithm / Charge algorithm - Li-Ion : 7 stage adaptive / 3 stage, with on-off control or CAN bus control
- Operating temp. range / Humidity (non-condensing): -20 to 60°C / max 95%
Specifications
SKU SKI024100002
Brand Victron
GTIN 8719076026259
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 100
Model SKI024100002
Protection category IP 21
Charger Voltage 24V
Net Weight (kg) 7
Charge Algorithm 3 stage, with on-off control or CAN bus control
Can be used as power supply Yes
Charge voltage 'storage' Normal: 26.4 V | High: 26.4 V | Li-ion: 27.0 V
Charge voltage 'absorption' 28.8 V | High: 29.4 V | Li-ion: 28.4 V
Charge Voltage Float - Wet (25 degrees)** Normal: 27.6 V | High: 27.6 V | Li-ion: 27.0 V
Dimensions 405 x 250 x 150 mm (L x W x H)
Charge current 100 A
Output System Voltage 24V
Battery Capacity 500-1000 Ah
Input Voltage 185 - 265 VAC, 45 - 65 Hz
Operating temperature range -20 to 60°C (Full output current up to 40°C)
Battery-connection M8 bolts
Protection Battery reverse polarity (fuse), Output Short circuit and Over Temperature
Humidity Max 95%
