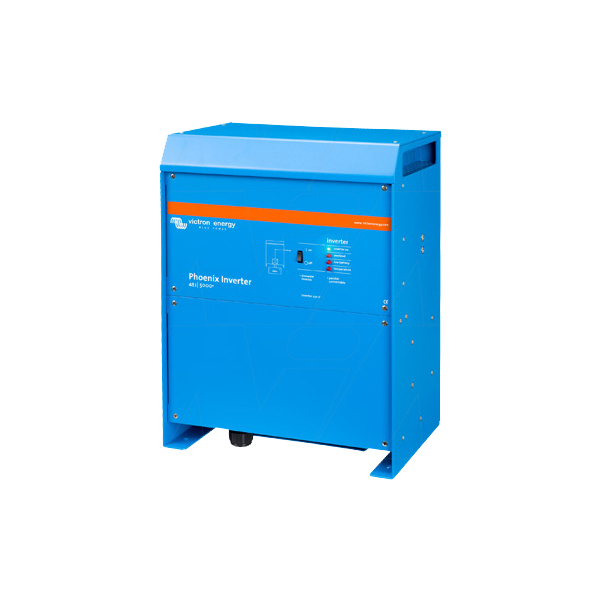

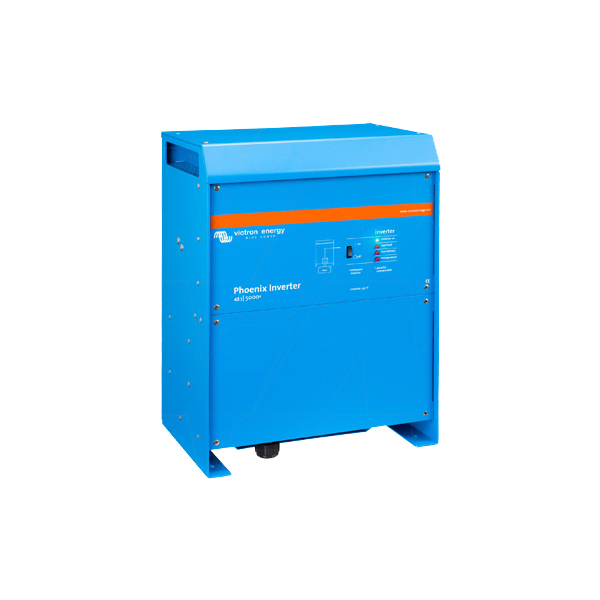

Victron Phoenix Inverter Compact 48V / 5000VA

SKU: PIN485020000 Learn More»
Victron Phoenix Inverter Compact 48V / 5000VA
Free Shipping
$2,211
$2,585

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$165

Learn More»
Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Phoenix Pure Sine Wave Inverter Compact 48V / 4000W, 5 Year Warranty. The Phoenix Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications. The Phoenix Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.

Models:

12 / 24 Volt

SinusMax - Superior engineering:

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start-up power:

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Virtually unlimited power thanks to parallel and 3-phase operation capability:

Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3 phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch:

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer interface:

All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over
and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.

New applications of high power inverters:

The possibilities of paralleled high power inverters are truly amazing.



Victron PI12/2000 Product Card

Specifications

SKU PIN485020000

Brand Victron

GTIN 8719076023883

Warranty Period: 5 Years

Product Category Power Inverters

Model PIN485020000

Wattage (W) 4000

Protection category IP21

Peak power 10000

Humidity Max 95%

NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab

Continuous Power at 40°C, Cos Phi 1 3700W

Efficiency 95%

Input Voltage 38 – 66V

Battery-connection 2+2 M8 bolts

Continuous Power at 25°C, Cos Phi 1 4000W

Output Voltage and Frequency 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1)

Operating temperature range -40 to +65ºC (fan assisted cooling)

Protection a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 V AC on inverter outpu

Dimensions 444 x 328 x 240 (H x W x D)

Net Weight (kg) 30
