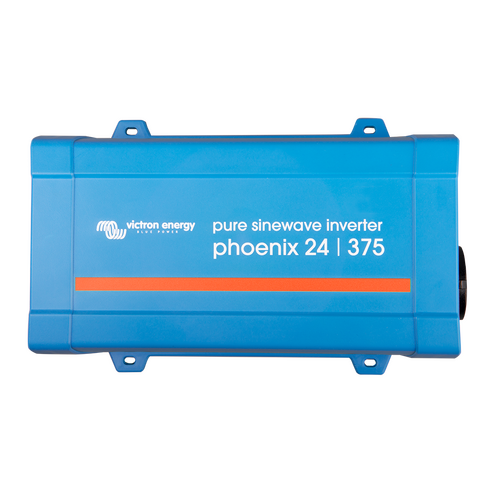

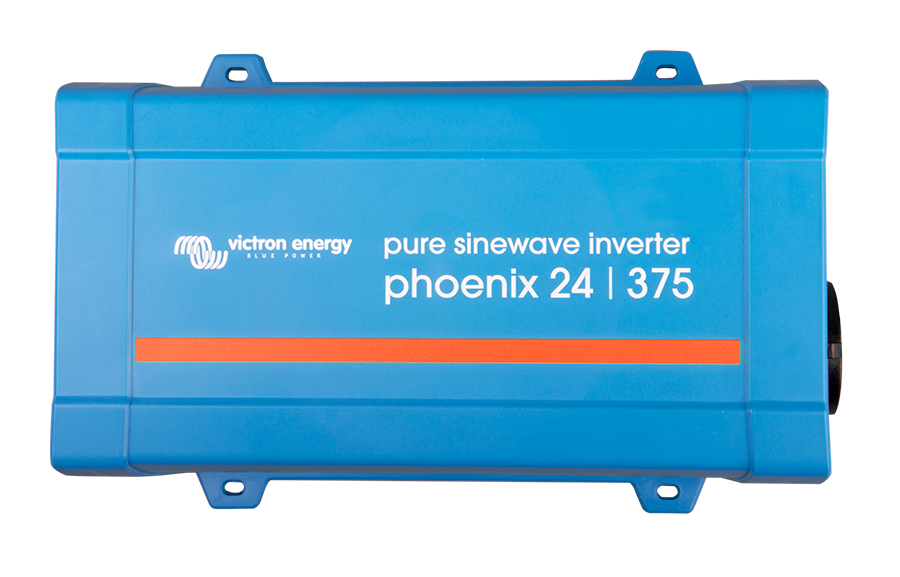

Victron Phoenix Inverter 24V / 375VA VE.Direct AU/NZ

SKU: PIN241371300 Learn More»
Victron Phoenix Inverter 24V / 375VA VE.Direct AU/NZ
Free Shipping
$229
$235

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$67

$40

$55

Click '+' to show more accessories
Learn More»
Dispatch 5-7 Days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Phoenix Inverter 24V / 375VA VE.Direct AU/NZ, 5 Year Warranty. Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

VE.Direct communication port

  • The VE.Direct port can be connected to:
    • A computer (VE.Direct to USB interface cable needed)
    • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
  • Fully configurable:
    • Low battery voltage alarm trip and reset levels
    • Low battery voltage cut-off and restart levels
    • Dynamic cut-off: load dependent cut-off level
    • Output voltage 210 - 245V
    • Frequency 50 Hz or 60 Hz
    • ECO mode on/off and ECO mode sense level
  • Monitoring:
    • In- and output voltage, % load and alarms

Proven reliability:

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power:

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode:

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off:

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

LED diagnosis:

Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch:

For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Victron PIN243750300 Product Card

Victron PIN243750300 Product Manual

Specifications

SKU PIN241371300

Brand Victron

GTIN 8719076055983

Warranty Period: 5 Years

Product Category Power Inverters

Model PIN243750300

Wattage (W) 300

Protection category IP 21

Output Voltage and Frequency 230VAC or 120VAC +/- 3% | 50Hz or 60Hz +/- 0,1%

Operating temperature range -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C

Protection a) output short circuit, b) overload, c) battery voltage too high, d) battery voltage too low, e) temperature too high, f) DC ripple too high

Dimensions 86 x 165 x 260

Efficiency 89%

Peak power 700W

Humidity Max 95%

Net Weight (kg) 3

Battery Low Shutdown Protection 18.6V

Input Voltage 18,4 - 34,0 V

Battery-connection Screw terminals
