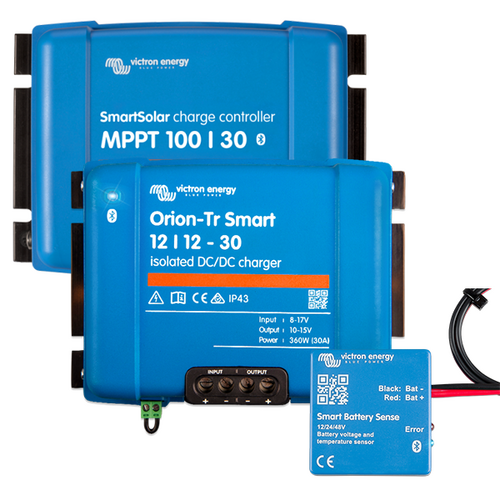

Victron Orion-Tr Smart 12/12-30A DC-DC Charger Bundle, with SmartSolar MPPT 100/30 Charge Controller & Smart Battery Sense 10m

Take an EXTRA $30 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Victron Orion-Tr Smart 12/12-30A DC-DC Charger Bundle, with SmartSolar MPPT 100/30 Charge Controller & Smart Battery Sense 10m, 5 Year Warranty.

Pack Includes:

Victron SmartSolar MPPT 100/30 Charge Controller- SCC110030210
Victron Orion-Tr Smart 12/12-30A (360W) DC-DC charger- ORI121236120
Victron Smart Battery Sense Long Range (up to 10m)- SBS050150200

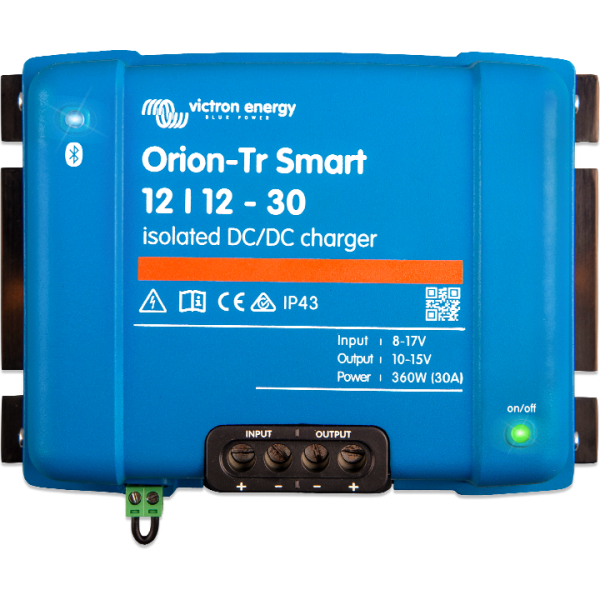

Victron Orion-Tr Smart 12/12-30A (360W) DC-DC charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. This Victron battery charger can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

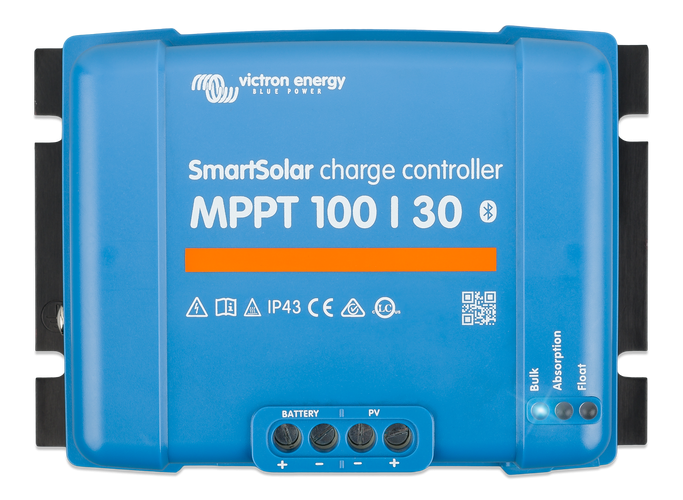

Victron SmartSolar MPPT 100/30 Charge Controller: SCC110030210

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

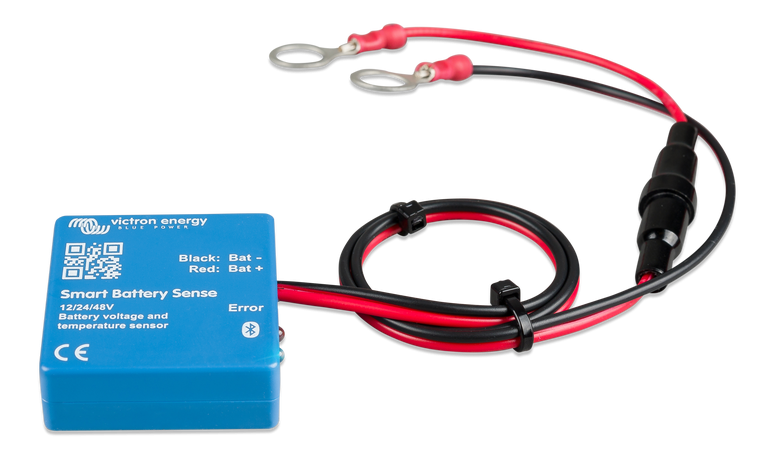

Victron Smart Battery Sense Long Range (up to 10m)

Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron MPPT Solar Chargers.With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life.

Tidy, simple - smart

Installation is simple, quick, and tidy. Just connect the unit's two eyelets to your battery terminals and attach the Smart Battery Sense unit directly onto the battery-body using its self-adhesive strip.

Go to: Product Details

Go to: Reviews

Specifications

SKU BDL002

Brand Victron

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 30

Charger Voltage 12V

Net Weight (kg) 3.1

Output System Voltage 24V (DC/DC Charger)

Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature (Charge Controller)

Voltage 12/24V Auto Select (Charge Controller)

Charge voltage 'absorption' Defult setting: 14.4V / 28.8V (Adjustable) (Charge Controller)

Input Voltage 20-35V (DC/DC Charger)

Humidity Max. 95% non-condensing (Charge Controller and DC/DC Charger)

Efficiency 98% (Max) (Charge Controller)

Operating temperature range -30 to +60°C (full rated output up to 40°C) (Charge Controller) | -20 to +55°C (derate 3% per °C above 40°C) (DC/DC Charger)

Dimensions 70 x 186 x 130 (D x W x H) (Charge Controller) | 130 x 186 x 80 mm (L x W x H) (DC/DC Charger)
