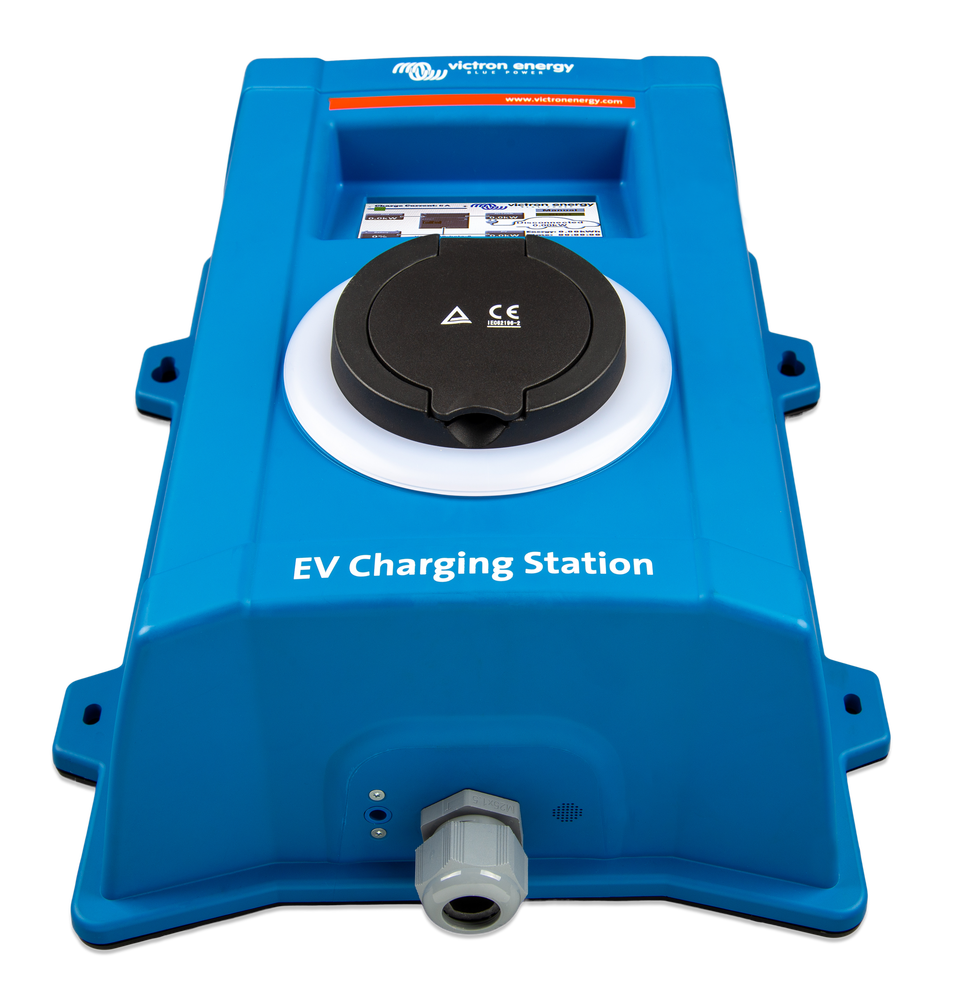

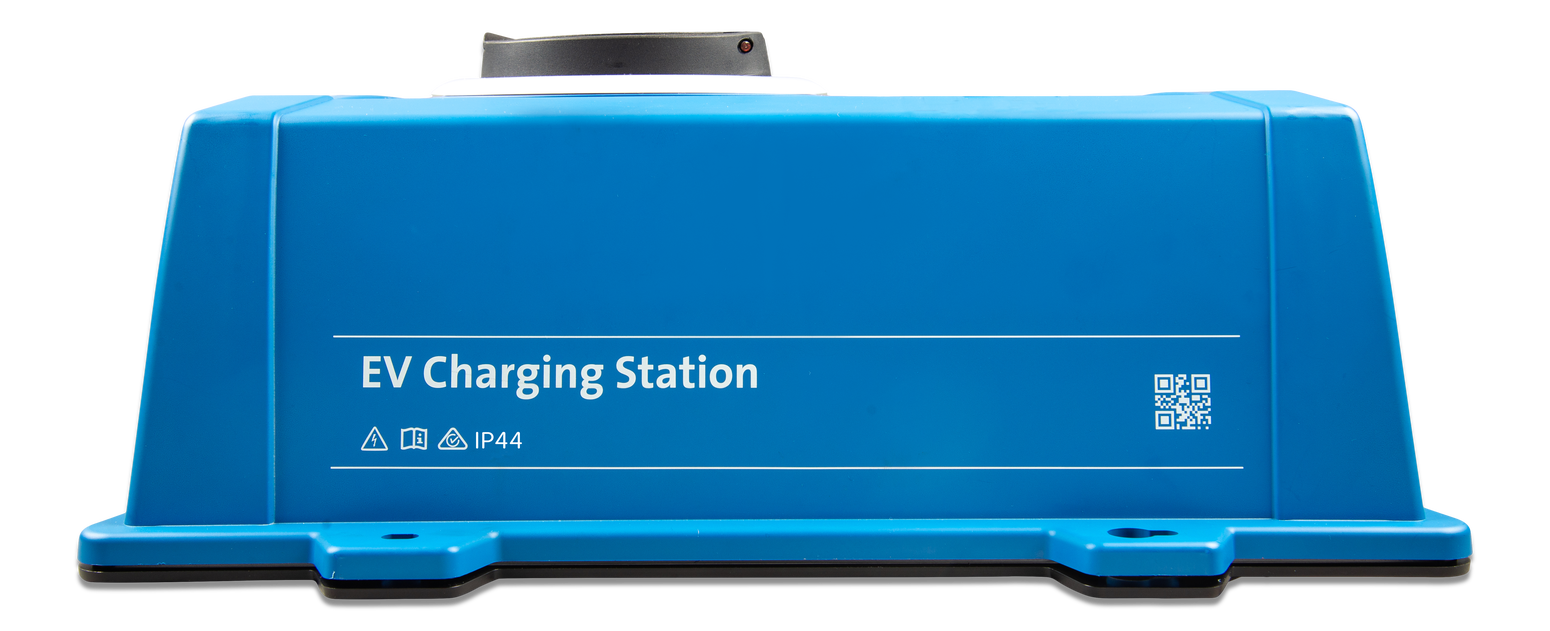

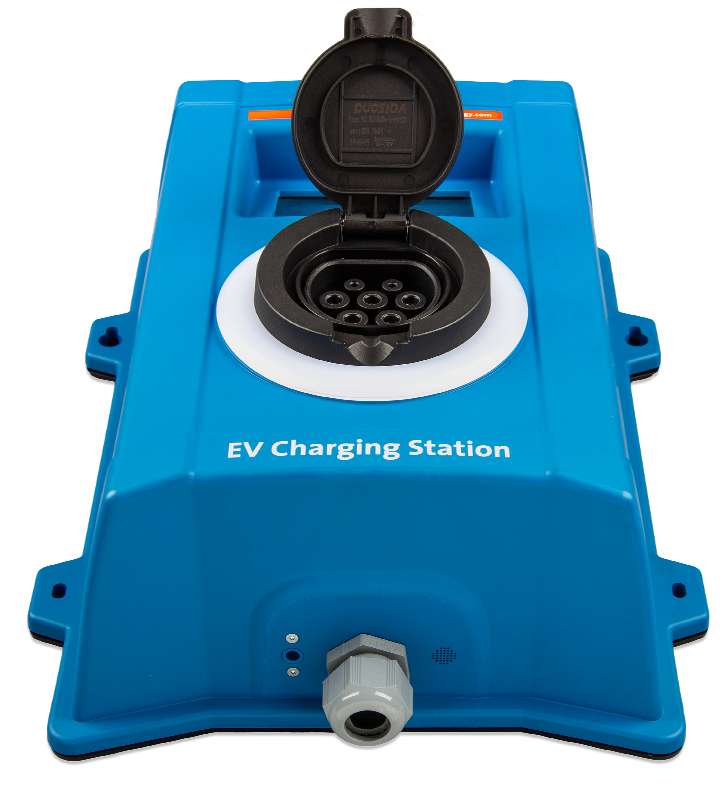

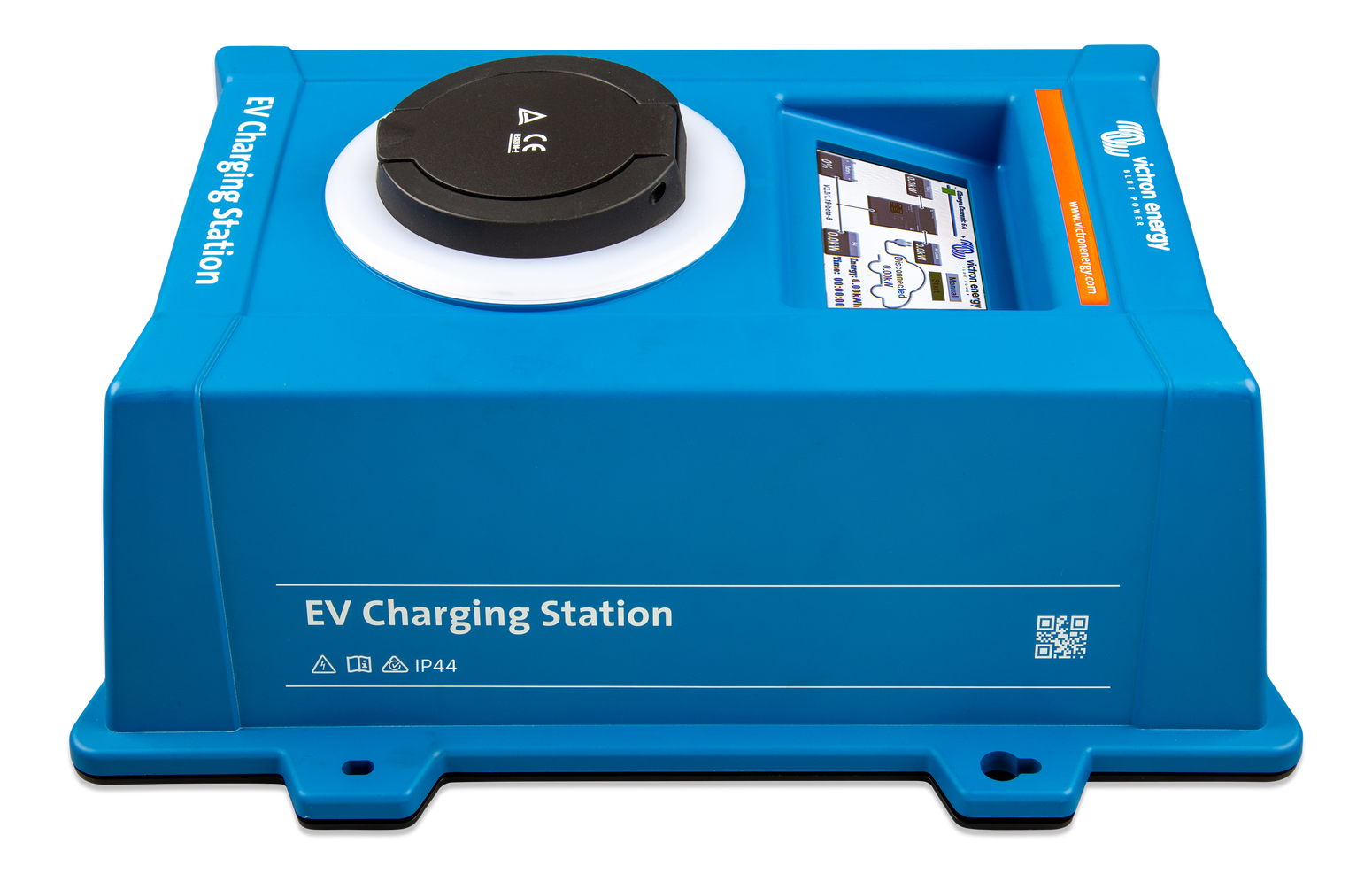

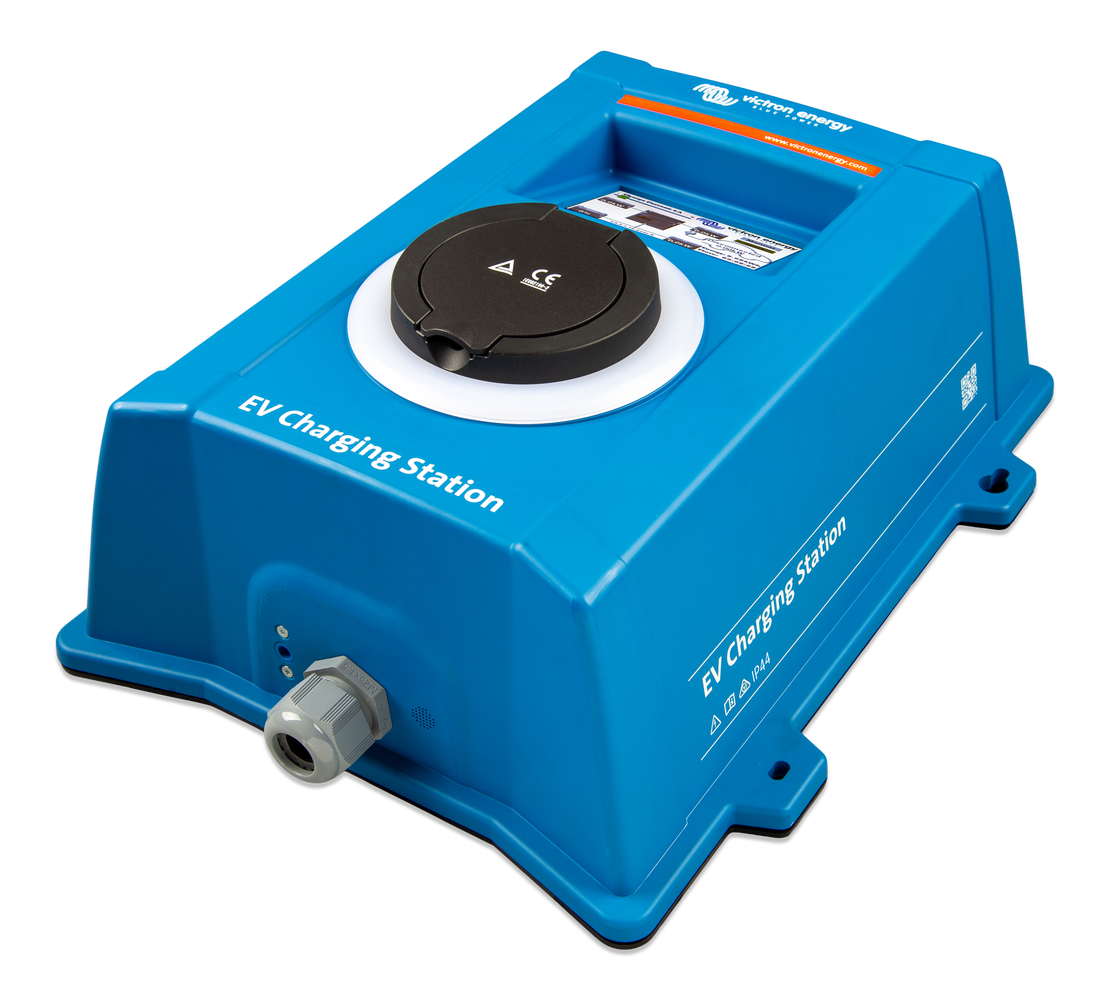

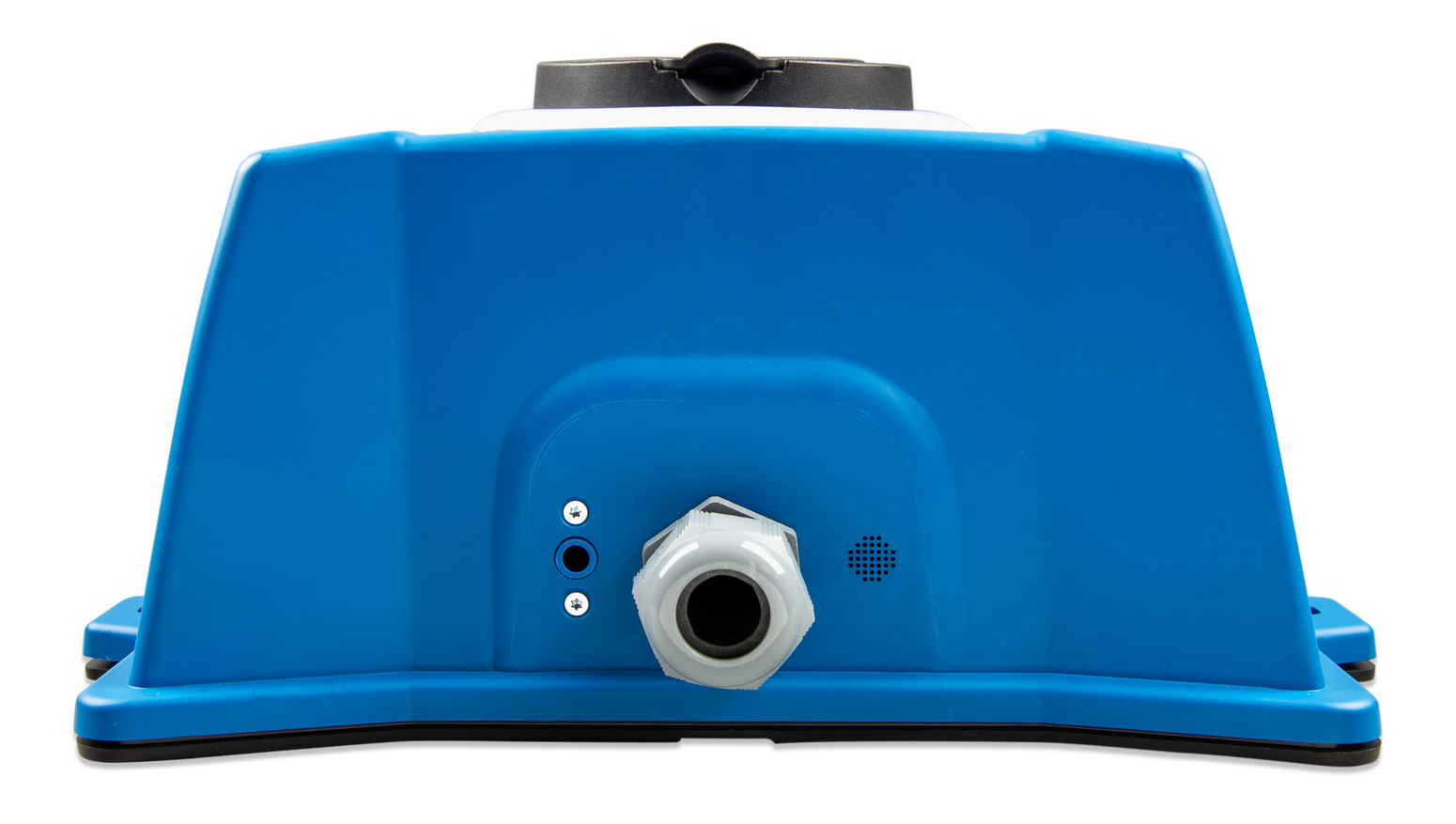

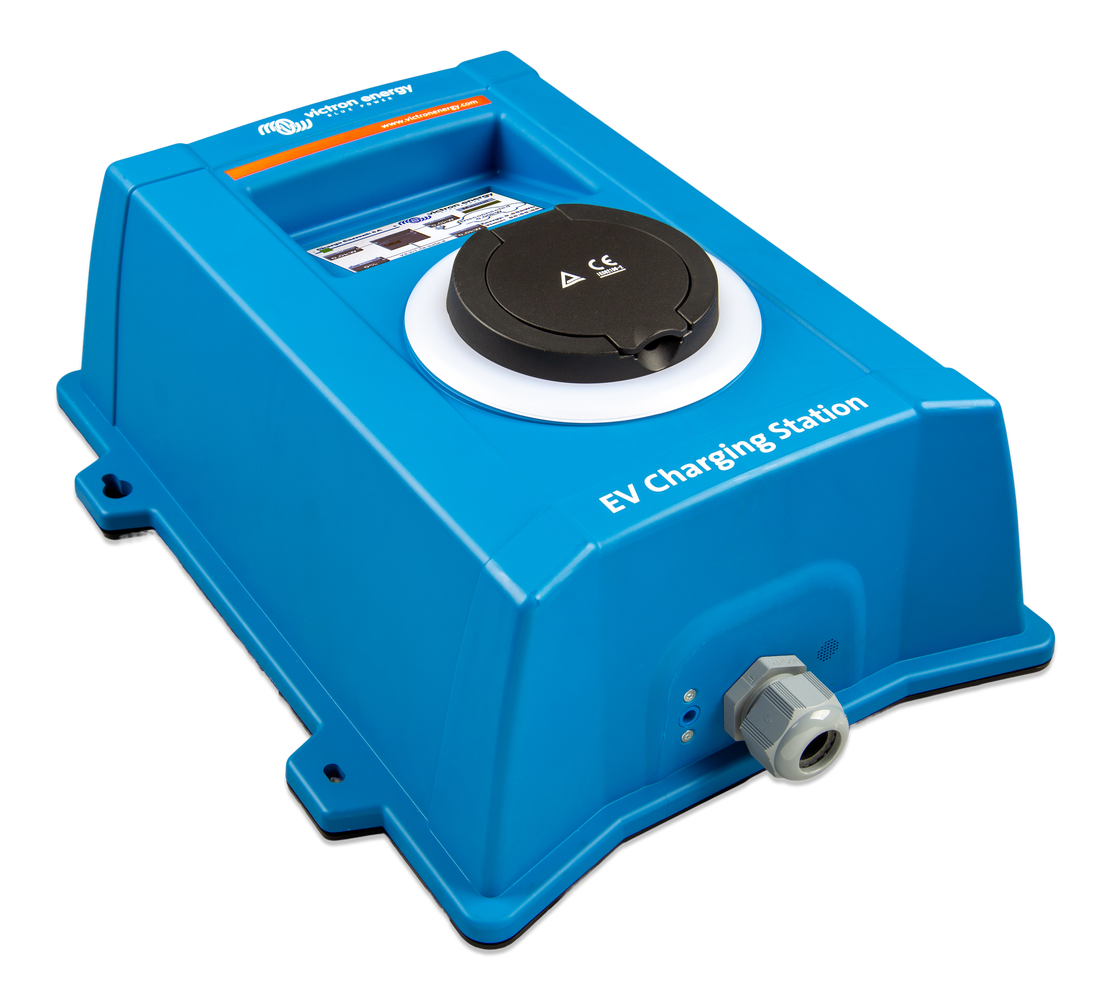

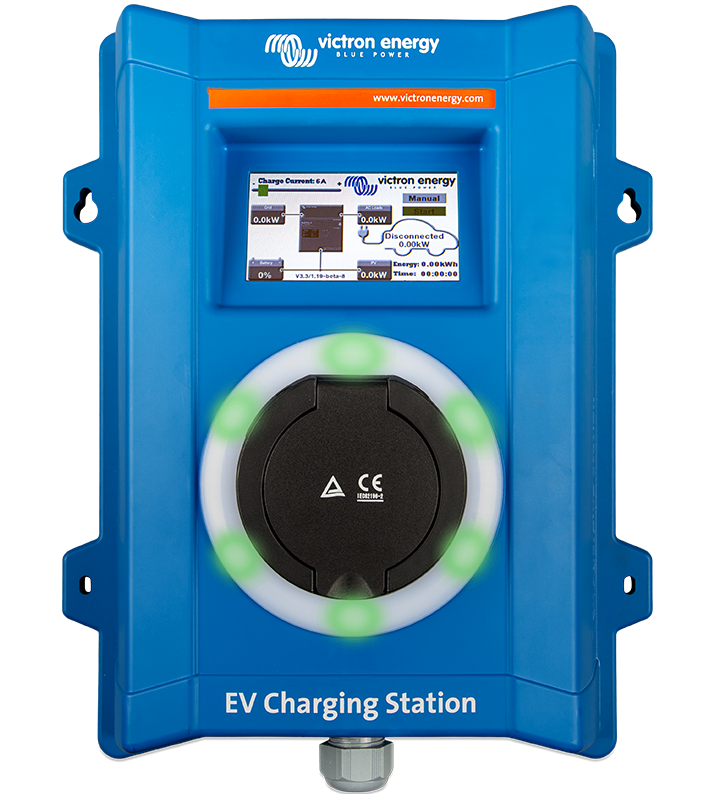

Victron EV Charging station
SKU: EVC300400300 Learn More»
Product Description
Victron EV Charging station, 5 Years Warranty.The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.

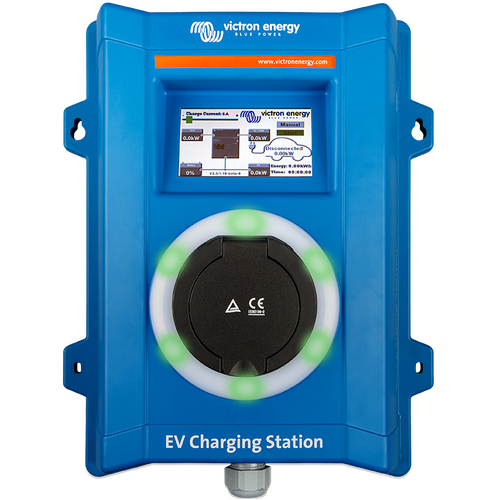

It incorporates 4.3-inch LCD touch screen for monitoring and control.
Fully programmable RGB Light Ring around charging port, to quickly determine the device state.
It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
Specifications
SKU EVC300400300
Brand Victron
GTIN 8719076051305
Warranty Period: 5 Years
Product Category Electrical Accessories
Configurable Max 10-32A
Dimensions (H x W x D) 390 x 300 x 150 mm
Ventilation not required
Power terminals 6-10 mm² / AWG 10-8
Data communication Modbus TCP over WIFI
Storage Temperature -40°C to 80°C
Operating Temperature -25°C to 50°C
Light Ring 55 light configurable light effects available
Control type Touch Screen, Web page, GX Device over Modbus TCP
Configurable price/kWh calculator(Eur) Default setting: 0.13 (adjustable
Means to Disconnect External circuit breaker (40A recommended)
Humidity 95%, non-condensing
Self-consumption 15mA@230V
Wi-Fi standards 802.11 b/g/n (2.4Ghz only
Current output range 6 – 32A
Nominal Power 22kW
Rated charge current 32A / phase
Input voltage range (V AC) 170 – 265
Connector Type IEC 62196 Type 2
Enclosure Enclosure colour Blue (RAL 5012)
Protection category IP44
Weight (kg) 3
Protection External RCD is required
