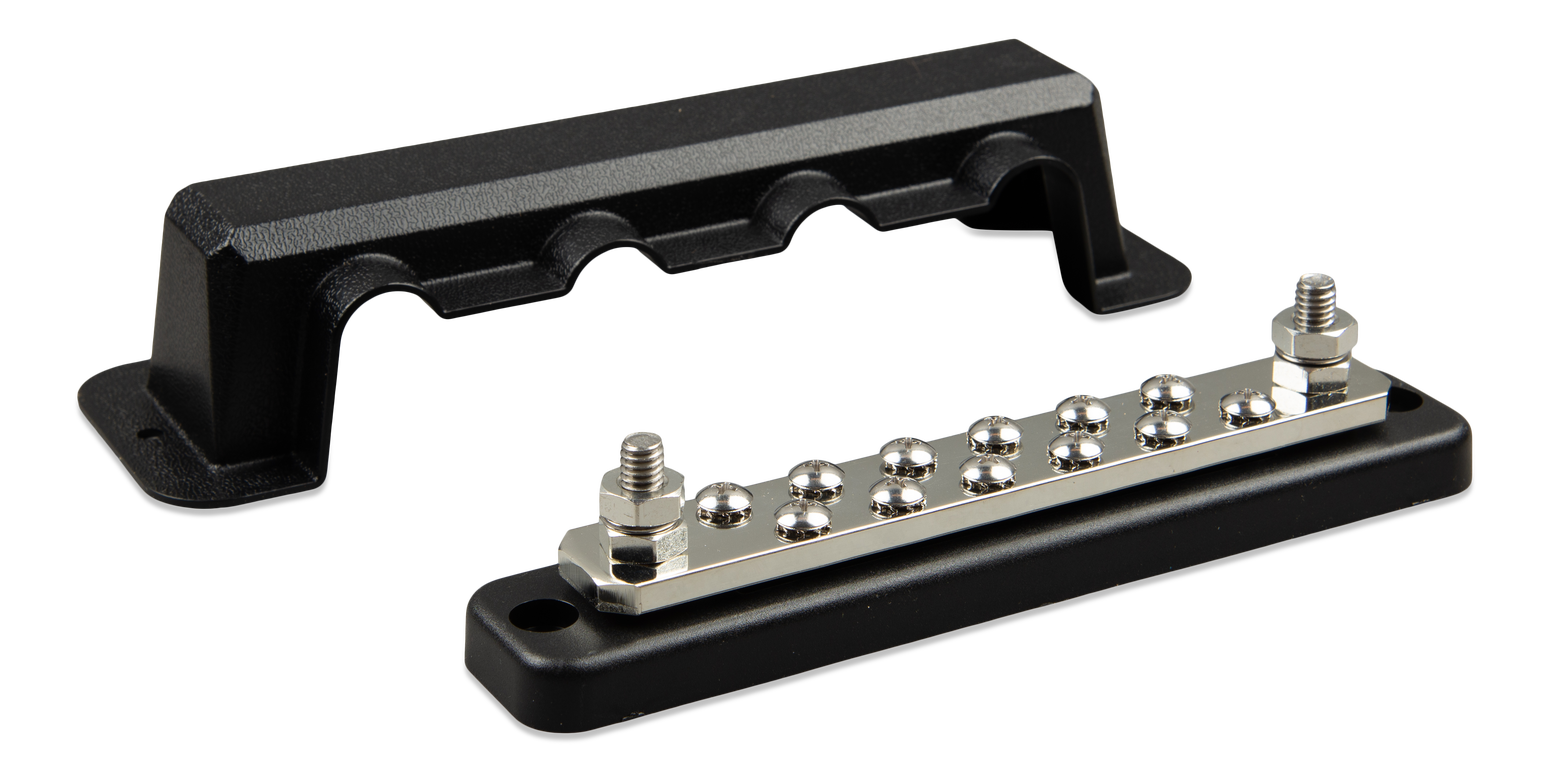

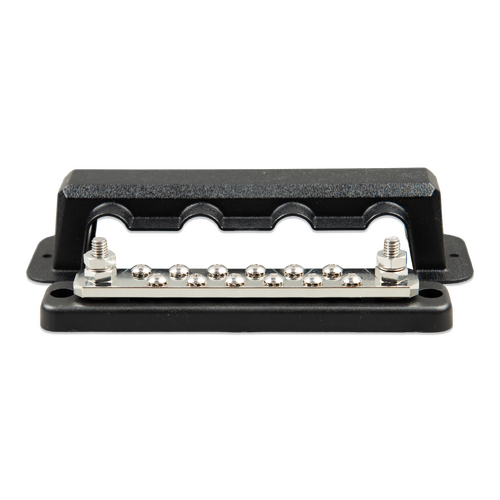

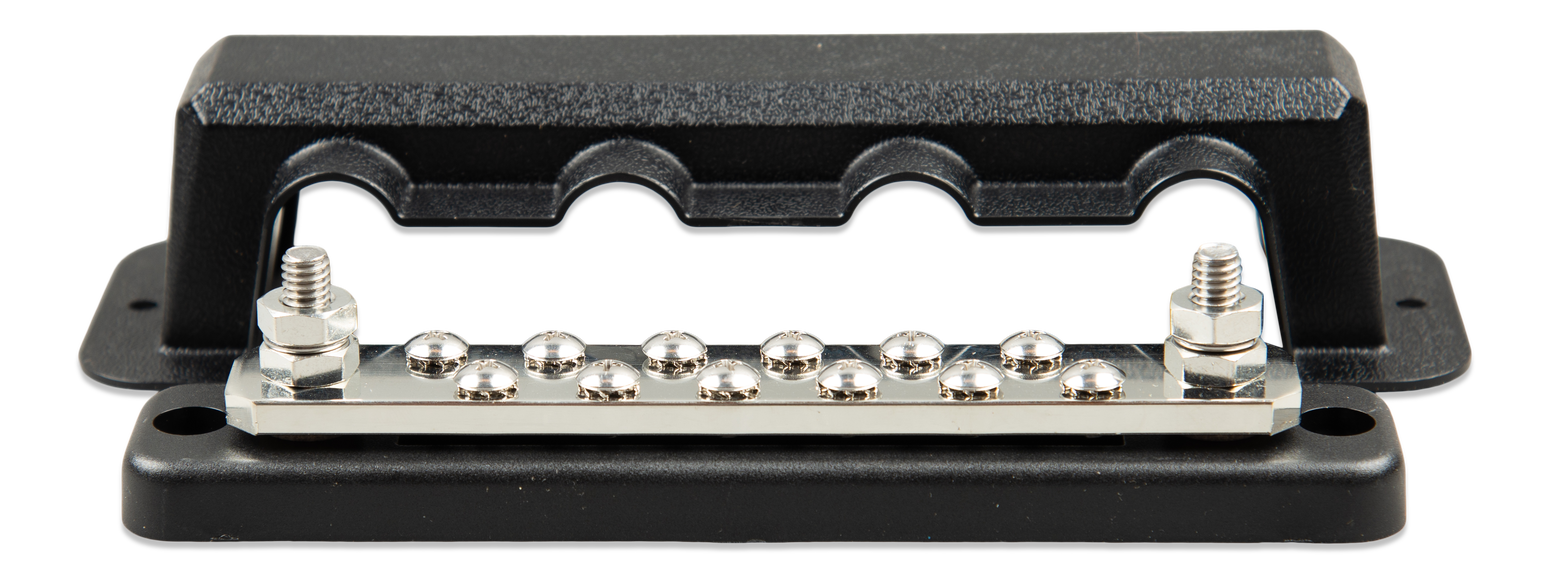

Victron Busbar 250A/70A 2P With 12 Screws + Cover
Product Description
Victron Busbar 250A/70A 2P With 12 Screws + Cover, 5 Years Warranty.Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:
- 150A / 70V - 4 high current connections
- 150A / 70V - 6 high current connections
- 150A / 70A - 2P with 10 screws +cover
- 150A / 70A - 2P with 20 screws +cover
- 250A / 70V - 4 high current connections
- 250A / 70V - 6 high current connections
- 250A / 70A - 2P with 6 screws +cover
- 250A / 70A - 2P with 12 screws +cover
- 600A / 70V - 4 high current connections and 8 low current connections
- 600A / 70V - 8 high current connections and 8 low current connections
Specifications
SKU VBB125021220
Brand Victron
GTIN 8719076056393
Warranty Period: 5 Years
Product Category Electrical Accessories
Dimensions 12 screws (hxwxd) 48 x 237 x 70 mm (with cover)
Terminal screws 4.8 mm
Max. Current 250 A
Terminal diameter 8 mm
Weight (kg) 0.35
Cover material ABS, black, UL 94 V-2
Terminal height 17 mm
Base material ABS, black, UL 94 V-0
Hex nut material Tin-plated copper
Busbar strip material Tin-plated copper (6.35 x 25 mm)
Max. Voltage 70 VDC
Recommended Torque 13 N·m
Terminal material Stainless steel
