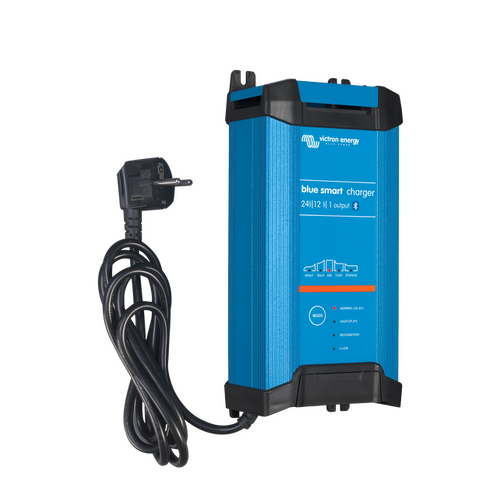

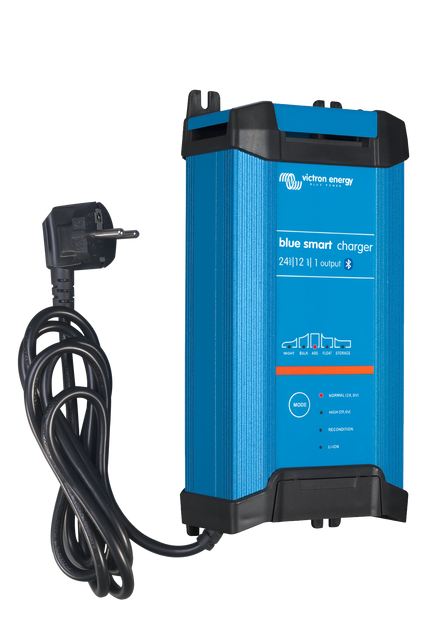

Victron Blue Smart IP22 Charger 24/12 (1) 230V

Specifications

SKU BPC241242012

Brand Victron

GTIN 8719076055365

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 12

Charge voltage 'absorption' Normal: 28.8 V High: 29.4 V Li-ion: 28.4 V

Efficiency 94%

Output 1 Output

Battery-connection Screw terminals 16 mm² / AWG6

Dimensions 235 x 108 x65 mm (H x W x D)

No load power consumption 0.5W

Charge Voltage Float - Wet (25 degrees)** Normal: 27.6 V High: 27.6 V Li-ion: 27.0 V

Charge current 12A

Input Voltage 180 - 265 VAC

Protection Battery reverse polarity (fuse) | Output short circuit | Over temperature

Charger Voltage 24V

Net Weight (kg) 1.3

Charge voltage 'storage' Normal: 26.4 V High: 26.4V Li-ion: 27.0 V

Protection category IP22

Output System Voltage 24V

Operating temperature range -40 to +60 °C (full rated output up to 40 °C)

Humidity Max 98%

Charge current in low current mode 6A

Videos

Did you know - Use a Blue Smart Charger as a Power Supply

History and settings for Blue Smart Chargers in VictronConnect
