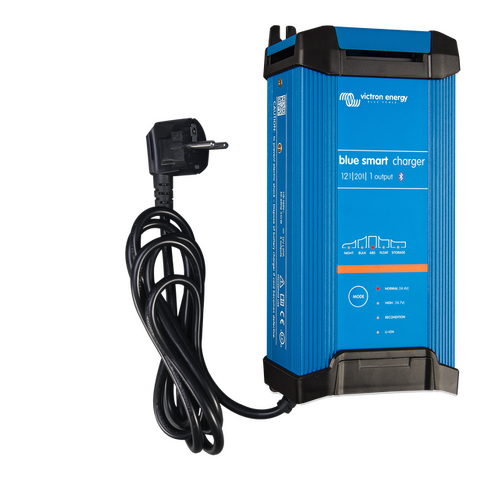

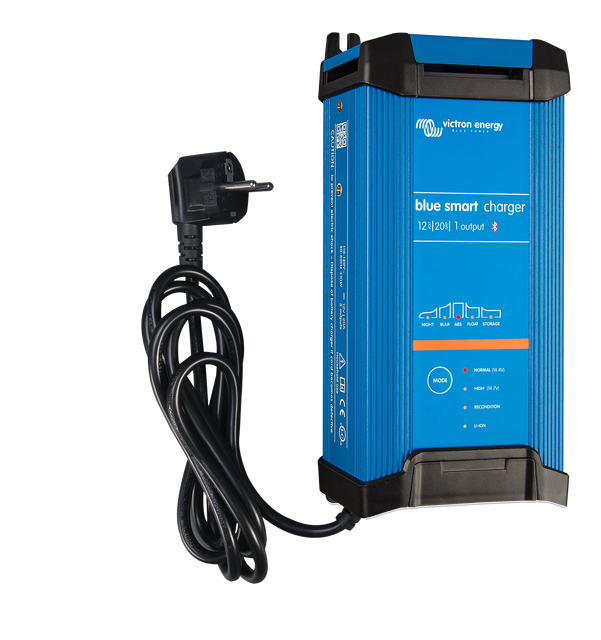

Victron Blue Smart IP22 Charger 12/20 (1) 230V

Specifications

SKU BPC122042012

Brand Victron

GTIN 8719076055310

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 20

Protection category IP22

Charger Voltage 12V

Net Weight (kg) 1.3

Charge current in low current mode 10A

No load power consumption 0.5W

Charge voltage 'storage' Normal: 13.2 V High: 13.2 V Li-ion: 13.5 V

Charge voltage 'absorption' Normal: 14.4 V High: 14.7 V Li-ion: 14.2 V

Charge Voltage Float - Wet (25 degrees)** Normal: 13.8 V High: 13.8 V Li-ion: 13.5 V

Dimensions 235 x 108 x65 mm (H x W x D)

Efficiency 93%

Charge current 20A

Output System Voltage 12V

Output 1 Output

Input Voltage 180 - 265 VAC

Operating temperature range -40 to +60 °C (full rated output up to 40 °C)

Battery-connection Screw terminals 16 mm² / AWG6

Protection Battery reverse polarity (fuse) | Output short circuit | Over temperature

Humidity Max 98%
