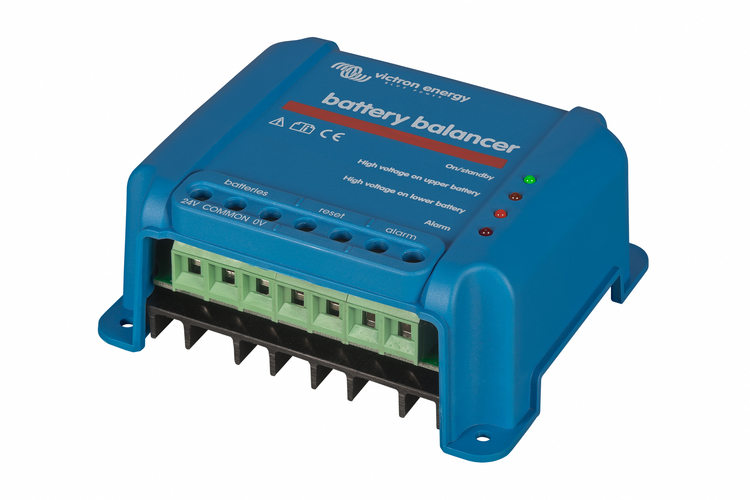

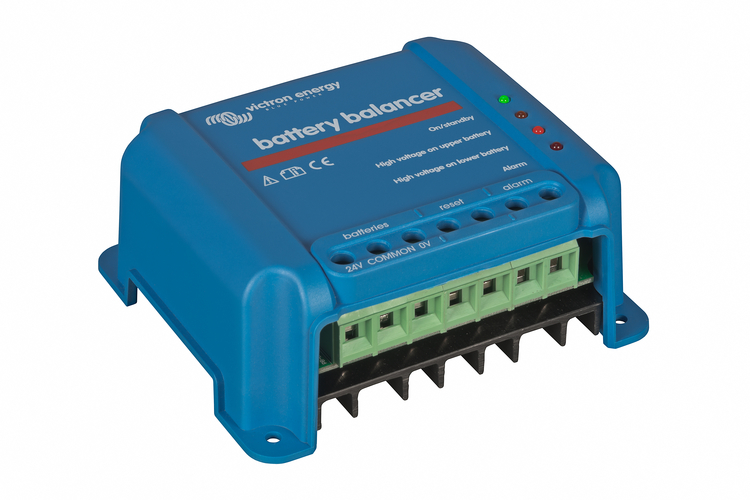

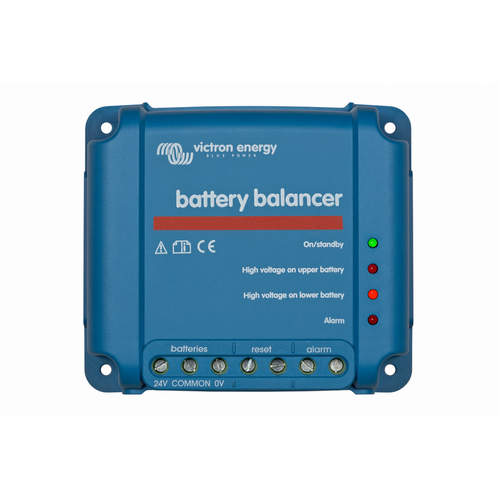

Victron Battery Balancer

SKU: BBA000100100 Learn More»
$94
$96
In StockDispatch 5-7 Days

CALCULATE SHIPPING:

Learn More»

Description

Victron Battery Balancer, 5 Year Warranty. The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries.When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.

If needed, several balancers can be paralleled. A 48V battery bank can be balanced with three Battery Balancers.

The problem: the service life of an expensive battery bank can be substantially shortened due to state of charge unbalance:

One battery with a slightly higher internal leakage current in a 24V or 48V bank of several series/parallel connected batteries will cause undercharge of that battery and parallel connected batteries, and overcharge of the series connected batteries. Moreover, when new cells or batteries are connected in series, they should all have the same initial state of charge. Small differences will be ironed out during absorption or equalize charging, but large differences will result in damage due to excessive gassing (caused by overcharging) of the batteries with the higher initial state of charge and sulphation (caused by undercharging) of the batteries with the lower initial state of charge.

The Solution: battery balancing:

The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries.
When the charge voltage of a 24V battery system increases to more than 27,3V, the Battery Balancer will turn on and compare the voltag over the two series connected batteries. The Battery Balancer will draw a current of up to 0,7A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.

If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.

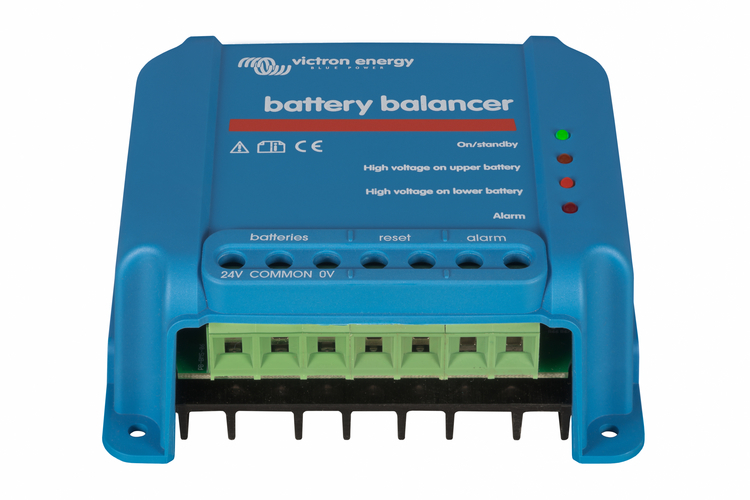

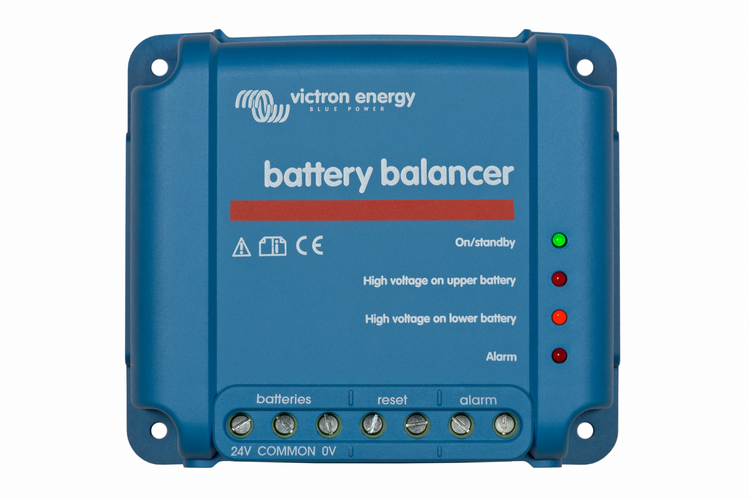

LED indicators:

  • Green: on (battery voltage > 27,3V)
  • Orange: lower battery leg active (deviation > 0,1V)
  • Orange: upper battery leg active (deviation > 0,1V)
  • Red: alarm (deviation > 0,2V). Remains on until the deviation has reduced to less than 0,14V, or until system voltage drops to less than 26,6V.

Alarm relay:

Normally open. The alarm relay closes when the red LED switches on and opens when the red LED switches off.

Alarm reset:

Two terminals are available to connect a push button. Interconnecting the two terminals resets the relay.
The reset condition will remain active until the alarm is over. Thereafter the relay will close again when a new alarm occurs.

Even more insight and control with the midpoint monitoring function of the BMV-702 Battery Monitor:

The BMV-702 measures the midpoint of a string of cells or batteries. It displays the deviation from the ideal midpoint in volts or percent. Separate deviation percentages can be set to trigger a visual/audible alarm and to close a potential free relay contact for remote alarm purposes.
Please see the manual of the BMV-702 for more information about battery balancing.



Victron BPU12/30-3 Product Card

Show More

Specifications

SKU BBA000100100

Brand Victron

GTIN 8719076020950

Product Category Batteries Other

Product Type Battery Balancer

Current Max. Balancing - 0,7A (when deviation > 100 mV)

Protections IP22

Dimensions 47 x 113 x 100

Safety EN 60950, CSA/UL 62368-1

Operating Range (temp) -30 to +50°C

Current draw 0,7 mA (when off)

Net Weight (kg) 0.4

Emission / Immunity EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2

Input Voltage Up to 18V per battery, 36V total

Humidity 95%
