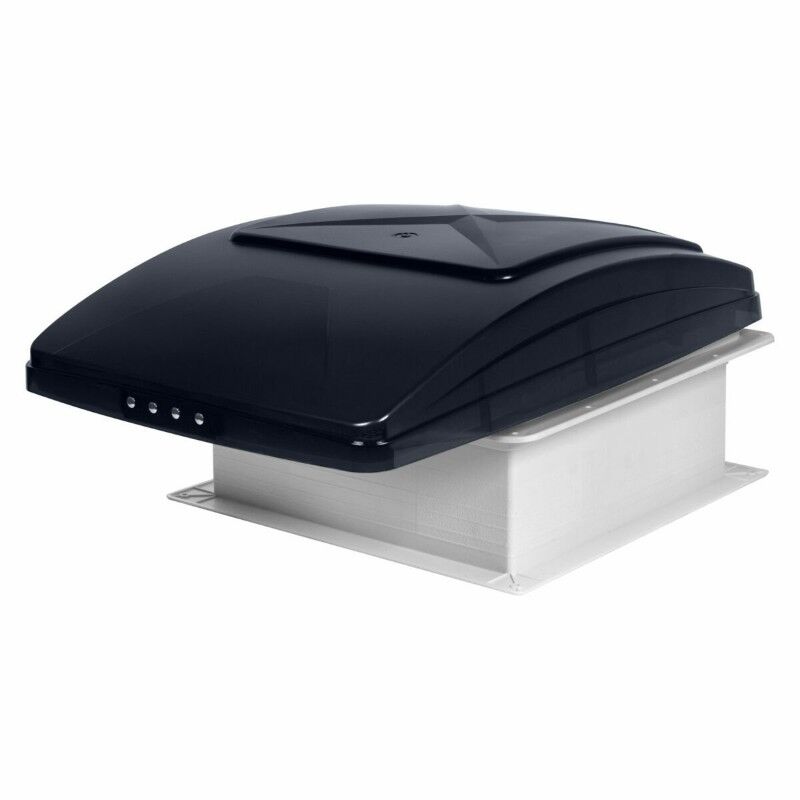

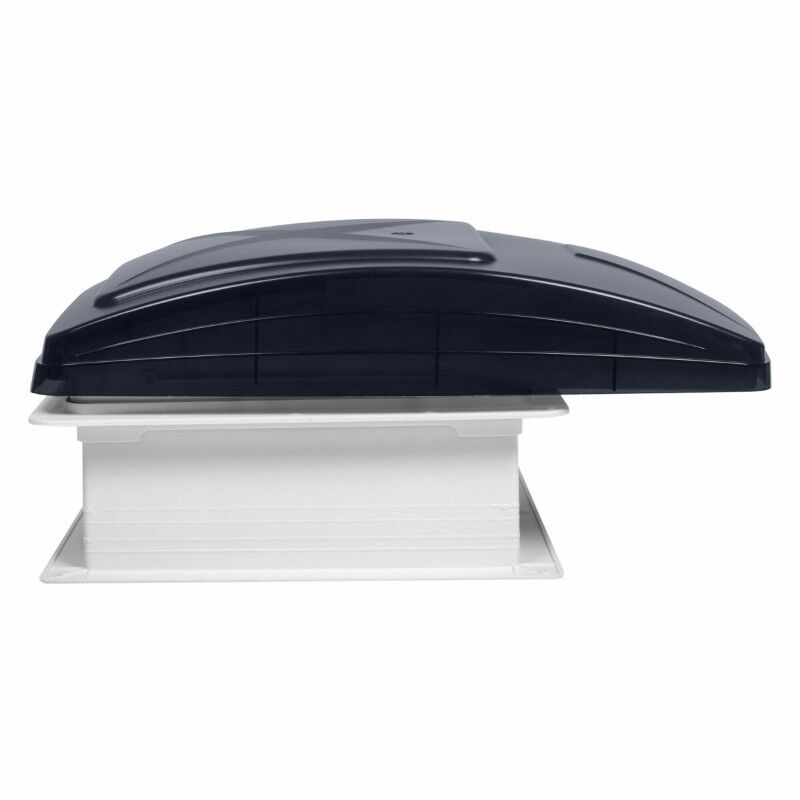

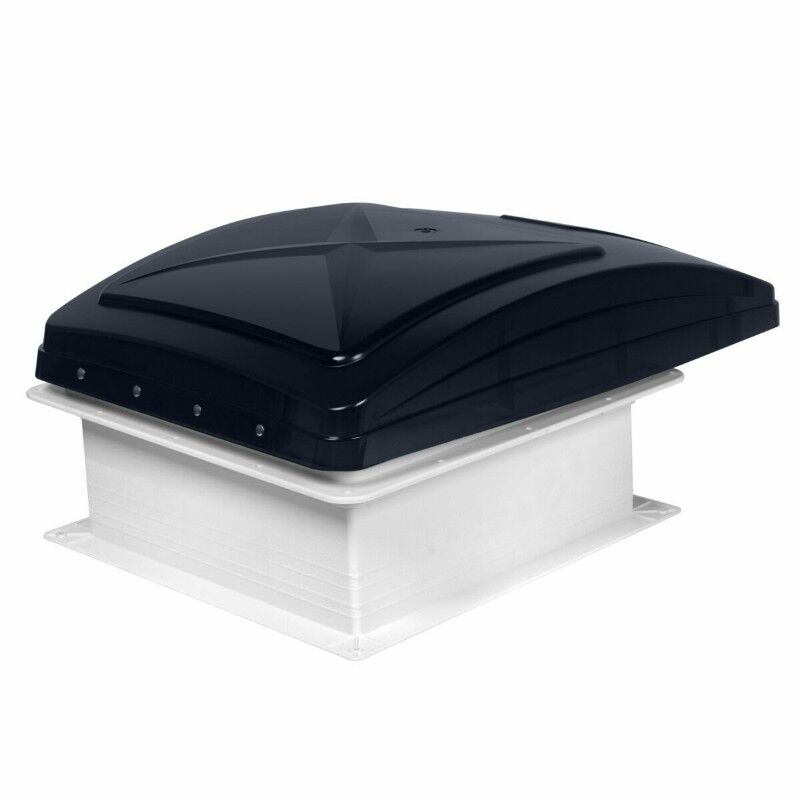

TRA Manual Flexi Roof Hatch

Product Description

TRA Manual Flexi Roof Hatch, 2 Year Warranty. The 12V caravan roof vent TRA-RVM-FLEX from TRA Australia combines powerful reversible ventilation with a built-in rain shield for caravans, RVs and motorhomes. The variable-speed fan can be adjusted from 10% to 100% in both intake and extraction modes, while the manual lift lid, removable insect screen and integrated rain-shield design provide flexible ventilation in changing conditions.

Features:

• Built-In Rain Shield. The integrated rain-shield design provides additional protection around the roof ventilation opening while allowing the FLEXI to provide practical ventilation in changing weather conditions.
• Variable-Speed Reversible Airflow. Choose between intake (IN) and extraction (OUT), with fan speed adjustable from 10% to 100% for precise control over ventilation.

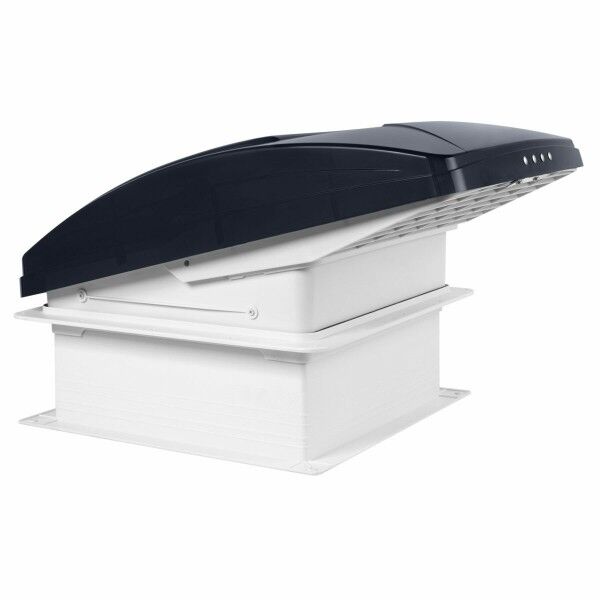

• Manual Lift Lid. The roof vent lid is manually opened and closed using the internal control knob, giving you straightforward control over the roof opening.

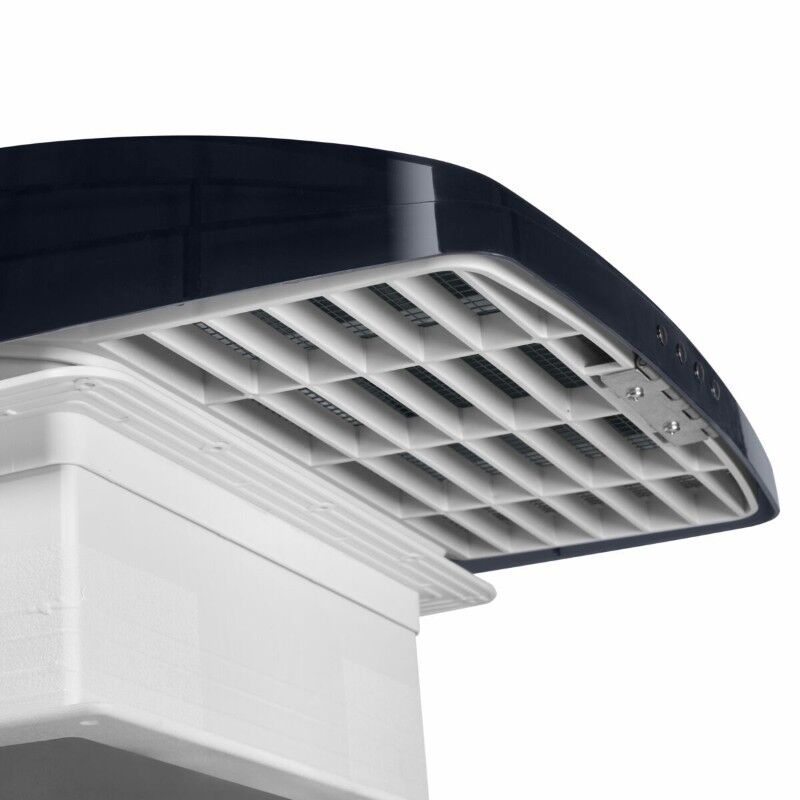

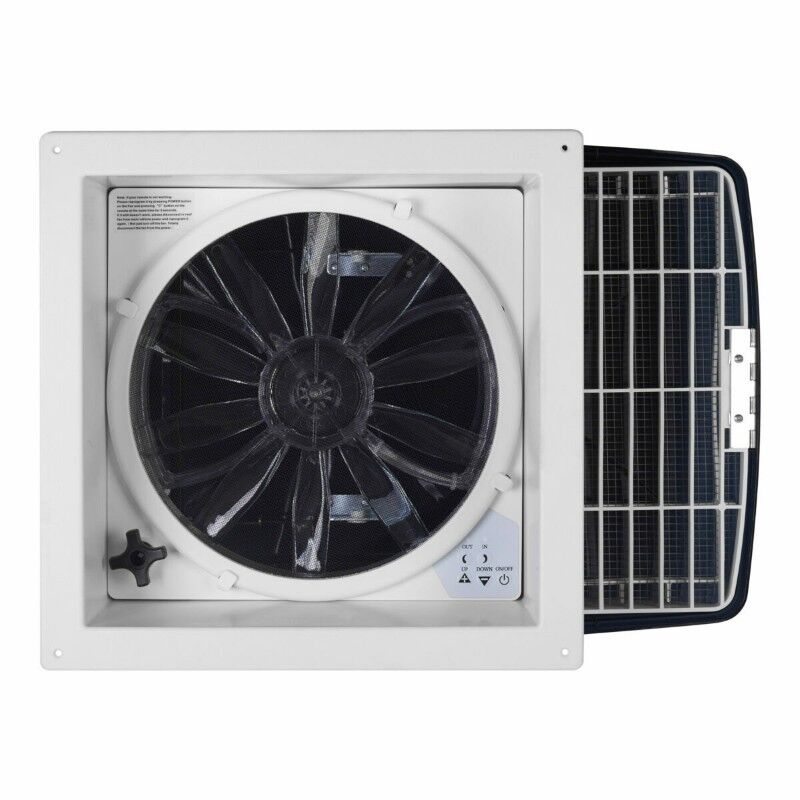

• Removable Insect Screen. The insect protection screen helps keep insects outside and can be removed to access the fan for cleaning and maintenance.
• Wide Roof Thickness Range. Designed for roof thicknesses from 40–200 mm, with a 150 mm internal garnish that can be trimmed to suit the installation.
• 2-Year Product Warranty. Backed by TRA Australia with a 2-year product warranty for additional confidence.

Specifications:

• Power Supply: 12V DC
• Power: 20W
• Current Draw: 1.6A on high speed
• Roof Cut-Out: 360 × 360 mm
• Roof Thickness: 40–200 mm
• Roof Section Size: 580 × 430 mm
• Closed Height Above Roof: Approximately 130 mm
• Airflow Direction: Reversible – intake (IN) and extraction (OUT)
• Fan Speed Control: Variable – adjustable from 10% to 100%
• Maximum Fan Speed: 1200 RPM
• Lid Operation: Manual lift
• Rain Protection: Built-in rain shield
• Internal Garnish Height: 150 mm – trim to suit
• Insect Screen: Removable for cleaning
• Fuse: No built-in fuse
• Weight: 8 kg
